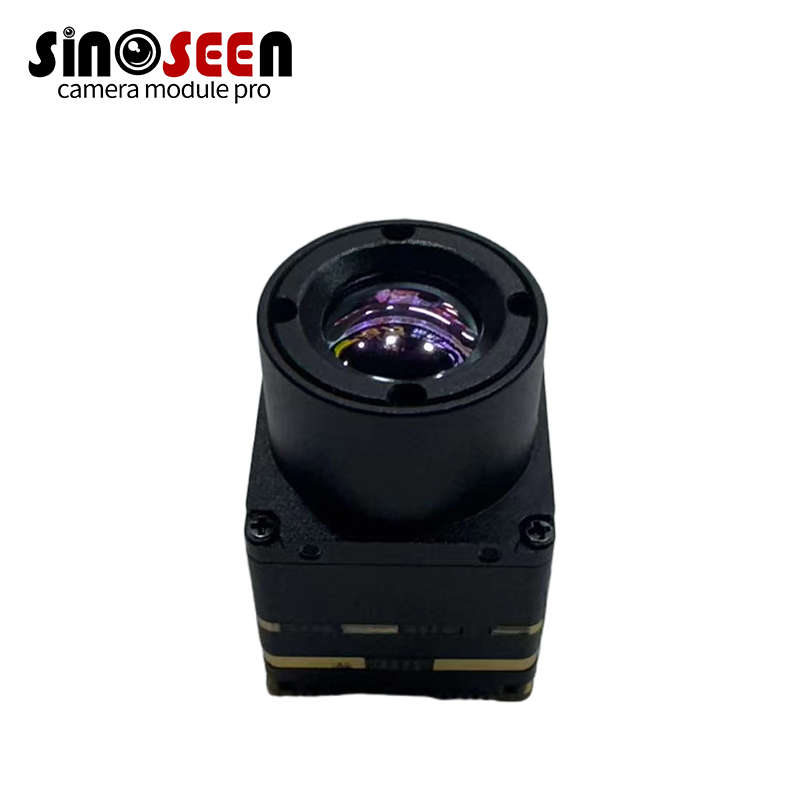

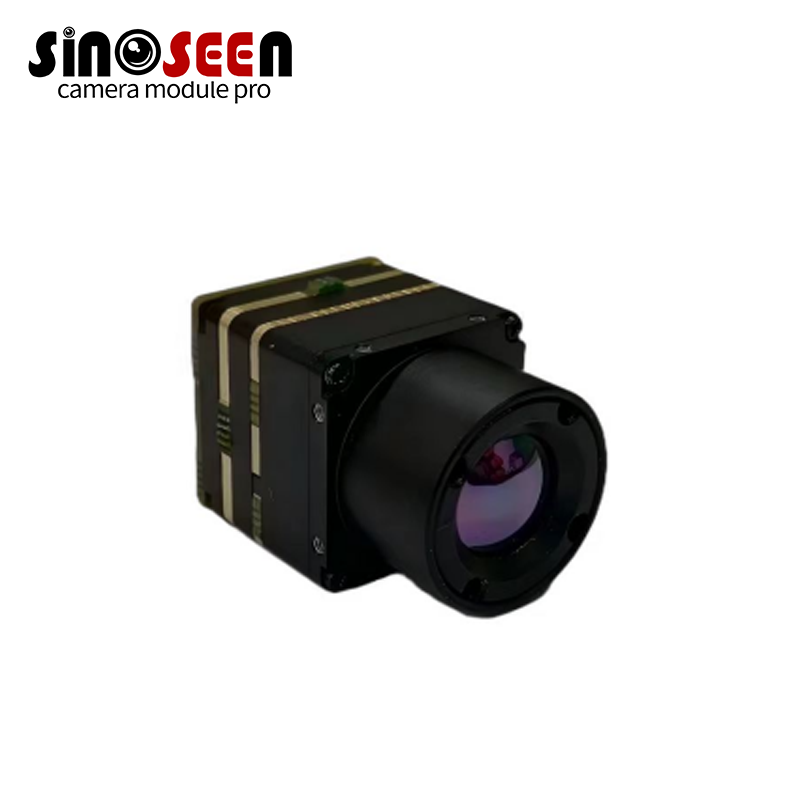

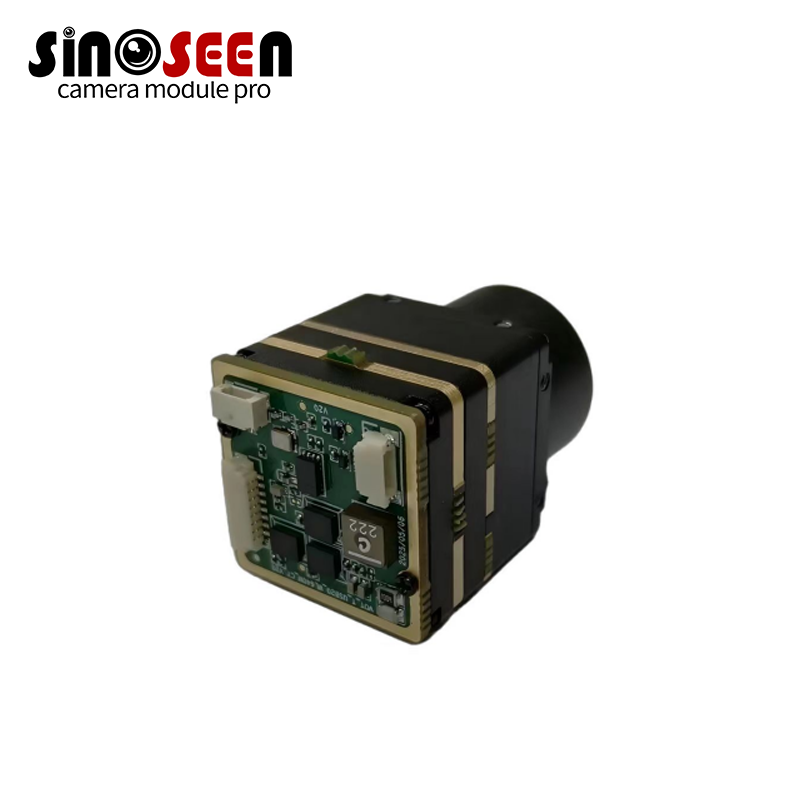

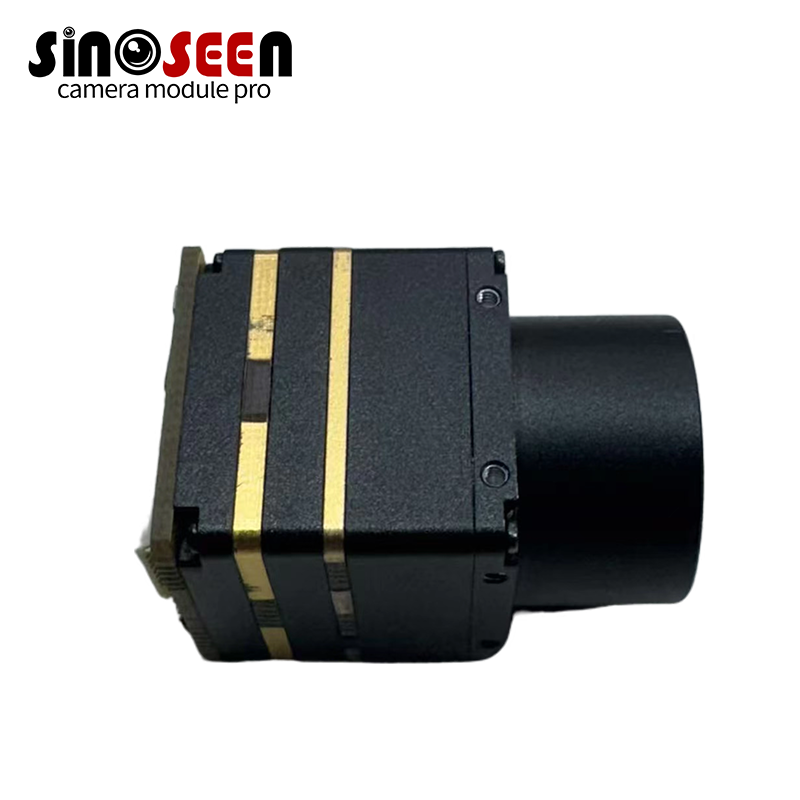

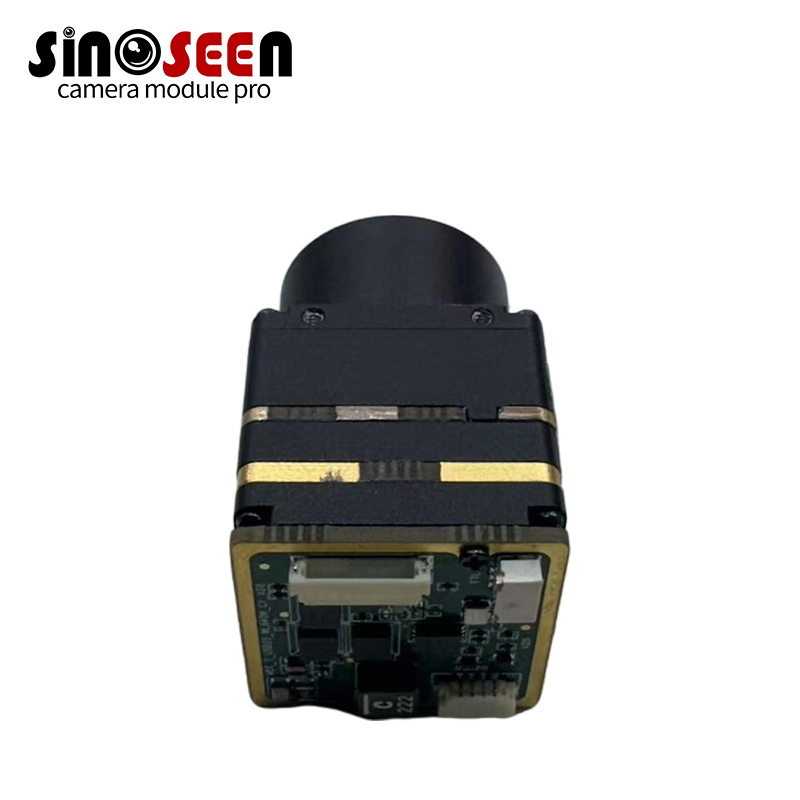

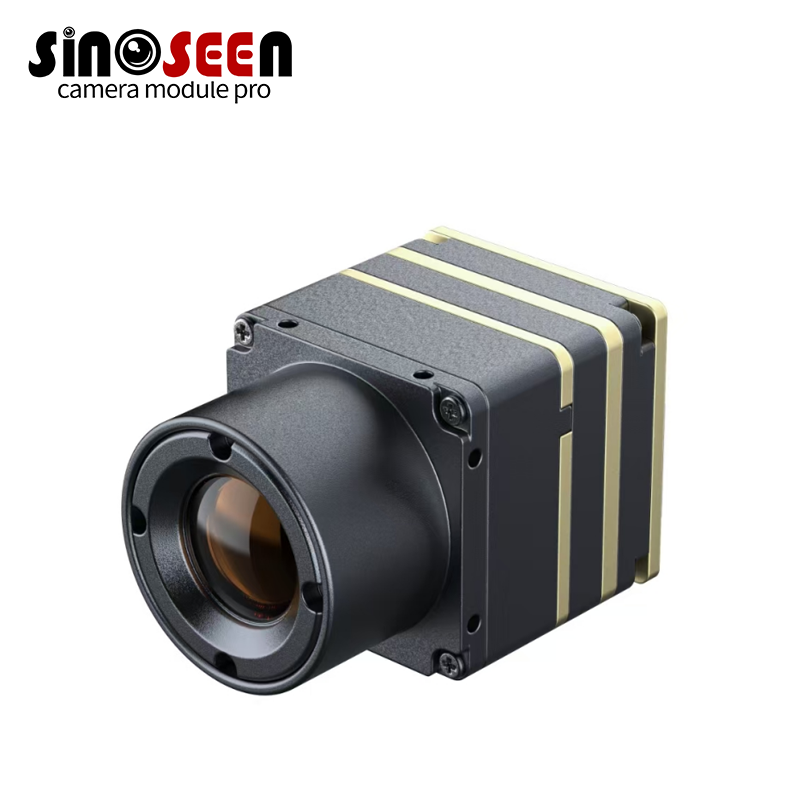

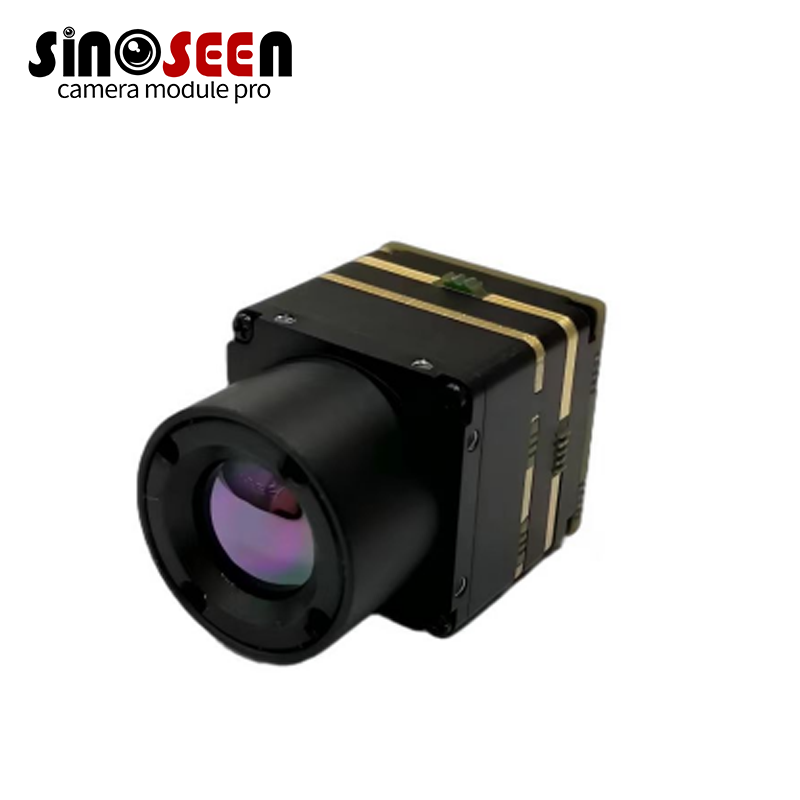

thermal imaging camera module 640x512 resolution VOx infrared detector CVBS video output interface for vehicle night vision High resolution

thermal imaging camera module 640x512 resolution VOx infrared detector CVBS video output interface for vehicle night vision High resolution

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	Sinoseen
Certification:	RoHS
Model Number:	XLS-640-thermal

Payment & Shipping Terms:

Minimum Order Quantity:	3
Price:	negotiable
Packaging Details:	Tray+Anti-static bag in carton box
Delivery Time:	2-3weeks
Payment Terms:	T/T
Supply Ability:	500000 pieces/month

Inquiry

Parameter
Related products
Inquiry

OVERVIEW

This thermal imaging camera module is a high-performance infrared imaging solution. It utilizes a 640x512 resolution VOx infrared detector for excellent image quality. Combined with advanced image processing algorithms, it delivers high-definition, sharp, and richly detailed images while maintaining a fast frame rate and high temperature measurement accuracy.

The module's advantages lie in its compact size (21x21x36.4mm), light weight (24.5g), and ultra-low power consumption (≤ 0.85W). These features enable easy integration into compact systems with stringent space, weight, and energy requirements. It supports the 8-14μm operating wavelength band and boasts an ultra-low NETD of ≤40mK, ensuring accurate capture of even the smallest temperature differences.

In terms of functionality, the module offers a wide range of image processing options, such as non-uniformity correction, digital filtering for noise reduction, and digital detail enhancement, to optimize imaging. Through the CVBS video output interface, the movement can be flexibly integrated with various systems and is widely used in many professional fields such as drones, handheld devices, security monitoring, vehicle night vision, Industry 4.0, etc.

features

High sensitivity, high-definition and stable imaging quality;

high frame rate, smooth detection of fast-moving targets;

highly integrated, easy to develop;

compact size, low weight, and low power consumption

Specification

IR Detector	Resolution	640x512
	Spectralrange	8~14μm
	Detectortype	VOx
	Pixthpitch	12μm
	NETD	≤40mK
	Lens	9.1mm
	Framerate	≤50Hz
Image adjustment	BrightorContrastadjustment	Autoormanual
	Polarity	WhiteHotorBlackHot
	Colorpalettes	Iron,Ironinvert,Rainbow,Feather
	E-zoom	X1、X2、X4
Image adjustment	Imageprocessing	NUC，digitalfilternoisereduction,digitaldetailsenhanced
	Imagemirror	Leftandright,Upanddown
	Outputresolution	640X512
Power	Power	Overcurrentprotection,overvoltageprotection,reverseinputprotection
	Powerinput	DC5V
	Powerconsumption	≤0.85W
Common	Videooutput	USB
	Communicationport	UARTTTL/USB
	OperatingTemperature	-20℃~+60℃
	StorageTemperature	-45℃~+85℃
	Dimension	21×21×33.9mm（with9.1mmLens）
	Weight	24.5g（with9.1mmLens）

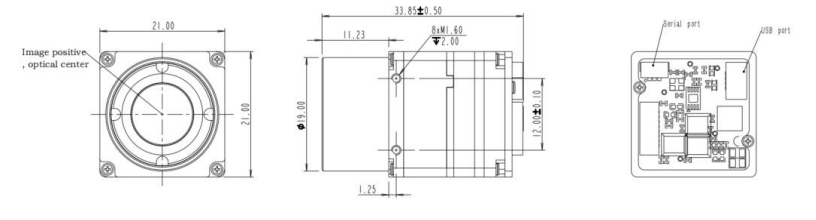

Dimension

Customization Services Available

Whether you need a special lens field-of-view, thermal housing, or integration with AI accelerators, Sinoseen's engineering team will provide tailored solutions quickly and reliably.
