SC3336 3MP CMOS Camera Module Low-Light & Wide Dynamic Range Sensor Compact for AI vision camera

SC3336 3MP CMOS Camera Module Low-Light & Wide Dynamic Range Sensor Compact for AI vision camera

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	Sinoseen
Certification:	RoHS
Model Number:	SNS32182-V1.0

Payment & Shipping Terms:

Minimum Order Quantity:	3
Price:	10-100usd or negotiable
Packaging Details:	Tray+Anti-static bag in carton box
Delivery Time:	2-3weeks
Payment Terms:	T/T
Supply Ability:	500000 pieces/month

Inquiry

Parameter
Related products
Inquiry

Detail Information

Type:	MIPI Camera Module	Sensor:	SC3336
Resolution:	2304 × 1296	Dimensions:	(customizable)
Lens FOV:	74°(optional)	Focus Type:	Fixed Focus
Interface:	MIPI	Feature:	Full HD
High Light:	MIPI Camera Module Full HD Camera Module SC3336 module camera MIPI

Product Description

The SC3336 (SNS32182-V1.0) is a 3MP CMOS image sensor module designed for high-quality video capture in smart devices. It delivers 2304 × 1296 resolution at 30fps, giving you smooth and detailed video for a wide range of applications.

Thanks to its wide dynamic range (78 dB) and strong low-light sensitivity, the SC3336 ensures clear imaging whether it’s used in security cameras, drones, dash cams, or smart doorbells. The module comes with a MIPI interface, compact design, and fixed-focus lens, making it easy to integrate with platforms such as Qualcomm, Rockchip, MTK, HiSilicon, and Allwinner.

If you need a reliable and flexible camera sensor for AI vision, surveillance, or consumer electronics, the SC3336 offers clarity, efficiency, and simple integration.

SC3336 Camera Module (SNS32182-V1.0) Specifications

Module Information

Parameter	Specification
Model	SNS32182-V1.0
Sensor	SmartSens SC3336
Interface	MIPI (1/2 Lane, 8/10-bit)
Optical Format	1/2.8 inch
Pixel Size	2.45 µm × 2.45 µm
Resolution	2304 × 1296 (3MP)
Frame Rate	30 fps (2304×1296 @10-bit)
Shutter Type	Electronic rolling shutter
Focus Type	Fixed Focus (FF)
Lens FOV (optional)	130°

Electrical Characteristics

Parameter	Value
Analog Supply (AVDD)	2.8 V ±0.1V
Digital I/O (DOVDD)	1.8 V ±0.1V
Digital Core (DVDD)	Internal LDO (external supply optional, contact FAE)
Power Consumption	Low power, optimized for embedded systems

Image Quality Features

Feature	Details
ADC Resolution	10-bit
Output Format	RAW RGB
Dynamic Range	78 dB
SNR (Signal-to-Noise)	38 dB
Sensitivity	5053 mV/lux·s
CRA (Chief Ray Angle)	15°
Image Processing	Windowing, H-mirror, V-flip
External Sync	EFSYNC/FSYNC exposure control

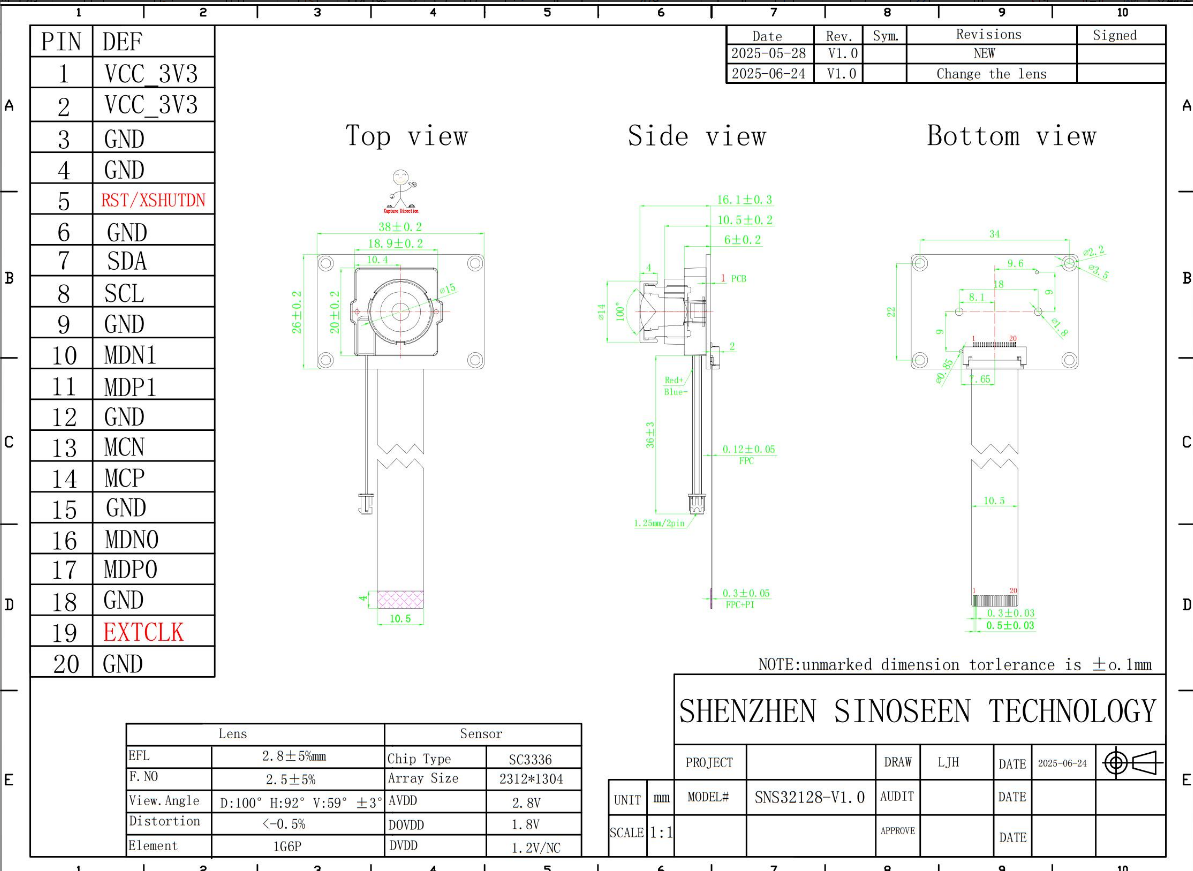

Mechanical Characteristics

Parameter	Specification
Module Size	75 × 8.5 mm
Sensor Package	CSP, 6.199 mm × 4.139 mm, 35-pin
Package Height	16.1 ±0.3 mm
Base Dimensions	20 × 18.9 mm
Operating Temp.	-30°C ~ +85°C
Optimal Temp. Range	-20°C ~ +60°C
IR Filter	650 nm cutoff
ESD Protection	HBM: Class 3A / CDM: Class C3
