OV9281 Camera Module 1MP Global Shutter 120fps MIPI interface for barcode scanner and machine vision
Product Details:
|
Place of Origin: |
Shenzhen,China |
|
Brand Name: |
Sinoseen |
|
Certification: |
RoHS |
|
Model Number: |
XLS12073-V1.0 |
Payment & Shipping Terms:
|
Minimum Order Quantity: |
3 |
|
Price: |
10-100usd or negotiable |
|
Packaging Details: |
Tray+Anti-static bag in carton box |
|
Delivery Time: |
2-3weeks |
|
Payment Terms: |
T/T |
|
Supply Ability: |
500000 pieces/month |
- Parameter
- Related products
- Inquiry
Detail Information
Type: |
MIPI Camera Module |
Sensor: |
OV9281 Monochrome CMOS |
Resolution: |
1280 × 800 |
Dimensions: |
(customizable) |
Lens FOV: |
78°(optional) |
Focus Type: |
Fixed Focus |
Interface: |
MIPI |
Feature: |
Global Shutter, 120fps |
High Light: |
OV9281 Monochrome CMOS Camera Module Global Shutter Camera Module MIPI module camera |
||
Product Description
The XLS12073-V1.0 OV9281 camera module is a compact and high-performance 1MP global shutter camera designed for fast and accurate image capture. With a 1/4-inch sensor and 3.0μm pixel size, it delivers 1280×800 resolution at up to 120fps, ensuring smooth and precise imaging in dynamic environments. Its monochrome CMOS design and 10-bit RAW output make it ideal for barcode scanning, QR code recognition, and machine vision applications.
Product Highlights
High-Speed Imaging – Up to 120fps for real-time capture
Global Shutter Monochrome Sensor – Sharp images without motion blur
Wide 120° FOV Option – Covers larger scenes with reduced distortion
MIPI/DVP Output – Flexible interface for multiple platforms
OV9281 Camera Module (XLS12073-V1.0) Specifications
| Item | Specification |
|---|---|
| Model | XLS12073-V1.0 |
| Sensor | OV9281 Monochrome CMOS |
| Sensor Size | 1/4 inch |
| Effective Pixels | 1280 × 800 (1MP) |
| Frame Rate | 1280×800 @120fps / 640×480 @120fps / 320×240 @120fps |
| Pixel Size | 3.0 μm × 3.0 μm |
| Shutter Type | Global Shutter |
| Output Interface | 1/2-lane MIPI, DVP parallel |
| Output Format | 10-bit RAW |
| Focus Type | Fixed Focus (FF) |
| Field of View (FOV) | 120° (optional) |
| Lens Size | 1/4 inch |

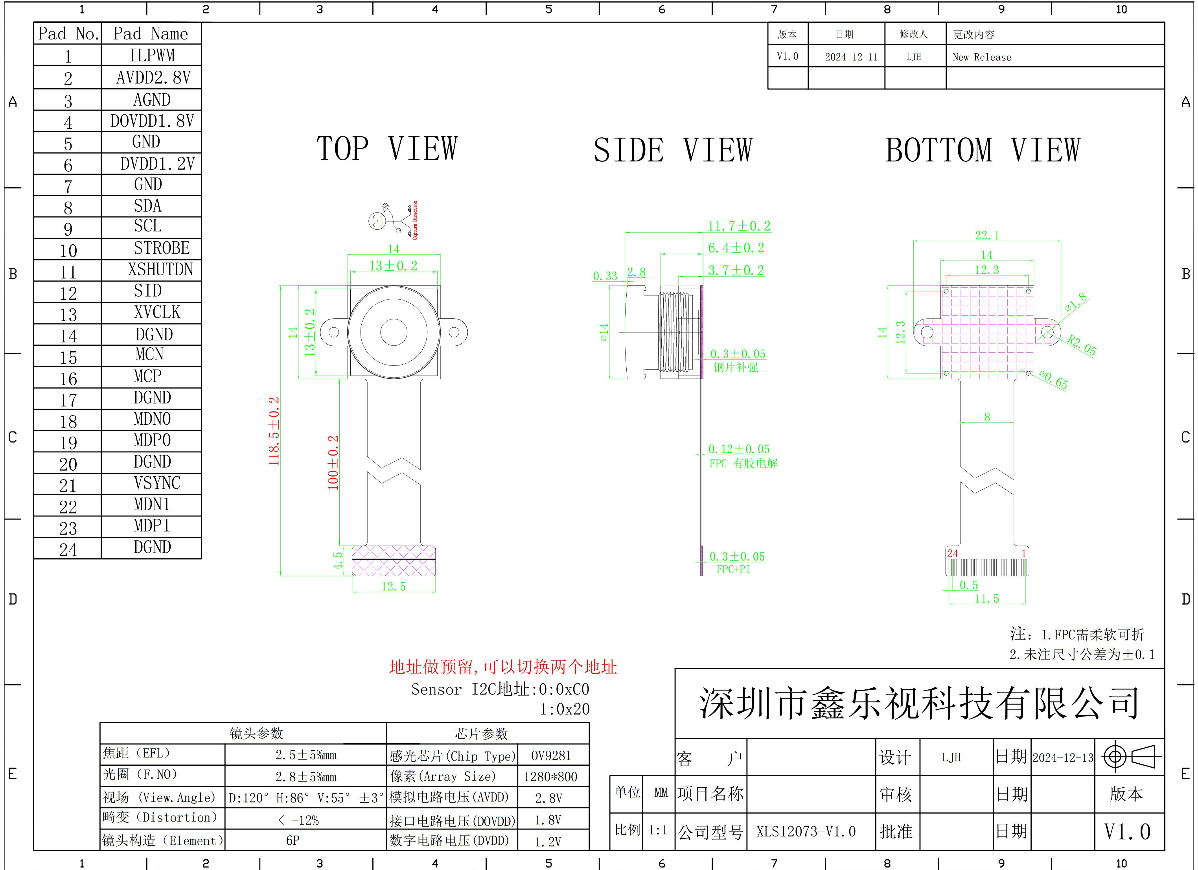

| Module Dimensions | 118.5 × 14 mm |
| Package Size | 11.7 × 13 mm |
| Power Supply | Analog: 2.8V (typical), Core: 1.2V (typical), I/O: 1.8V (typical) |
| Power Consumption | Active: 134mW, Standby: 65μA, Shutdown: 50μA |
| Operating Temperature | -30°C to +85°C |
| Stable Imaging Temperature | 0°C to 50°C |
| Image Area | 3896 μm × 2453 μm |
| Active Array Size | 1296 × 816 |
| Scan Mode | Progressive |
| Exposure Time | Min: 1 row period / Max: frame length - 12 row periods |
| Platform Compatibility | Rockchip, Qualcomm, Allwinner, MTK, Spreadtrum, Hisilicon, Mstar, STM32 |
| Typical Applications | Barcode scanning, QR code recognition, 3D scanning, industrial inspection, face recognition, AR/VR devices, pattern detection, gesture recognition, iris recognition, machine vision, high-speed capture |
