IMX586 Camera Module 48MP Sony Sensor
Product Details:
|
Place of Origin: |
Shenzhen,China |
|
Brand Name: |
Sinoseen |
|
Certification: |
RoHS |
|
Model Number: |
SNS482273-V1.1 |
Payment & Shipping Terms:
|
Minimum Order Quantity: |
3 |
|
Price: |
negotiable |
|
Packaging Details: |
Tray+Anti-static bag in carton box |
|
Delivery Time: |
2-3weeks |
|
Payment Terms: |
T/T |
|
Supply Ability: |
500000 pieces/month |
- Parameter
- Related products
- Inquiry

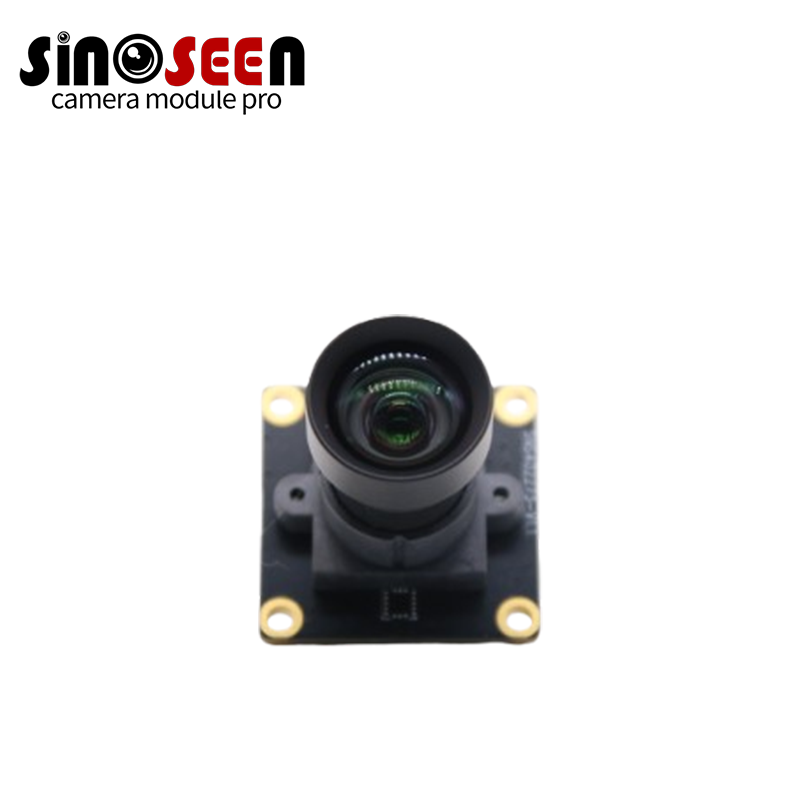

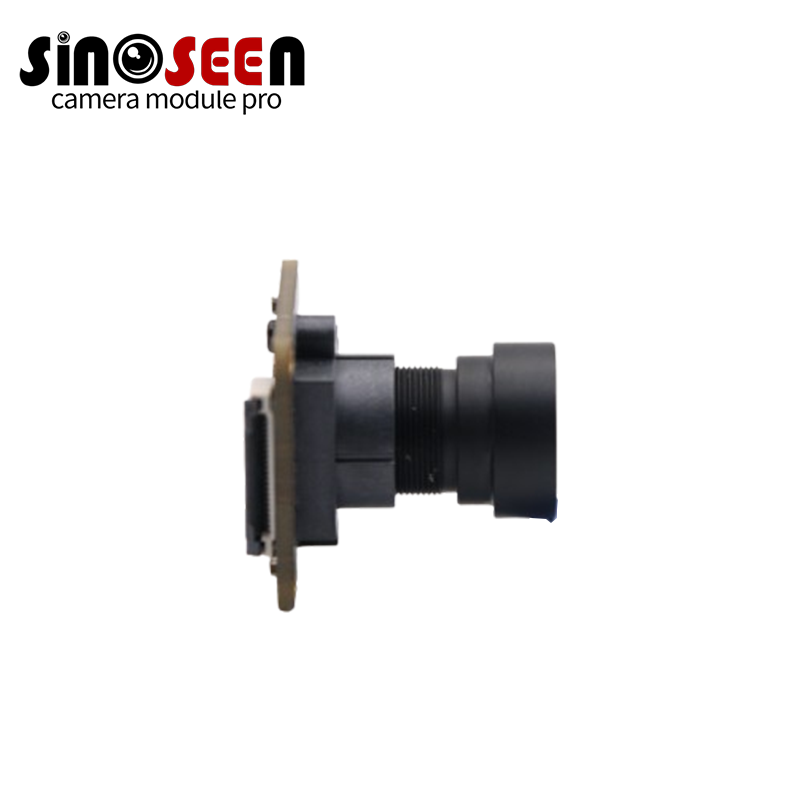

High-Performance IMX586 Camera Module: Sony 48MP Stacked CMOS Sensor
Launched in 2018, the Sony IMX586 remains one of the most sought-after high-resolution sensors for professional embedded vision. The imx586 camera module incorporates a 1/2.0-type stacked BSI CMOS sensor with an 8000×6000 active pixel array and industry-leading 0.8μm pixel pitch using Quad Bayer color filter structure[1]. This architecture enables true 48MP stills, real-time 4K video at 120fps, and exceptional low-light performance through 4-cell pixel binning. As the global 48MP+ industrial camera module segment continues to grow at a CAGR of 14.3% through 2030[2], our 48mp imx586 camera module delivers flagship-grade imaging for demanding B2B applications.
Supporting 4-lane MIPI CSI-2 with up to 2.5 Gbps/lane, the mipi imx586 camera module integrates seamlessly with latest-generation SoCs. Enterprises pursuing wholesale imx586 camera module procurement benefit from stable long-term supply, while customized imx586 camera module services enable lens selection, autofocus integration, and firmware optimization for specialized high resolution imx586 camera module requirements.
Key Product Advantages
- Native 48MP Resolution: 8000×6000 pixels with 0.8μm Quad Bayer array – unmatched detail in 48mp imx586 camera module applications.
- Quad Bayer Flexibility: Full-resolution 48MP, 12MP binned (1.6μm equivalent), or real-time remosaic algorithms.
- Ultra-High-Speed Readout: 4K@120fps, 1080p@240fps – ideal for slow-motion and high-frame-rate inspection.
- Superior Low-Light Performance: Stacked BSI design + pixel binning delivers clean images in high resolution imx586 camera module challenging lighting.
- Compact Professional Package: 15.3×15.3×25.4 mm with standard 650nm IR-cut filter (removable).
Product Specifications
| Parameter | Specification |
|---|---|
| Sensor | Sony IMX586 1/2.0" Stacked BSI CMOS |
| Active Pixels | 8000 × 6000 (48MP) |
| Total Pixels | 8032 × 6248 |
| Pixel Size | 0.8 μm × 0.8 μm (Quad Bayer) |
| Optical Format | Diagonal 8.0 mm (Type 1/2.0) |
| Output Interface | MIPI CSI-2 4-lane (up to 2.5 Gbps/lane) |
| Max Video | 4K@120fps · 1080p@240fps · 48MP@30fps (remosaic) |
| Color Filter | Quad Bayer RGB |
| Power Supply | Analog 2.9V/1.8V · Digital 1.1V · I/O 1.8V |
| Module Size | 15.3 × 15.3 × 25.4 ± 0.3 mm (imx586 camera module) |
| IR Filter | 650 nm standard (removable) |
Product Application Areas
- High-End Security & ANPR – license plate reading at distance with 48mp imx586 camera module.
- Industrial Quality Inspection – microscopic defect detection with extreme resolution.
- Smart Retail Analytics – people counting and behavior analysis in large areas.
- Document & Archive Scanning – A3/A4 ultra-high-detail capture.
- Medical & Scientific Imaging – precision microscopy with customized imx586 camera module.
About Sinoseen
Sinoseen, a leading China camera module manufacturer with over ten years of industry experience, provides complete visual solutions to global B2B customers. We specialize in wholesale imx586 camera module distribution and customized imx586 camera module development across MIPI, USB, and GMSL interfaces through full OEM/ODM services. Our professional engineering and service teams deliver one-stop support from optical design to mass production. Contact us today to leverage our imx586 camera module expertise for your next flagship product.
Customization Process
- Requirement Submission – Define lens, autofocus, and output format for your customized imx586 camera module.
- Optical Design – Select fixed-focus, VCM autofocus, or liquid lens solutions.
- Rapid Prototyping – Functional samples delivered in 14–21 days.
- Validation & Tuning – Full IQ tuning and environmental testing.
- Mass Production Launch – Complete traceability and quality assurance.
Total Cost of Ownership (TCO) Comparison
| Aspect | Sinoseen IMX586 Module | Lower-Resolution Alternatives |
|---|---|---|
| Coverage per Camera | Single 48MP replaces 4–6 lower-res units | Multiple cameras required |
| Bandwidth & Storage | Optimized with on-the-fly remosaic | Higher total data volume |
| Installation & Maintenance | Single point | Complex multi-camera alignment |
| Overall TCO Impact | 30–45% lower over 5-year lifecycle | Higher infrastructure cost |
Compliance Package & Supply Chain Security
All IMX586 camera modules comply with RoHS, REACH, CE, and FCC standards. Our supply chain is certified to ISO 9001 and IATF 16949 with diversified component sourcing and 12-month buffer inventory ensuring uninterrupted delivery.
Mass Production Risk Matrix & After-Sales KPIs
| Risk | Probability | Mitigation |
|---|---|---|
| Sensor Supply | Low | Sony long-term supply commitment + buffer stock |
| Yield Fluctuation | Medium | Automated active alignment → 98%+ yield |
| Delivery Delay | Low | Air: 5–10 days to US/EU · Sea: 20–30 days |
After-sales KPIs: 95% first-contact resolution within 24 h · 99% spare parts on-time · >99.5% first-year reliability.
Common Buyer FAQs
Q: Does the mipi imx586 camera module support real-time 12MP 90fps with pixel binning?
A: Yes – native Quad Bayer 4-cell binning provides 12MP@90fps with excellent low-light performance.
Q: Can we order a customized imx586 camera module with VCM autofocus and M12 lens?
A: Standard lead time for autofocus versions is 3–5 weeks.
Q: Is the 48mp imx586 camera module compatible with NVIDIA Jetson and Qualcomm platforms?
A: Fully verified drivers and ISP tuning available.
Q: What is the MOQ for wholesale imx586 camera module?
A: Flexible MOQ starting from 100 pcs for standard configuration.
Q: Can the IR-cut filter be removed for multispectral applications?
A: Yes – full-spectrum versions are readily available.
Industry Challenges & Solutions
-
Challenge: Achieving smartphone-grade image quality in industrial products
Solution: Genuine Sony IMX586 with professional tuning in 48mp imx586 camera module. -
Challenge: Managing high-resolution bandwidth
Solution: On-the-fly remosaic and cropping reduce data rate. -
Challenge: Low-light performance at 48MP
Solution: Quad Bayer binning delivers 1.6μm-equivalent sensitivity.
Footnotes
- Quad Bayer: Sony's 2×2 color filter arrangement enabling both high-resolution and high-sensitivity modes.
- 48MP+ industrial camera module market CAGR 2024–2030: Yole Développement & IC Insights reports.
