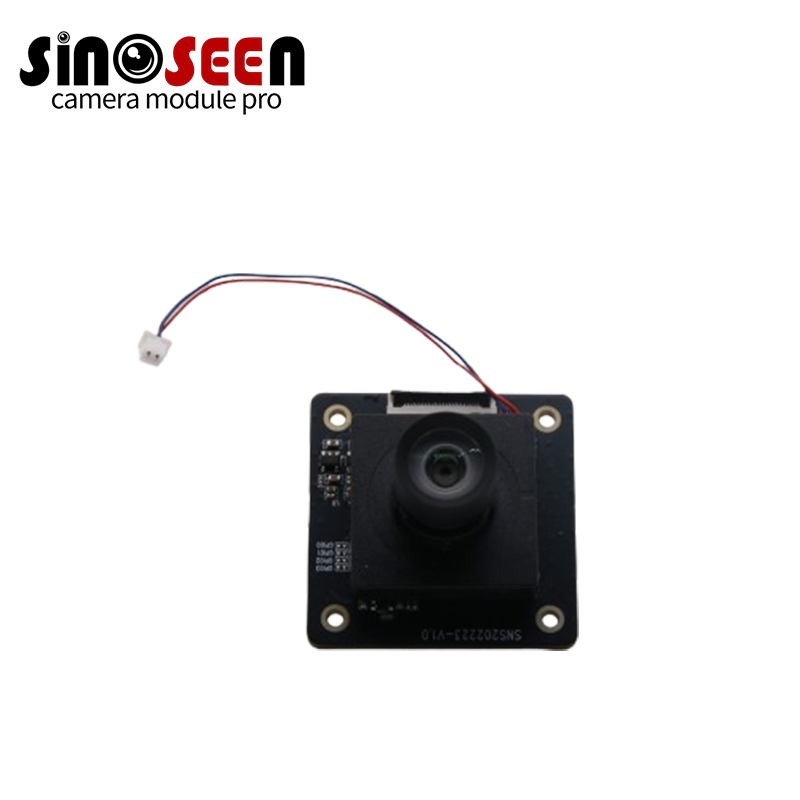

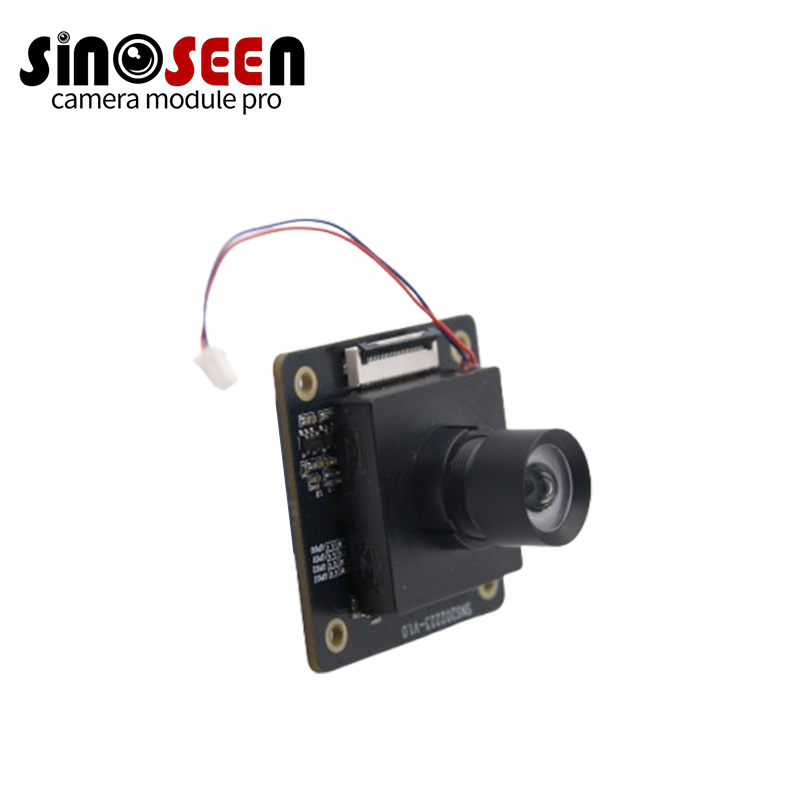

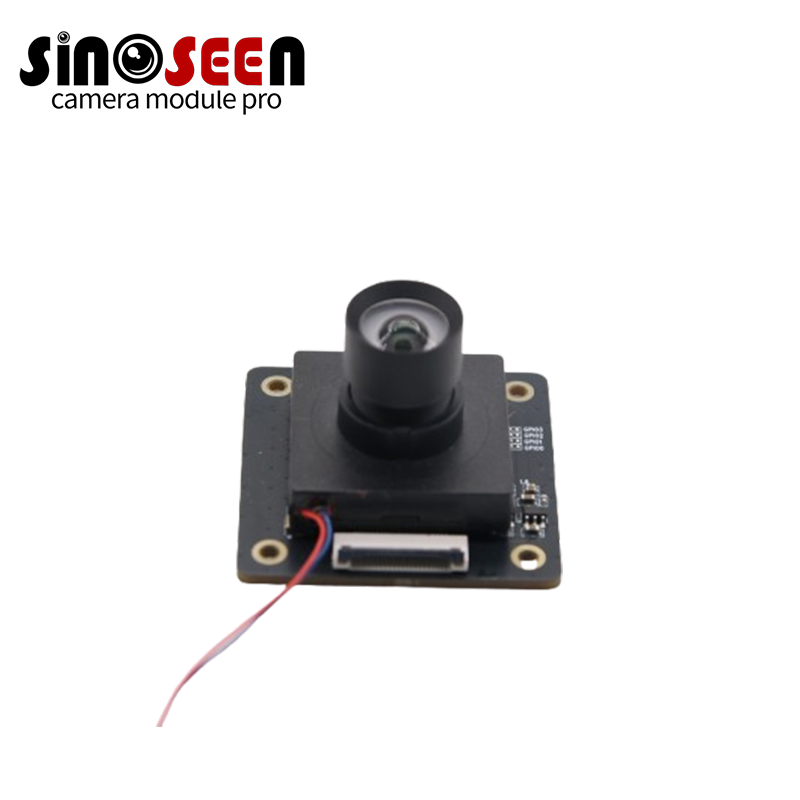

AR2020 Camera Module 20MP 1/1.8" BSI MIPI
Product Details:
|
Place of Origin: |
Shenzhen,China |
|
Brand Name: |
Sinoseen |
|
Certification: |
RoHS |
|
Model Number: |
SNS202223-V1.0 |
Payment & Shipping Terms:
|
Minimum Order Quantity: |
3 |
|
Price: |
negotiable |
|
Packaging Details: |
Tray+Anti-static bag in carton box |
|
Delivery Time: |
2-3weeks |
|
Payment Terms: |
T/T |
|
Supply Ability: |
500000 pieces/month |
- Parameter
- Related products
- Inquiry
Premium AR2020 Camera Module: 20MP 1/1.8" BSI with 60fps & Enhanced NIR
In the era of ultra-high-definition visual intelligence, the ar2020 camera module from onsemi represents the pinnacle of 20-megapixel imaging technology. Featuring a large 1/1.8-inch back-side illuminated (BSI) sensor with 5120×3840 active pixels and 1.4μm pixel pitch, this module achieves 60 fps in linear mode and 30 fps in Line-Interleaved HDR (LI-HDR)[1], while offering class-leading near-infrared sensitivity. As the global high-resolution (>12MP) camera module market is forecasted to grow at a CAGR of 13.6% through 2030[2], our 20mp ar2020 camera module empowers B2B developers with unmatched detail for smart city and industrial applications.
Supporting up to 2×4-lane MIPI CSI-2 at 2 Gbps/lane, the mipi ar2020 camera module ensures seamless integration into high-bandwidth platforms. Enterprises sourcing wholesale ar2020 camera module volumes benefit from long-term availability, while customized ar2020 camera module services deliver tailored optics, FPC length, and HDR tuning for specialized high resolution ar2020 camera module deployments.
Key Product Advantages
- True 20MP Resolution: 5120×3840 active array with 1.4μm BSI pixels for exceptional detail and low-light performance.
- Ultra-High Frame Rate: 60 fps full-resolution linear and 30 fps LI-HDR – ideal for high resolution ar2020 camera module motion analysis.
- Enhanced NIR Response: Significantly improved quantum efficiency in 850–940 nm band for night vision and depth sensing.
- Flexible MIPI Configuration: 1×1 to 2×4-lane support with 2 Gbps/lane – future-proof for mipi ar2020 camera module platforms.
- Advanced On-Chip Features: SmartROI, scaler, compression, and temperature sensor reduce host processing load.
Product Specifications
| Parameter | Specification |
|---|---|
| Sensor | onsemi AR2020 1/1.8" BSI CMOS |
| Active Pixels | 5120 × 3840 (20MP) |
| Pixel Size | 1.4 μm × 1.4 μm |
| Optical Format | 1/1.8-inch |
| Frame Rate | 60 fps (linear) · 30 fps (LI-HDR) |
| Output Interface | MIPI CSI-2 (up to 2×4-lane, 2 Gbps/lane) |
| HDR Mode | Line-Interleaved HDR (LI-HDR) |
| Chief Ray Angle | 13° |
| Input Clock | 6–48 MHz |
| Operating Temperature | –30°C to +85°C (junction) |

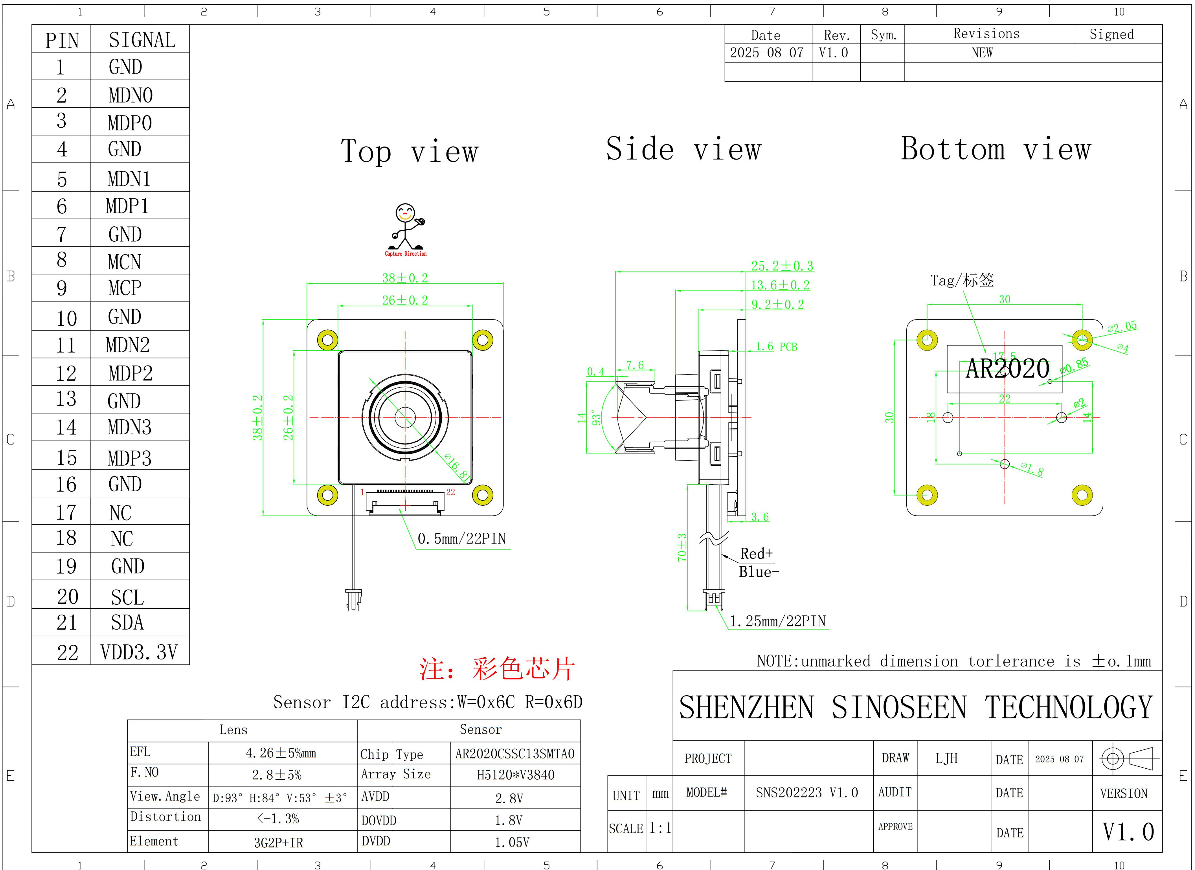

| Module Size | 26 × 26 × 25.2 ± 0.3 mm (ar2020 camera module) |
| IR Filter | 650 nm standard (removable) |
Product Application Areas
- Smart City & Traffic Monitoring – license plate and facial recognition with 20mp ar2020 camera module.
- High-End Surveillance – wide-area coverage with single high resolution ar2020 camera module.
- Machine Vision & Inspection – precision defect detection at high speed.
- Drone & Aerial Imaging – lightweight, high-detail mapping.
- Biometrics & Access Control – enhanced NIR for iris recognition in customized ar2020 camera module.
About Sinoseen
Sinoseen, a premier China camera module manufacturer with over ten years of expertise, delivers world-class visual solutions to global B2B customers. We excel in wholesale ar2020 camera module supply and customized ar2020 camera module engineering, supporting MIPI, USB, and GMSL interfaces through complete OEM/ODM services. Our dedicated technical and service teams provide one-stop support from optical design to mass production. Contact us to integrate our ar2020 camera module into your next-generation vision system.
Customization Process
- Requirement Definition – Specify lens, cable, and HDR mode for your customized ar2020 camera module.
- Optical & Mechanical Design – Optimize M16 lens, FOV, and connector.
- Rapid Prototyping – Functional samples in 14–21 days.
- Full Validation – Thermal, EMI, and reliability testing.
- Volume Production – Seamless scale-up with traceability.
Total Cost of Ownership (TCO) Comparison
| Aspect | Sinoseen AR2020 Module | Multi-Camera Alternatives |
|---|---|---|
| Camera Count Required | 1 module for wide coverage | 4–9 lower-res modules |
| Bandwidth & Processing Load | Optimized with on-chip scaler | Significantly higher |
| Installation Complexity | Single point | Multiple alignment |
| Overall TCO Impact | 30–50% lower over lifecycle | Higher infrastructure cost |
Compliance Package & Supply Chain Security
All modules comply with RoHS, REACH, CE, and FCC standards. Our supply chain operates under ISO 9001 and IATF 16949 with diversified sourcing and 12-month buffer inventory to guarantee continuity.
Mass Production Risk Matrix & After-Sales KPIs
| Risk | Probability | Mitigation |
|---|---|---|
| Sensor Availability | Low | onsemi long-term supply agreement |
| Yield Fluctuation | Medium | Automated active alignment → 98%+ yield |
| Delivery Delay | Low | Air: 5–10 days to US/EU · Sea: 20–30 days |
After-sales KPIs: 95% resolution within 24 h · 99% spare parts on-time · >99.5% first-year reliability.
Common Buyer FAQs
Q: Does the mipi ar2020 camera module support NVIDIA Jetson and Qualcomm RB5?
A: Yes – verified reference designs and drivers provided.
Q: Can we order a customized ar2020 camera module with GMSL2 serializer for automotive?
A: Standard automotive-grade variants available within 4–6 weeks.
Q: Is enhanced NIR version available for iris recognition?
A: Yes – full-spectrum (no IR-cut) versions are in stock.
Q: What is the MOQ for wholesale ar2020 camera module?
A: Flexible MOQ starting from 50 pcs for standard configuration.
Q: Can LI-HDR and linear modes be switched dynamically?
A: Yes – seamless mode switching via I²C register control.
Industry Challenges & Solutions
-
Challenge: Covering large areas with high detail
Solution: Single 20MP sensor replaces multiple lower-res cameras. -
Challenge: Night-time performance in traffic monitoring
Solution: Enhanced NIR response in high resolution ar2020 camera module. -
Challenge: Bandwidth limitation in embedded systems
Solution: On-chip scaler and compression reduce data rate.
Footnotes
- Line-Interleaved HDR (LI-HDR): onsemi proprietary staggered exposure technique delivering >120 dB dynamic range.
- High-resolution camera module market CAGR 2024–2030: Yole Développement & TSR reports.
