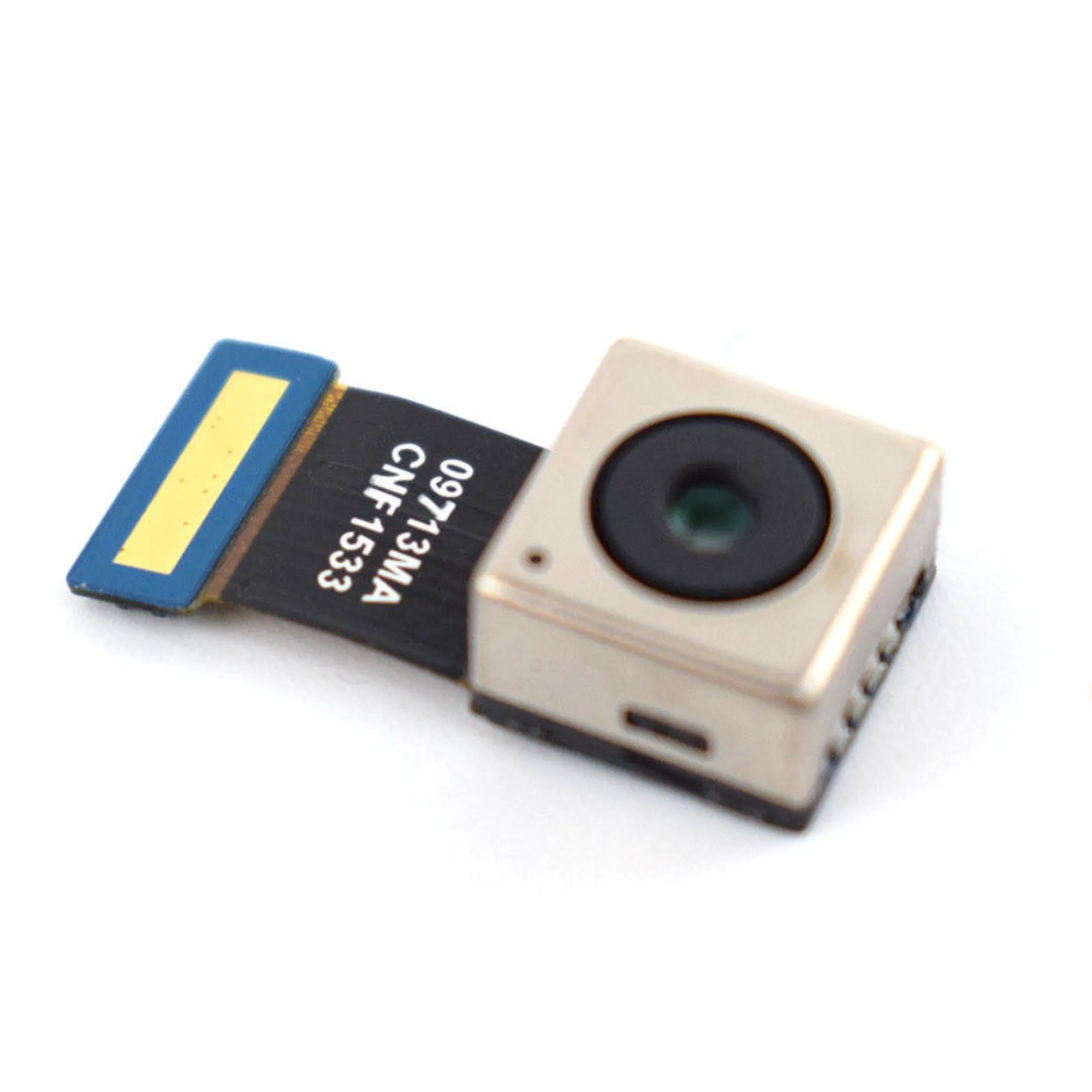

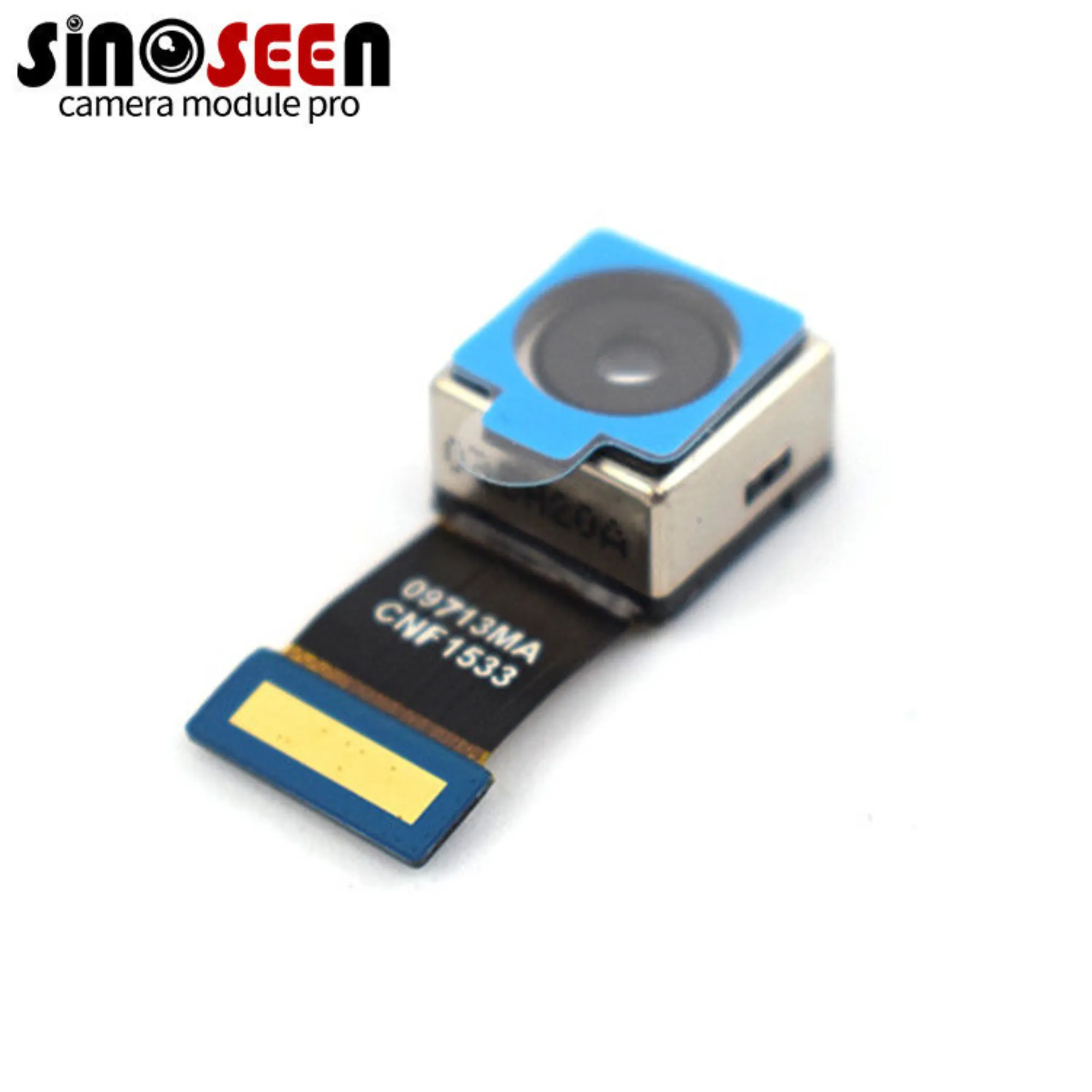

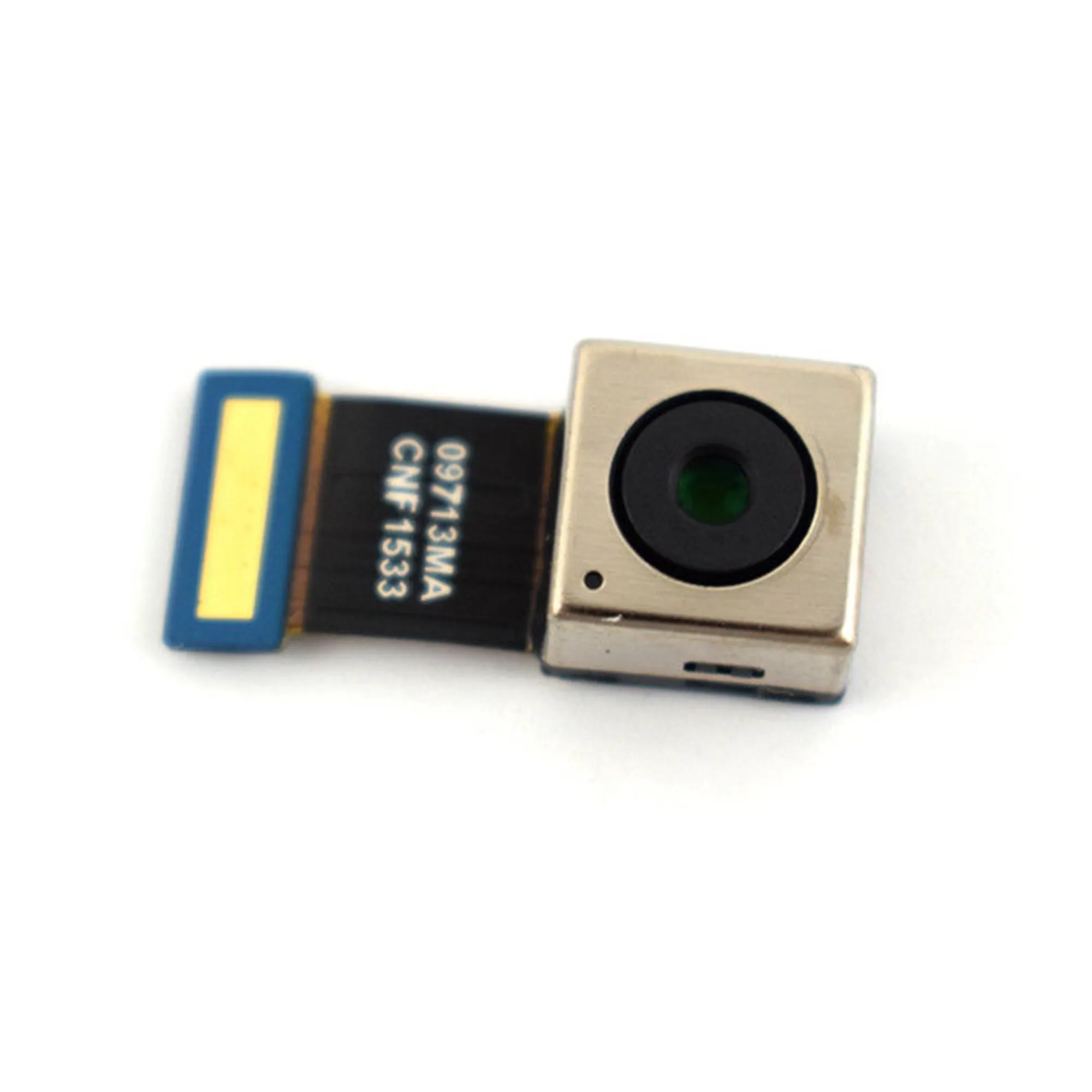

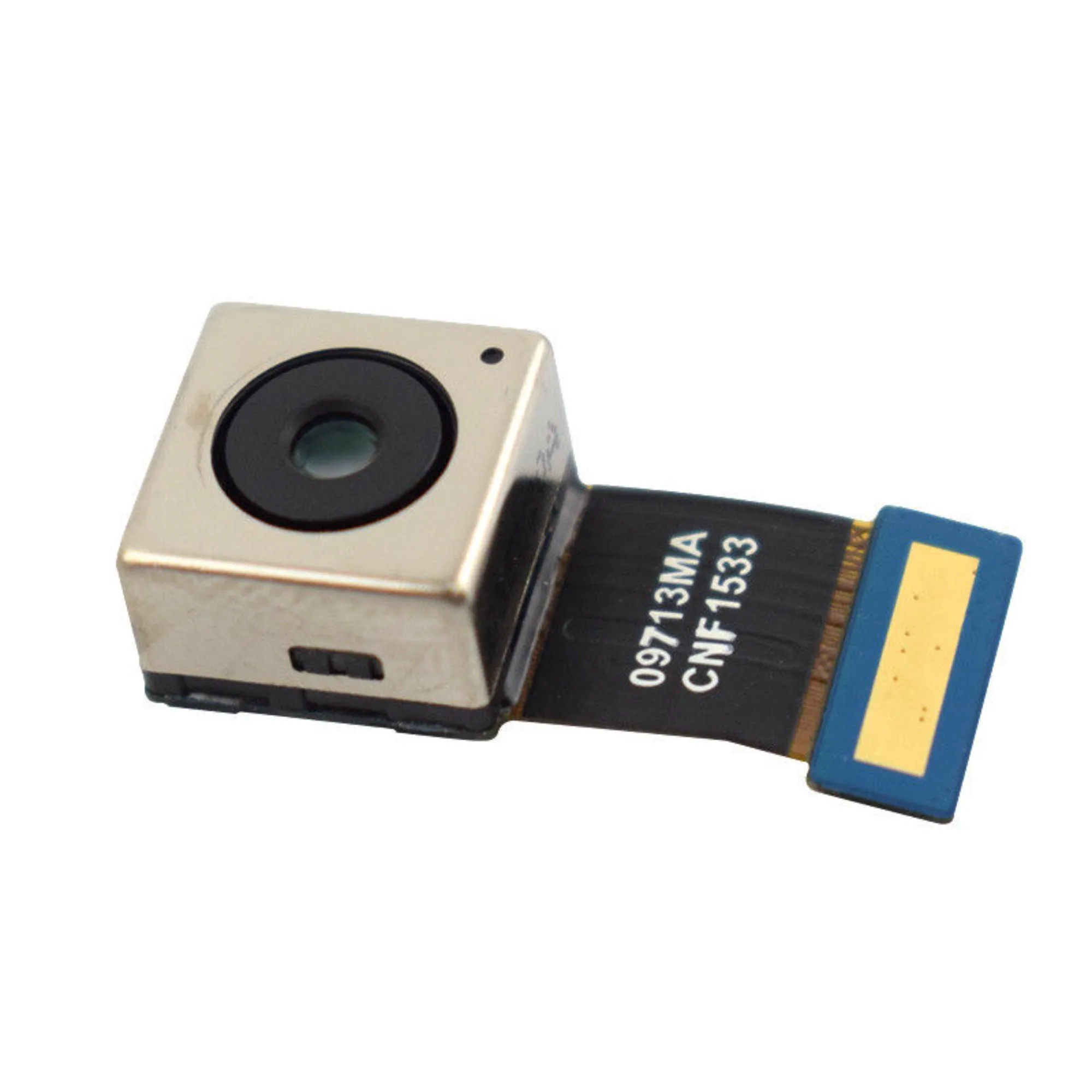

Wifi 13MP Camera Module Fast Autofocus Stereo With Sony IMX214 Sensor

Product Details:

Place of Origin: Shenzhen,China
Brand Name: Sinoseen
Certification: RoHS
Model Number: SNS-CNF1355

Payment & Shipping Terms:

Minimum Order Quantity: 3
Price: negotiable
Packaging Details: Tray+Anti-static bag in carton box
Delivery Time: 2-3weeks
Payment Terms: T/T
Supply Ability: 500000 pieces/month
  • Parameter
  • Related products
  • Inquiry
  • Detail Information
Type: MIPI Camera Module Sensor: 1/3.06"SONY IMX214
Resolution: 13MP (4208*3120) Dimensions: 19.25mmx8.5mm,(customizable)
Lens FOV: 80°(optional) Focus Type: Auto Focus
Interface: MIPI CSI2 Feature: HD
High Light:

IMX214 13MP Camera Module

MIPI 13MP Camera Module

IMX214 Wifi Camera Module

Product Description

Introducing our high-performance MIPI camera module, equipped with the cutting-edge Sony IMX214 sensor. With a diagonal of 5.892mm (Type 1/3.06) and an impressive 13 megapixels, this CMOS active pixel type stacked image sensor ensures exceptional image quality.

The IMX214 sensor incorporates Exmor-RSTM technology, enabling rapid image capturing through column parallel A/D converter circuits. Its backside illuminated imaging pixel structure delivers high sensitivity and low noise levels, setting new standards for imaging excellence. Additionally, a primary color mosaic filter (R, G, B) enhances color accuracy and fidelity.

Key Functions and Features:

  • Back-illuminated and stacked CMOS image sensor, delivering stunning image quality.
  • Single Frame High Dynamic Range (HDR) for optimal exposure control.
  • High signal-to-noise ratio (SNR) ensures clear and detailed images.
  • Full resolution @30fps (Normal / HDR), supporting 4K2K @30fps and 1080p @60fps.
  • Output video format of RAW10/8, RAW14/12(HDR) for versatile usage.
  • Pixel binning readout and H/V sub-sampling function for enhanced performance.
  • Analog cropping, digital cropping, and scaling function offer flexibility in image processing.
  • CSI-2 serial data output (MIPI-2Lane/-4Lane selectable) ensures seamless connectivity.
  • Advanced Noise Reduction and Dynamic Defect Pixel Correction for superior image quality.
  • Zero shutter lag and built-in temperature sensor for precise control and monitoring.

Our MIPI camera module is designed with flexibility in mind. Simply specify your desired sensor and requirements like FPC dimensions, pinouts, and Lens FOV, and our engineers will create a customized solution tailored to your needs.


Specification

Pixel Size

1.4μm x 1.4μm

Effective Pixels

4208*3120

Image Sensor

1/3.06"

Sensor Type

IMX214

Lens View

FOV80°(Optional),F/N(Optional)

TV Distortion

<1% (Optional)

Temperature(Operation)

0~60℃

Temperature(Storage)

-20~70℃

Dimension

19.25*8.5mm (Customizable)

Fast Autofocus Wifi 13MP Camera Module Stereo With Sony IMX214 Sensor 0



Shenzhen Sinoseen Technology Co., LTD

China top 10 camera module manufacturer

If you are struggling to find the right camera module solution, please contact us,

we will customize all kinds of USB/MIPI/DVP interface camera modules according to your needs,

and have a dedicated team to provide you with the most suitable solution.

Current avaliable global shutter USB camera module



Omnivision                           OV7251           0.3MP             Monochrome(black and white)



Omnivision                           OV9281              1MP             Monochrome(black and white)



ON Semiconductor               AR0144              1MP             Monochrome(black and white) or RGB color



Omnivision                           OG02B1B           2MP             Monochrome(black and white)



Omnivision                           OG02B10            2MP             RGB color
