• Detail Information

Product Description

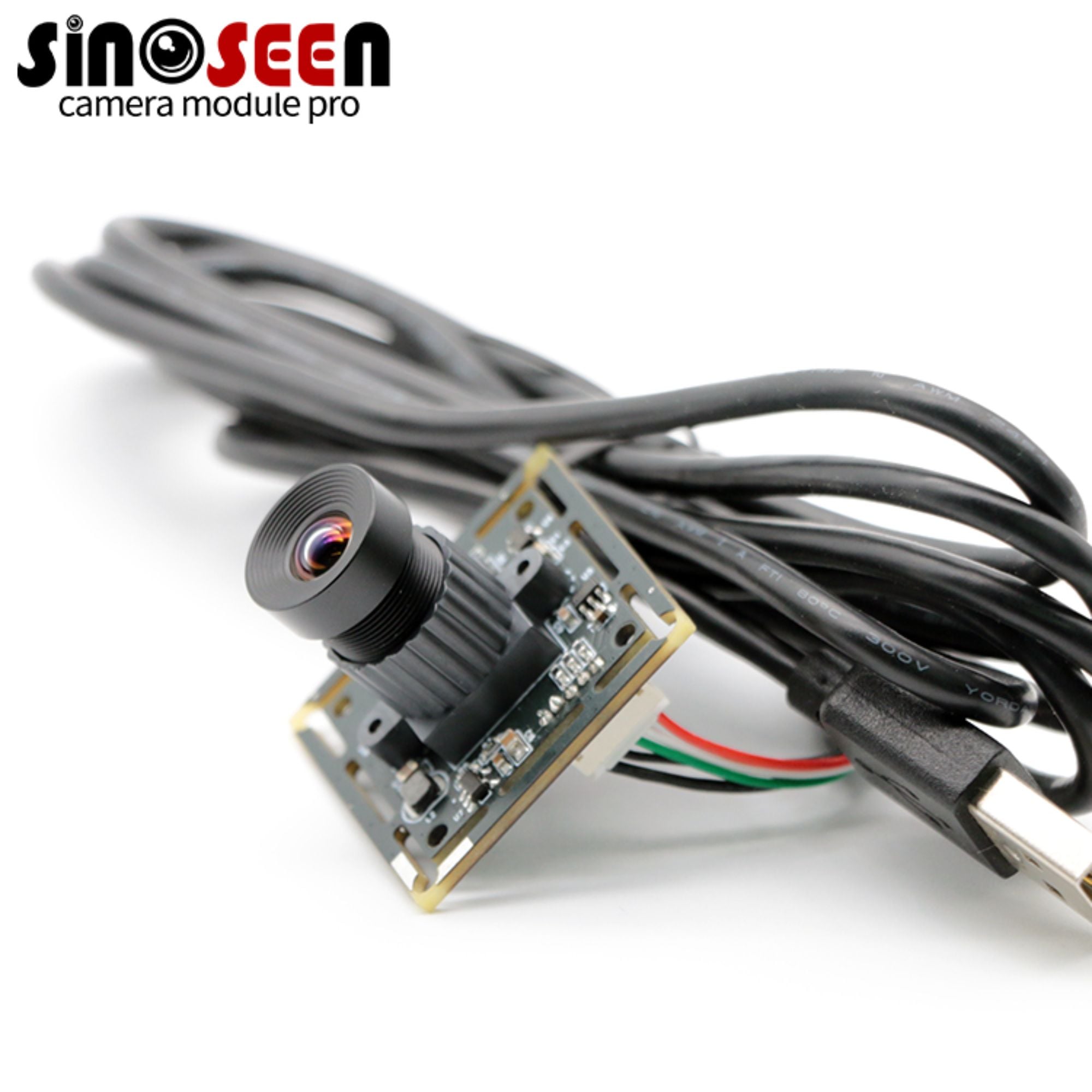

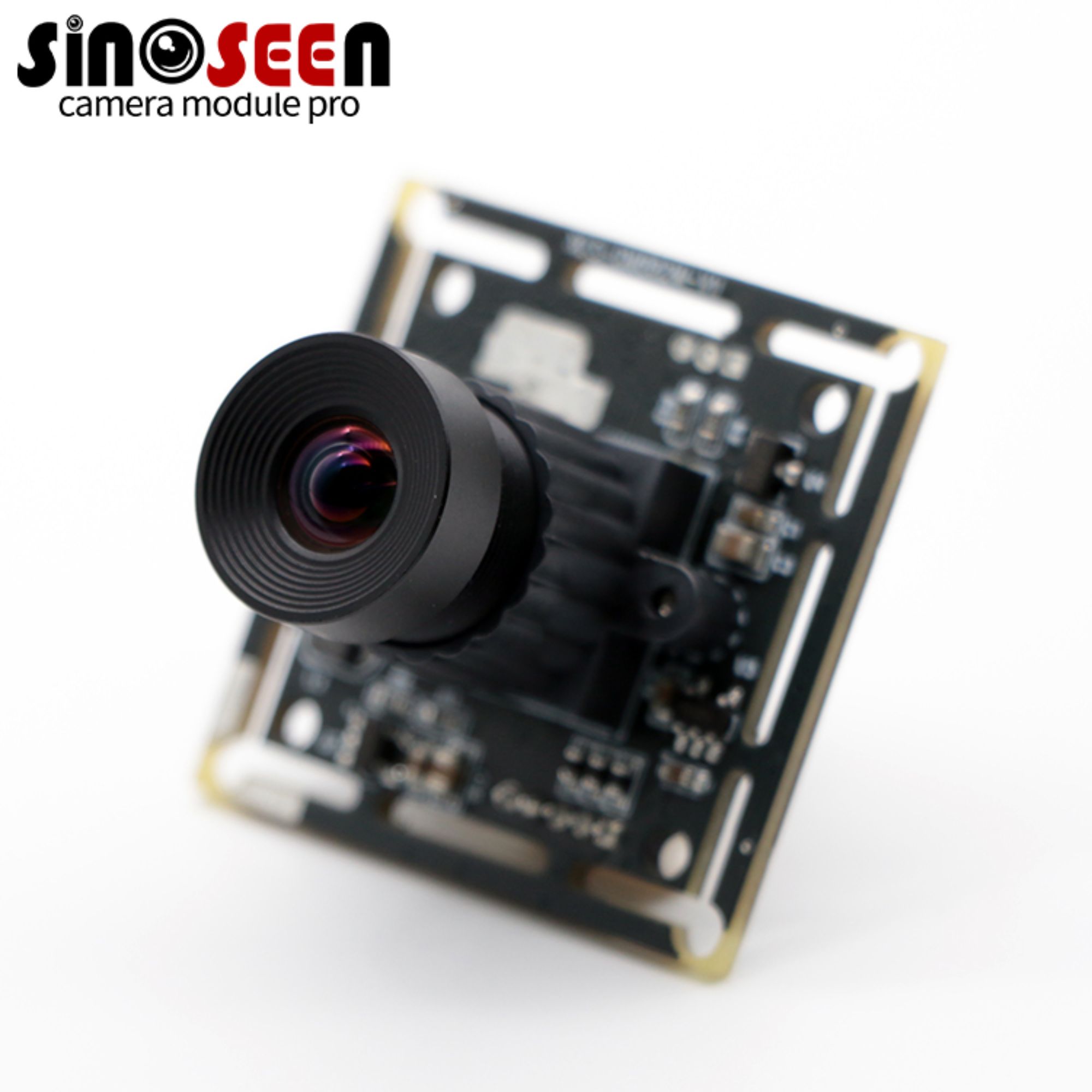

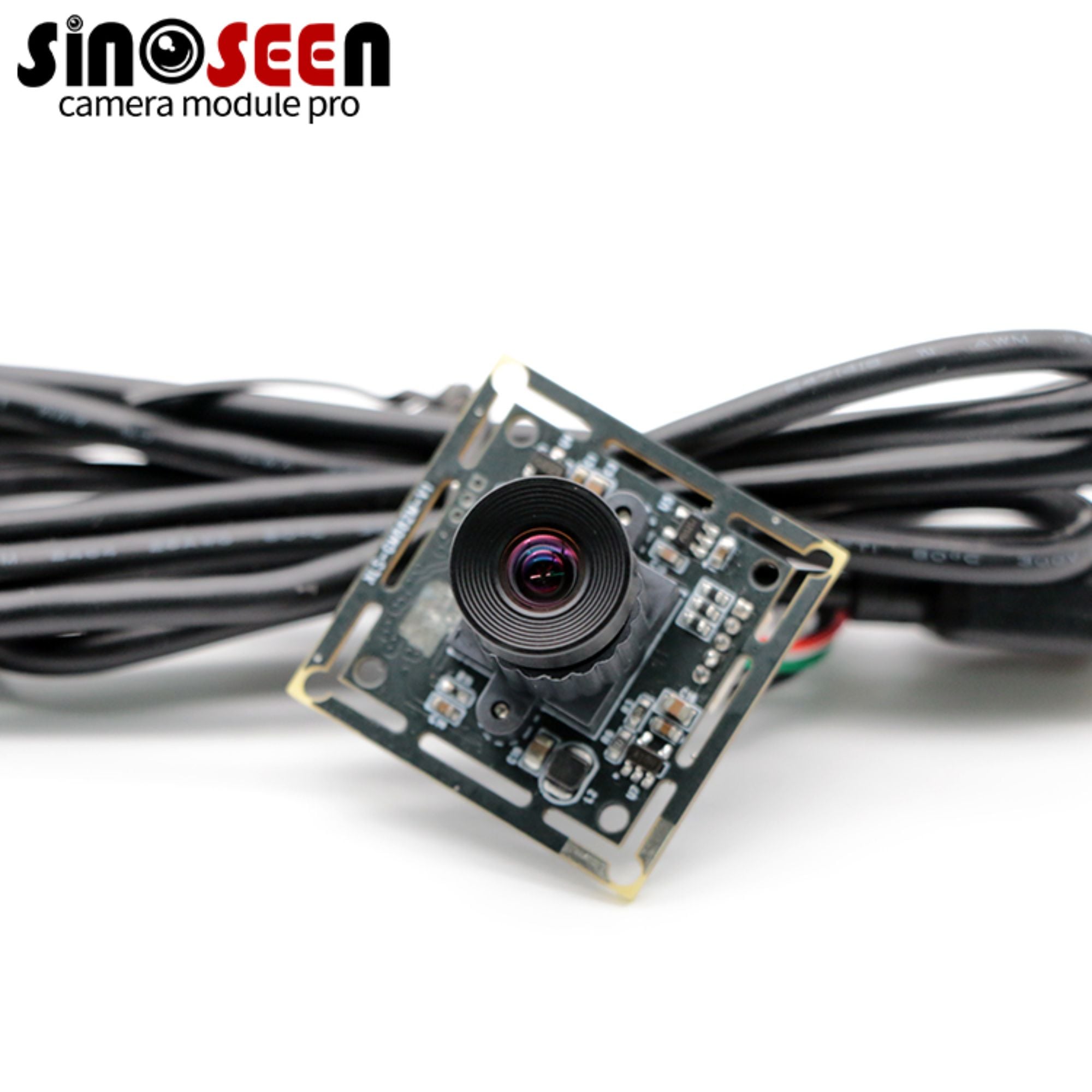

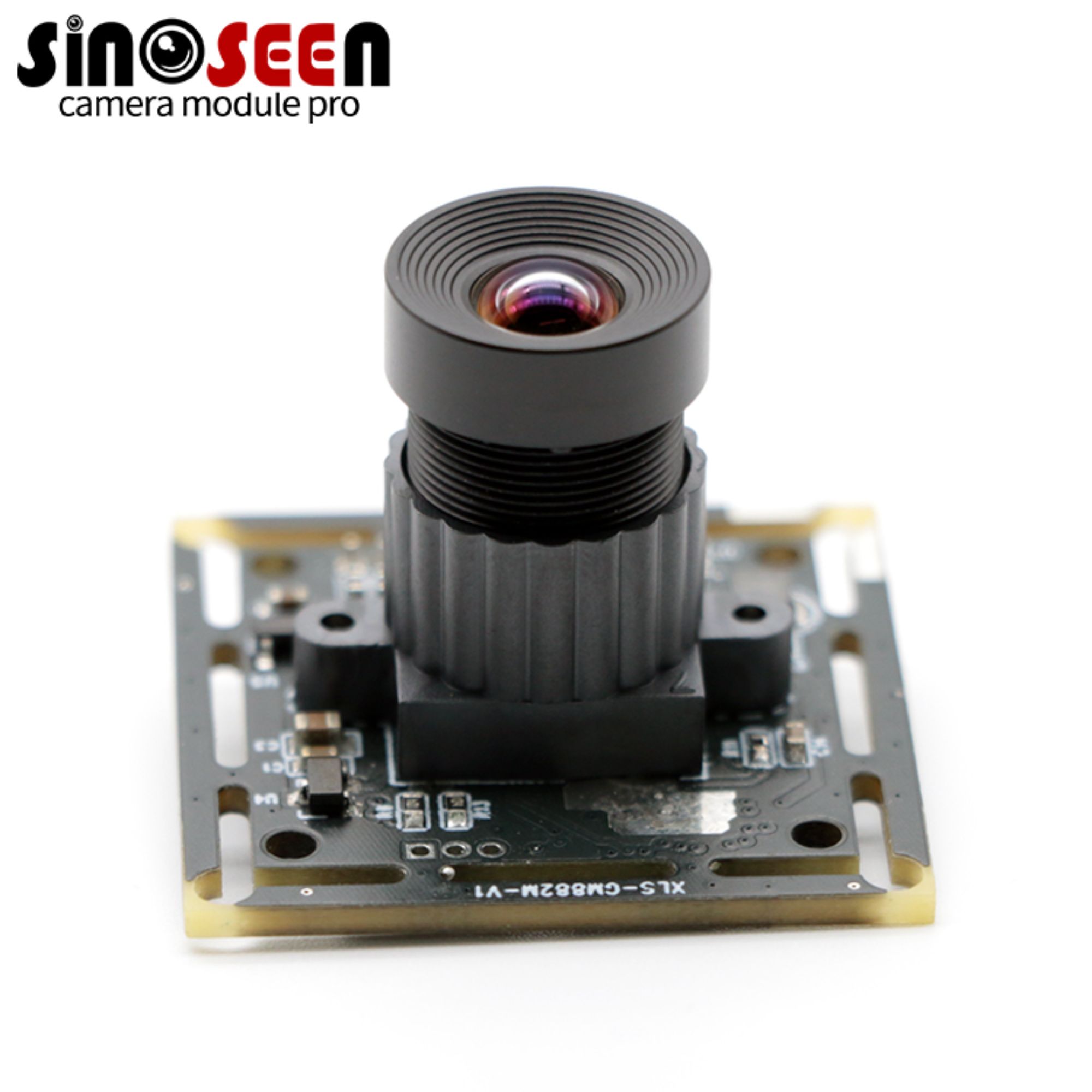

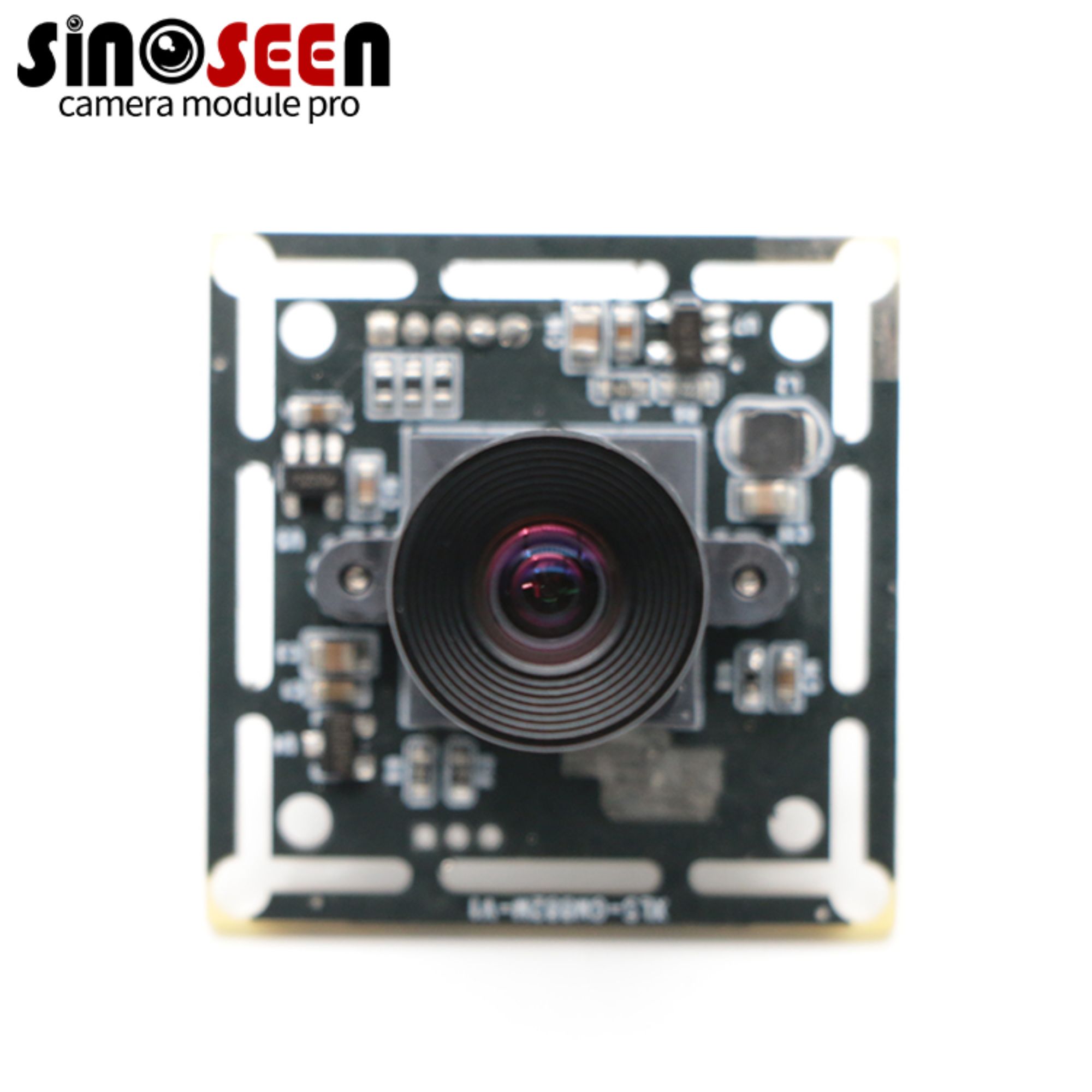

This USB camera module has a 2MP resolution and can output 1080P at 30FPS. It uses a USB2.0 interface and supports the UVC protocol, making it plug and play. It is commonly used in access control equipment, advertising all-in-one machines, cat eye access control, video doorbells, notebooks, and for face recognition.

Key Benefits

• Full HD image acquisition: Supports capture of facial and scene details for host-side processing.

• UVC integration: Enables use with compatible operating systems and capture applications.

• Board-level installation: Suitable for integration behind a terminal enclosure or equipment panel.

• Installation focus adjustment: Set the lens for the intended working distance before operation.

• OEM configuration planning: Discuss optics and mechanical requirements around the finished device.

Specification

Application Areas

Face Recognition: Face capture for access control.
QR Code Payment: Code imaging for decoding.
VR Devices: Visual input for motion tracking.
High-Speed Tracking: Moving-object image capture.
Terminal Scanning: Document and barcode imaging.
Robot Vision: Images for positioning and guidance.
Security & Smart Home: Indoor and outdoor monitoring.
AI Training Data Collection: Image capture for AI datasets.
Medical & Life Science Imaging: Image capture for microscopy and research.

OEM/ODM Customization & Development Process

Match the Camera to Your Integration Requirements

A suitable camera configuration must fit both the imaging task and the device structure. Sinoseen provides OEM/ODM camera module services and can assess changes to the optical setup, flexible-circuit layout, connection arrangement, and supported operating configuration.

Customization feasibility, development scope, cost, and lead time are confirmed after engineering review.

Customization Process

Step 1 — Share Your Requirements

Provide the application, host platform, required resolution and frame rate, working distance, installation space, and estimated quantity.

Step 2 — Review the Configuration

Assess the sensor operating mode, interface, lens, and mechanical arrangement. Identify any changes required for the target device.

Step 3 — Confirm Drawings and Evaluation Criteria

Agree on the configuration, connection details, mechanical revision, and sample acceptance requirements before prototype production.

Step 4 — Evaluate Samples

Test image quality, sustained frame rate, exposure behavior, host integration, and mechanical fit in the actual operating environment.

Step 5 — Approve the Production Configuration

Confirm the accepted sample, drawings, optical components, and operating configuration before proceeding with volume production.

Send Your Drawings and Imaging Requirements

About Sinoseen

Shenzhen Sinoseen Technology Co., Ltd. was established in June 2016 and specializes in CMOS camera module design, development, manufacturing, and OEM/ODM services.

Its product portfolio includes USB, MIPI, and DVP camera modules, with services extending from development through manufacturing and after-sales support.

For embedded vision projects, Sinoseen works with customers to assess the imaging task alongside mechanical and electrical integration requirements. This helps define a camera configuration that can be evaluated in the intended device before production approval.

Certifications & Intellectual Property

Sinoseen’s documentation includes quality management records, product compliance documents, software copyrights, and utility model patents. For your camera module project, please request the current documents applicable to the selected model and configuration, including relevant CE, FCC, or RoHS documentation.

Frequently Asked Questions

1. Does this module include face recognition software?

No built-in recognition software is established by the available specification. The module provides images; detection and identity matching require a compatible host application.

2. Does it support 1080P at 30fps in both MJPEG and YUY2?

The listing specifies this capture rate but does not provide a complete format-by-format mode table. Confirm the supported resolution and frame rate for your selected format.

3. Does UVC mean no driver installation is required?

Compatible systems can generally use their standard UVC camera support. Confirm the required video modes and controls with your actual operating system and application.

4. Is the camera autofocus?

The listed lens configuration is manually adjustable and remains fixed during use. Set focus according to the intended camera-to-subject distance.

5. Which field of view should I choose?

Choose it according to installation height, user distance and the required capture area. A wider view covers more space but places fewer pixels on a face at the same distance.
