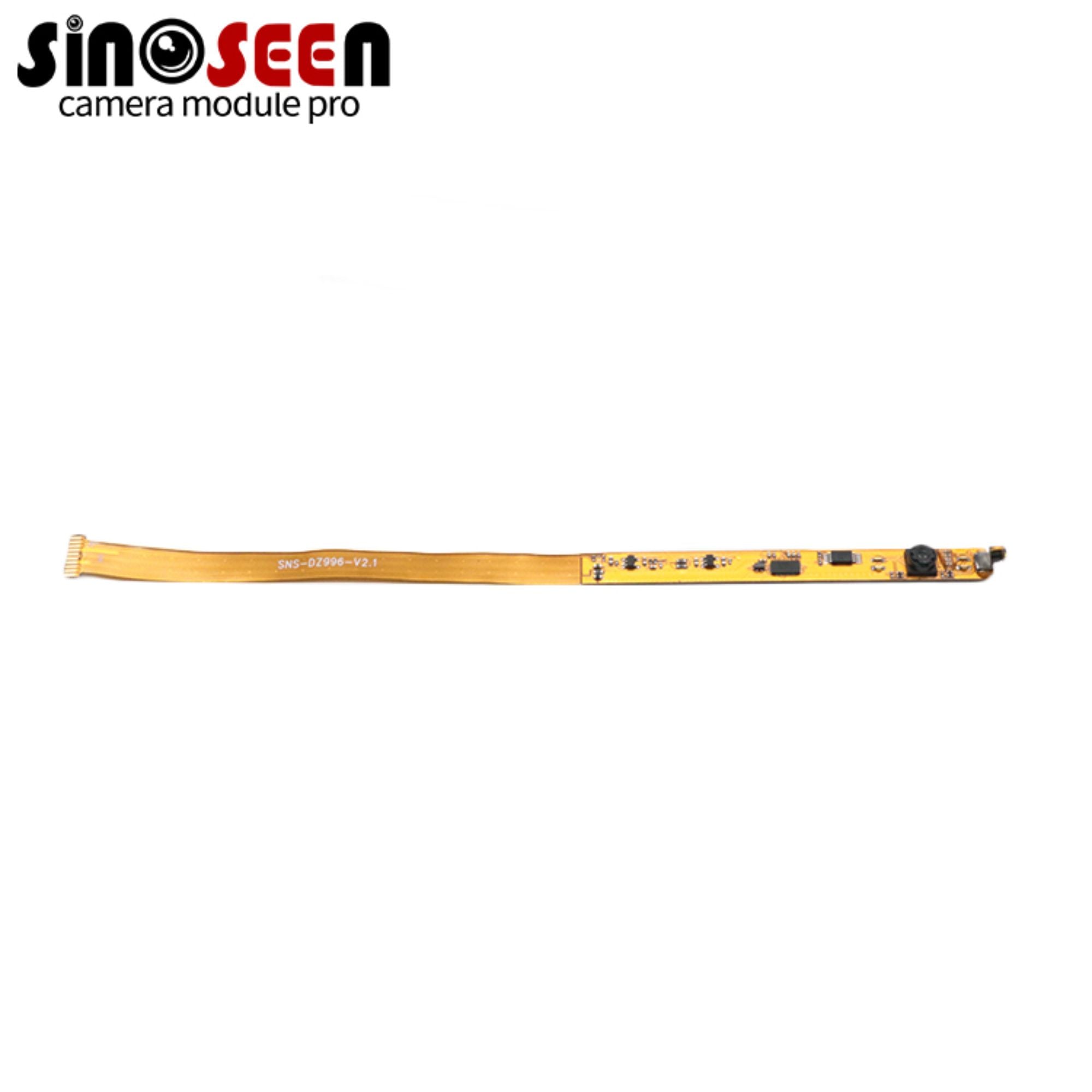

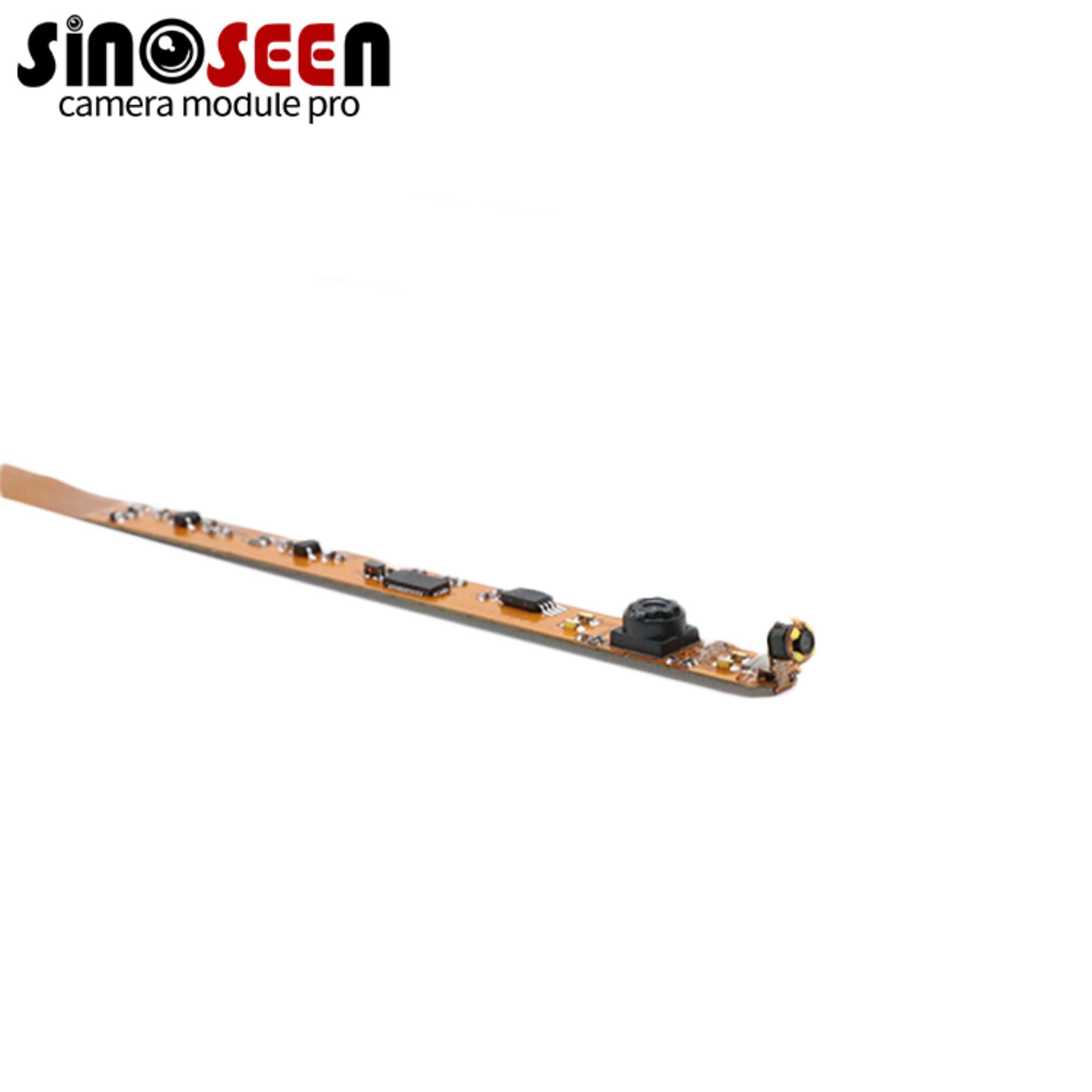

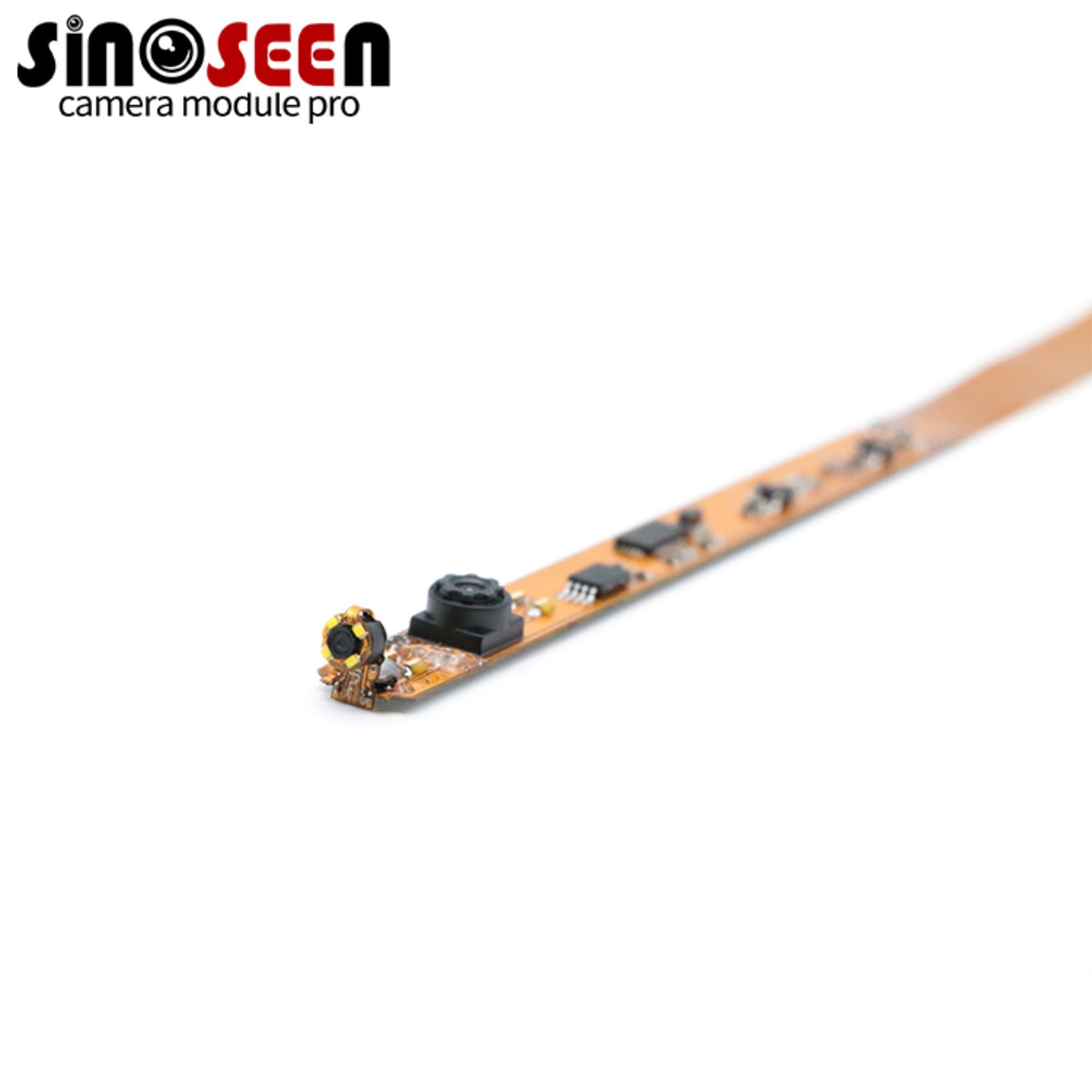

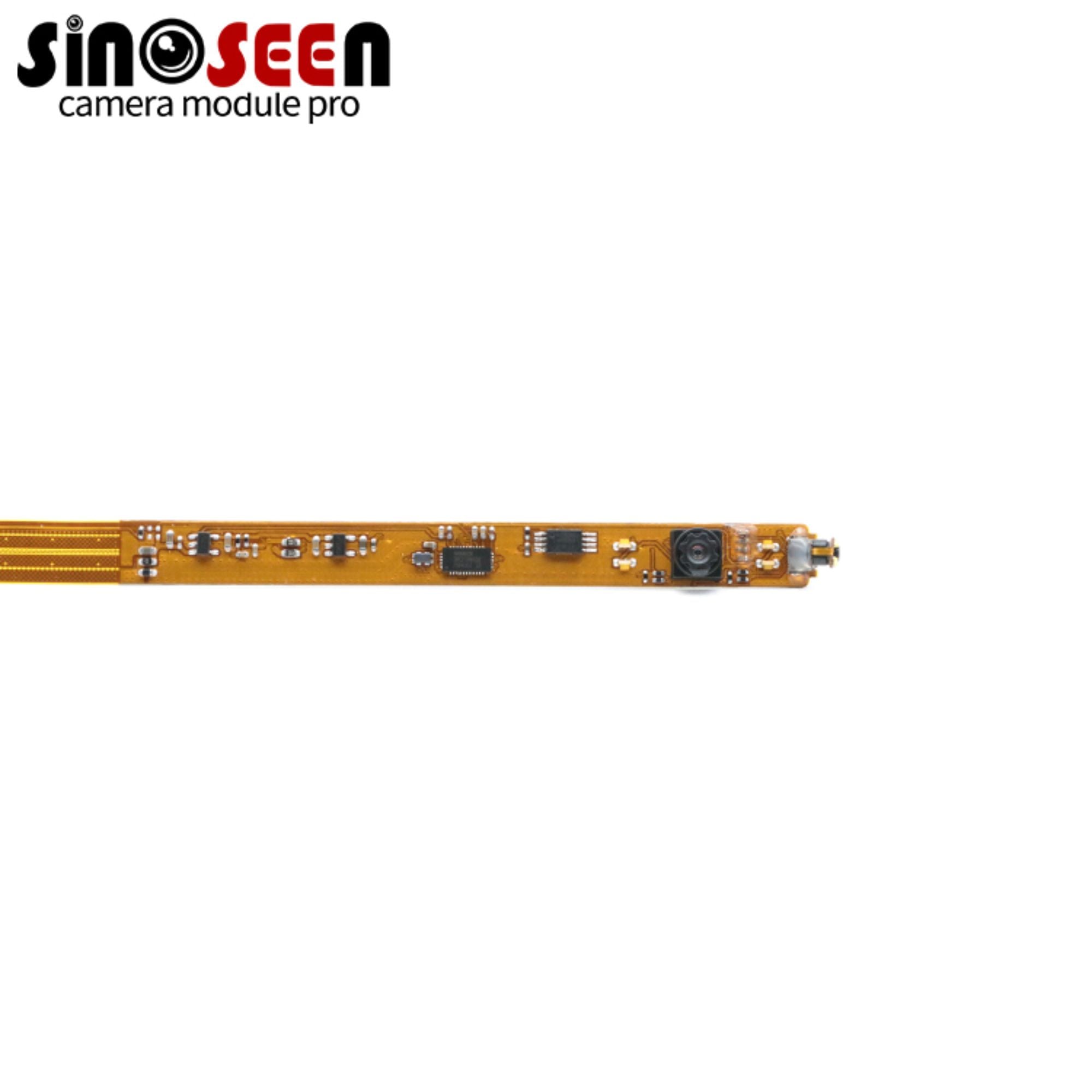

Ultra Small Healthcare Endoscope Camera Module OV9734 Low Power 1MP
Product Details:
Place of Origin: | Shenzhen,China |
Brand Name: | Sinoseen |
Certification: | RoHS |
Model Number: | SNS-DZ996-V2.0 |
Payment & Shipping Terms:
Minimum Order Quantity: | 3 |
Price: | negotiable |
Packaging Details: | Tray+Anti-static bag in carton box |
Delivery Time: | 2-3weeks |
Payment Terms: | T/T |
Supply Ability: | 500000 pieces/month |
- Parameter
- Related products
- Inquiry
- Detail Information
Type: | EndoscopeCamera Module | Sensor: | 1/9" Omnivision OV9734 |
Resolution: | 1MP 1280(H) X 720(V) | Dimensions: | Customizable |
Lens FOV: | (optional) | Focus Type: | Fixed Focus |
Interface: | MIPI | Feature: | Endoscope Camera Module |
High Light: | OV9734 Low Power Camera Module 1MP Endoscopes Low Power Camera Module MIPI Endoscope Camera Module | ||
Product Description
The OV9734 sensor-based micro camera module is currently the smallest 1 million camera module in the industry, and also the only 1 million micro camera module with low power consumption. It is ultra-thin, ultra-small, and consumes ultra-low power. The camera module outputs in Mipi format and is available in USB 2.0 A (MD-B21105L), Micro USB B (MM-B21105L), and USB Type C (MT-B21105L) camera ports.
This endoscopic camera is used in medical and industrial endoscopes. Endoscopes are used to view lesions that cannot be seen with X-rays, making them very useful to doctors. For instance, endoscopists can examine ulcers or tumors in the stomach to determine the best treatment plan.
Specification
Module No | SNS-DZ996-V2.0 |
Pixel Size | 1.4μm x 1.4μm |
Effective Pixels | 1MP 1280(H) x 720(V) |
Video output | Raw Bayer10bit/8bit |
Active Array Size Video Rate | 30FPS |
Image Sensor | 1/9" |
Sensor Type | Omnivision OV9734 |
Lens view | (optional) |
TV Distortion | <1% |
AEC | Support |
AEB | Support |
AGC | Support |
Operating voltage | AVDD:3.0~3.6V DOVDD:1.7~3.6V DVDD:1.7~1.9V |
Operating temperature | -20～70℃ |
Storage temperature | 0～50℃ |
Dimensions | Customizable |
Shenzhen Sinoseen Technology Co., LTD
China top 10 camera module manufacturer
If you are struggling to find the right camera module solution, please contact us, we will customize all kinds of USB/MIPI/DVP interface camera modules according to your needs, and have a dedicated team to provide you with the most suitable solution.
FAQ:
Q1. How to choose the right camera module?
A: Please tell us your specific needs, such as application scenarios, resolution, size, and lens requirements. We will have a professional team of engineers to assist you in choosing the most suitable camera module.
Q2. How to start proofing?
A: After confirming all the parameters, we will draw a drawing to confirm the details with you. Once the drawing is confirmed, we will arrange a proofing.
Q3: How do I send the payment?
A: Currently we accept T/T bank transfer and Paypal.
Q4: How long does it take to make a sample?
A: If it is a USB camera module, it usually takes 2-3weeks, if it is a MIPI or DVP camera module, it usually takes 10-15days.
Q5: How long will it take to receive the sample after it is ready?
A: After the samples have been tested and there is no problem, we will send the samples to you via DHL FedEx UPS or any other courier methods, usually within a week.
