Stereo 3D Agricultural Tech Dual Lens OV5640 Usb Camera Module Fixed Focus 5MP

Product Details:

Place of Origin:

Shenzhen,China

Brand Name:

Sinoseen

Certification:

RoHS

Model Number:

SNS-5MP-DualOV5640

Payment & Shipping Terms:

Minimum Order Quantity:

3

Price:

negotiable

Packaging Details:

Tray+Anti-static bag in carton box

Delivery Time:

2-3weeks

Payment Terms:

T/T

Supply Ability:

500000 pieces/month

  • Parameter
  • Related products
  • Inquiry
  • Detail Information

Type:

Dual Lens Camera Module

Sensor:

1/4" Omnivision OV5640

Resolution:

5MP 2592(H) X 1944(V)

Dimensions:

47.2mmx14mm(customizable)

Lens FOV:

65°(optional)

Focus Type:

Fixed Focus

Interface:

USB2.0

Feature:

Dual Lens

High Light:

5MP OV5640 Camera Module

USB OV5640 Camera Module

5MP ov5640 camera

Product Description

Introducing our newly developed dual-lens camera module featuring a 5-megapixel Omnivision OV5640 CMOS sensor.  The camera module provides excellent and stable image quality and is compatible with USB 2.0 interface and UVC, eliminating the need for any driver or software. The camera module provides excellent and stable image quality and is compatible with USB 2.0 interface and UVC, eliminating the need for any driver or software. The camera module provides excellent and stable image quality and is compatible with USB 2.0 interface and UVC, eliminating the need for any driver or software. Simply plug it into your computer and start using it. To operate this module, you will need 2 USB cables, 2 DSPs, and 2 sensors. Each DSP controls its corresponding sensor, and you will need to open 2 windows to view both images. The camera module can be used in two ways: as a standard single lens fixed focus camera module by opening one window, or as a dual lens camera module by opening two windows. The resolution and frame rate can be the same or different depending on your application.







Specification:5MP Fixed Focus

Model No

SNS-5MP-DualOV5640

Sensor

1/4’’ Omnivision OV5640 CMOS

Pixel

5 Mega Pixel

Most effective pixels

2592(H) x 1944(V)

Pixel Size

1.4µm x 1.4µm

Image area

3673.6μm x 2738.4μm

Compression format

MJPG/YUY2

Resolution

See above

Frame rate

See above

Shutter Type

Electronic rolling shutter

Focus type

Fixed focus

S/N ratio

36dB

Dynamic range

68dB

Sensitivity

600mV / lux-sec

Interface type

USB2.0

Lens FOV

65°

Microphone

Built-in

Adjustable parameter

Brightness/Contrast/Color saturation/Hue/Definition/Gamma/White balance

Audio frequency

Optional

Power supply

USB BUS POWER

Power consumption

DC 5V, <300mA

Main chip

DSP/SENSOR/FLASH

Auto Exposure Control

Not Supported

Auto White Balance (AEB)

Support

Auto Gain Control (AGC)

Support

Dimension

65MM x 42MM

Storage temperature

-20°C to 70°C

Operating temperature

0°C to 60°C

USB cable length

Default

Support OS

WinXP/Vista/Win7/Win8/Win10

Linux with UVC(above linux-2.6.26)

MAC-OS X 10.4.8 or later

Android 4.0 or above with UVC

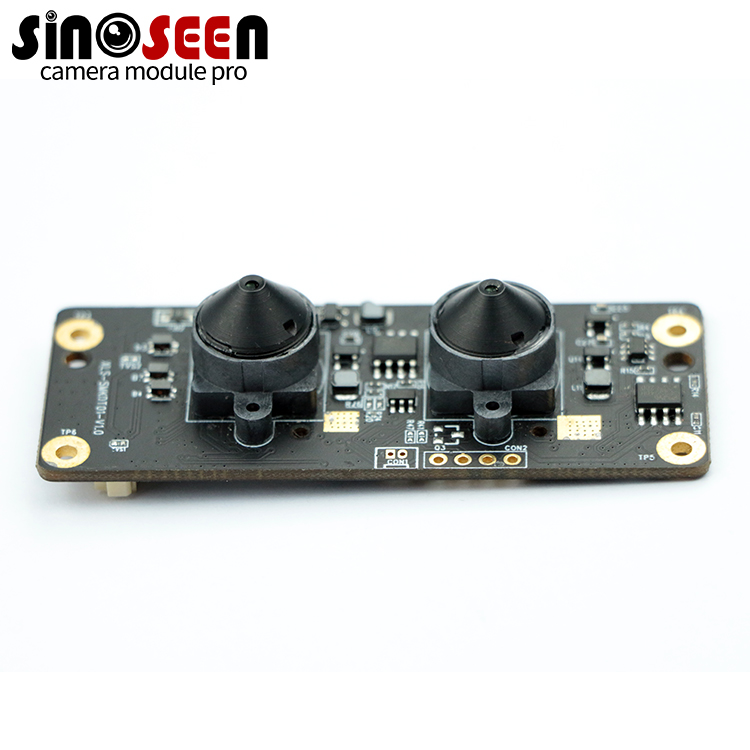

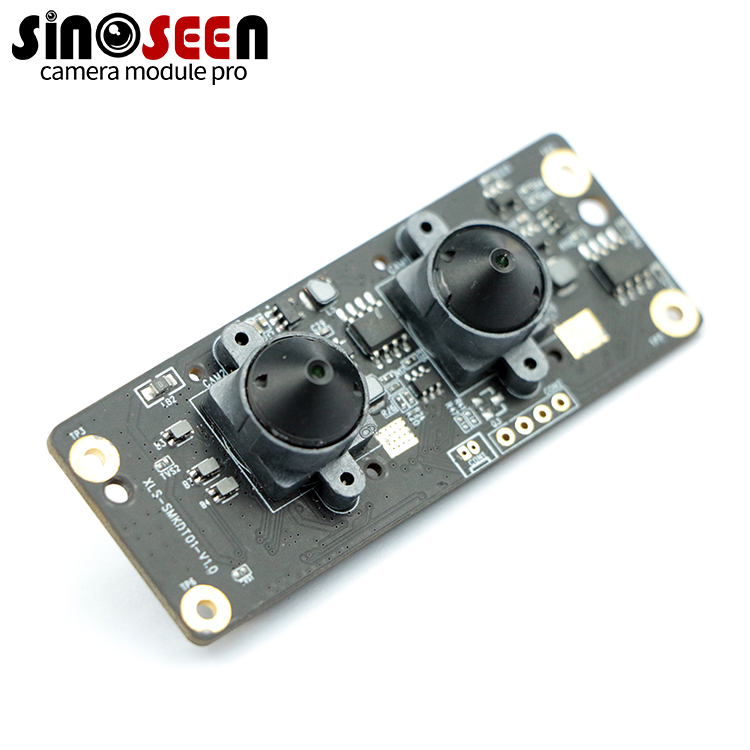

OV5640-Usb-Camera-Stereo-3DOV5640-Usb-Camera-Stereo-3D-02



Shenzhen Sinoseen Technology Co., LTD

China top 10 camera module manufacturer

If you are struggling to find the right camera module solution, please contact us, we will customize all kinds of USB/MIPI/DVP interface camera modules according to your needs, and have a dedicated team to provide you with the most suitable solution.



Camera module customizationsuggestion



According to the actual application scenarios and functional goals, the camera module needs to comprehensively consider the product structure size, image clarity, frame rate, lens angle, lighting scene and other factors to select the appropriate sensor, lens and solution. needs customization. These products are only used for customer testing DEMO,please contact our customer service to inform you which product you want to use the camera module on? What function is implemented? Are there any special requirements? According to cost targets and other comprehensive factors, we help you choose the right sensor+ lens solution, and then design the product PCB or FPC according to the structural requirements.



examples: the customer is going to make a person recognition and comparison machine. If it is used in a well-lit indoor environment, we recommend that customers use ordinary lenses and sensors. If the light or backlight is not good, we recommend customers to use WDR wide dynamic sensor. If customers have high requirements for safety, we recommend that customers use WDR and black and white infrared binocular recognition camera modules. When determining the sensor and lens plan, the customer should adjust the color, white balance and saturation parameters according to the actual environment to achieve the target effect.
