SONY IMX385 COMS Sensor WDR Usb Camera Module 2mp for Security Surveillance

Product Details:

Place of Origin:

Shenzhen,China

Brand Name:

Sinoseen

Certification:

RoHS

Model Number:

SNS-2MP-IMX385

Payment & Shipping Terms:

Minimum Order Quantity:

1

Price:

negotiable

Packaging Details:

Tray+Anti-static bag in carton box

Delivery Time:

2-3weeks

Payment Terms:

T/T

Supply Ability:

500000 pieces/month

  • Parameter
  • Related products
  • Inquiry
  • Detail Information

Type:

WDRCamera Module

Sensor:

SONY IMX385

Resolution:

2MP 1945 (H) * 1097 (V)

Dimensions:

(customizable)

Lens FOV:

70°(optional)

Focus Type:

Fixed Focus

Interface:

USB2.0

Feature:

WDR

High Light:

WDR USB Camera Module

2MP USB Camera Module

IMX385 2MP Camera Module

Product Description

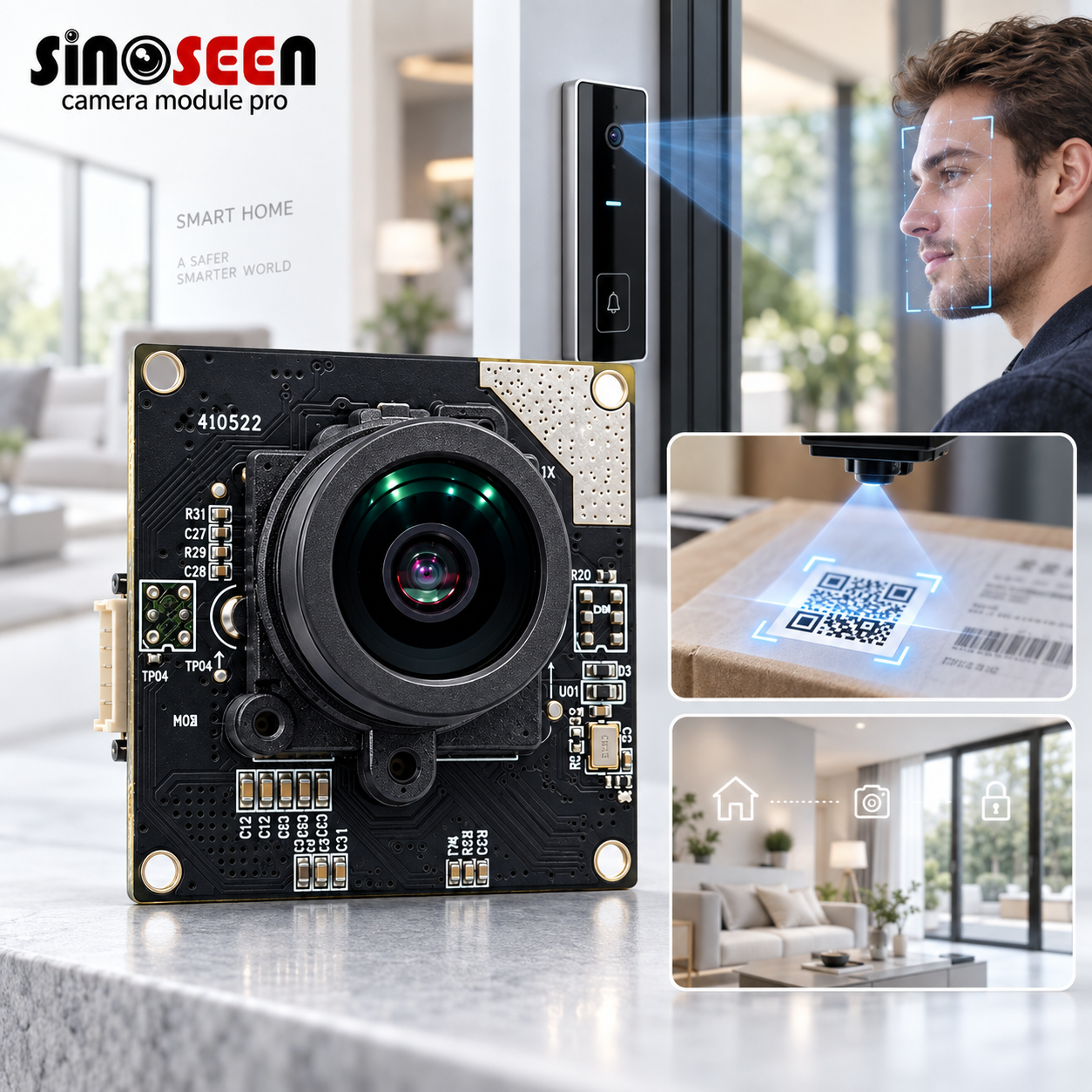

Our newly developed camera module features the Sony CMOS sensor IMX385. This sensor has an effective pixel array of 1945 (H) × 1097 (V) and uses analog 3.3 V, digital 1.2 V, and interface 1.8 V power supplies, resulting in low power consumption. The sensor also boasts high sensitivity, low dark current, and no tailing, and utilizes R, G, B primary color mosaic filters. The sensor has a wide dynamic range function, which provides a clear image even when capturing moving objects or experiencing camera shake. The chip features a variable electronic shutter charge integration time. We offer customization options for your camera module based on your specific needs. This camera module is suitable for various applications, including surveillance cameras, video surveillance, video conferencing, video teaching, Internet of Things, aerial drones, and QR code recognition.







Specification

Pixel Size

3.75 µm (H) × 3.75 µm (V)

Effective Pixels

1945 (H) × 1097 (V)

Image Sensor

1/2

Sensor Type

Sony IMX385

Operating temperature

-30~85˚C

Storage temperature

-40~85˚C

Lens view

FOV60°(optional),F/N(optional)

TV Distortion

<1%

Operating voltage

AVDD:3.0~3.6V DOVDD:1.7~3.6V DVDD:1.7~1.9V

Dimensions

Customizable



SONY-IMX385-Camera-ModuleSONY-IMX385-Camera-Module-02SONY-IMX385-Camera-Module-03





Shenzhen Sinoseen Technology Co., LTD

China top 10 camera module manufacturer

If you are struggling to find the right camera module solution, please contact us, we will customize all kinds of USB/MIPI/DVP interface camera modules according to your needs, and have a dedicated team to provide you with the most suitable solution.



FAQ:

Q1. How to choose the right camera module?

A: Please tell us your specific needs, such as application scenarios, resolution, size, and lens requirements. We will have a professional team of engineers to assist you in choosing the most suitable camera module.

Q2. How to start proofing?

A: After confirming all the parameters, we will draw a drawing to confirm the details with you. Once the drawing is confirmed, we will arrange a proofing.

Q3: How do I send the payment?

A: Currently we accept T/T bank transfer and Paypal.

Q4: How long does it take to make a sample?

A: If it is a USB camera module, it usually takes 2-3weeks, if it is a MIPI or DVP camera module, it usually takes 10-15days.

Q5: How long will it take to receive the sample after it is ready?

A: After the samples have been tested and there is no problem, we will send the samples to you via DHL FedEx UPS or any other courier methods, usually within a week.
