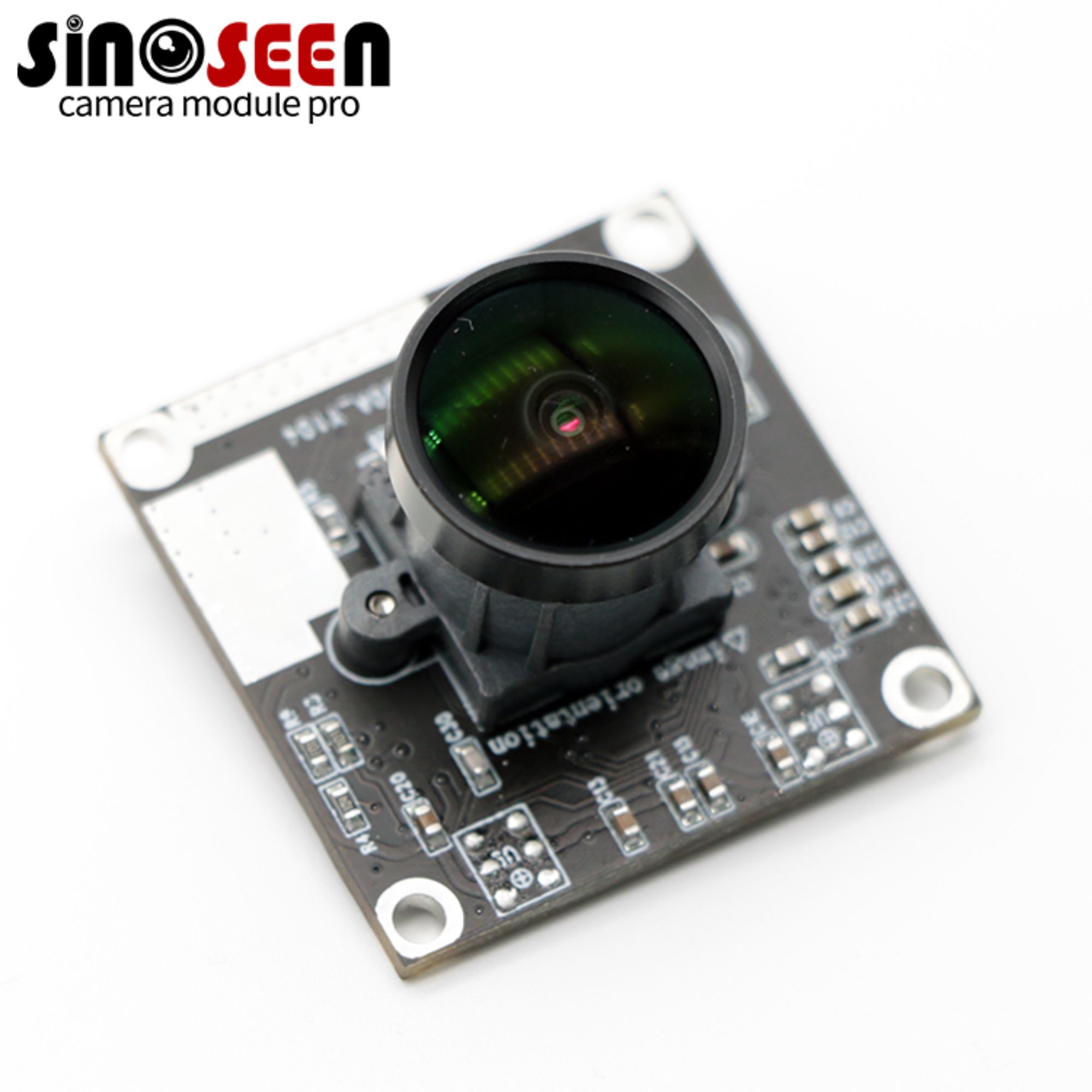

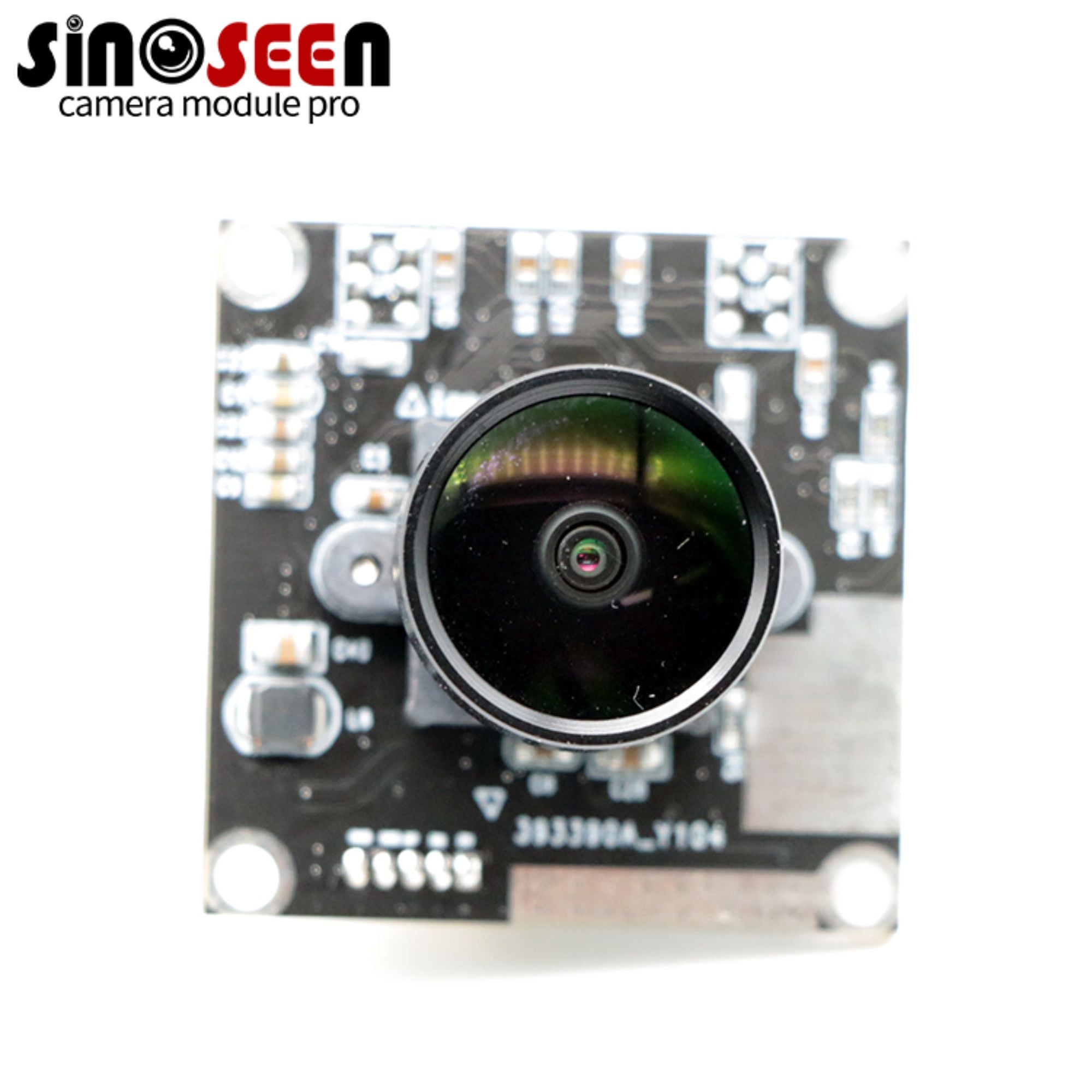

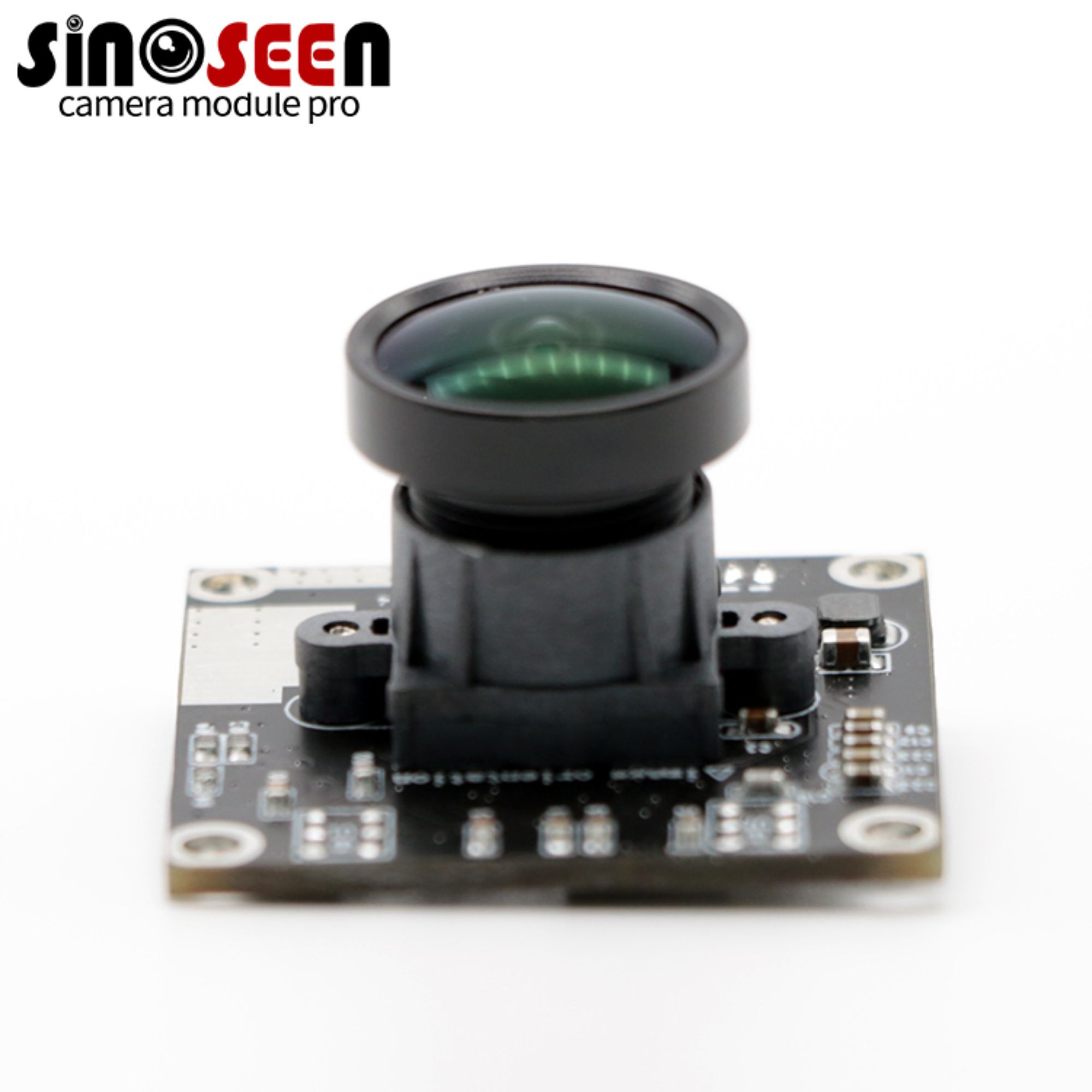

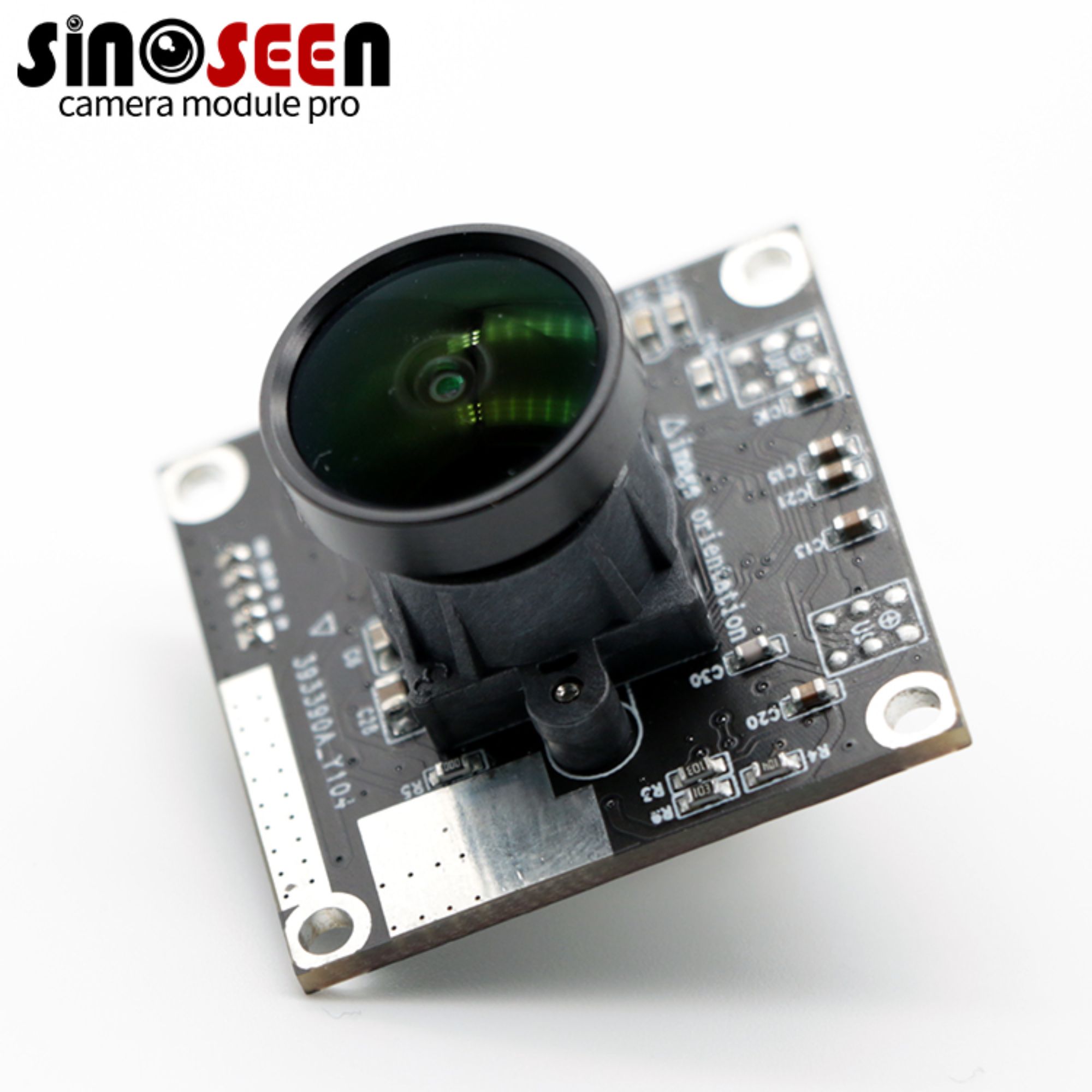

SONY IMX290 Sensor Night Vision Camera for Video Analytics 1080P 120FPS WDR

Product Details:

Place of Origin:

Shenzhen,China

Brand Name:

Sinoseen

Certification:

RoHS

Model Number:

SNS-2MP-IMX290-V1.0

Payment & Shipping Terms:

Minimum Order Quantity:

3

Price:

negotiable

Packaging Details:

Tray+Anti-static bag in carton box

Delivery Time:

2-3weeks

Payment Terms:

T/T

Supply Ability:

500000 pieces/month

  • Parameter
  • Related products
  • Inquiry
  • Detail Information

Type:

Night Vision Camera Module

Sensor:

1/2.8" SONY IMX290

Resolution:

2MP 1920x1080

Dimensions:

38x38mm (customizable)

Lens FOV:

120°(optional)

Focus Type:

Fixed Focus

Interface:

USB2.0

Feature:

Night Vision

High Light:

imx290 Night Vision Camera Module

2MP Night Vision Camera Module

2MP imx290 camera module



Product Description

This USB camera module features a full HD 1080P resolution and uses the IMX290 sensor from SONY. The IMX290 is a CMOS active pixel type solid-state image sensor with a square pixel array and 2.13 M effective pixels. It operates with analog 2.9 V, digital 1.2 V, and interface 1.8 V triple power supply, and has low power consumption. The adoption of R, G and B primary color mosaic filters ensures high sensitivity, low dark current and no smear. This USB camera module features an electronic shutter with variable charge-integration time, allowing it to capture high-quality images in low-light environments.



It also includes a WDR function.



This module is ideal for use in surveillance cameras, FA cameras, and industrial cameras.







Specification

Model No

SNS-2MP-IMX290-V1.0

Sensor

1/2.8’’ SONY IMX290 CMOS

Pixel

2 Mega Pixel

Most effective pixels

1920(H) x 1080(V)

Pixel Size

2.9µm x 2.9µm

Image area

1937(H) x 1097(V)

Compression format

MJPEG / YUV2/H.264

Resolution & Frame rate

1920 x1080 @ 60fps

1280x960 @60fps

1280x720 @ 60fps

800x600 @ 60fps

640x480 @ 60 fps

320x240 @ 60fps

Shutter Type

Electronic rolling shutter

Focus type

Fixed focus/Manually adjustable

S/N ratio

52dB

Dynamic range

72dB

Sensitivity

7757 mV / lux-sec

Interface type

USB2.0 and SPI

Adjustable parameter

Brightness

Lens

Optical length: 18.6mm



F/NO: 2.4



FOV: D=120°



Thread Size: M12*P0.5

Audio frequency

Optional

Power supply

USB BUS POWER

Power consumption

DC 5V, 260mW

Main chip

DSP/SENSOR/FLASH

Auto Exposure Control (AEC)

NOT Support

Auto White Balance (AEB)

NOT Support

Auto Gain Control (AGC)

NOT Support

Dimension

38mm x 38mm

Storage temperature

-20°C to 70°C

Operating temperature

0°C to 60°C

USB cable length

Default

Support OS

WinXP/Vista/Win7/Win8/Win10

Linux with UVC(above linux-2.6.26)

MAC-OS X 10.4.8 or later

Android 4.0 or above with UVC

SONY-IMX290-Camera-for-Video-Analytics-1080PSONY-IMX290-Camera-for-Video-Analytics-1080P-02



Shenzhen Sinoseen Technology Co., LTD

China top 10 camera module manufacturer

If you are struggling to find the right camera module solution, please contact us, we will customize all kinds of USB/MIPI/DVP interface camera modules according to your needs, and have a dedicated team to provide you with the most suitable solution.



Camera module customizationsuggestion



According to the actual application scenarios and functional goals, the camera module needs to comprehensively consider the product structure size, image clarity, frame rate, lens angle, lighting scene and other factors to select the appropriate sensor, lens and solution. needs customization. These products are only used for customer testing DEMO,please contact our customer service to inform you which product you want to use the camera module on? What function is implemented? Are there any special requirements? According to cost targets and other comprehensive factors, we help you choose the right sensor+ lens solution, and then design the product PCB or FPC according to the structural requirements.



examples: the customer is going to make a person recognition and comparison machine. If it is used in a well-lit indoor environment, we recommend that customers use ordinary lenses and sensors. If the light or backlight is not good, we recommend customers to use WDR wide dynamic sensor. If customers have high requirements for safety, we recommend that customers use WDR and black and white infrared binocular recognition camera modules. When determining the sensor and lens plan, the customer should adjust the color, white balance and saturation parameters according to the actual environment to achieve the target effect.
