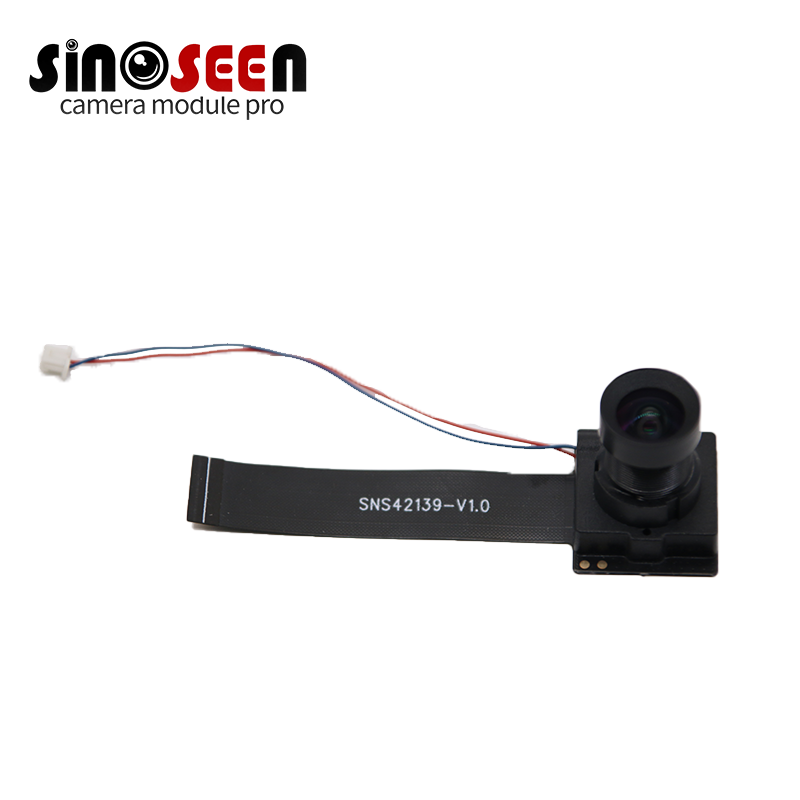

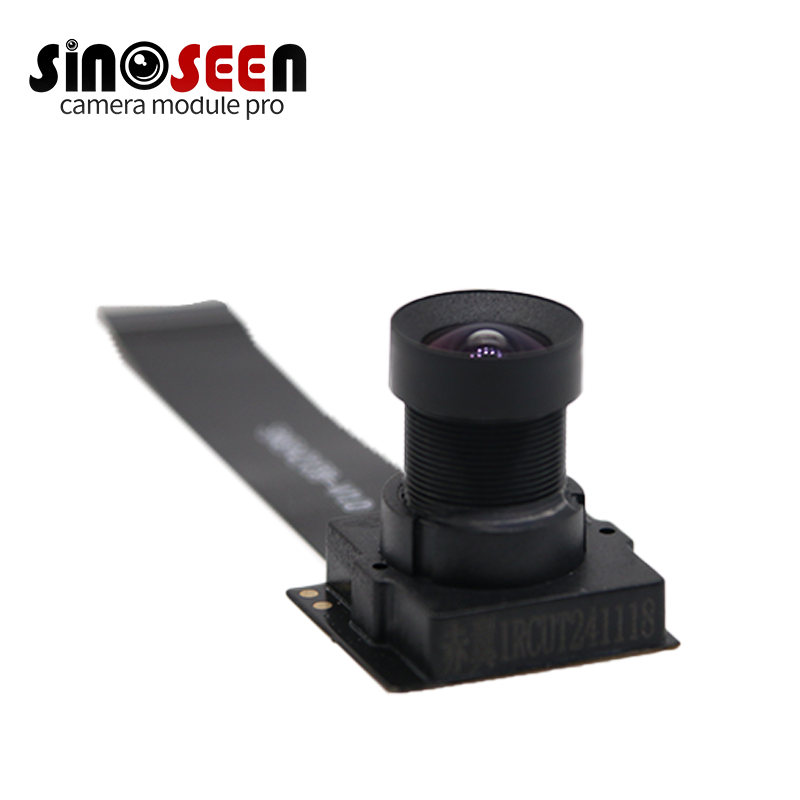

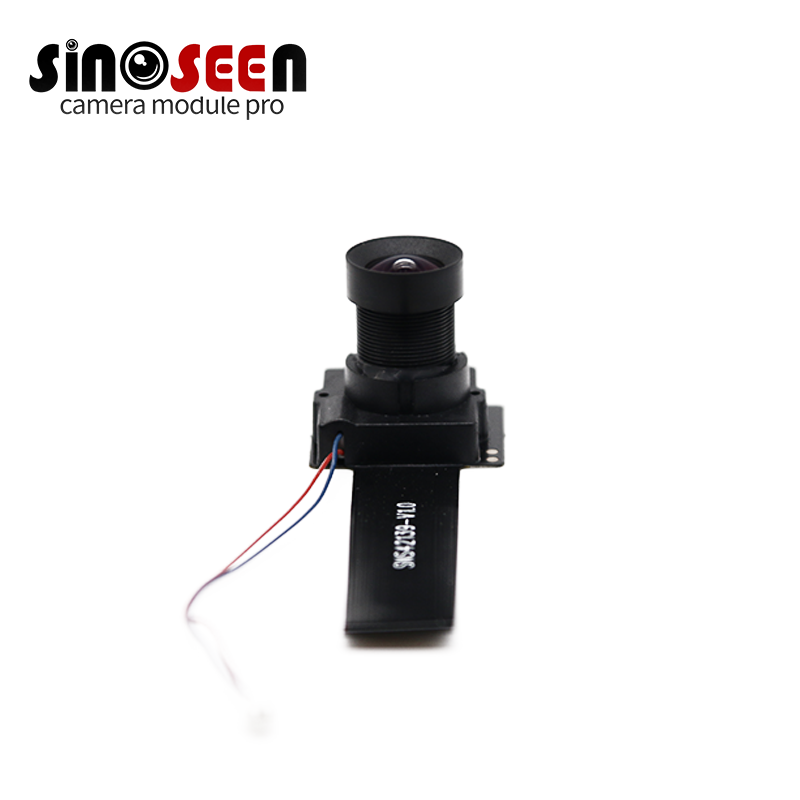

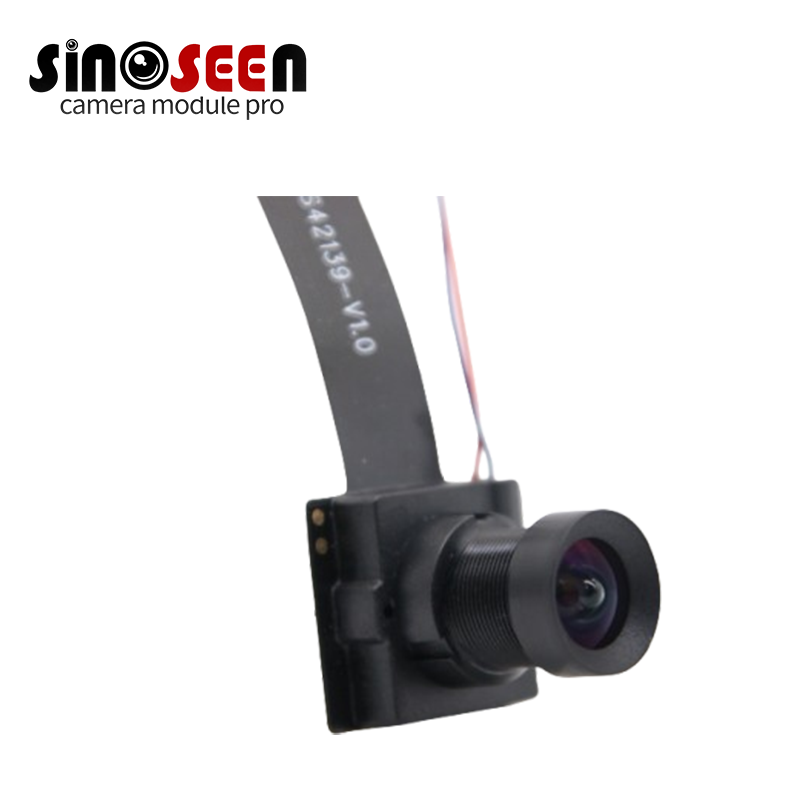

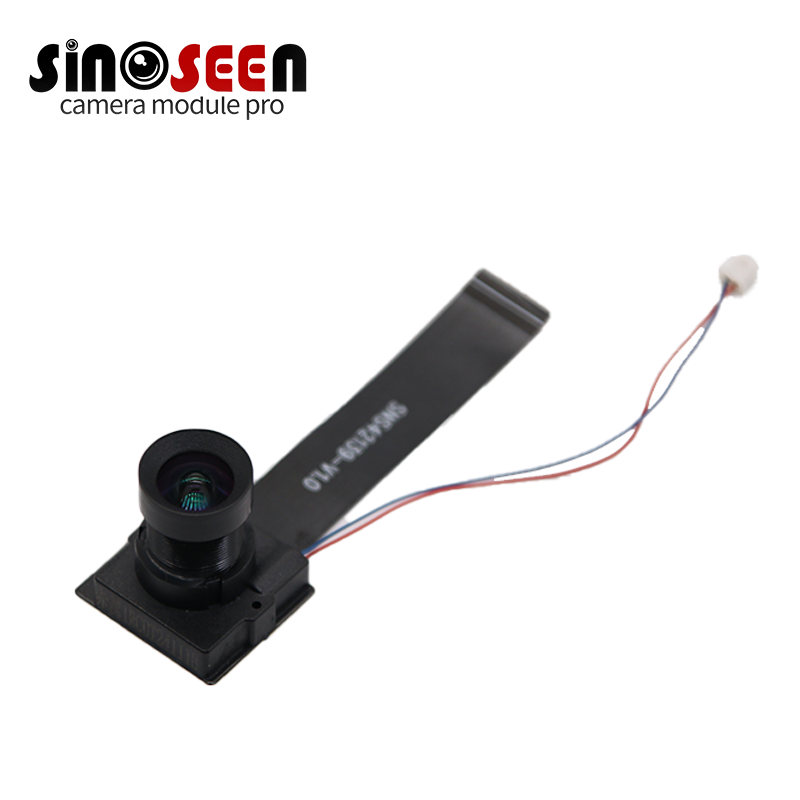

SC450AI 4MP MIPI Camera Module High Dynamic Range CMOS Sensor low-light camera for smart home
Product Details:
|
Place of Origin: |
Shenzhen,China |
|
Brand Name: |
Sinoseen |
|
Certification: |
RoHS |
|
Model Number: |
SNS42139-V1.0 |
Payment & Shipping Terms:
|
Minimum Order Quantity: |
3 |
|
Price: |
10-100usd or negotiable |
|
Packaging Details: |
Tray+Anti-static bag in carton box |
|
Delivery Time: |
2-3weeks |
|
Payment Terms: |
T/T |
|
Supply Ability: |
500000 pieces/month |
- Parameter
- Related products
- Inquiry
Detail Information
Type: |
MIPI Camera Module |
Sensor: |
SC450AI |
Resolution: |
2704 × 1536 |
Dimensions: |
(customizable) |
Lens FOV: |
97°(optional) |
Focus Type: |
Fixed Focus |
Interface: |
MIPI |
Feature: |
facial recognition |
High Light: |
MIPI Camera Module facial recognition Camera Module SC450AI module camera MIPI |
||
Product Description
The SC450AI 4MP MIPI camera module (SNS42139-V1.0) delivers clear, high-resolution imaging for advanced monitoring and AI applications. With 2.9 µm pixels and a 1/1.8" sensor, it captures detailed video at 2688×1520 @30fps.
Its high dynamic range and strong low-light sensitivity make it ideal for environments where lighting conditions change frequently. The optional 97° wide-angle lens covers broad scenes, while support for multi-sensor synchronization and external exposure control allows complex deployments like video doorbells, drones, or industrial monitoring.
Integration is straightforward via MIPI interface, compatible with platforms like RK, Qualcomm, MTK, HiSilicon, and Allwinner.
| Parameter | Specification |
|---|---|
| Sensor Model | SC450AI |
| Resolution | 4MP (2688 × 1520 @ 30fps) |
| Pixel Array | 2704 × 1536 |
| Pixel Size | 2.9 µm × 2.9 µm |
| Optical Size | 1/1.8" |
| Output Format | RAW RGB |
| Output Interface | 1/2/4 Lane MIPI, 1/2/4 Lane LVDS, 12/10/8-bit |
| Dynamic Range | >100 dB (WDR), 87 dB (linear) |
| SNR | 42 dB |
| Sensitivity | 7072 mV/Lux·s |
| Shutter Type | Rolling Shutter |
| CRA | 9° |
| IR Enhancement | 850nm / 940nm |
| Analog Gain | 61× |
| Digital Gain | 16× |
| Binning Mode | 2×2 |
| High-Speed DPC | Supported |
| External Control | Frame rate & multi-sensor sync |
| Windowing | Horizontal / Vertical adjustment |
| Temperature Sensor | Built-in |
| Operating Temp | -30°C ~ +85°C |
| Optimal Temp | -20°C ~ +60°C |
| Power Supply | Analog 2.8V ±0.1V, Digital 1.2V ±0.1V, VO 1.8V ±0.1V |
| Package | 70-pin CSP, 8.63 mm × 5.46 mm |
| Module Model | SNS42139-V1.0 |
| Focus Type | Fixed Focus |
| Field of View | 97° (optional) |
| Module Size | 23.2 × 74.9 mm |
| Applications | Smart home, digital signage, facial recognition, video doorbells, drones, toy cameras, dashcams, action cameras, pattern recognition, video conferencing |
| Supported Platforms | RK, Qualcomm, Allwinner, MTK, Spreadtrum, HiSilicon, MStar |
