SC035HGS Sensor Module VGA Global Shutter 180fps mipi lvds camera module for barcode scanner camera
Product Details:
|
Place of Origin: |
Shenzhen,China |
|
Brand Name: |
Sinoseen |
|
Certification: |
RoHS |
|
Model Number: |
SNS12190-V1.0 |
Payment & Shipping Terms:
|
Minimum Order Quantity: |
3 |
|
Price: |
negotiable |
|
Packaging Details: |
Tray+Anti-static bag in carton box |
|
Delivery Time: |
2-3weeks |
|
Payment Terms: |
T/T |
|
Supply Ability: |
500000 pieces/month |
- Parameter
- Related products
- Inquiry
Detail Information
Type: |
MIPI Camera Module |
Sensor: |
SC035HGS |
Resolution: |
640H x480V |
Dimensions: |
(customizable) |
Lens FOV: |
88°(optional) |
Focus Type: |
Fixed Focus |
Interface: |
MIPI |
Feature: |
Low Cost、180FPS |
High Light: |
MIPI Camera Module 180fps mipi Camera Module SC035HGS module camera mipi |
||
Product Description
The SC035HGS is a global shutter CMOS image sensor with a VGA resolution of 640×480 and a maximum frame rate of 180fps.
Its global shutter technology eliminates motion distortion, delivering high sensitivity, low power consumption, and flexible interface compatibility.
The SNS12190-V1.0 camera module integrates this sensor with support for MIPI/DVP/LVDS outputs, ensuring easy system integration.
Technical Specifications
| Parameter | Specification |
|---|---|
| Module Model | SNS12190-V1.0 |
| Sensor | SC035HGS |
| Resolution | 640×480 (VGA, 0.3MP) |
| Frame Rate | 180fps @10bit |
| Pixel Size | 3.744µm × 3.744µm |
| Optical Format | 1/6" |
| Shutter Type | Global Shutter |
| Output Interfaces | MIPI (1/2 Lane), DVP, LVDS |
| Output Format | RAW MONO / RAW RGB |

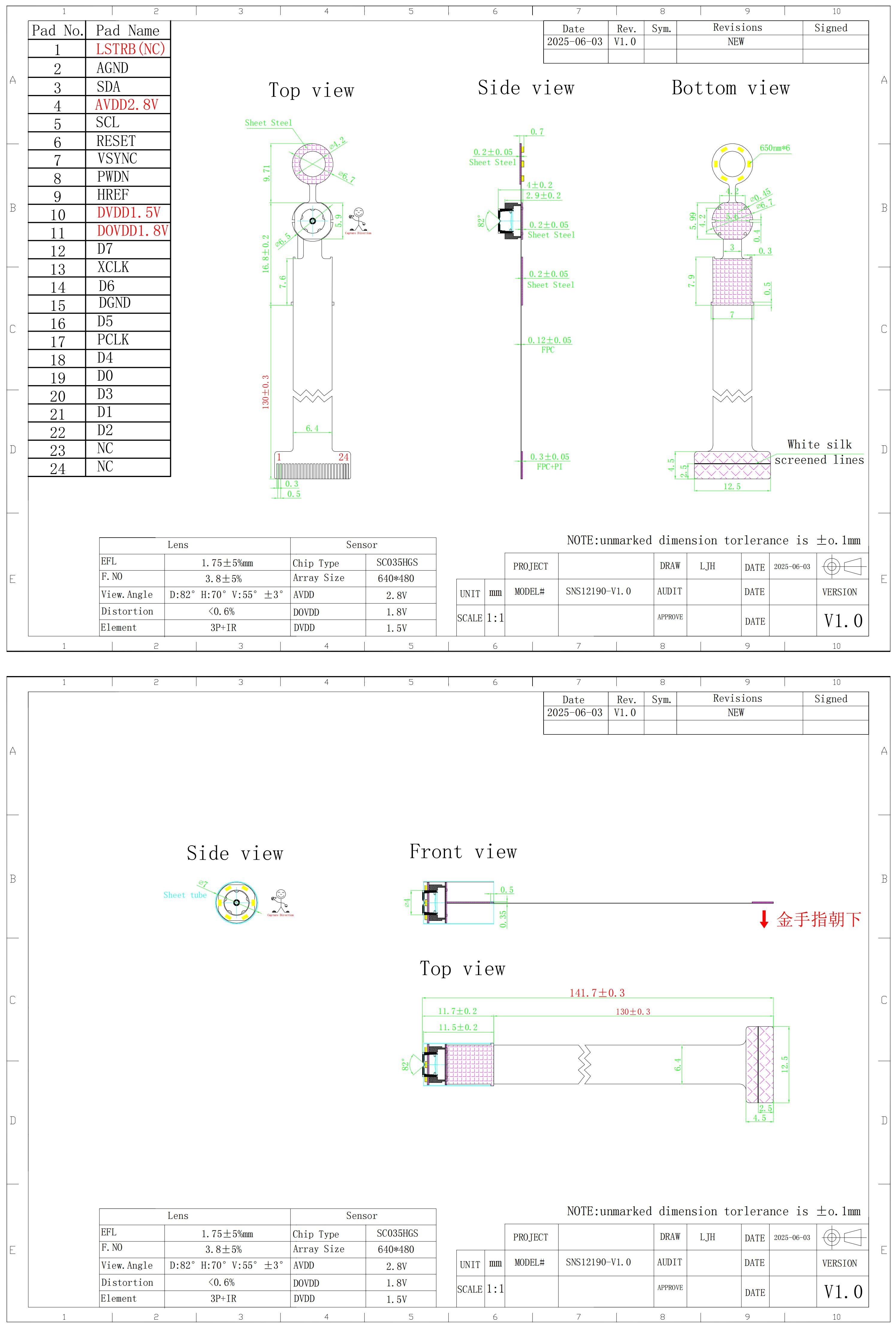

| Module Size | 36 × 8 mm |
| Field of View (FOV) | 88° (optional) |
| Power Consumption | ≤120mW |
| Operating Temp | -30℃ ~ +85℃ |
| Supply Voltage | AVDD 2.8V, DVDD 1.5V, IOVDD 1.8V |
Key Features
Global shutter – precise capture of fast-moving objects without distortion
High-speed imaging – 180fps for motion tracking and inspection
Flexible interfaces – MIPI, DVP, LVDS support
Advanced control – external trigger, multi-sensor sync, image flip & mirror
Low power consumption – suitable for embedded and portable devices
