OV7251 and OV9281 Cmos Sensor Compact Design Flexible USB 2.0 Binocular Camera 1MP

Product Details:

Place of Origin:

Shenzhen,China

Brand Name:

Sinoseen

Certification:

RoHS

Model Number:

XLS-GB011M-V1

Payment & Shipping Terms:

Minimum Order Quantity:

3

Price:

negotiable

Packaging Details:

Tray+Anti-static bag in carton box

Delivery Time:

2-3weeks

Payment Terms:

T/T

Supply Ability:

500000 pieces/month

  • Parameter
  • Related products
  • Inquiry
  • Detail Information

Type:

Dual LensCamera Module

Sensor:

OV7251 And OV9281

Resolution:

1MP 1280(H) X 720(V)

Dimensions:

37.3mm*12mm(customizable)

Lens FOV:

100°(optional)

Focus Type:

Fixed Focus

Interface:

USB2.0

Feature:

Flexible

High Light:

720P 1MP Binocular Camera Module

Flexible Binocular Camera Module

720P NT99141 HD Camera Module

Product Description

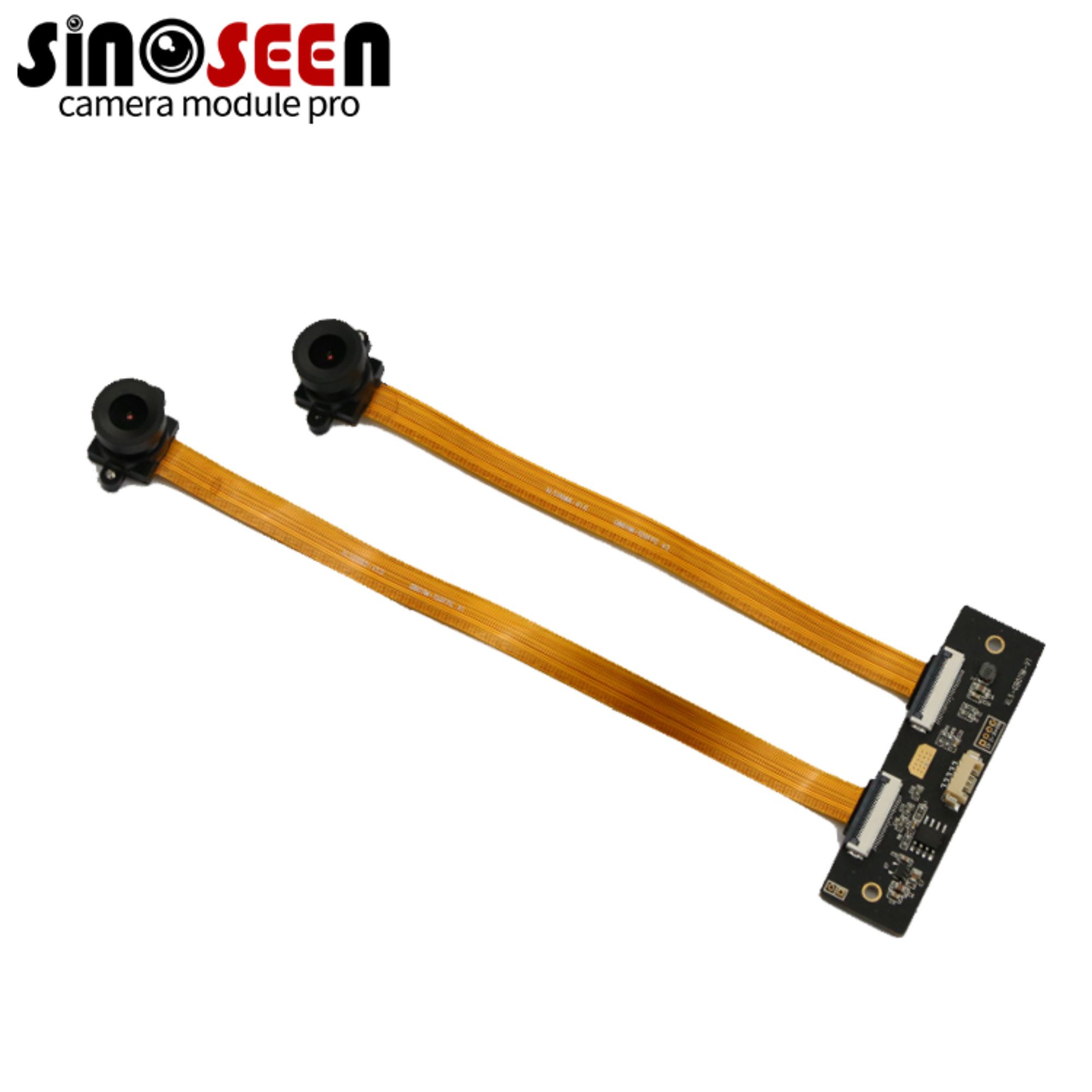

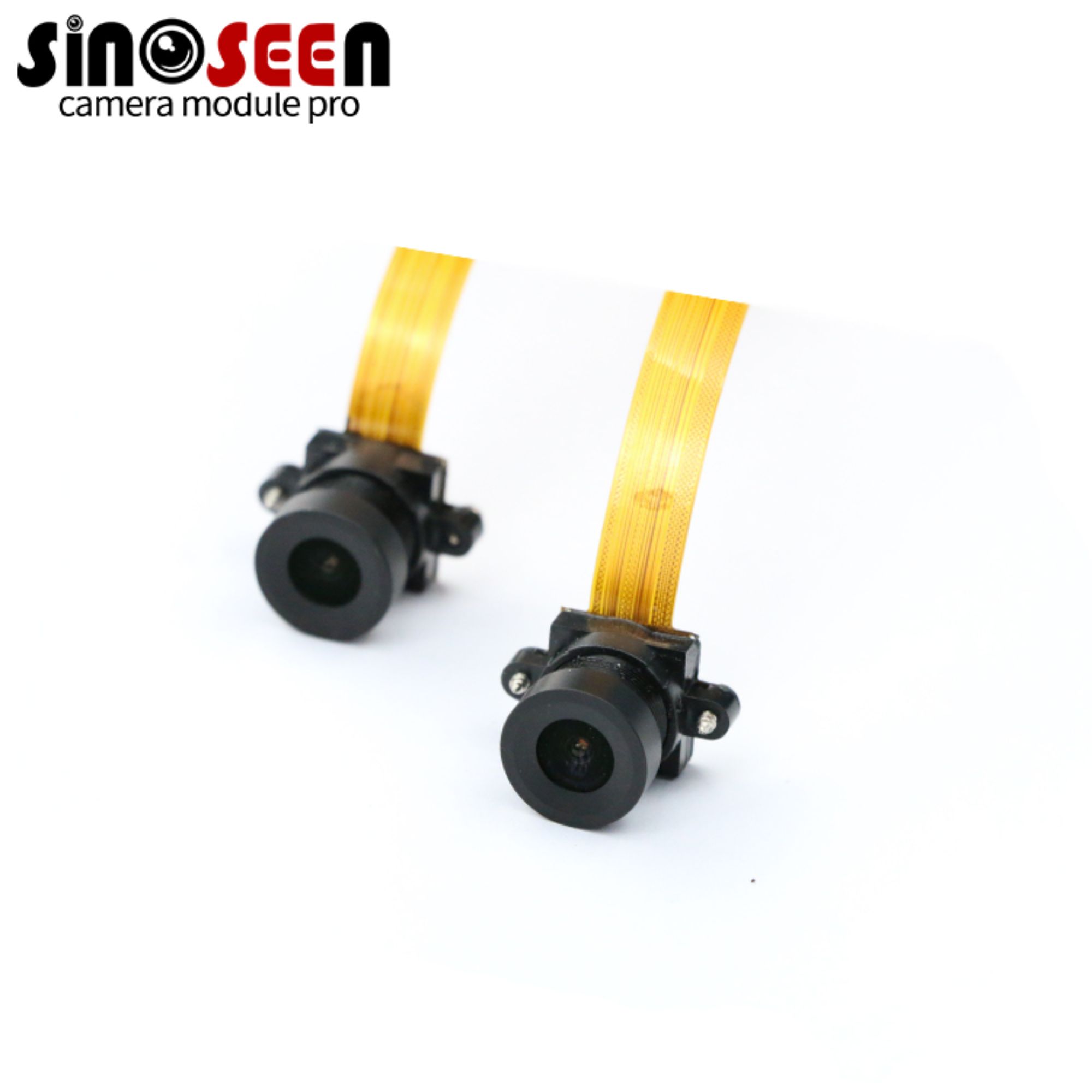

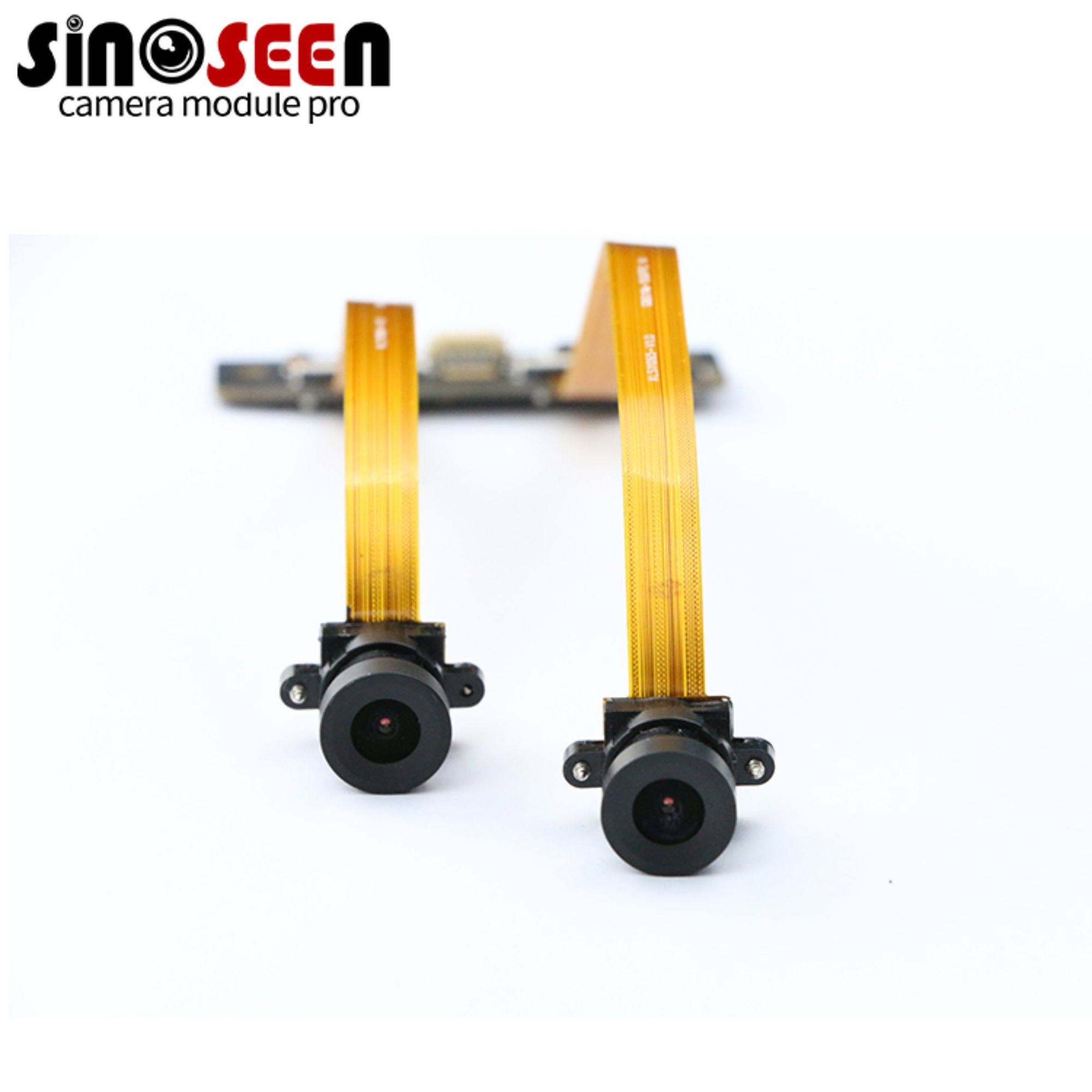

Our newly developed camera module features a high-performance OV7251 and OV9281 CMOS sensor with an HD 720 resolution.  Unlike other camera modules, it is composed of two parts: a rigid chip and a flexible lens, making it easier to install in machinery or equipment.

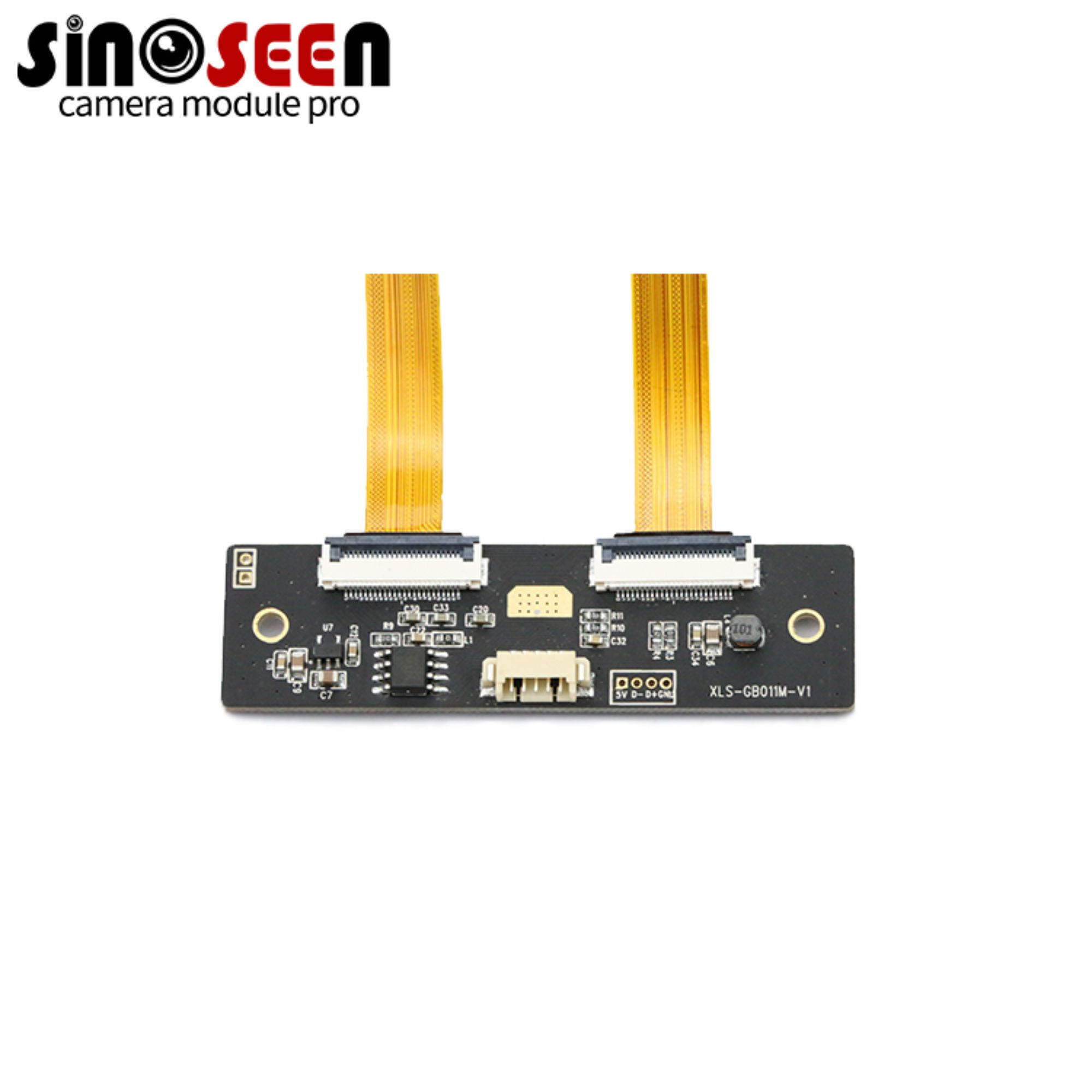

The rigid part measures 37.3mm x 12mm, and the flexible cable is 45mm in length, which can be adjusted to meet your specific requirements. We offer a range of field of view (FOV) lenses to choose from, with options ranging from 60°to 160°.

Our lenses are widely used in various industries, including DV, AR, VR, video, AI, wearable devices, Internet of Things, machine vision, computer

vision, industrial, medical, endoscopy, robotics, and more.



Specification

Model No

XLS-GB011M-V1

Sensor

OV7251 and OV9281

Pixel

1 Mega Pixel

Most effective pixels

1280(H) x 720(V)

Pixel Size

3.0µm x 3.0µm

Image area

3852um(H) x 2172um (V)

Compression format

MJPEG / YUV2 (YUYV)

Resolution & Frame rate

See above

Shutter Type

Electronic rolling shutter

Focus type

Fixed focus

ADC Resolution

10 bits

Object distance

10CM-Infinity

Minimum Illumination

0.1 Lux

Interface type

USB2.0 high speed

Adjustable parameter

Brightness/Contrast/Color saturation/Hue/Definition/
Gamma/White balance/Exposure

Lens

EFL: 2.3mm



Lens Size: 1/4 inch



H FOV: 100°



Lens Construction: 4G+IR

Audio frequency

Optional

Power supply

USB BUS POWER

Power consumption

DC 5V, 120mA

Main chip

DSP/SENSOR/FLASH

Auto Exposure Control (AEC)

Support

Auto White Balance (AEB)

Support

Auto Gain Control (AGC)

Support

Dimension

37.3mm*12mm

Storage temperature

-20°C to 70°C

Operating temperature

0°C to 60°C

USB cable length

Default

Support OS

WinXP/Vista/Win7/Win8/Win10
Linux with UVC(above linux-2.6.26)
MAC-OS X 10.4.8 or later
Android 4.0 or above with UVC



OV7251-and-OV9281-Cmos-Sensor-Compact-Design-camera







Shenzhen Sinoseen Technology Co., LTD

China top 10 camera module manufacturer

If you are struggling to find the right camera module solution, please contact us, we will customize all kinds of USB/MIPI/DVP interface camera modules according to your needs, and have a dedicated team to provide you with the most suitable solution.



FAQ:

Q1. How to choose the right camera module?

A: Please tell us your specific needs, such as application scenarios, resolution, size, and lens requirements. We will have a professional team of engineers to assist you in choosing the most suitable camera module.

Q2. How to start proofing?

A: After confirming all the parameters, we will draw a drawing to confirm the details with you. Once the drawing is confirmed, we will arrange a proofing.

Q3: How do I send the payment?

A: Currently we accept T/T bank transfer and Paypal.

Q4: How long does it take to make a sample?

A: If it is a USB camera module, it usually takes 2-3weeks, if it is a MIPI or DVP camera module, it usually takes 10-15days.

Q5: How long will it take to receive the sample after it is ready?

A: After the samples have been tested and there is no problem, we will send the samples to you via DHL FedEx UPS or any other courier methods, usually within a week.
