High-Performance 5MP USB Camera Module with OV5648 Sensor

Place of Origin:	Shenzhen,China
Brand Name:	Sinoseen
Certification:	RoHS
Model Number:	SNS-58875-v1.0

Minimum Order Quantity:	1
Price:	negotiable
Packaging Details:	Tray+Anti-static bag in carton box
Delivery Time:	2-3weeks
Payment Terms:	T/T
Supply Ability:	500000 pieces/month

Detail Information

Type:	MIPI Camera Module	Sensor:	1/4" Omnivision OV5648
Resolution:	5MP 2592x1944	Dimensions:	Customizable
Lens FOV:	65°	Focus Type:	Fixed Focus
Interface:	MIPI	Feature:	HD
High Light:	2592*1944 MIPI camera module , OV5648 MIPI camera module , 5MP cmos camera module

Product Description

USB Camera Module 5MP Description
This is a highly sought-after MIPI camera module, manufactured with a 5MP sensor, the OV5648, from Omnivision. The OV5648 is a highly regarded sensor, boasting the following features:
1.4um x 1.4um pixel with OmniBSI+ technology, offering high performance, including high sensitivity, low crosstalk, and low noise.

The camera module is equipped with automatic image control functions, including automatic exposure control (AEC), automatic gain control (AGC), automatic white balance (AWB), and automatic black level calibration (ABLC).
Additionally, the module offers programmable controls for frame rate, AEC/AGC 16-zone size/position/weight control, mirror and flip.cropping, windowing, and panning.

The device is capable of supporting both internal and external frame synchronisation for frame exposure mode. Additionally, it is equipped with black sun cancellation functionality. Its applications extend to a diverse range of fields, including cellular phones, toys, personal computers, and digital still cameras.

Product Features

5MP Image Capture
Provides detail for reviewing objects, printed information and scenes.
Compact Footprint
The 18.5 × 8.5mm dimensions help accommodate narrow installation spaces.
OmniBSI+ Pixel Technology
Uses a backside-illuminated architecture designed to improve light collection.
Fixed-Focus Optics
Provides a consistent optical setup for the selected working range.
MIPI Connectivity
Supports integration with compatible embedded imaging platforms

Specification

Pixel Size	1.4μm x 1.4μm
Effective Pixels	2592*1944
Image Sensor	1/4"
Sensor Type	OV5648
Lens View	FOV65°(Optional),F/N(Optional)
TV Distortion	<1% (Optional)
Temperature(Operation)	0～60℃
Temperature(Storage)	-20～70℃
Dimension	18.5*8.5mm (Customizable)

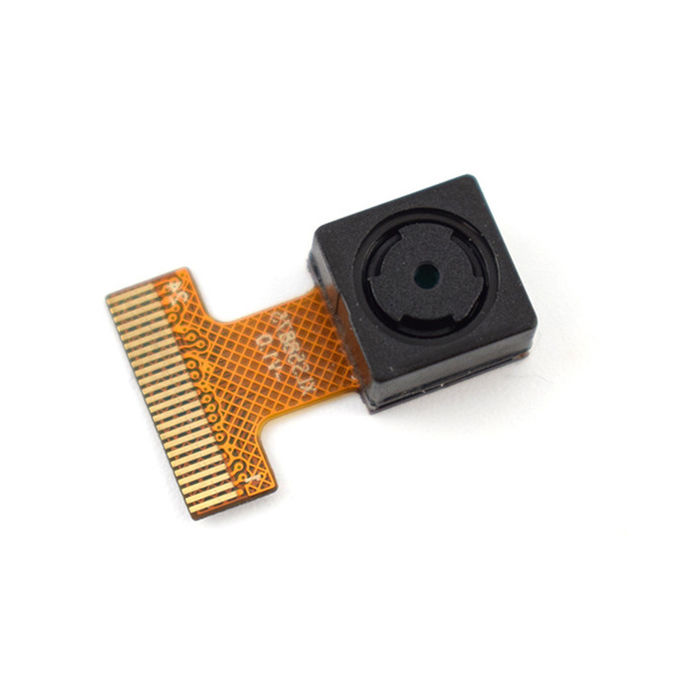

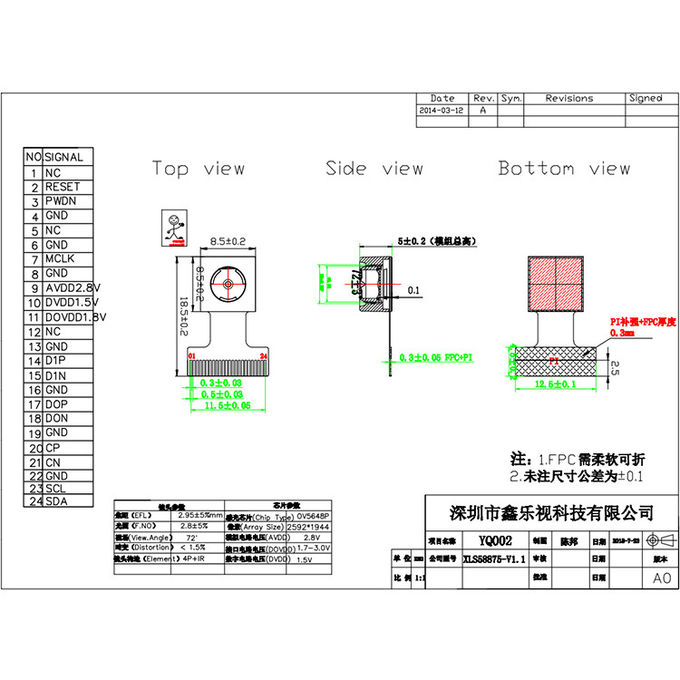

OV5648-MIPI-Camera-Module MIPI-Camera-Module-Fixed-Focus

Application Areas

Face Recognition: Face capture for access control.
QR Code Payment: Code imaging for decoding.
VR Devices: Visual input for motion tracking.
High-Speed Tracking: Moving-object image capture.
Terminal Scanning: Document and barcode imaging.
Robot Vision: Images for positioning and guidance.
Security & Smart Home: Indoor and outdoor monitoring.
AI Training Data Collection: Image capture for AI datasets.
Medical & Life Science Imaging: Image capture for microscopy and research.

OEM/ODM Customization & Development Process

Match the Camera to Your Integration Requirements

A suitable camera configuration must fit both the imaging task and the device structure. Sinoseen provides OEM/ODM camera module services and can assess changes to the optical setup, flexible-circuit layout, connection arrangement, and supported operating configuration.

Project Requirement	Areas for Engineering Review	Information to Provide
The camera does not fit the enclosure	Camera-head placement, FPC outline, and routing	Mechanical drawings and available space
cene coverage or working distance is unsuitable	Lens selection, field of view, and focus setting	Target dimensions and capture distance
The host connection differs from the standard design	Connector, pin assignment, and interface configuration	Host specifications and connection requirements
Moving targets require sharper capture	Exposure, lighting, and supported frame-rate modes	arget speed, sample images, and lighting conditions
he project requires infrared imaging	Filter and lens suitability	Illumination wavelength and imaging requirements

Customization feasibility, development scope, cost, and lead time are confirmed after engineering review.

Customization Process

Step 1 — Share Your Requirements

Provide the application, host platform, required resolution and frame rate, working distance, installation space, and estimated quantity.

Step 2 — Review the Configuration

Assess the sensor operating mode, interface, lens, and mechanical arrangement. Identify any changes required for the target device.

Step 3 — Confirm Drawings and Evaluation Criteria

Agree on the configuration, connection details, mechanical revision, and sample acceptance requirements before prototype production.

Step 4 — Evaluate Samples

Test image quality, sustained frame rate, exposure behavior, host integration, and mechanical fit in the actual operating environment.

Step 5 — Approve the Production Configuration

Confirm the accepted sample, drawings, optical components, and operating configuration before proceeding with volume production.

Send Your Drawings and Imaging Requirements

About Sinoseen

Shenzhen Sinoseen Technology Co., Ltd. was established in June 2016 and specializes in CMOS camera module design, development, manufacturing, and OEM/ODM services.

Its product portfolio includes USB, MIPI, and DVP camera modules, with services extending from development through manufacturing and after-sales support.

For embedded vision projects, Sinoseen works with customers to assess the imaging task alongside mechanical and electrical integration requirements. This helps define a camera configuration that can be evaluated in the intended device before production approval.

Certifications & Intellectual Property

Sinoseen’s documentation includes quality management records, product compliance documents, software copyrights, and utility model patents. For your camera module project, please request the current documents applicable to the selected model and configuration, including relevant CE, FCC, or RoHS documentation.

Frequently Asked Questions

1. Is this a USB camera?
No. This configuration uses MIPI. A USB-only host requires an appropriate bridge or development platform.

2. Can it automatically focus on nearby and distant subjects?
The listed configuration uses fixed focus. Define the required working range and validate sharpness at both its nearest and farthest points.

3. Does the listed size include the lens height?
The page provides two dimensions only. Request the complete mechanical drawing to confirm height, connector position and installation clearances.

4. Can it capture small text for OCR?
It can be evaluated as an image input device. Text readability depends on framing, focus, lighting and character size. OCR requires host software.
