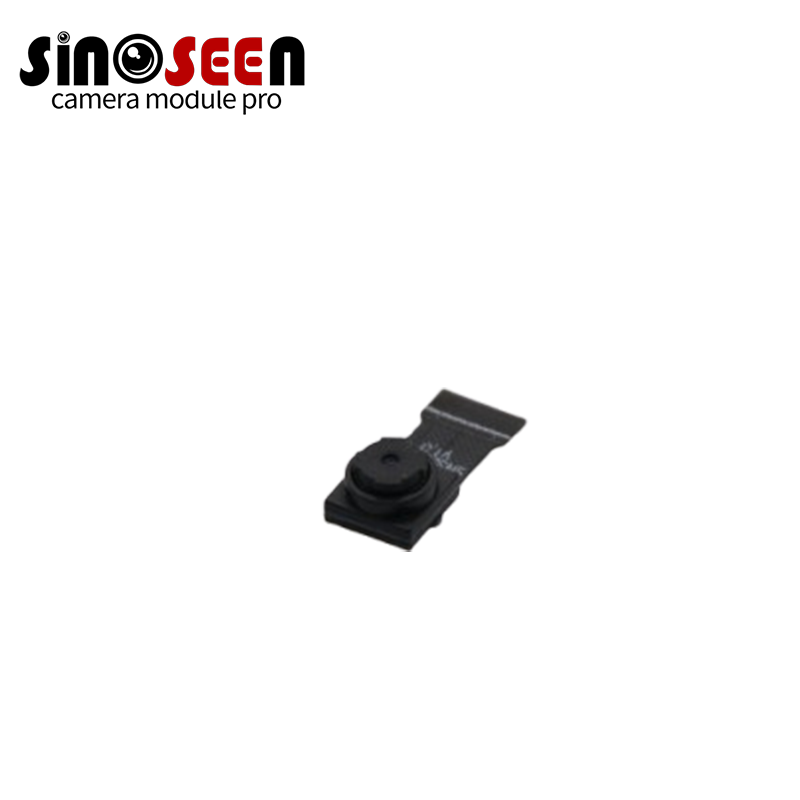

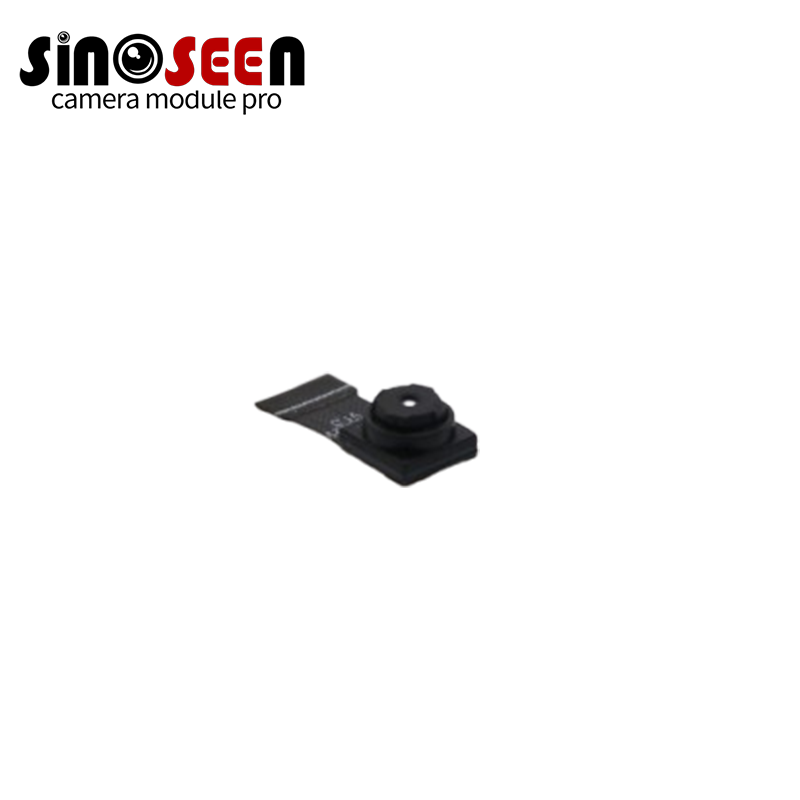

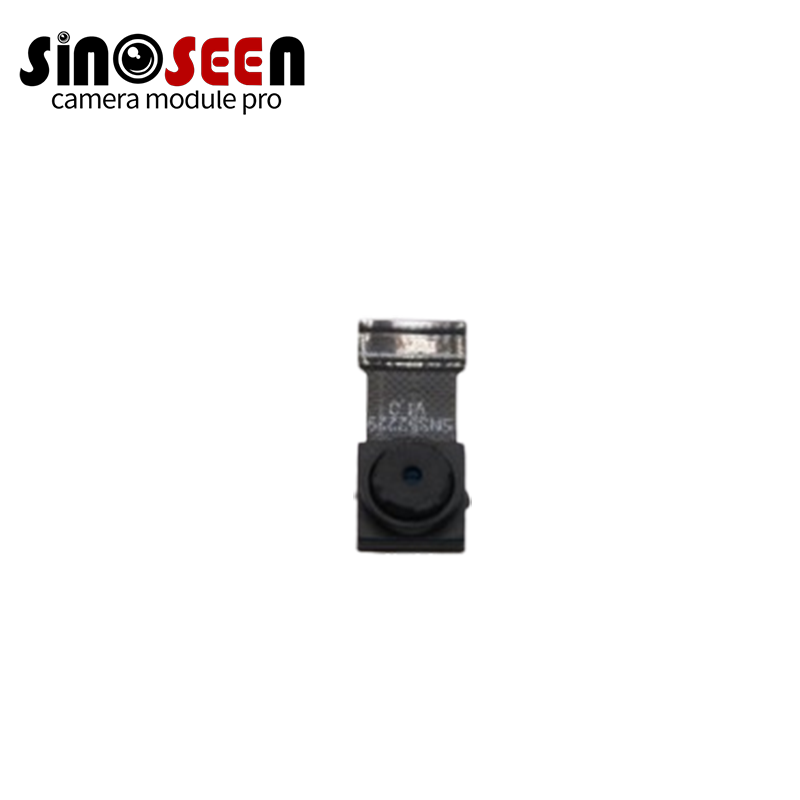

OV5648 Camera Module 5MP MIPI/USB
Product Details:
|
Place of Origin: |
Shenzhen,China |
|
Brand Name: |
Sinoseen |
|
Certification: |
RoHS |
|
Model Number: |
SNS2229-V1.0 |
Payment & Shipping Terms:
|
Minimum Order Quantity: |
3 |
|
Price: |
negotiable |
|
Packaging Details: |
Tray+Anti-static bag in carton box |
|
Delivery Time: |
2-3weeks |
|
Payment Terms: |
T/T |
|
Supply Ability: |
500000 pieces/month |
- Parameter
- Related products
- Inquiry
High-Resolution OV5648 Camera Module: 5MP Imaging for Embedded Vision
In the competitive landscape of embedded and industrial imaging, the ov5648 camera module remains a trusted solution for applications demanding 5-megapixel clarity with proven reliability. Powered by OmniVision’s OV5648 sensor with OmniBSI+™ technology[1], this module delivers full 2592×1944 resolution at 15 fps and 1080p at 30 fps in an ultra-compact 6.5×6.5×4mm package. With the global 5MP+ camera module market growing at a CAGR of 9.8% through 2030[2], our 5mp ov5648 camera module offers B2B engineers a mature, field-proven platform for rapid deployment.
Available in MIPI CSI-2, DVP parallel, and USB versions, the mipi ov5648 camera module and usb ov5648 camera module variants provide maximum flexibility. Enterprises pursuing wholesale ov5648 camera module strategies benefit from stable long-term supply, while customized ov5648 camera module services enable lens, connector, and firmware tailoring to exact specifications.
Key Product Advantages
- True 5MP Resolution: 2592×1944 active array with 1.4μm OmniBSI+ pixels for superior low-light performance.
- Multiple Output Modes: QSXGA@15fps, 1080p@30fps, 720p@60fps, VGA@90fps – ideal for 5mp ov5648 camera module versatility.
- Rich Interface Support: MIPI CSI-2 (2-lane), DVP, and USB 2.0 options for seamless integration in mipi ov5648 camera module and usb ov5648 camera module systems.
- Compact Form Factor: Only 6.5×6.5×4mm total height with 650nm IR-cut filter standard.
- Proven Reliability: Operating range –30°C to +70°C and built-in OTP memory for customized ov5648 camera module calibration.
Product Specifications
| Parameter | Specification |
|---|---|
| Sensor | OmniVision OV5648 1/4" CMOS |
| Active Array | 2592 × 1944 (5MP) |
| Pixel Size | 1.4 μm × 1.4 μm |
| Maximum Frame Rates | QSXGA@15fps · 1080p@30fps · 720p@60fps · VGA@90fps |
| Output Interfaces | MIPI CSI-2 (2-lane) · DVP · USB 2.0 |
| Output Format | 8/10-bit RAW RGB |
| Dynamic Range | 67 dB @ 8× gain |
| Sensitivity | 600 mV/Lux-sec |
| S/N Ratio (max) | 34 dB |
| CRA | 29.1° |

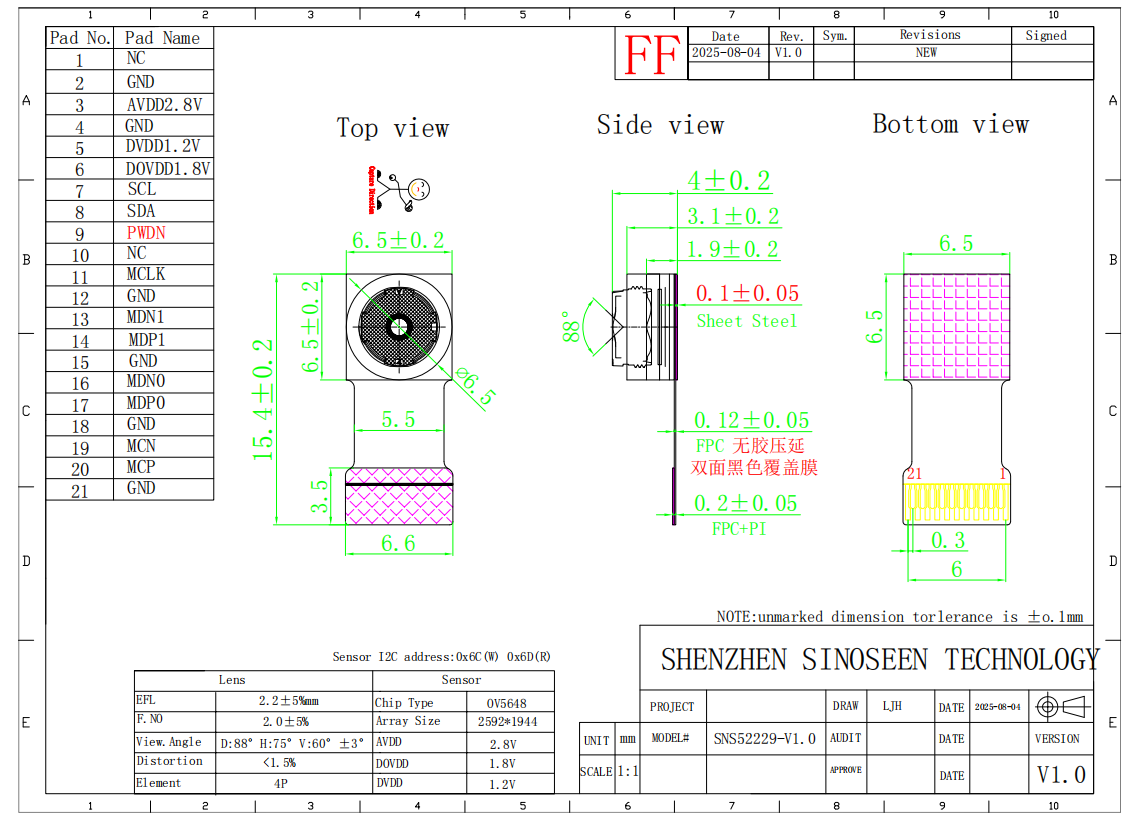

| Module Size | 6.5 × 6.5 × 4 ± 0.2 mm (ov5648 camera module) |
| Operating Temperature | –30°C to +70°C |
| Power Consumption | 198 mW (active) · 35 μW (standby) |
Product Application Areas
- Smart Doorbells & Video Intercoms – proven 1080p clarity with usb ov5648 camera module.
- Industrial Inspection & Robotics – high-resolution detail via mipi ov5648 camera module.
- Medical Endoscopes – compact size and excellent color reproduction.
- Document Scanners & Kiosks – QSXGA mode for sharp A4 capture.
- Security & Access Control – reliable performance in wholesale ov5648 camera module deployments.
About Sinoseen
Sinoseen, a premier China camera module manufacturer with over ten years of expertise, delivers end-to-end visual solutions to global B2B clients. We specialize in wholesale ov5648 camera module supply and customized ov5648 camera module development across USB, MIPI, and DVP interfaces through comprehensive OEM/ODM services. Our dedicated engineering and service teams provide one-stop support from optical design to mass production. Contact us to explore how our ov5648 camera module can accelerate your next project.
Customization Process
- Specification Definition – Submit lens, interface, and firmware needs for your customized ov5648 camera module.
- Optical & PCB Design – Optimize FPC length, connector type, and IR filter.
- Rapid Prototyping – Functional samples delivered in 7–14 days.
- Validation & Certification – Full environmental and EMC testing.
- Mass Production Launch – Seamless scale-up with strict quality gates.
Total Cost of Ownership (TCO) Comparison
| Aspect | Sinoseen OV5648 Module | Alternative 5MP Modules |
|---|---|---|
| Integration Time | 2–4 weeks (mature ecosystem) | 6–12 weeks (driver development) |
| Long-Term Availability | >7 years (OmniVision LTS) | 3–5 years typical |
| Maintenance Load | Low (OTP calibration) | Higher (frequent tuning) |
| Overall TCO Impact | 20–30% lower over lifecycle | Higher due to redesign risk |
Compliance Package & Supply Chain Security
All OV5648 camera modules are RoHS, REACH, CE, and FCC compliant. Our supply chain operates under ISO 9001 and IATF 16949 standards with multi-sourced key components and 12-month buffer inventory to ensure continuity.
Mass Production Risk Matrix & After-Sales KPIs
| Risk | Probability | Mitigation |
|---|---|---|
| Sensor EOL Risk | Very Low | OmniVision long-term supply commitment |
| Yield Variation | Medium | Automated AOI + SPC → 98%+ yield |
| Delivery Delay | Low | Air: 5–10 days to US/EU · Sea: 20–30 days |
After-sales KPIs: 95% issue resolution within 24 h · 99% spare parts on-time · >99.5% first-year field reliability.
Common Buyer FAQs
Q: Is the usb ov5648 camera module UVC compliant?
A: Yes – plug-and-play on Windows, Linux, and Android without custom drivers.
Q: Can we order a customized ov5648 camera module with M12 lens and IP67 housing?
A: Standard lead time for fully sealed versions is 3–4 weeks.
Q: Does the mipi ov5648 camera module support Raspberry Pi and NVIDIA Jetson?
A: Yes – officially verified drivers available.
Q: What is the minimum order for wholesale ov5648 camera module?
A: Flexible MOQ starting at 100 pcs for standard configurations.
Q: Can the IR-cut filter be removed for NIR applications?
A: Yes – both 650nm IR-cut and full-spectrum versions are readily available.
Industry Challenges & Solutions
-
Challenge: Achieving true 5MP in compact designs
Solution: 1/4" OV5648 with only 4mm height in 5mp ov5648 camera module. -
Challenge: Long-term component availability
Solution: OmniVision LTS program guarantees supply beyond 2030. -
Challenge: Multi-platform driver support
Solution: Pre-validated UVC and V4L2 drivers for usb ov5648 camera module.
Footnotes
- OmniBSI+™: OmniVision’s backside-illuminated pixel technology improving quantum efficiency and low-light performance.
- 5MP+ camera module market CAGR 2024–2030: Technavio & Yole Développement reports.
