• Detail Information

Product Description

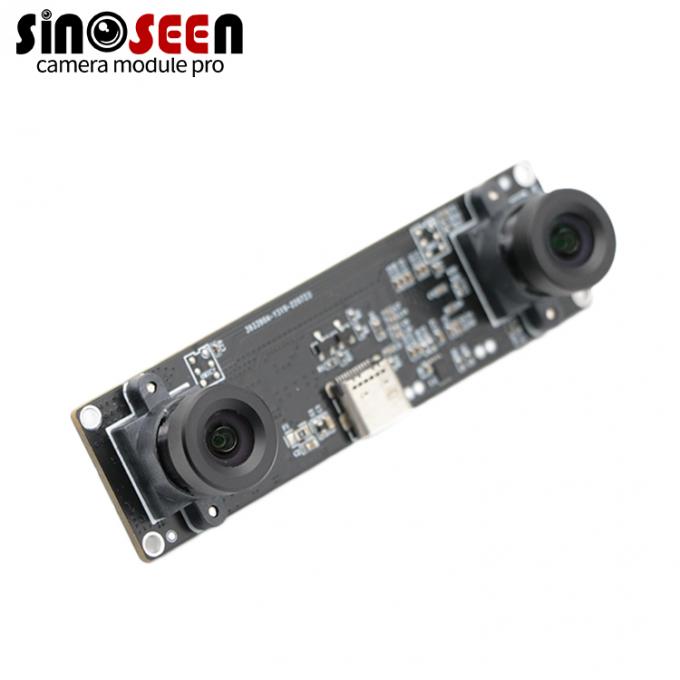

This module is a high-definition camera with a 1080p/720p resolution and an OV2735 sensor. It supports IP cameras, HD analog cameras, and 1080p video capture at 30fps. Additionally, it has a low power consumption mode and maintains stable image quality in temperatures ranging from 0°C to 60°C.The module can be programmed to control various settings, including gain, exposure, frame rate, image size, horizontal mirroring, vertical flipping, crop, and window.

Key Features

1. Dual 1080P Color Image Capture
Each camera provides 1920 × 1080 image data, allowing the host to work with two viewpoints of the observed scene.

2. Up to 60fps in MJPG Mode
The specified MJPG modes support 3840 × 1080 and 2560 × 720 combined output at up to 60fps. Frame rates depend on the selected format and host capture configuration.

3. USB 2.0 with a Type-C Connector
Combines data transfer and 5V power through the USB connection. The Type-C connector operates with USB 2.0 data transfer.

4. Fixed-Focus Optics
The specified lens configuration uses a 3.0mm focal length, F2.2 aperture and 98° ±3° field of view, with a working distance of 60cm to infinity.

5. MJPG and YUY2 Output
Select compressed MJPG for higher frame rates or uncompressed YUY2 where required by the host workflow. Available frame rates differ between formats.

6. Adjustable Image Controls
Exposure, brightness, contrast and saturation settings support image tuning for the application, subject to firmware and host software support.

7. Integration and Lens Evaluation
An M12 × 0.5 lens mount supports lens selection during project development. Confirm the target distance, viewing angle, host platform and installation requirements before sample evaluation.

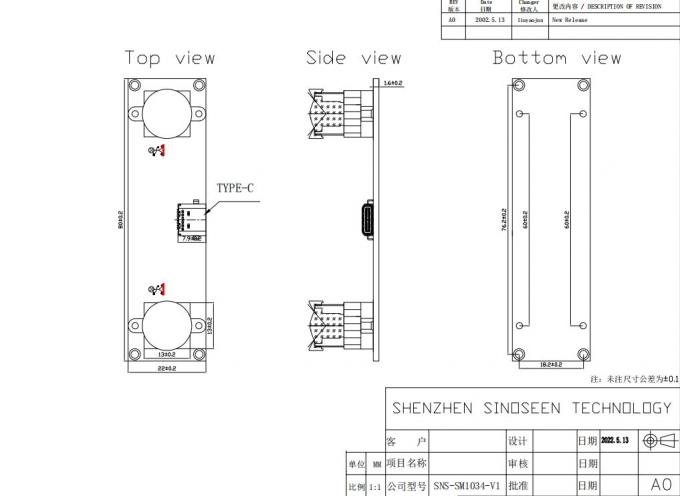

Specification

Application Areas

Face Recognition: Face capture for access control.
QR Code Payment: Code imaging for decoding.
VR Devices: Visual input for motion tracking.
High-Speed Tracking: Moving-object image capture.
Terminal Scanning: Document and barcode imaging.
Robot Vision: Images for positioning and guidance.
Security & Smart Home: Indoor and outdoor monitoring.
AI Training Data Collection: Image capture for AI datasets.
Medical & Life Science Imaging: Image capture for microscopy and research.

OEM/ODM Customization & Development Process

Match the Camera to Your Integration Requirements

A suitable camera configuration must fit both the imaging task and the device structure. Sinoseen provides OEM/ODM camera module services and can assess changes to the optical setup, flexible-circuit layout, connection arrangement, and supported operating configuration.

Customization feasibility, development scope, cost, and lead time are confirmed after engineering review.

Customization Process

Step 1 — Share Your Requirements

Provide the application, host platform, required resolution and frame rate, working distance, installation space, and estimated quantity.

Step 2 — Review the Configuration

Assess the sensor operating mode, interface, lens, and mechanical arrangement. Identify any changes required for the target device.

Step 3 — Confirm Drawings and Evaluation Criteria

Agree on the configuration, connection details, mechanical revision, and sample acceptance requirements before prototype production.

Step 4 — Evaluate Samples

Test image quality, sustained frame rate, exposure behavior, host integration, and mechanical fit in the actual operating environment.

Step 5 — Approve the Production Configuration

Confirm the accepted sample, drawings, optical components, and operating configuration before proceeding with volume production.

Send Your Drawings and Imaging Requirements

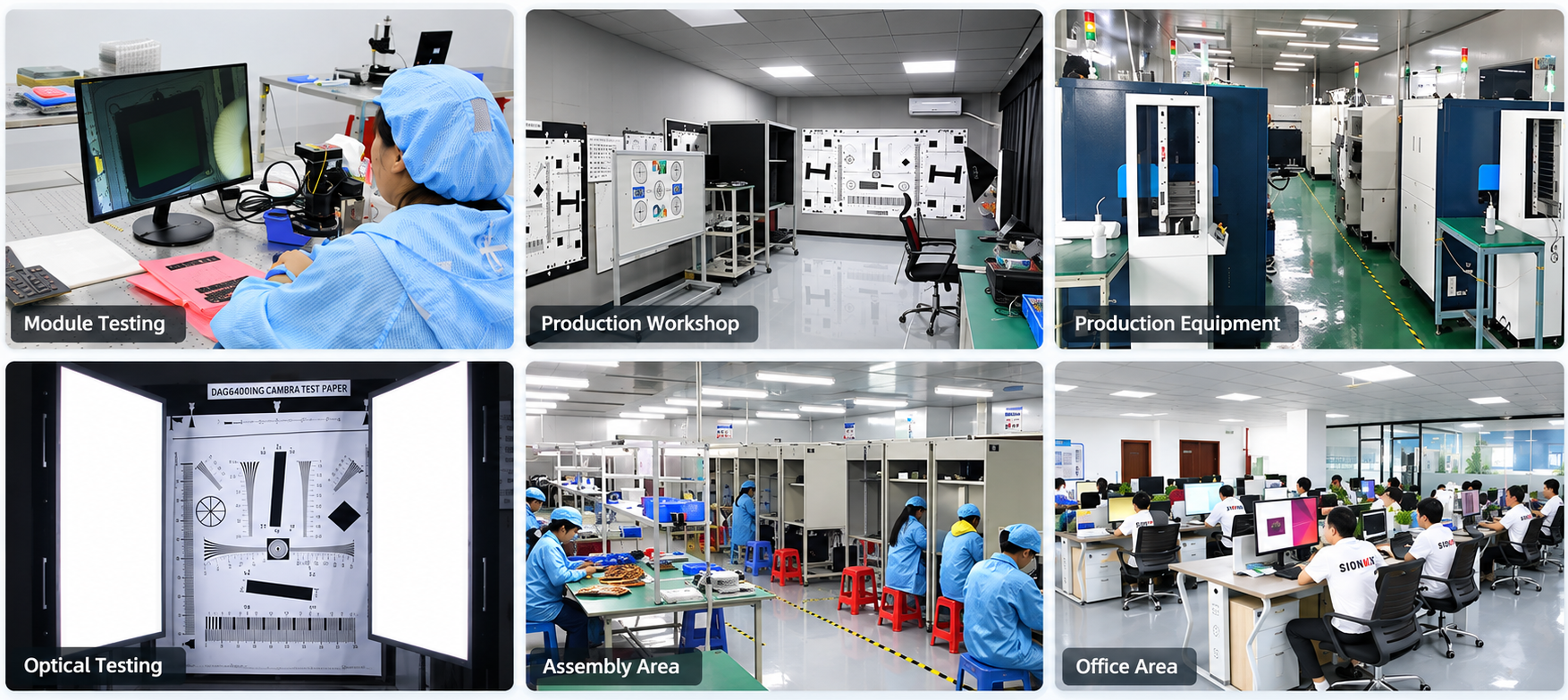

About Sinoseen

Shenzhen Sinoseen Technology Co., Ltd. was established in June 2016 and specializes in CMOS camera module design, development, manufacturing, and OEM/ODM services.

Its product portfolio includes USB, MIPI, and DVP camera modules, with services extending from development through manufacturing and after-sales support.

For embedded vision projects, Sinoseen works with customers to assess the imaging task alongside mechanical and electrical integration requirements. This helps define a camera configuration that can be evaluated in the intended device before production approval.

Certifications & Intellectual Property

Sinoseen’s documentation includes quality management records, product compliance documents, software copyrights, and utility model patents. For your camera module project, please request the current documents applicable to the selected model and configuration, including relevant CE, FCC, or RoHS documentation.

Shenzhen Sinoseen Technology Co., LTD

China top 10 camera module manufacturer

If you are struggling to find the right camera module solution, please contact us, we will customize all kinds of USB/MIPI/DVP interface camera modules according to your needs, and have a dedicated team to provide you with the most suitable solution.

FAQ:

Q1. How to choose the right camera module?

A: Please tell us your specific needs, such as application scenarios, resolution, size, and lens requirements. We will have a professional team of engineers to assist you in choosing the most suitable camera module.

Q2. How to start proofing?

A: After confirming all the parameters, we will draw a drawing to confirm the details with you. Once the drawing is confirmed, we will arrange a proofing.

Q3: How do I send the payment?

A: Currently we accept T/T bank transfer and Paypal.

Q4: How long does it take to make a sample?

A: If it is a USB camera module, it usually takes 2-3weeks, if it is a MIPI or DVP camera module, it usually takes 10-15days.

Q5: How long will it take to receive the sample after it is ready?

A: After the samples have been tested and there is no problem, we will send the samples to you via DHL FedEx UPS or any other courier methods, usually within a week.
