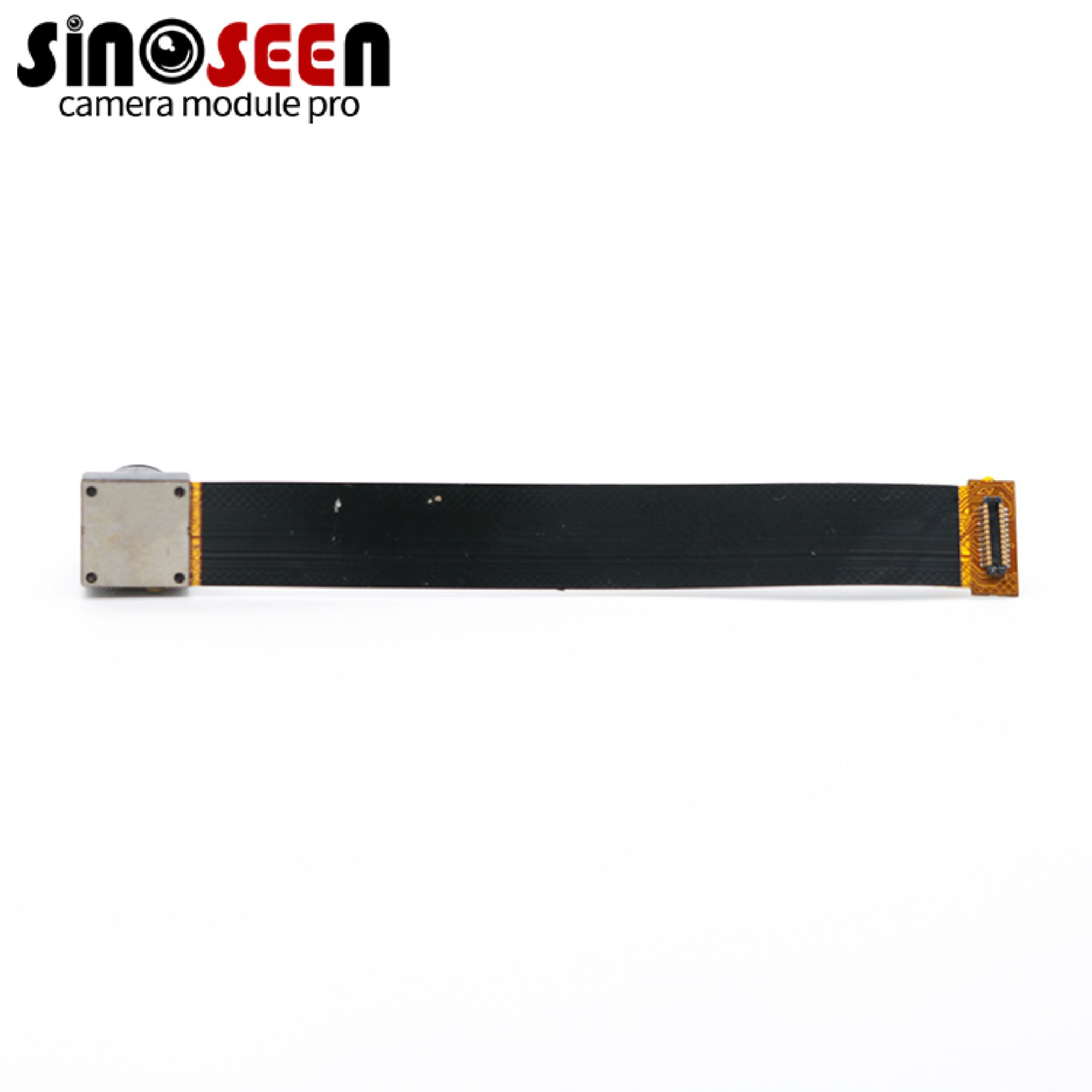

OV2640 Sensor Color Image DVP Camera Module for Gesture Recognition Low Voltage

Product Details:

Place of Origin:

Shenzhen,China

Brand Name:

Sinoseen

Certification:

RoHS

Model Number:

SNS-2MP-OV2640-D1

Payment & Shipping Terms:

Minimum Order Quantity:

3

Price:

negotiable

Packaging Details:

Tray+Anti-static bag in carton box

Delivery Time:

2-3weeks

Payment Terms:

T/T

Supply Ability:

500000 pieces/month

  • Parameter
  • Related products
  • Inquiry
  • Detail Information

Type:

DVP Camera Module

Sensor:

1/4" Omnivision OV2640

Resolution:

2MP 1600x1200

Dimensions:

Customizable

Lens FOV:

30°(optional)

Focus Type:

Fixed Focus

Interface:

DVP

Feature:

Low Voltage

High Light:

ODM DVP Camera Module

2MP OV2640 DVP Camera Module

2mp camera module ov2640



Product Description

This camera module features a 2MP DVP and OV2640 sensor from Omnivision Technology. It uses a narrow angle lens with a DFOV of only 30 degrees. The OV2640 is a low voltage CMOS image sensor that provides the full functionality of a single-chip UXGA (1632x1232) camera and image processor in a small footprint package. It provides full-frame sub-sampled, scaled or windowed 8-bit/10-bit images in a wide range of formats, controlled through the Serial Camera Control Bus (SCCB) interface.

The product features an image array that can operate at a maximum of 15 frames per second (fps) in UXGA resolution. Users have complete control over image quality, formatting, and output data transfer. All necessary image processing functions, such as exposure control, gamma, white balance, color saturation, hue control, white pixel canceling, and noise canceling, are programmable through the SCCB interface. The OV2640 is equipped with a compression engine to enhance processing power. Additionally, OV utilises proprietary sensor technology to eliminate image contamination caused by lighting or electrical sources, such as fixed pattern noise and smearing, resulting in a clean and stable colour image. Additionally, OV utilises proprietary sensor technology to eliminate image contamination caused by lighting or electrical sources, such as fixed pattern noise and smearing, resulting in a clean and stable colour image. Additionally, OV utilises proprietary sensor technology to eliminate image contamination caused by lighting or electrical sources, such as fixed pattern noise and smearing, resulting in a clean and stable colour image.





Specification

Module No

SNS-2MP-OV2640-D1

Pixel Size

2.2μm x 2.2μm

Effective Pixels

1600×1200

Video output

Raw Bayer10bit/8bit

Active Array Size Video Rate

UXGA/SXGA@15FPS;SVGA@30FPS;CIF@60FPS

Image Sensor

1/4"

Sensor Type

Omnivision OV2640

Lens view

FOV30°(optional),F/N(optional)

TV Distortion

<1%

AEC

Support

AEB

Support

AGC

Support

Operating voltage

AVDD:3.0~3.6V DOVDD:1.7~3.6V DVDD:1.7~1.9V

Operating temperature

-30~70℃

Storage temperature

0~50℃

Dimensions

Customizable

OV2640-Sensor-Color-Image-DVP-CameraOV2640-Sensor-Color-Image-DVP-Camera-02



Shenzhen Sinoseen Technology Co., LTD

China top 10 camera module manufacturer

If you are struggling to find the right camera module solution, please contact us, we will customize all kinds of USB/MIPI/DVP interface camera modules according to your needs, and have a dedicated team to provide you with the most suitable solution.



Camera module customizationsuggestion



According to the actual application scenarios and functional goals, the camera module needs to comprehensively consider the product structure size, image clarity, frame rate, lens angle, lighting scene and other factors to select the appropriate sensor, lens and solution. needs customization. These products are only used for customer testing DEMO,please contact our customer service to inform you which product you want to use the camera module on? What function is implemented? Are there any special requirements? According to cost targets and other comprehensive factors, we help you choose the right sensor+ lens solution, and then design the product PCB or FPC according to the structural requirements.



examples: the customer is going to make a person recognition and comparison machine. If it is used in a well-lit indoor environment, we recommend that customers use ordinary lenses and sensors. If the light or backlight is not good, we recommend customers to use WDR wide dynamic sensor. If customers have high requirements for safety, we recommend that customers use WDR and black and white infrared binocular recognition camera modules. When determining the sensor and lens plan, the customer should adjust the color, white balance and saturation parameters according to the actual environment to achieve the target effect.
