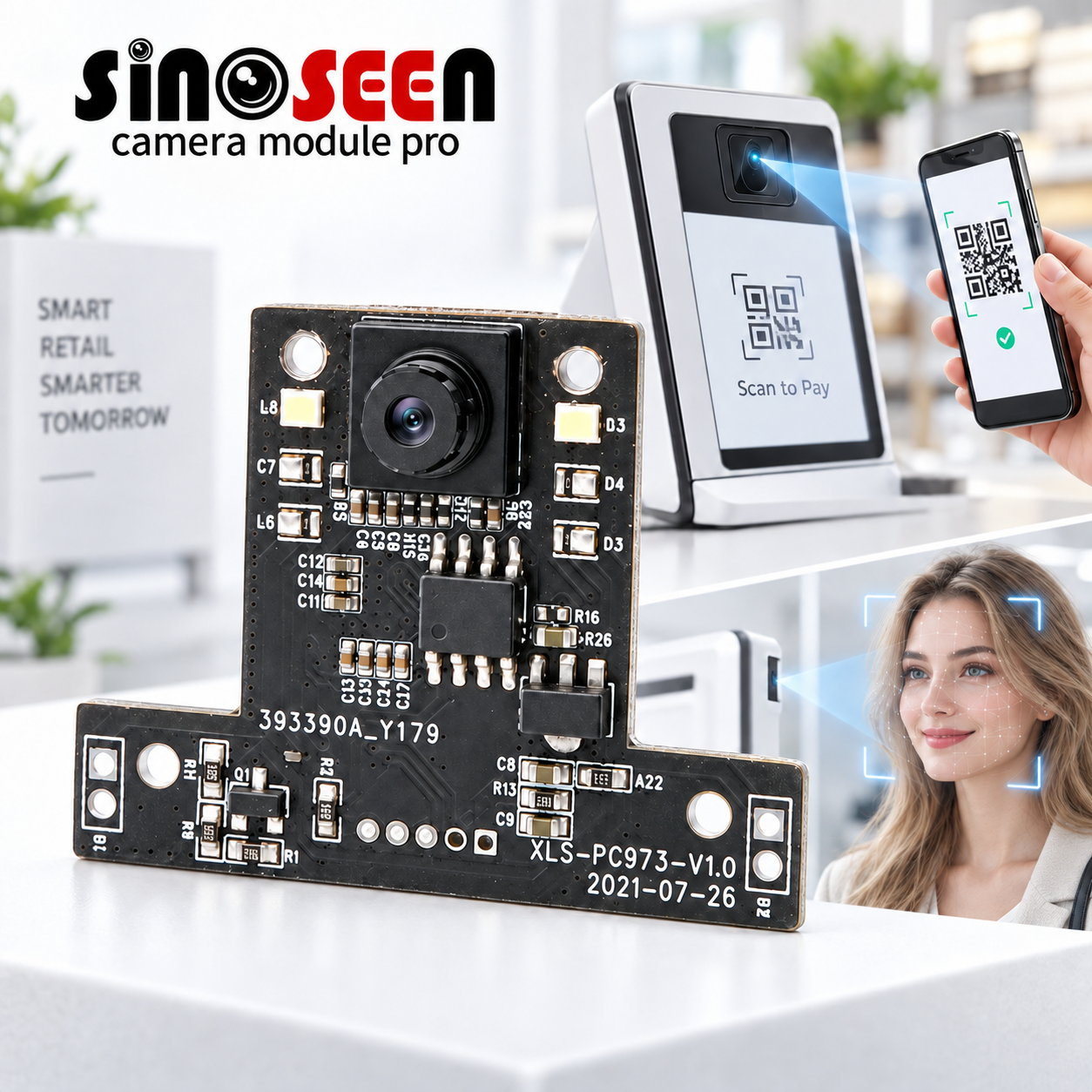

GC0308 0.3MP USB Camera Module Fixed Focus Design for Smart Home and Computer Vision Applications

GC0308 0.3MP USB Camera Module Fixed Focus Design for Smart Home and Computer Vision Applications

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	Sinoseen
Certification:	RoHS
Model Number:	XLS-PC973-V1.0

Payment & Shipping Terms:

Minimum Order Quantity:	3
Price:	negotiable
Packaging Details:	Tray+Anti-static bag in carton box
Delivery Time:	2-3weeks
Payment Terms:	T/T
Supply Ability:	500000 pieces/month

Inquiry

Parameter
Related products
Inquiry

Product Description

The SNS11283-V1 is a compact OV9281 monochrome global shutter camera module designed for high-speed embedded vision.

It delivers 1280 × 720 images at up to 120 fps through a DVP interface, helping reduce image distortion when capturing moving objects.

The 30 × 30 mm board can be customized for different lenses, FOVs, connectors and installation requirements.

Type:	USB Camera Module	Sensor:	CMOS GC0308
Resolution:	0.3MP 648(H)X488(V)	Dimensions:	20*45 mm(customizable)
Lens FOV:	50°(optional)	Focus Type:	Fixed Focus
Interface:	USB2.0	Feature:	Low Power Consumption
High Light:	GC0308 Sensor USB Camera Module Fixed Focus 0.3MP USB Camera Module 0.3MP USB 2.0 Camera Module

Technical Specifications:

GC0308 VGA CMOS image sensor
640 × 480 video at up to 20 fps
USB 2.0 interface for system integration
Slim 20 × 45 mm board design
Custom lens, FOV, connector and PCB options

Consult for smart home solutions.

Specification

Model No	XLS-PC973-V1.0
Sensor	1/2.8’’ SONY IMX415 CMOS
Pixel	8 Mega Pixel
Most effective pixels	3840(H) x 2160(V)
Pixel Size	1.45µm x 1.45µm
Image area	3864um (H) x 2196um (V)
Compression format	MJPEG / YUV2 (YUYV)
Resolution & Frame rate	See above
Shutter Type	Electronic rolling shutter
Focus type	Fixed focus
Chroma	Color, RGB
Clock Frequency	6 to 72 MHz
Microphones	Built-in
Interface type	USB2.0
Adjustable parameter	Brightness/Contrast/Color saturation/Hue/Definition/Gamma/White balance/Exposure
Lens	Focal length: 3.6mm
	Lens construction: 5E+IR
	D FOV: 100 degree
	Thread Size: M12*P0.5
Audio frequency	Optional
Power supply	USB BUS POWER
Operating Voltage	DC 5V
Operating Current	260mA
Main chip	DSP/SENSOR/FLASH
Auto Exposure Control (AEC)	Support
Auto White Balance (AEB)	Support
Auto Gain Control (AGC)	Support
Dimension	Customizable
Storage temperature	-20°C to 70°C
Operating temperature	0°C to 60°C
USB cable length	Default
Support OS	WinXP/Vista/Win7/Win8/Win10 Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC
