• Detail Information

Product Description

The camera module is equipped with a 1/2.9 SNOY IMX462 sensor with Fixed Focus capability, 120FPS refresh rate, 1080P image, FOV size up to 85°, capable of capturing high quality images in the near infrared region.

The infrared sensitivity of the module is extremely high, which also allows it to be applied in the field of medical microscopy, while the high sensitivity of the module also helps it to capture images, even in low light conditions, which makes it suitable for use in sports digital cameras.

The module is also equipped with a high-performance onboard image signal processor (ISP) for accurate color reproduction through automatic exposure and automatic white balance functions to provide optimal image output.

Product Overview

For an embedded camera project, useful image quality depends on matching the optics and acquisition settings to the actual scene. This IMX462 configuration provides Full HD color imaging for applications that need to observe visible features, object appearance and surrounding activity.

The specified base size is 14.5 × 14.5 mm, with a total height of 17.6 mm. These dimensions support early mechanical planning, while the complete drawing should be used to confirm mounting, connector clearance and cable routing.

Evaluate samples at the intended working distance and under representative lighting. For moving scenes, check exposure settings and motion rendering alongside image detail. Interface compatibility and supported output modes should be confirmed with the selected host before integration.

Key Features

Full HD Color Imaging

The specified 1920 × 1080 image size provides color information and spatial detail for visual observation. Lens performance, focus and image processing should be matched to the smallest features the application needs to resolve.

High-Sensitivity Sensor

The IMX462LQR-C provides a platform for imaging under reduced illumination. Sample testing should balance exposure time, gain, noise and target movement rather than relying on pixel count alone.

95° Diagonal Field of View

The lens specification lists a diagonal field of view of 95° ±3°. This helps define scene coverage when planning the installation position and working distance.

Compact Camera Assembly

A 14.5 × 14.5 mm base and 17.6 mm total height provide defined mechanical dimensions for enclosure planning. Confirm the complete assembly envelope against the production drawing.

Optical Configuration for the Application

The supplied specification identifies a “650 IR” filter. Projects requiring infrared illumination should review filter transmission and lens suitability before selecting an illumination wavelength.

Specification:HDR 120FPS Camera Module

Application Areas

Face Recognition: Face capture for access control.
QR Code Payment: Code imaging for decoding.
VR Devices: Visual input for motion tracking.
High-Speed Tracking: Moving-object image capture.
Terminal Scanning: Document and barcode imaging.
Robot Vision: Images for positioning and guidance.
Security & Smart Home: Indoor and outdoor monitoring.
AI Training Data Collection: Image capture for AI datasets.
Medical & Life Science Imaging: Image capture for microscopy and research.

OEM/ODM Customization & Development Process

Match the Camera to Your Integration Requirements

A suitable camera configuration must fit both the imaging task and the device structure. Sinoseen provides OEM/ODM camera module services and can assess changes to the optical setup, flexible-circuit layout, connection arrangement, and supported operating configuration.

Customization feasibility, development scope, cost, and lead time are confirmed after engineering review.

Customization Process

Step 1 — Share Your Requirements

Provide the application, host platform, required resolution and frame rate, working distance, installation space, and estimated quantity.

Step 2 — Review the Configuration

Assess the sensor operating mode, interface, lens, and mechanical arrangement. Identify any changes required for the target device.

Step 3 — Confirm Drawings and Evaluation Criteria

Agree on the configuration, connection details, mechanical revision, and sample acceptance requirements before prototype production.

Step 4 — Evaluate Samples

Test image quality, sustained frame rate, exposure behavior, host integration, and mechanical fit in the actual operating environment.

Step 5 — Approve the Production Configuration

Confirm the accepted sample, drawings, optical components, and operating configuration before proceeding with volume production.

Send Your Drawings and Imaging Requirements

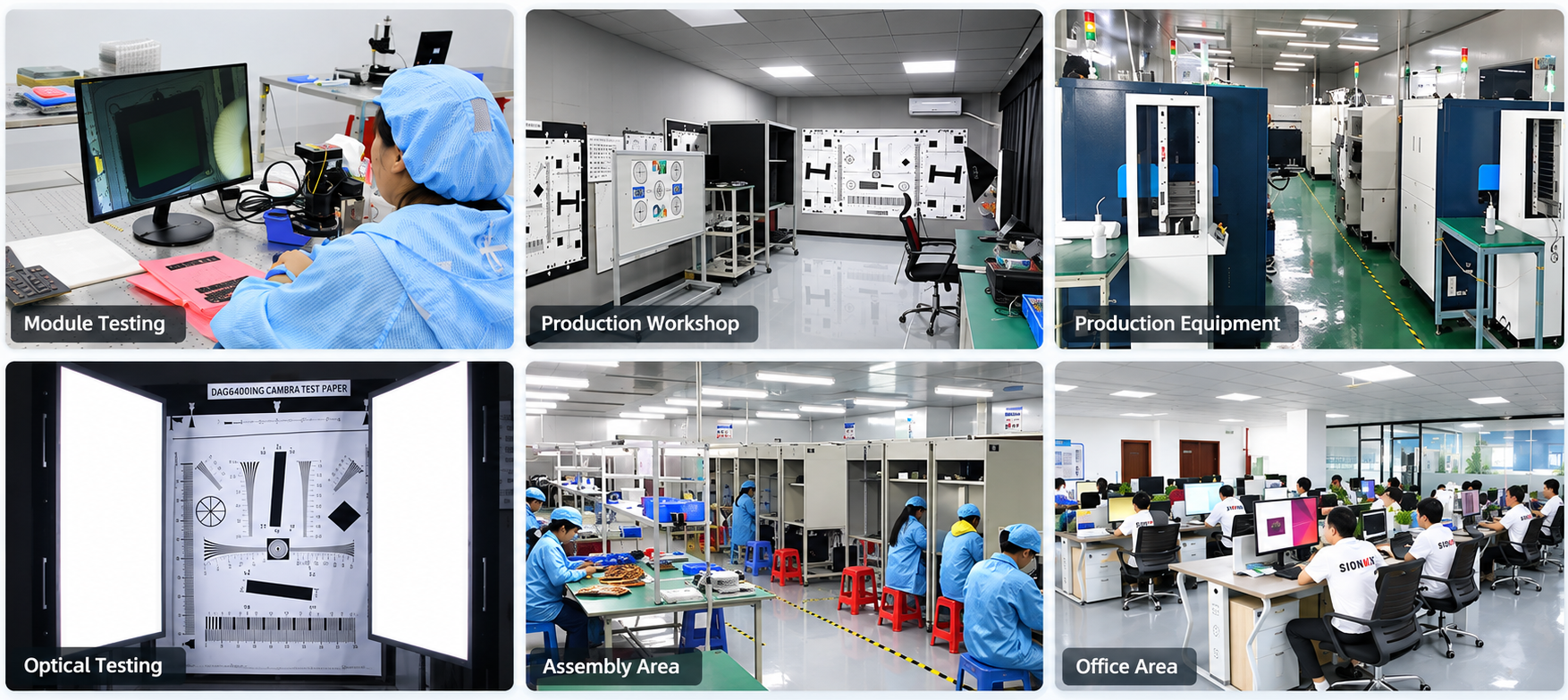

About Sinoseen

Shenzhen Sinoseen Technology Co., Ltd. was established in June 2016 and specializes in CMOS camera module design, development, manufacturing, and OEM/ODM services.

Its product portfolio includes USB, MIPI, and DVP camera modules, with services extending from development through manufacturing and after-sales support.

For embedded vision projects, Sinoseen works with customers to assess the imaging task alongside mechanical and electrical integration requirements. This helps define a camera configuration that can be evaluated in the intended device before production approval.

Certifications & Intellectual Property

Sinoseen’s documentation includes quality management records, product compliance documents, software copyrights, and utility model patents. For your camera module project, please request the current documents applicable to the selected model and configuration, including relevant CE, FCC, or RoHS documentation.

Q1: Is this a 2MP or 2.13MP camera?
The sensor has approximately 2.13 million effective pixels. The specified image size is 1920 × 1080, approximately 2.07 million pixels, commonly described as a 2MP Full HD configuration.

Q2: Does the module produce color images?
Yes. The supplied sensor model is IMX462LQR-C, which uses an RGB color filter array.

Q3: Can it capture images in complete darkness?
Imaging without ambient light requires suitable illumination. Low-light sensitivity does not mean that the camera can capture a scene without any light.

Q4: Can it be used with 850 nm or 940 nm infrared LEDs?
The sensor’s infrared response does not establish compatibility for the complete module. The listed “650 IR” filter and the lens must be checked for transmission at the required wavelength.
