2MP HDR MIPI Camera Module

Place of Origin:	Shenzhen,China
Brand Name:	Sinoseen
Certification:	RoHS
Model Number:	SNS21758-V1.0

Minimum Order Quantity:	1
Price:	negotiable
Packaging Details:	Tray+Anti-static bag in carton box
Delivery Time:	2-3weeks
Payment Terms:	T/T
Supply Ability:	500000 pieces/month

Detail Information

Type:	MIPI Camera Module	Sensor:	1/2.8" Omnivision OS02C10
Resolution:	2MP 1920x1080	Dimensions:	Customizable
Lens FOV:	95°	Focus Type:	Fixed Focus
Interface:	MIPI	Feature:	HDR
High Light:	OS02C10 Sensor MIPI Camera Module , 2MP HDR MIPI Camera Module , HDR 2MP Camera Module

Product Description

Introducing the 2MP HDR MIPI Camera Module featuring the OS02C10 CMOS image sensor. This dedicated camera module delivers exceptional imaging performance with its 2-megapixel resolution and HDR technology, ensuring detailed and visually balanced images. Compact and lightweight, it's designed for seamless integration into various devices and applications, providing versatile imaging solutions.

Product Features

Full HD Image Capture
Provides 2MP images for monitoring and host-based visual analysis.
HDR for High-Contrast Scenes
Helps preserve shadow and highlight detail when the scene contains large brightness differences.
Low-Light Sensor Technology
The OS02C10 combines 2.9μm pixels with dual-conversion-gain technology to support imaging under limited illumination.
Nyxel Near-Infrared Sensitivity
Supports development of infrared-assisted imaging systems with appropriately matched optics and lighting.
MIPI Interface and Fixed Focus
Provides a configuration for embedded platforms and defined working distances.
Customizable Dimensions
Mechanical requirements can be reviewed against the available installation space.

Specification

Model No	SNS21758-V1.0
Sensor	1/2.8" Omnivision OS02C10
Pixel	2MP
Most effective pixels	1920x1080
Pixel Size	2.9 µm x 2.9 µm
Min illumination	530nm
Compression format	MJPG / YUY2
Resolution & Frame rate	40X3 fps @ 1080p in 10-bit 30X3 fps @ 1080p in 12-bit
Shutter Type	Electronic rolling shutter
Focus type	Fixed focus
S/N ratio	TBDdB
Dynamic range	TBDdB
Sensitivity	32,000 e- /Lux-sec
Interface type	MIPI
Adjustable parameter	Brightness/Contrast/Color saturation/Hue/Definition/ Gamma/White balance/Exposure
Lens FOV	160°
Audio frequency	Support
Power consumption	DC 5V, 100mA
Main chip	DSP/SENSOR/FLASH
Auto Exposure Control (AEC)	Support
Auto White Balance (AEB)	Support
Auto Gain Control (AGC)	Support
Dimension	Customizable
Storage temperature	-20°C to 70°C
Operating temperature	-30°C to 85°C
Support OS	WinXP/Vista/Win7/Win8/Win10 Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC

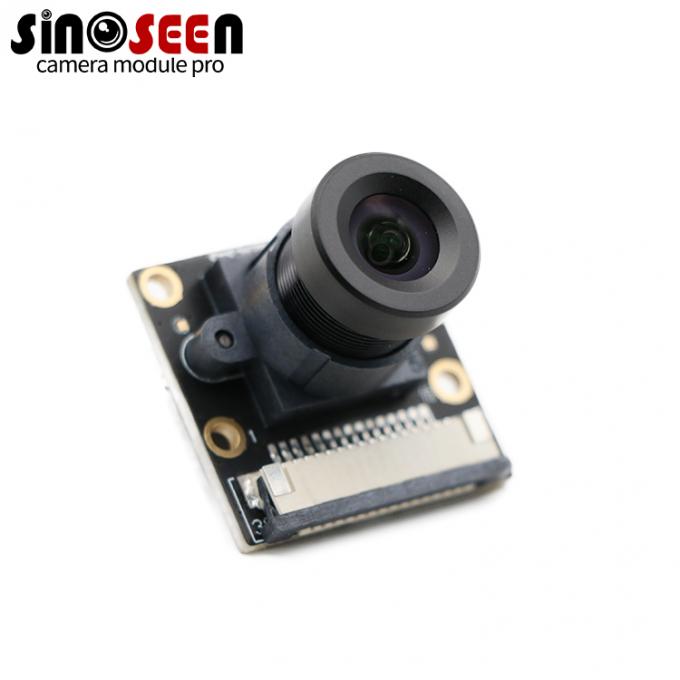

2MP-OS02C10-Sensor-HDR

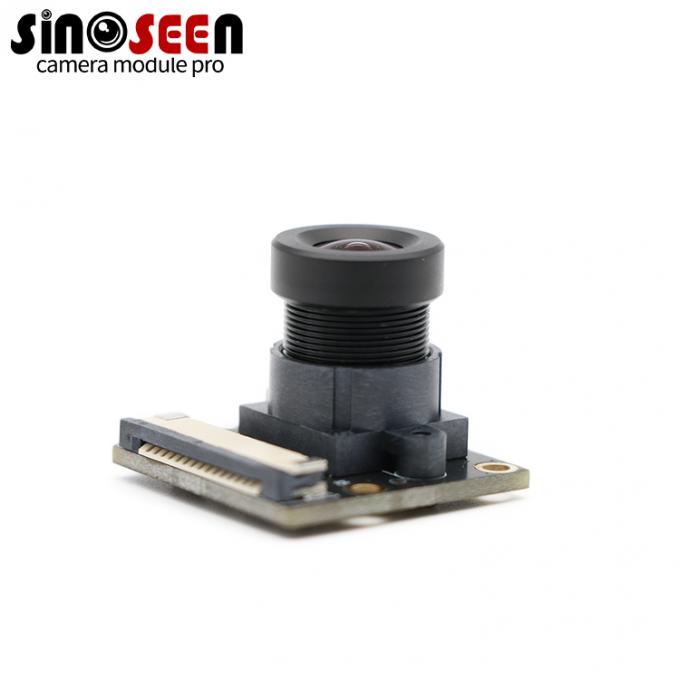

High-Dynamic-Range-MIPI-Camera-Module

Application Areas

Face Recognition: Face capture for access control.
QR Code Payment: Code imaging for decoding.
VR Devices: Visual input for motion tracking.
High-Speed Tracking: Moving-object image capture.
Terminal Scanning: Document and barcode imaging.
Robot Vision: Images for positioning and guidance.
Security & Smart Home: Indoor and outdoor monitoring.
AI Training Data Collection: Image capture for AI datasets.
Medical & Life Science Imaging: Image capture for microscopy and research.

OEM/ODM Customization & Development Process

Match the Camera to Your Integration Requirements

A suitable camera configuration must fit both the imaging task and the device structure. Sinoseen provides OEM/ODM camera module services and can assess changes to the optical setup, flexible-circuit layout, connection arrangement, and supported operating configuration.

Project Requirement	Areas for Engineering Review	Information to Provide
The camera does not fit the enclosure	Camera-head placement, FPC outline, and routing	Mechanical drawings and available space
cene coverage or working distance is unsuitable	Lens selection, field of view, and focus setting	Target dimensions and capture distance
The host connection differs from the standard design	Connector, pin assignment, and interface configuration	Host specifications and connection requirements
Moving targets require sharper capture	Exposure, lighting, and supported frame-rate modes	arget speed, sample images, and lighting conditions
he project requires infrared imaging	Filter and lens suitability	Illumination wavelength and imaging requirements

Customization feasibility, development scope, cost, and lead time are confirmed after engineering review.

Customization Process

Step 1 — Share Your Requirements

Provide the application, host platform, required resolution and frame rate, working distance, installation space, and estimated quantity.

Step 2 — Review the Configuration

Assess the sensor operating mode, interface, lens, and mechanical arrangement. Identify any changes required for the target device.

Step 3 — Confirm Drawings and Evaluation Criteria

Agree on the configuration, connection details, mechanical revision, and sample acceptance requirements before prototype production.

Step 4 — Evaluate Samples

Test image quality, sustained frame rate, exposure behavior, host integration, and mechanical fit in the actual operating environment.

Step 5 — Approve the Production Configuration

Confirm the accepted sample, drawings, optical components, and operating configuration before proceeding with volume production.

Send Your Drawings and Imaging Requirements

About Sinoseen

Shenzhen Sinoseen Technology Co., Ltd. was established in June 2016 and specializes in CMOS camera module design, development, manufacturing, and OEM/ODM services.

Its product portfolio includes USB, MIPI, and DVP camera modules, with services extending from development through manufacturing and after-sales support.

For embedded vision projects, Sinoseen works with customers to assess the imaging task alongside mechanical and electrical integration requirements. This helps define a camera configuration that can be evaluated in the intended device before production approval.

Certifications & Intellectual Property

Sinoseen’s documentation includes quality management records, product compliance documents, software copyrights, and utility model patents. For your camera module project, please request the current documents applicable to the selected model and configuration, including relevant CE, FCC, or RoHS documentation.

Frequently Asked Questions

1. How does HDR help at a building entrance?
An entrance may contain a bright outdoor background and a darker foreground. HDR helps retain information across that brightness range. Results should be evaluated with the intended ISP settings.

2. Does Nyxel technology allow imaging in complete darkness?
Near-infrared sensitivity does not generate light. Imaging in darkness requires suitable illumination and a lens/filter configuration that passes the required wavelength.

3. Does this module include infrared LEDs or an IR-cut mechanism?
These components are not clearly established by the listing. Confirm the supplied configuration before designing the enclosure or illumination system.

4. Is this a global shutter camera?
No. The listed shutter type is electronic rolling shutter. Test moving subjects under the intended exposure and HDR settings.
