low light image sensor IMX290 Camera Module Full HD 120fps 2MP Sony CMOS Sensor for WDR surveillance camera

low light image sensor IMX290 Camera Module Full HD 120fps 2MP Sony CMOS Sensor for WDR surveillance camera

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	Sinoseen
Certification:	RoHS
Model Number:	SNS22195-V1.0

Payment & Shipping Terms:

Minimum Order Quantity:	3
Price:	10-100usd or negotiable
Packaging Details:	Tray+Anti-static bag in carton box
Delivery Time:	2-3weeks
Payment Terms:	T/T
Supply Ability:	500000 pieces/month

Inquiry

Parameter
Related products
Inquiry

Detail Information

Type:	MIPI Camera Module	Sensor:	Sony IMX290 CMOS
Resolution:	1920 × 1080	Dimensions:	(customizable)
Lens FOV:	74°(optional)	Focus Type:	Fixed Focus
Interface:	MIPI	Feature:	Full HD 120fps
High Light:	MIPI Camera Module Full HD 120fps Camera Module Sony IMX290 CMOS module camera MIPI

Product Description

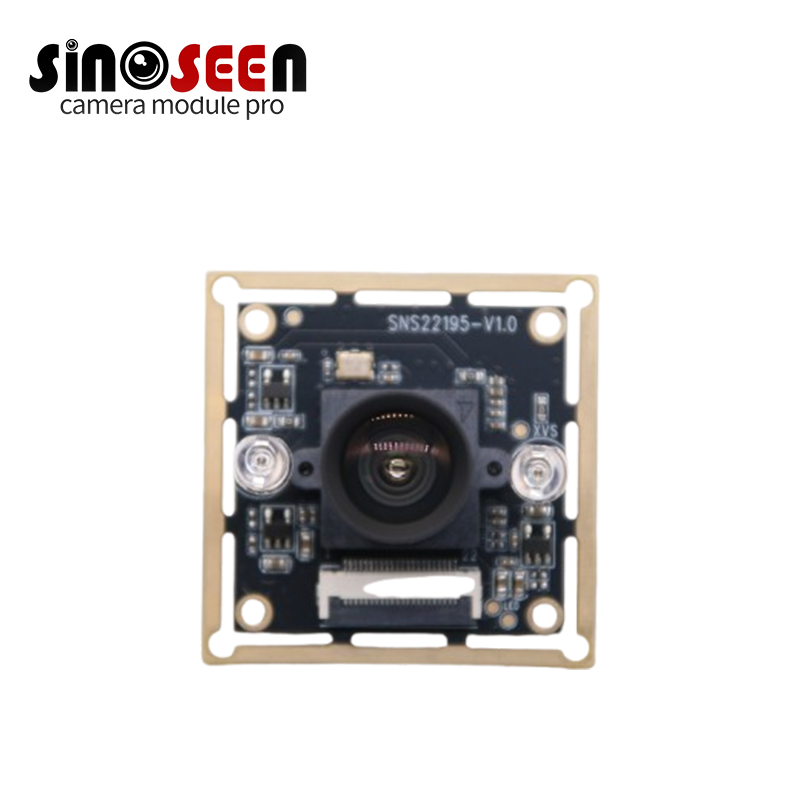

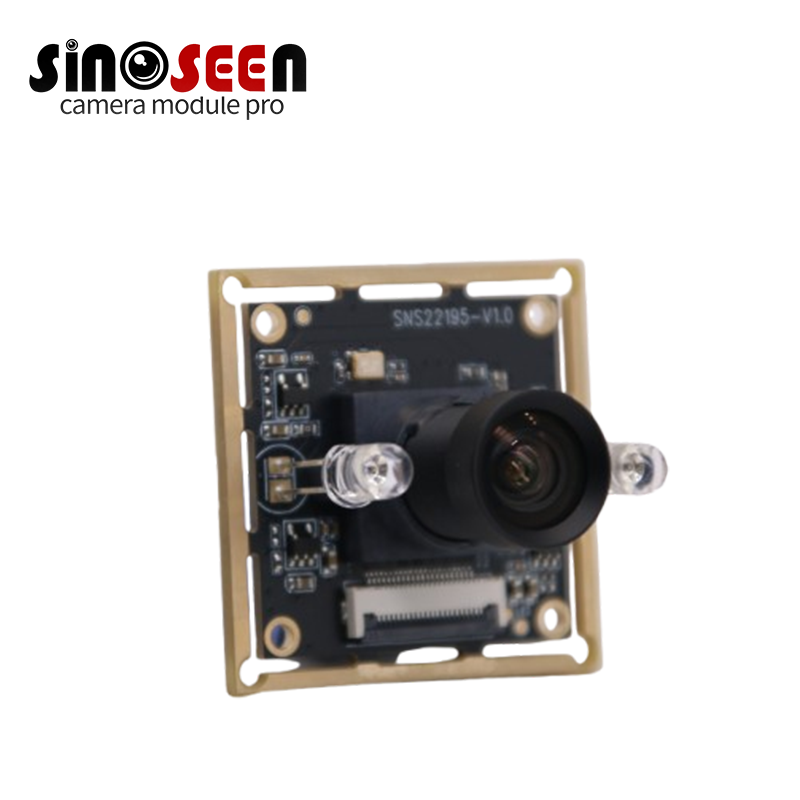

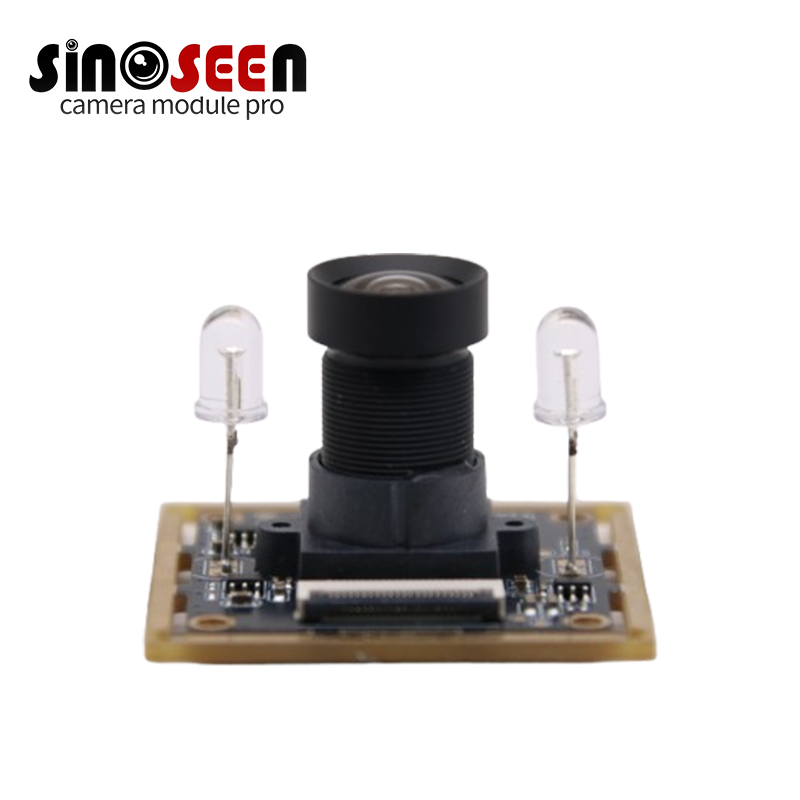

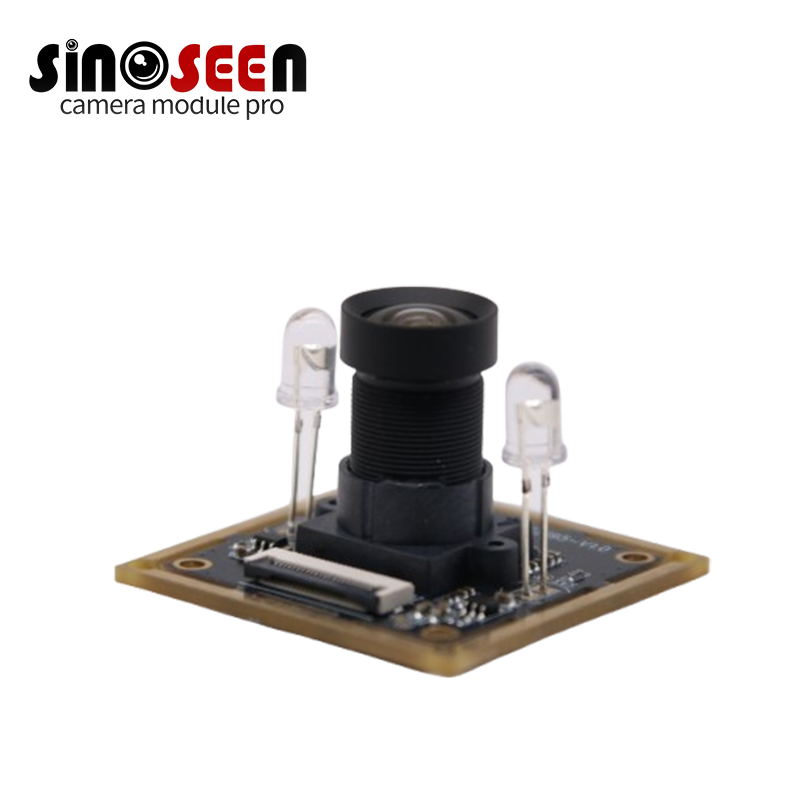

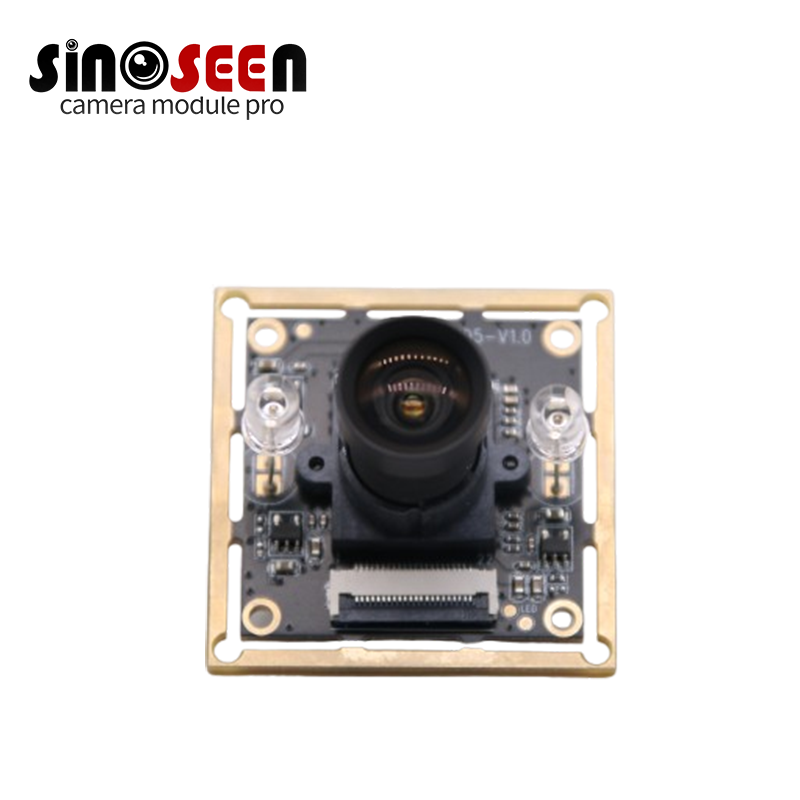

The IMX290 Camera Module (SNS22195-V1.0) is powered by Sony’s highly sensitive 2.13 MP CMOS sensor, designed for demanding imaging applications. Featuring a 1/2.8-inch optical format and 2.9µm pixel size, it captures Full HD 1080p video at up to 120 frames per second, ensuring clear details even in fast-motion scenes.

This sensor integrates low-noise circuitry, high conversion gain modes, and wide dynamic range (WDR), making it suitable for both low-light environments and high-contrast scenes. With multiple output options (MIPI, LVDS, CMOS logic) and programmable gain control, developers can easily fine-tune image quality across different platforms.

Key Features

Resolution: 1920×1080 (2.07 MP), Full HD
Frame Rate: Up to 120 fps @ 1080p
Pixel Size: 2.9 µm × 2.9 µm
Shutter: Electronic shutter with variable integration time
WDR: Multiple exposure & digital overlap WDR
Interfaces: MIPI 2/4 lane, LVDS, parallel SDR output
Operating Voltage: Analog 2.9 V, Digital 1.2 V, I/O 1.8 V
Applications: Surveillance, industrial cameras, facial recognition, automotive vision

IMX290 Camera Module (SNS22195-V1.0) Specifications

Module Information

Parameter	Specification
Model	SNS22195-V1.0
Sensor	Sony IMX290 CMOS
Interface	MIPI (2/4 lane), LVDS, Parallel SDR
Optical Format	1/2.8 inch
Pixel Size	2.9 µm × 2.9 µm
Resolution	1920 × 1080 (2.07 MP)
Frame Rates	1920×1080 @ 120 fps 1280×720 @ 120 fps 640×480 @ 120 fps 320×240 @ 120 fps
Shutter Type	Electronic rolling shutter (variable integration time)
Focus Type	Fixed Focus (FF)
Lens FOV (optional)	74°

Electrical Characteristics

Parameter	Value
Analog Supply (AVDD)	2.9 V
Digital Core (DVDD)	1.2 V
I/O Voltage (IOVDD)	1.8 V
Power Consumption	Low Power (optimized for embedded applications)

Image Quality Features

Feature	Details
ADC Resolution	10-bit / 12-bit
Conversion Gain	HCG / LCG modes
Analog Gain Range	0 – 30 dB (step 0.3 dB)
Digital Gain Range	0.3 – 33 dB (step 0.3 dB)
Dynamic Range	Wide Dynamic Range (WDR)
WDR Methods	Multi-exposure WDR, Digital Overlap WDR
Noise Reduction	Low dark current, low smear design

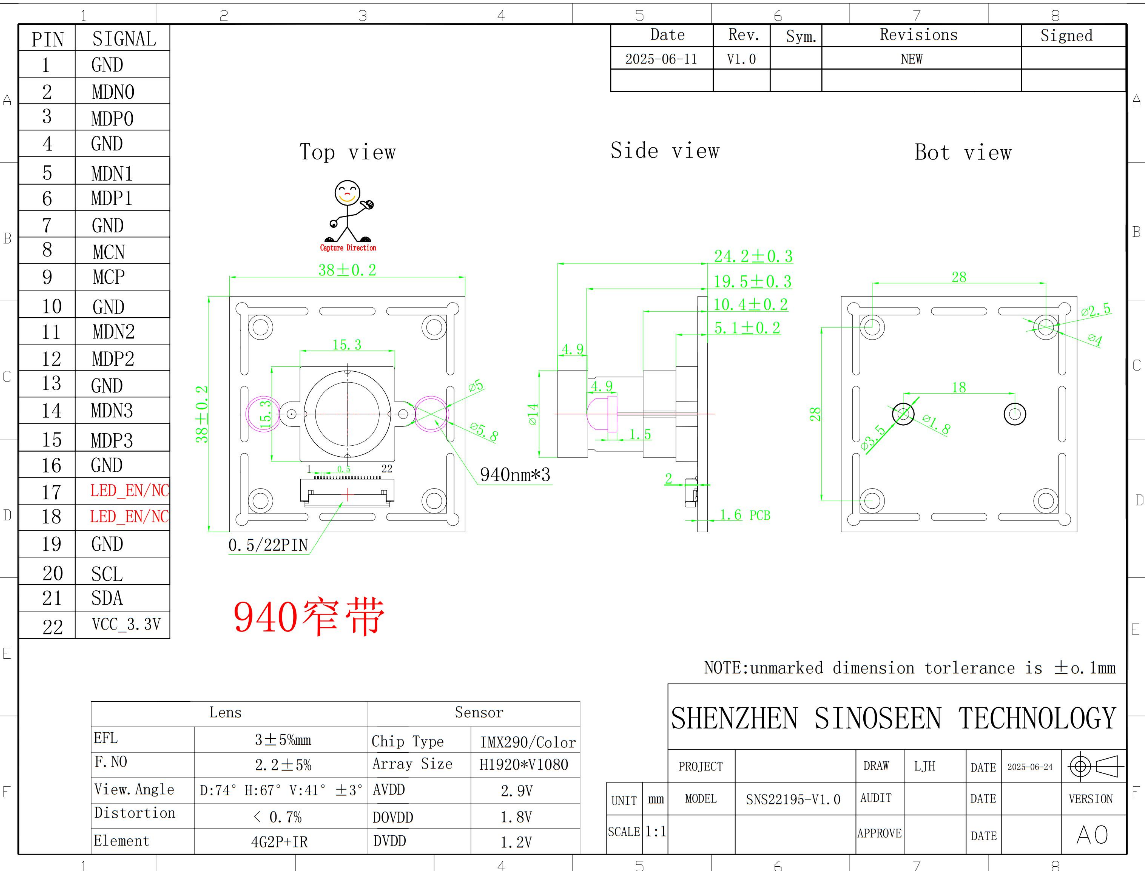

Mechanical Characteristics

Parameter	Specification
Module Size	38 mm × 38 mm
Package Height	24.2 ± 0.3 mm
Base Dimensions	15.3 × 15.3 mm
Operating Temp.	-20°C ~ +70°C
Storage Temp.	-30°C ~ +85°C
IR Filter	650 nm cutoff
