IMX415 CMOS 4K camera module USB3.0 Type C interface 3840x2160 60fps progressive scan low light performance for surveillance

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	Sinoseen
Certification:	RoHS
Model Number:	TF-DZ1169-V1.0

Payment & Shipping Terms:

Minimum Order Quantity:	3
Price:	negotiable
Packaging Details:	Tray+Anti-static bag in carton box
Delivery Time:	2-3weeks
Payment Terms:	T/T
Supply Ability:	500000 pieces/month

Inquiry

Parameter
Related products
Inquiry

Product Description

The IMX415 CMOS image sensor is a high performance 1 over 2.8 inch sensor designed for 4K video capture. It delivers 3840x2160 resolution at 60 frames per second with progressive scan output. The sensor supports 10 bit RAW data and provides MJPG and YUY2 video formats.

The module features a USB3.0 Type C interface with fast transfer speeds up to 480MB per second. It supports static image capture and dynamic video recording. Hardware and software controls allow easy adjustment of exposure, brightness, contrast, and color.

The lens system provides an 85 degree diagonal field of view with low distortion and consistent image quality. The IMX415 performs well in low light conditions, producing sharp, clear, and stable images.

This sensor module is compatible with Windows, Linux, Mac, and Android operating systems. It is widely used in security surveillance, video conferencing, live broadcasting, industrial inspection, and access control devices.

Highlights

3840x2160 4K resolution at 60fps
IMX415 1 over 2.8 inch CMOS sensor
USB3.0 Type C interface with high speed transfer
Supports MJPG and YUY2 video output
low light image performance

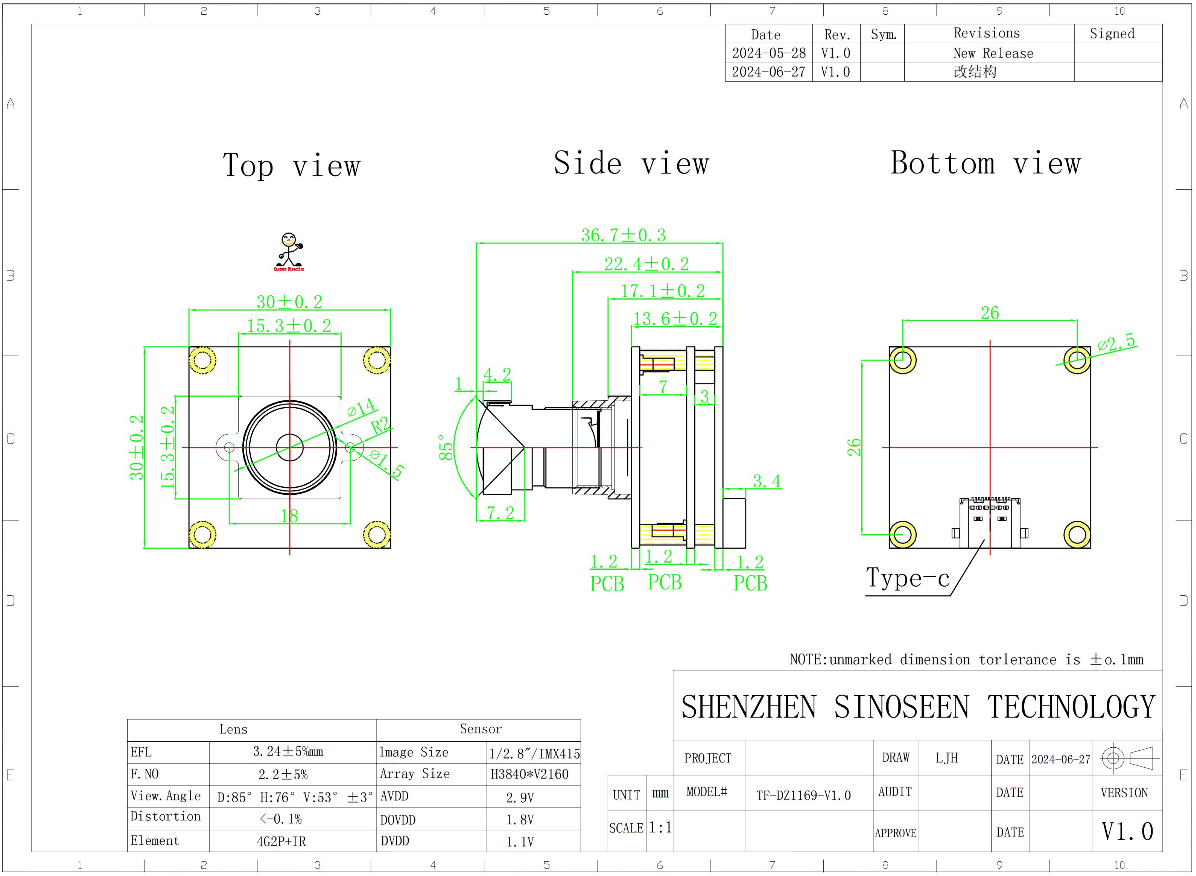

Module TF-DZ1169-V1.0 Specifications

Item	Specification
Model	TF-DZ1169-V1.0
Image Sensor	1/2.8” Sony IMX415
Effective Pixels	3840 × 2160 (4K UHD)
Pixel Size	1.45 µm × 1.45 µm
Image Sensor Data Output	Raw Data 10 bits
Video Output Format	MJPG / YUY2
Maximum Resolution & Frame Rates	- 3840 × 2160 → 60 FPS - 2880 × 2160 → 60 FPS - 2592 × 1944 → 60 FPS - 2560 × 1440 → 60 FPS - 1920 × 1440 → 60 FPS - 1920 × 1080 → 60 FPS - 1600 × 1200 → 60 FPS - 1280 × 720 → 60 FPS - 960 × 540 → 60 FPS - 640 × 480 → 60 FPS - 640 × 360 → 60 FPS
SNR (Max)	TBD
Dynamic Range	TBD
Minimum Illumination	TBD
Digital Interface	Type-C USB 3.0
Transfer Rate	480 MB/s
Power Requirements	5V ±5%
Power Consumption	NO LED / IR-LED / PCB printing ink black
Storage Temperature	-40°C ~ 70°C
Operating Temperature	-30°C ~ 60°C
Operating System Support	Windows XP / Vista / 7 / 8.1 / 10 / Mac / Android / Linux 2.6.2 (UVC supported)
Effective Focal Length (EFL)	3.24 mm ±5%
F/NO (Aperture)	2.2 ±5%
Field of View (FOV)	D: 85° ±3° H: 76° ±3° V: 53° ±3°
Optical Distortion	< -0.1%
Lens Construction	4G2P + IR
Lens Mount (Screw)	M12 × P0.5
Focus Type	Fixed focus
Shooting Distance	60 cm ~ ∞
