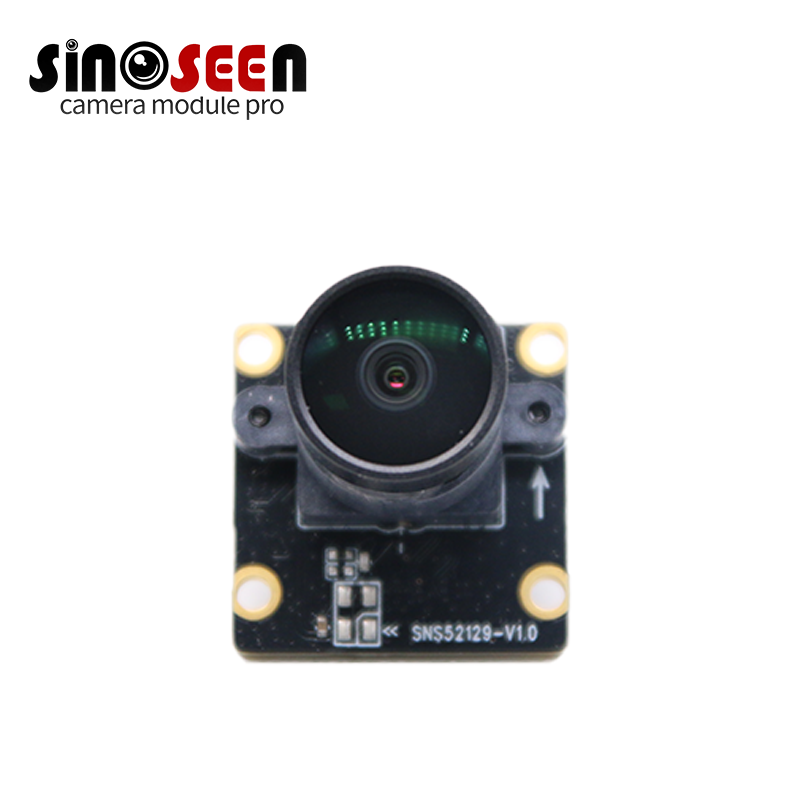

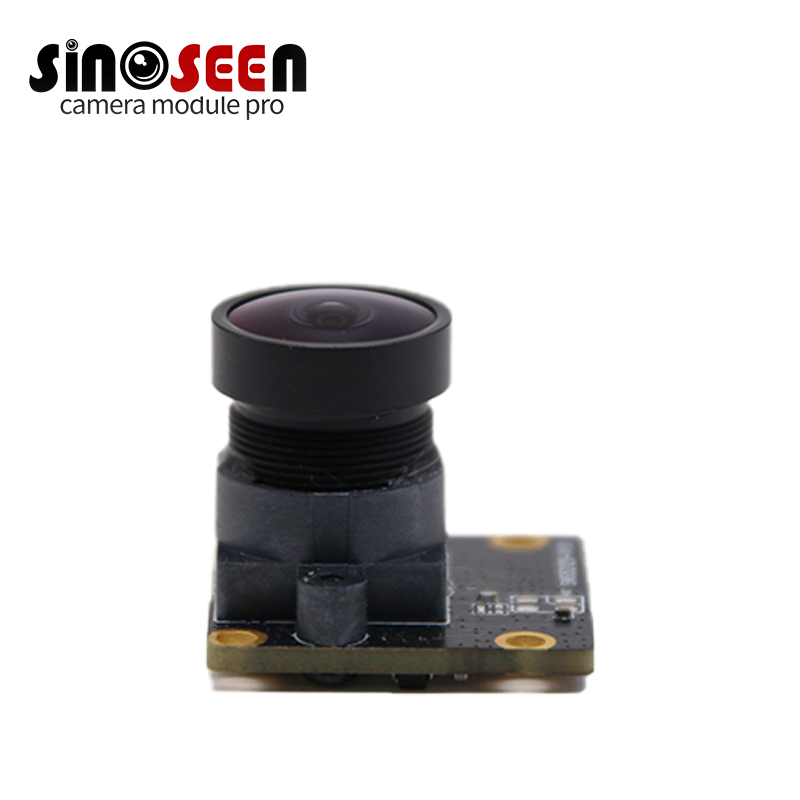

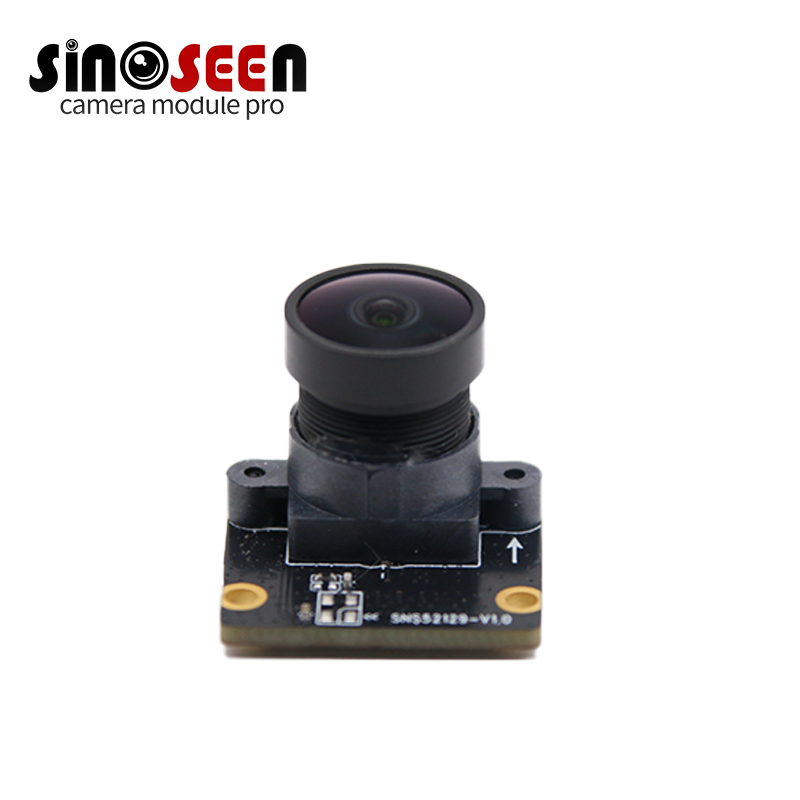

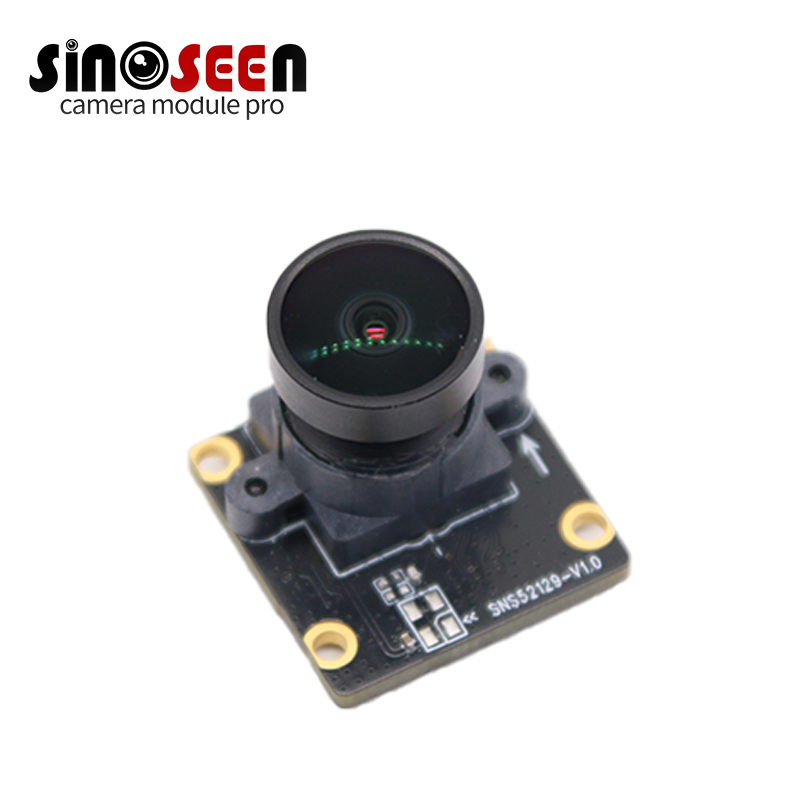

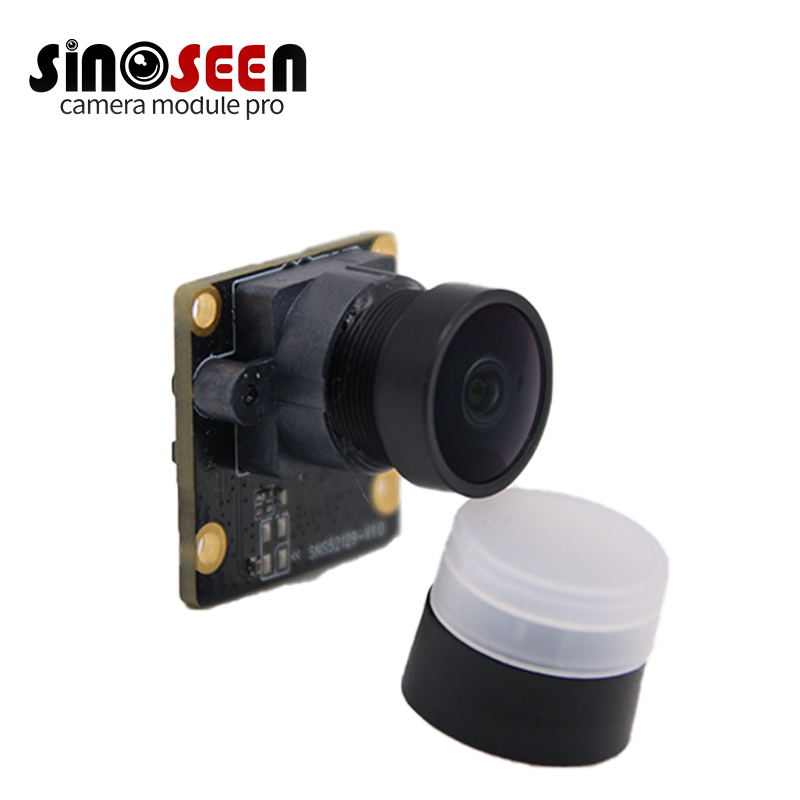

IMX335 5MP MIPI Camera Module High-Resolution CMOS Sensor 2592×1944 WDR for drones
Product Details:
|
Place of Origin: |
Shenzhen,China |
|
Brand Name: |
Sinoseen |
|
Certification: |
RoHS |
|
Model Number: |
SNS52129-V1.0 |
Payment & Shipping Terms:
|
Minimum Order Quantity: |
3 |
|
Price: |
10-100usd or negotiable |
|
Packaging Details: |
Tray+Anti-static bag in carton box |
|
Delivery Time: |
2-3weeks |
|
Payment Terms: |
T/T |
|
Supply Ability: |
500000 pieces/month |
- Parameter
- Related products
- Inquiry
Detail Information
Type: |
MIPI Camera Module |
Sensor: |
IMX335 |
Resolution: |
2592 × 1944 |
Dimensions: |
(customizable) |
Lens FOV: |
95°(optional) |
Focus Type: |
Fixed Focus |
Interface: |
MIPI |
Feature: |
WDR、low-light |
High Light: |
MIPI Camera Module WDR Camera Module IMX335 module camera MIPI |
||
Product Description
The IMX335 5MP MIPI camera module (SNS52129-V1.0) provides high-resolution imaging at 2592×1944 @60fps. Its 2.0 µm pixels capture crisp, detailed images while maintaining low power consumption.
With WDR support and low-light capability, it ensures accurate color and detail even in challenging lighting conditions. The optional 95° wide-angle lens captures a broad field, making it ideal for smart home devices, drones, dashcams, or facial recognition systems.
Integration is seamless via MIPI CSI-2, compatible with Qualcomm, MTK, RK, HiSilicon, Allwinner, and MStar platforms.
Key Features
5MP CMOS sensor with 2592×1944 @60fps
Optional 95° wide-angle lens
Supports WDR (multiple exposure & digital overlap) for clear images
High sensitivity, low dark current and low smear
Compact MIPI interface module, easy integration for embedded devices
| Parameter | Specification |
|---|---|
| Sensor Model | IMX335 |
| Resolution | 5MP (2592 × 1944 @ 60fps) |
| Pixel Array | 2592 × 1944 |
| Pixel Size | 2.0 µm × 2.0 µm |
| Optical Size | 1/2.8" |
| Output Format | RAW10 / RAW12 |
| Output Interface | 2/4 Lane CSI-2 MIPI |
| Dynamic Range | Multiple Exposure WDR / Digital Overlap WDR |
| Readout Mode | All-pixel scan, 2×2 binning, Window cropping, Horizontal/Vertical normal/inverted |
| Shutter Type | Electronic shutter with variable integration time |
| A/D Converter | 10-bit / 12-bit |
| Gain | 0 dB – TBD dB (0.3 dB steps) |
| Recommended Exit Pupil Distance | -30 mm ~ 0 |
| CRA | Not specified |
| Sensitivity | High, low dark current, low smear |
| Maximum Frame Rate | 2592 × 1944 @ 60fps |
| Module Model | SNS52129-V1.0 |
| Focus Type | Fixed Focus |
| Field of View | 95° (optional) |
| Module Size | 22 × 22 mm |
| Applications | Smart home, digital signage, facial recognition, video doorbells, drones, toy cameras, dashcams, action cameras, tablets |
| Supported Platforms | Qualcomm, Allwinner, MTK, Spreadtrum, HiSilicon, MStar, RK |
