IMX307 1080P CMOS Sensor High Dynamic Range MIPI Camera Module HDR imaging for smart home
Product Details:
|
Place of Origin: |
Shenzhen,China |
|
Brand Name: |
Sinoseen |
|
Certification: |
RoHS |
|
Model Number: |
XLS21224-V1.0 |
Payment & Shipping Terms:
|
Minimum Order Quantity: |
3 |
|
Price: |
10-100usd or negotiable |
|
Packaging Details: |
Tray+Anti-static bag in carton box |
|
Delivery Time: |
2-3weeks |
|
Payment Terms: |
T/T |
|
Supply Ability: |
500000 pieces/month |
- Parameter
- Related products
- Inquiry
Detail Information
Type: |
MIPI Camera Module |
Sensor: |
IMX307 1080P |
Resolution: |
1920×1080P |
Dimensions: |
(customizable) |
Lens FOV: |
78°(optional) |
Focus Type: |
Fixed Focus |
Interface: |
MIPI |
Feature: |
High Dynamic Range |
High Light: |
IMX307 1080P Camera Module High Dynamic Range Camera Module MIPI module camera |
||
Product Description
The IMX307LQR-C is a high-performance 1080P CMOS image sensor designed for modern monitoring cameras. With its 1/2.8-inch sensor and 3.0 μm pixel size, it delivers crisp and clear video at up to 60FPS. The built-in electronic shutter and HDR capabilities allow you to capture detailed images even in challenging lighting conditions. Easy integration via MIPI interface makes it suitable for smart home devices, drones, face recognition cameras, and dashcams.
Key Highlights:
1080P Full HD at 60FPS
Wide 110° field of view
HDR and variable electronic shutter
RAW10/12 output for high-quality image processing
Ideal for smart home, video doorbells, and industrial detection
| Parameter | Specification |
|---|---|
| Model | XLS21224-V1.0 |
| Sensor | IMX307 1080P |
| Pixel Size | 3.0 μm × 3.0 μm |
| Optical Format | 1/2.8" |
| Resolution & Frame Rate | 1920×1080P 60FPS, 1280×720 60FPS, 640×480 60FPS, 320×240 60FPS |
| Interface | MIPI |
| Focusing | FF Fixed Focus |
| Field of View | 110° (optional) |

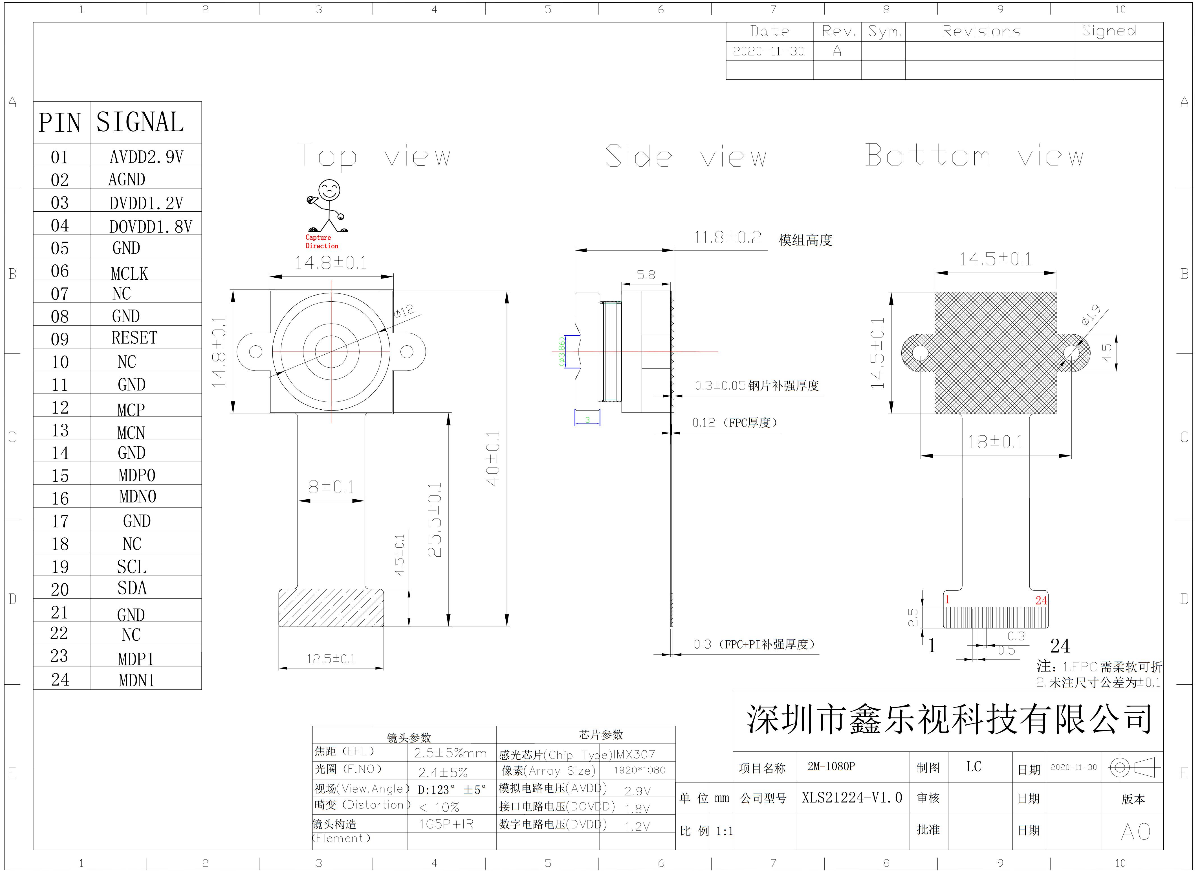

| Dimensions | 40 × 14.5 mm |
| Applications | Smart home, advertising display, barcode scanning, face recognition, video doorbell, drone, toy camera, dashcam, sports DV |
| Supported Platforms | Windows XP, Win7, Android, Linux |
| Chip Height | 11.8 ± 0.2 mm |
| Base Size | 14.8 × 14.8 ± 0.2 mm |
| IR Filter | 650 nm |
| Max Frame Rate (Full HD) | 60 FPS |
| Output Format | RAW10 / RAW12 |
| Shutter | Electronic shutter with variable integration time |
| HDR | Multiple exposure HDR, Digital overlap HDR |
| Gain | 0–27 dB analog, 27.3–69 dB analog + digital |
| Power Supply | Analog 2.9 V, Digital 1.2 V, VO 1.8 V |
| Temperature | Operating: -30°C to +85°C, Stable: 0°C to +50°C |
