GC2093 1080P CMOS Camera module 1920 x 1080 Resolution 3MP HDR Support 60fps Full HD Performance for Security

GC2093 1080P CMOS Camera module 1920 x 1080 Resolution 3MP HDR Support 60fps Full HD Performance for Security

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	Sinoseen
Certification:	RoHS
Model Number:	SNS22106-v1.0

Payment & Shipping Terms:

Minimum Order Quantity:	3
Price:	negotiable
Packaging Details:	Tray+Anti-static bag in carton box
Delivery Time:	2-3weeks
Payment Terms:	T/T
Supply Ability:	500000 pieces/month

Inquiry

Parameter
Related products
Inquiry

Product Description

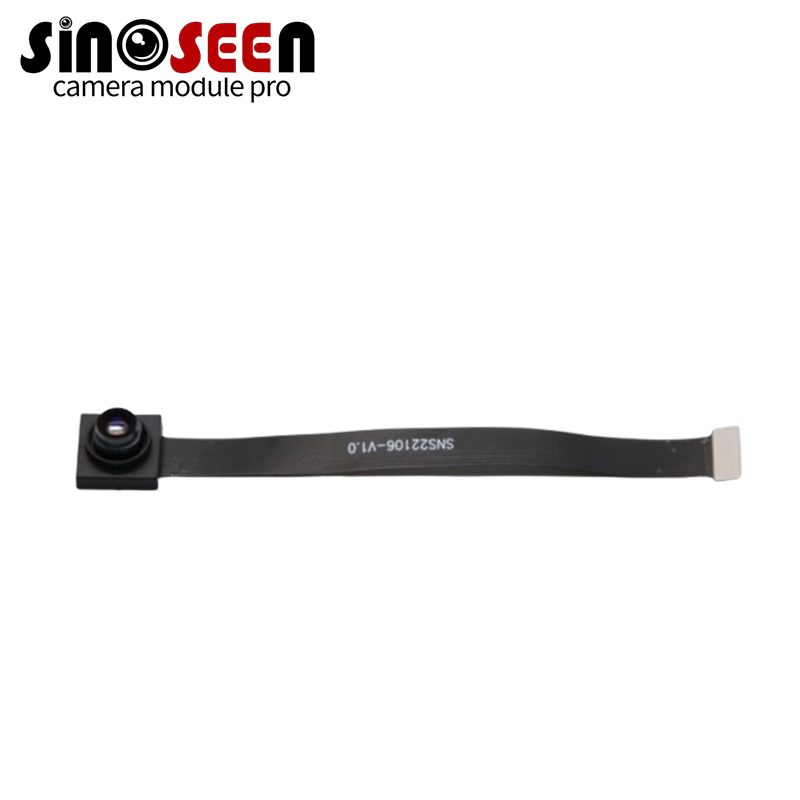

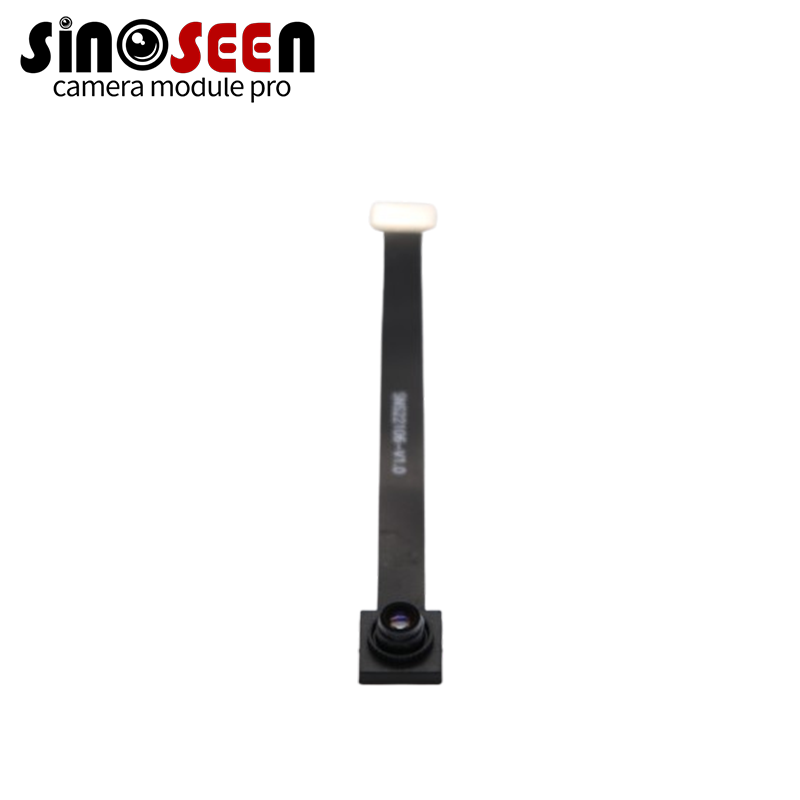

The GC2093 CMOS Camera module brings together clarity, speed, and efficiency in one compact design. With a 1920 x 1080 active pixel array and 2.8μm pixel size, it delivers sharp full HD images with excellent light sensitivity.

The sensor integrates a 10 bit ADC and advanced image signal processor, enabling natural color reproduction and reduced noise. Its HDR function with staggered output mode enhances dynamic range by combining two exposures into one frame, preventing smearing and improving details in both bright and dark areas.

Supporting both RAW10 and RAW8 formats with MIPI and DVP interfaces, the GC2093 offers flexible integration. Running at 60fps full resolution, it ensures smooth performance for applications requiring real-time capture.

Engineered for low power consumption, wide operating temperatures from -30°C to 85°C, and stable output, the GC2093 is well suited for security cameras, motion cameras, car DVRs, and mobile imaging systems.
