Human-Machine Interaction Dual Lens Camera Module AR0230 HM2131 Sensor FHD

Product Details:

Place of Origin:

Shenzhen,China

Brand Name:

Sinoseen

Certification:

RoHS

Model Number:

SNS-USB1020SM-V1.0

Payment & Shipping Terms:

Minimum Order Quantity:

3

Price:

negotiable

Packaging Details:

Tray+Anti-static bag in carton box

Delivery Time:

2-3weeks

Payment Terms:

T/T

Supply Ability:

500000 pieces/month

  • Parameter
  • Related products
  • Inquiry
  • Detail Information

Type:

Dual Lens Camera Module

Sensor:

ON Semiconductor AR0230+HiMax HM2131

Resolution:

2x2MP 1928x1088

Dimensions:

Customizable

Lens FOV:

70°(optional)

Focus Type:

Fixed Focus

Interface:

USB2.0

Feature:

Dual Lens

High Light:

2MP Dual Lens Camera Module

HM2131 Dual Lens Camera Module

HM2131 binocular camera module

Product Description

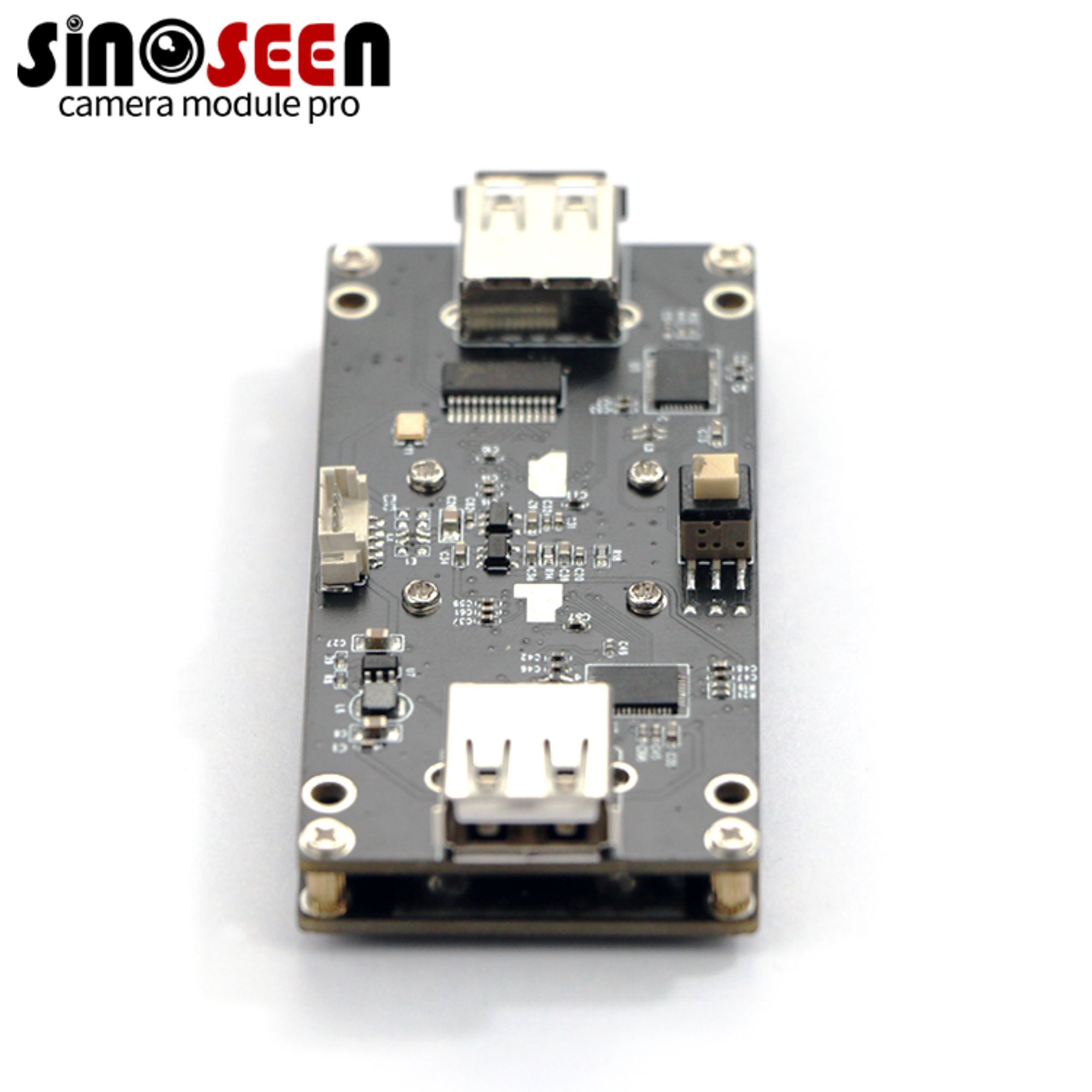

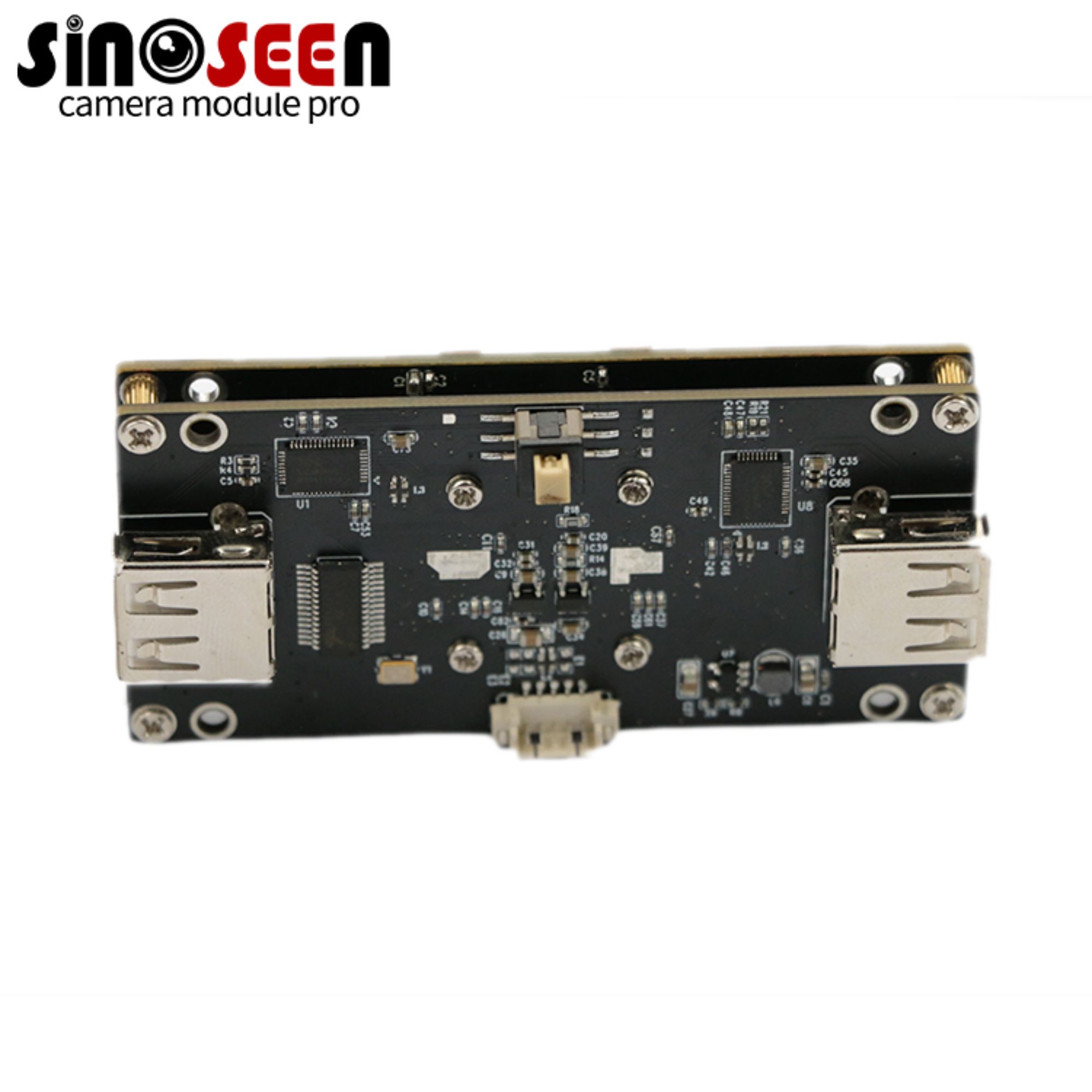

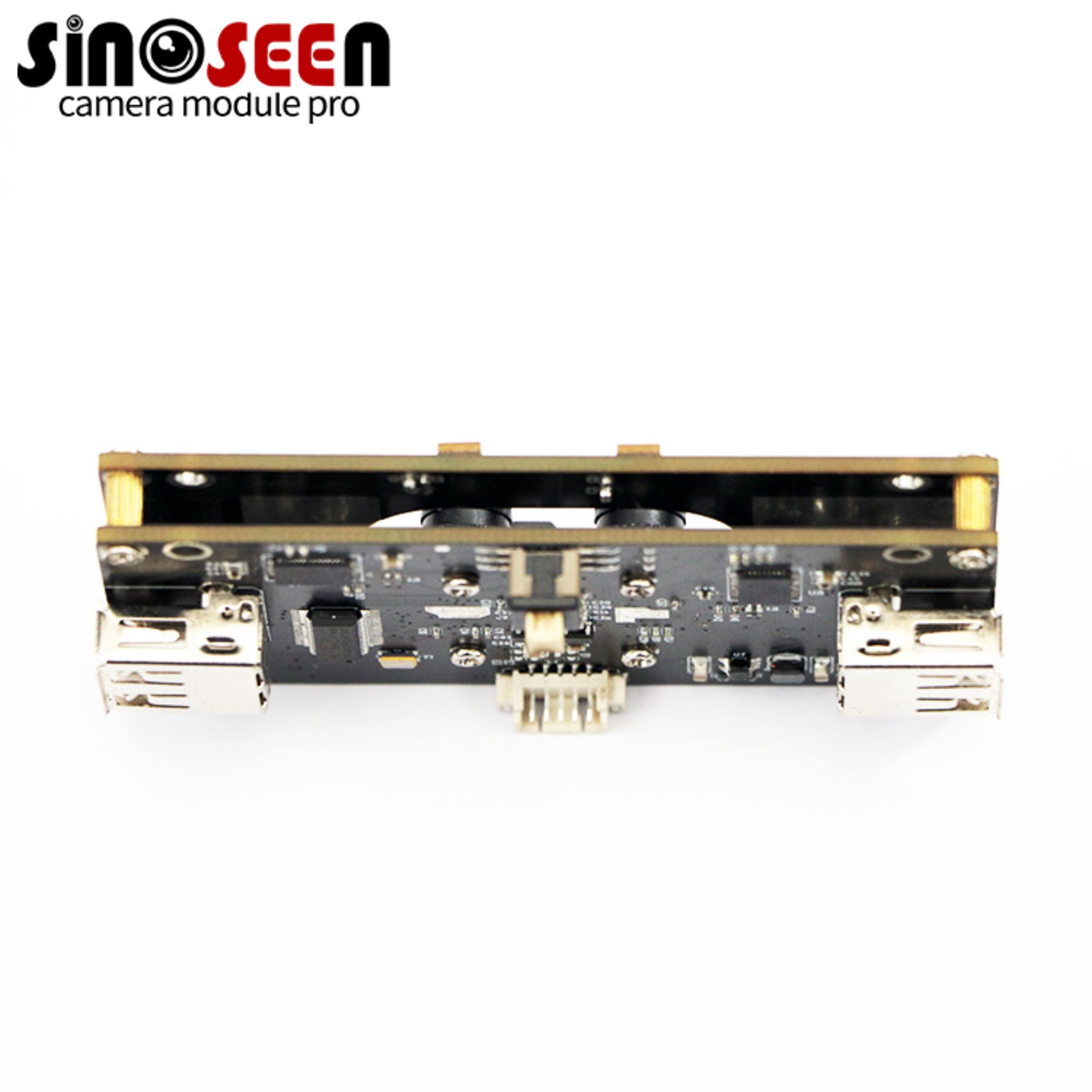

This binocular camera module features 8 high-power LED lights and two high-quality microphones.  To ensure efficient heat dissipation, we have implemented a double-layer PCB board design, with the lower board utilizing two 2MP chips - the AR0230 from ON Semiconductor and the HM2131 from HiMax. Both chips are capable of outputting 1080P@30FPS. The AR0230 is a wide dynamic range sensor, providing excellent picture quality even in backlit environments. The HM2131 is currently the best 2MP chip available on the market.



The dual lens camera module can be customized to include the necessary sensors. Options include the choice of LEDs and microphones, as well as fixed or auto focus. Our team can tailor the module to your specific requirements.





Specification:dual lens camera module

Signal

2.1M WDR

2.1M FHD B/W

REMARKS

Image sensor

AR0230

HM2131



Image sensor size

1/2.7”CMOS

1/2.7”CMOS



Effective Pixels

1920X1080

1920X1080



Pixel Size

3.0umX3.0um

3.0umX3.0um



Optical distortion

≤1%



Image sensor Data output

Raw Data 10bits



Video output

MPJG / YUY2



Maximum Frame Rates

1920x1080 at 30fps

1280x720 at 30fps

800x600 at 30fps

640x480 at 30 fps

320x240 at 30fps

1920x1080 at 30fps

1280x720 at 30fps

800x600 at 30fps

640x480 at 30fps

320x240 at 30fps

MPEG

Maximum Frame Rates

1920x1080 at 10fps

1280x720 at 10fps

800x600 at 15fps

640x480 at 15 fps

320x240 at 15fps

1920x1080 at 10fps

1280x720 at 10fps

800x600 at 15fps

640x480 at 15 fps

320x240 at 15fps

YUY2



SNR max

≤41dB

≤39dB



Dynamic range

≤105dB

≤62dB



Min. Illumination

≥0.01LUX at F1.2

≥0.01LUX at F1.2

NO LED

Digital interface

4pin 1.25mm USB2.0



Transfer rates

480MB/S



Power requirements

5V± 5%



Power Consumption

NO LED

Max 1W

Max 0.9W





IR LED







LED IR-850

NO

NO

LED

Lens view

M8/D:70°H:65°V:40°/650IR

LENS

Lens view

M8/D:70°H:65°V:40°/850IR

LENS

OS

Windows XP /vista/seven/8.1/Mac

/Android/linux2.6.2(include UVC )

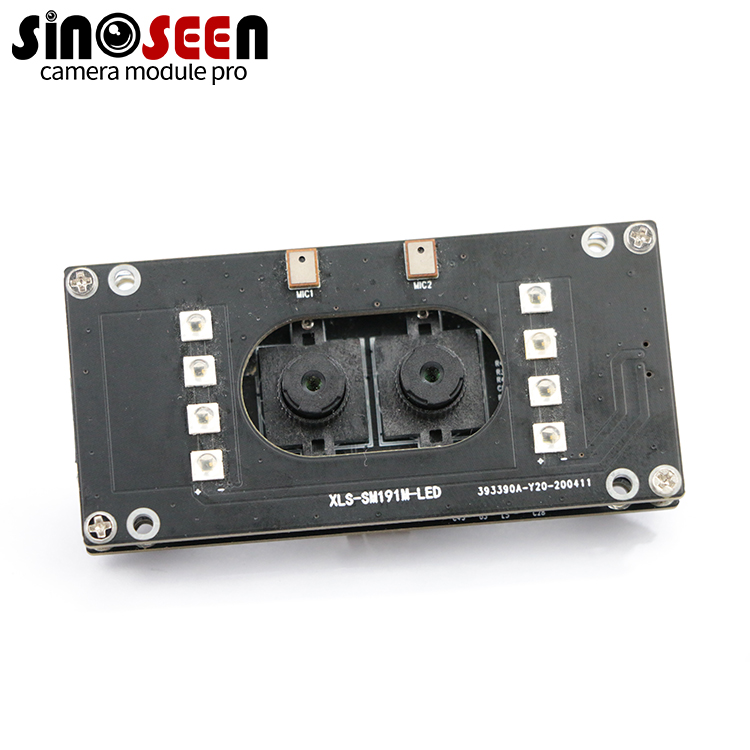

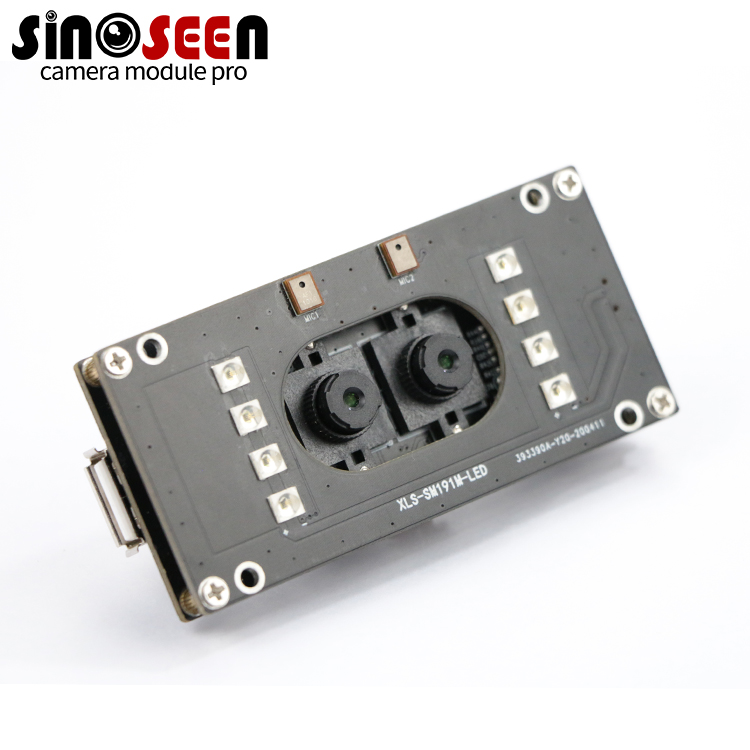

Dual-Lens-Camera-Module-AR0230-HM2131Dual-Lens-Camera-Module-AR0230-HM2131



Shenzhen Sinoseen Technology Co., LTD

China top 10 camera module manufacturer

If you are struggling to find the right camera module solution, please contact us, we will customize all kinds of USB/MIPI/DVP interface camera modules according to your needs, and have a dedicated team to provide you with the most suitable solution.



FAQ:

Q1. How to choose the right camera module?

A: Please tell us your specific needs, such as application scenarios, resolution, size, and lens requirements. We will have a professional team of engineers to assist you in choosing the most suitable camera module.

Q2. How to start proofing?

A: After confirming all the parameters, we will draw a drawing to confirm the details with you. Once the drawing is confirmed, we will arrange a proofing.

Q3: How do I send the payment?

A: Currently we accept T/T bank transfer and Paypal.

Q4: How long does it take to make a sample?

A: If it is a USB camera module, it usually takes 2-3weeks, if it is a MIPI or DVP camera module, it usually takes 10-15days.

Q5: How long will it take to receive the sample after it is ready?

A: After the samples have been tested and there is no problem, we will send the samples to you via DHL FedEx UPS or any other courier methods, usually within a week.
