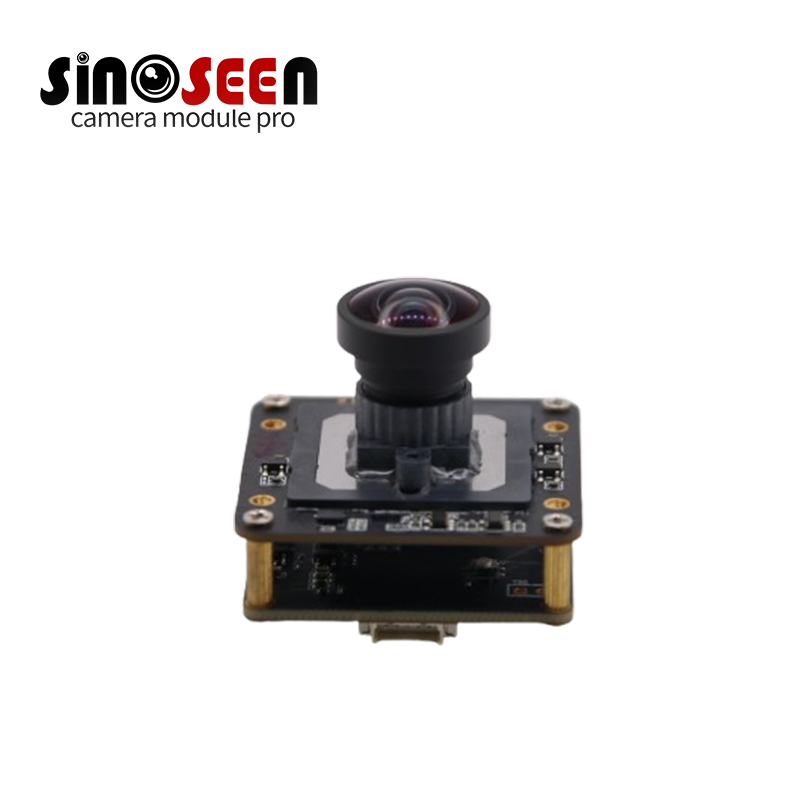

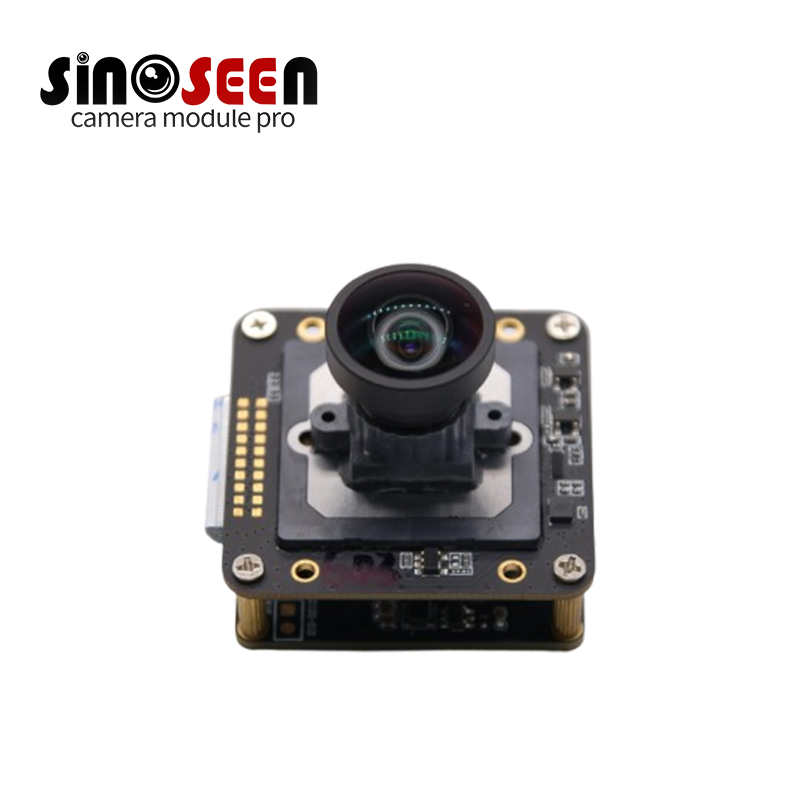

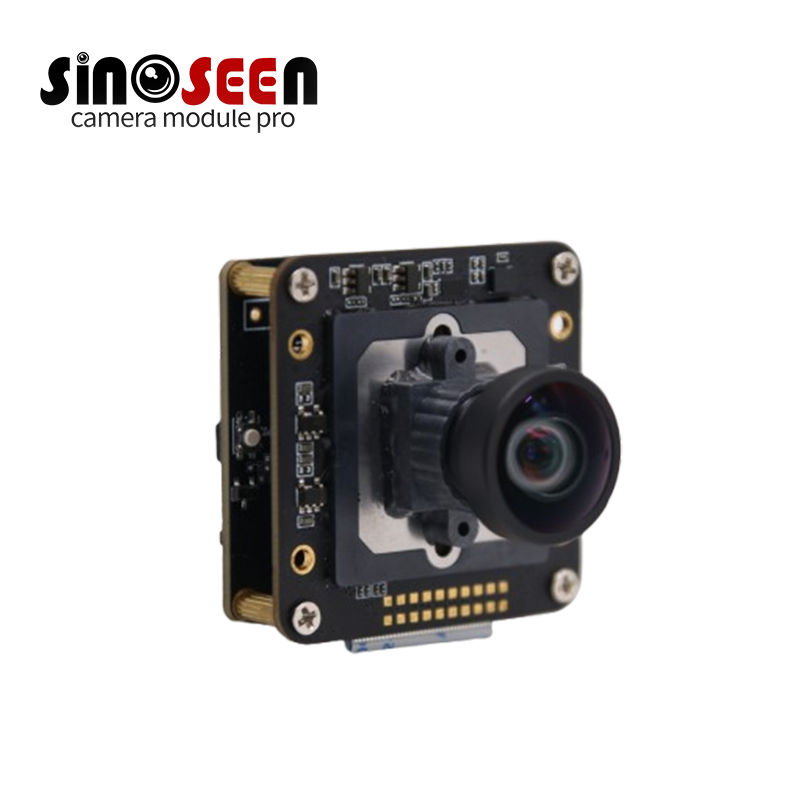

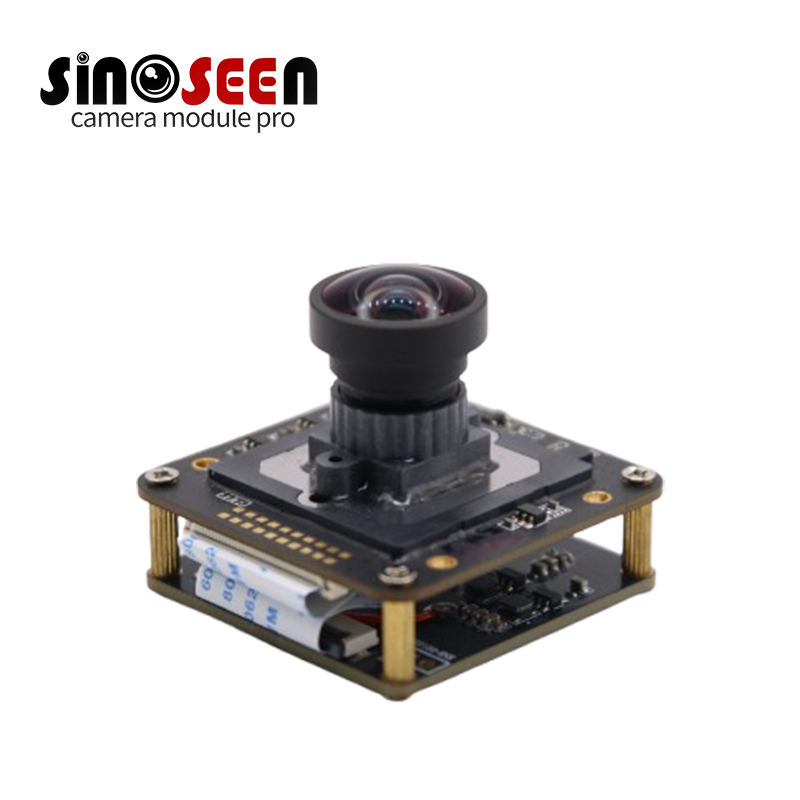

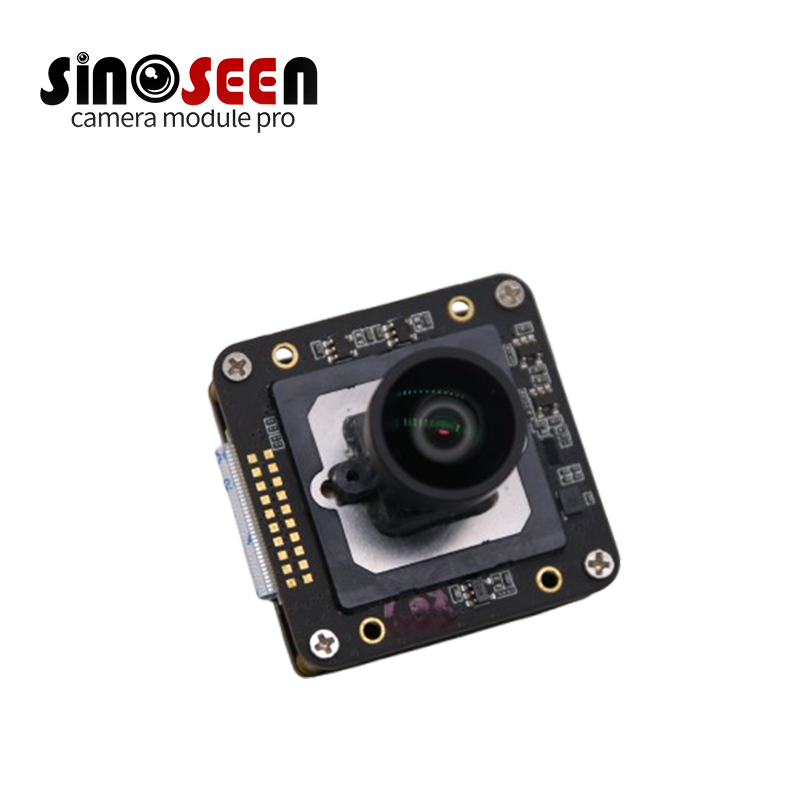

High-resolution USB Camera Module 3MP CMOS 30fps OIS with WDR for surveillance machine vision
Product Details:
|
Place of Origin: |
Shenzhen,China |
|
Brand Name: |
Sinoseen |
|
Certification: |
RoHS |
|
Model Number: |
SNS-DZ1225-V1.0 |
Payment & Shipping Terms:
|
Minimum Order Quantity: |
3 |
|
Price: |
10-100usd or negotiable |
|
Packaging Details: |
Tray+Anti-static bag in carton box |
|
Delivery Time: |
2-3weeks |
|
Payment Terms: |
T/T |
|
Supply Ability: |
500000 pieces/month |
- Parameter
- Related products
- Inquiry
Detail Information
Type: |
USB Camera Module |
Sensor: |
1/2.65”inch |
Resolution: |
2960 × 1666 |
Dimensions: |
(customizable) |
Lens FOV: |
78°(optional) |
Focus Type: |
Fixed Focus |
Interface: |
USB2.0 |
Feature: |
plug-and-play |
High Light: |
1/2.65”inch Camera Module plug-and-play Camera Module USB2.0 module camera |
||
Product Description
The SNS-DZ1225-V1.0 USB camera module is designed for applications that demand stable high-definition imaging and fast data transfer. Built with a 1/2.65” CMOS sensor and delivering up to 2960×1666 resolution at 30fps, it provides sharp and true-to-life images across different lighting conditions. Its optical image stabilization and wide dynamic range (81.5dB) make it ideal for security, machine vision, and biometric systems.
Key Features
2.96MP high-resolution CMOS sensor
Optical image stabilization with vivid color reproduction
Multi-resolution support (2944×1656 / 1920×1080 / 1280×720 / more)
USB2.0 high-speed interface, 480Mbps transfer rate
Low-light imaging with wide dynamic range (81.5dB)
Plug & Play on Windows, Mac, Android, Linux (UVC)
Technical Specifications
| Parameter | Specification | Remarks |
|---|---|---|
| Module # | SNS-DZ1225-V1.0 | – |
| Image Sensor Size | 1/2.65” CMOS | – |
| Effective Pixels | 2960 × 1666 | ~2.96MP |
| Pixel Size | 2.0µm × 2.0µm | – |
| Output Format | RAW 10-bit, MJPG, YUY2 | – |
| Max Frame Rate | 30fps @ all supported resolutions | – |
| Supported Resolutions | 2944×1656 / 2048×1536 / 1920×1080 / 1600×1200 / 1280×960 / 1280×720 / 800×600 / 640×480 | MJPG |
| SNR (max) | 35dB | – |
| Dynamic Range | 81.5dB | – |
| Min. Illumination | TBD | – |

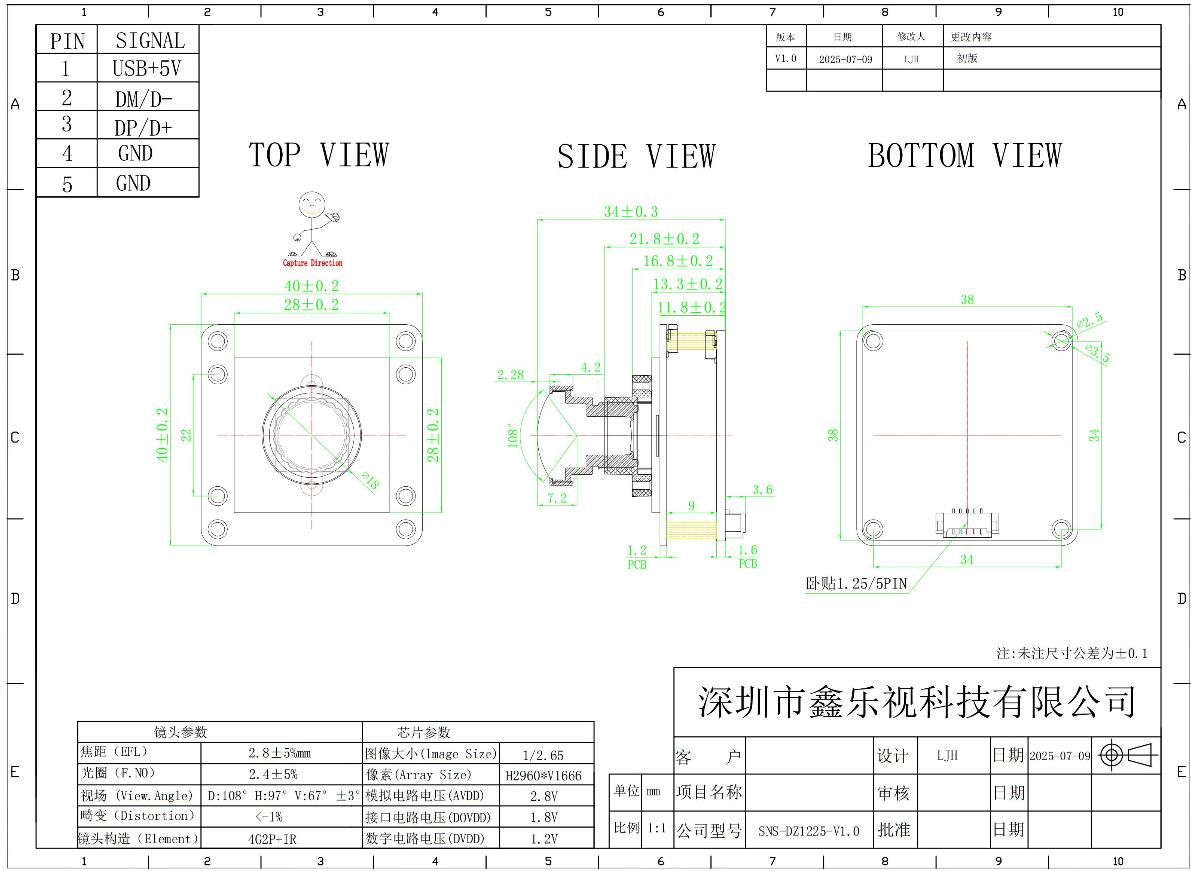

| Interface | USB2.0 (5pin, 1.25mm) | – |
| Transfer Rate | 480Mbps | – |
| Power Supply | 5V ±5% | – |
| Power Consumption | TBD | No LED / IR-LED optional |
| Operating Temp. | -30℃ to +60℃ | – |
| Storage Temp. | -40℃ to +70℃ | – |
| Lens | EFL 2.8mm ±5%, F/NO 2.4 ±5%, FOV D:108° / H:97° / V:67° ±3° | 4G2P+IR, M12*P0.5 |
| Optical Distortion | < -1% | – |
| Focus Distance | 60cm – ∞ | – |
| PCB Ink | Black | – |
| OS Support | Windows XP/Vista/7/8.1/10, Mac, Android, Linux (UVC) | Plug & Play |
