High Resolution 1/2.8 Inch Sony IMX335 USB3.0 Camera Module 5184x1944 45FPS for Industrial Surveillance

High Resolution 1/2.8 Inch Sony IMX335 USB3.0 Camera Module 5184x1944 45FPS for Industrial Surveillance

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	Sinoseen
Certification:	RoHS
Model Number:	SNS-SM1215-V1.0

Payment & Shipping Terms:

Minimum Order Quantity:	3
Price:	negotiable
Packaging Details:	Tray+Anti-static bag in carton box
Delivery Time:	2-3weeks
Payment Terms:	T/T
Supply Ability:	500000 pieces/month

Inquiry

Parameter
Related products
Inquiry

Product Description

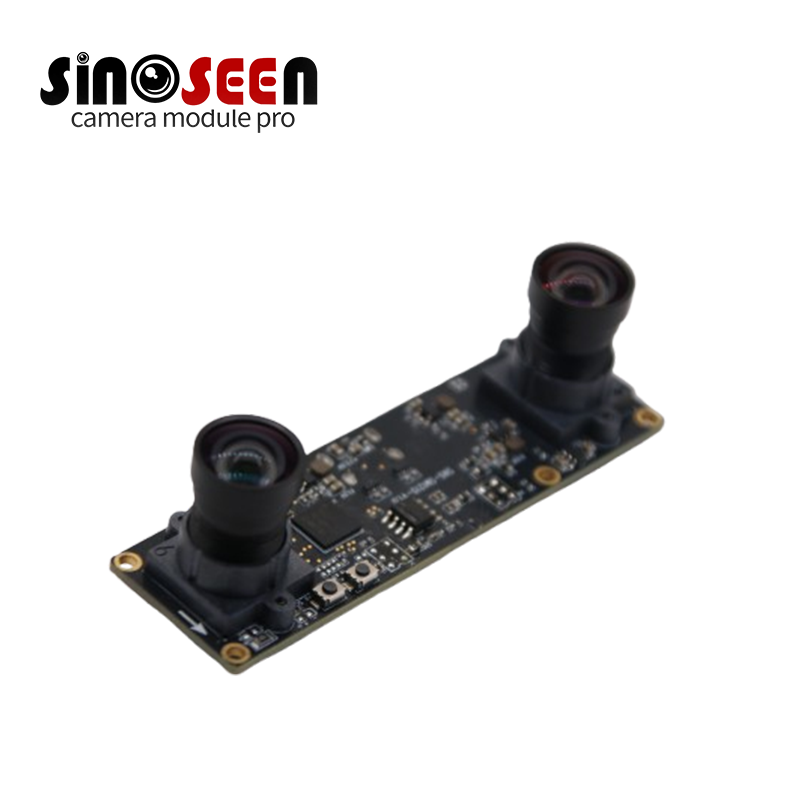

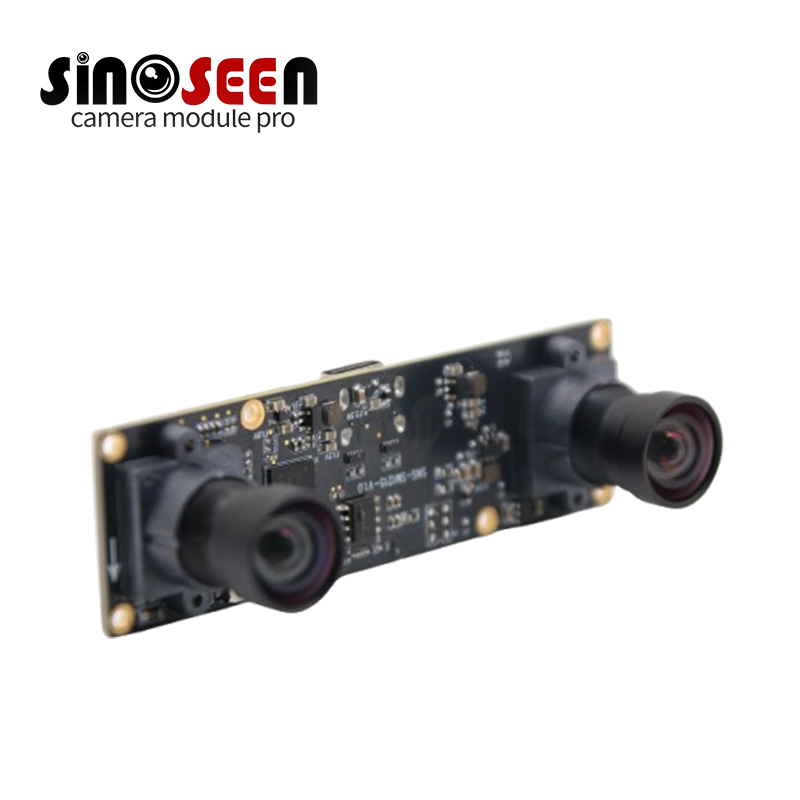

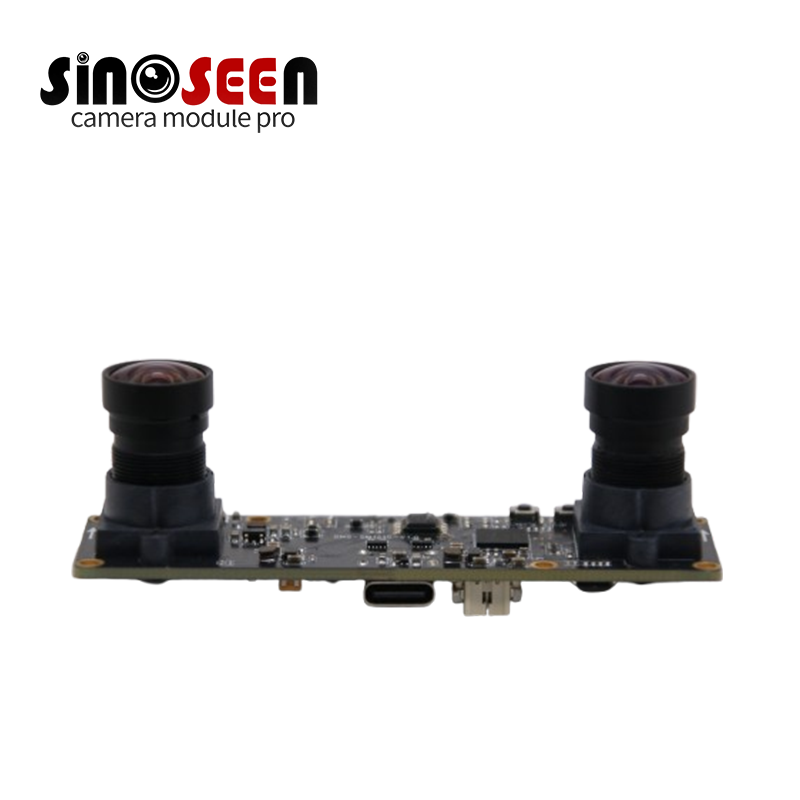

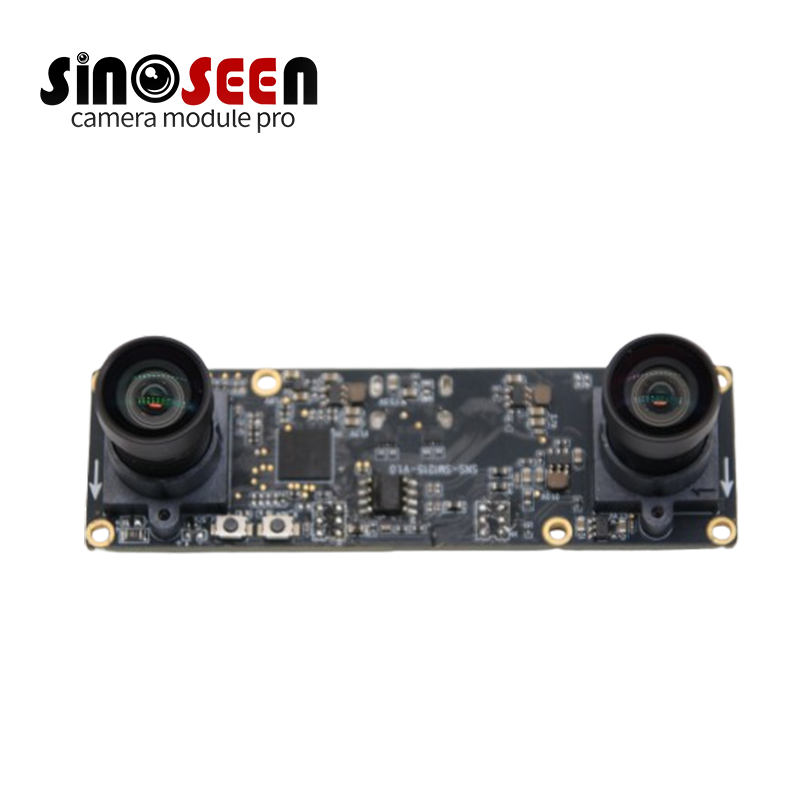

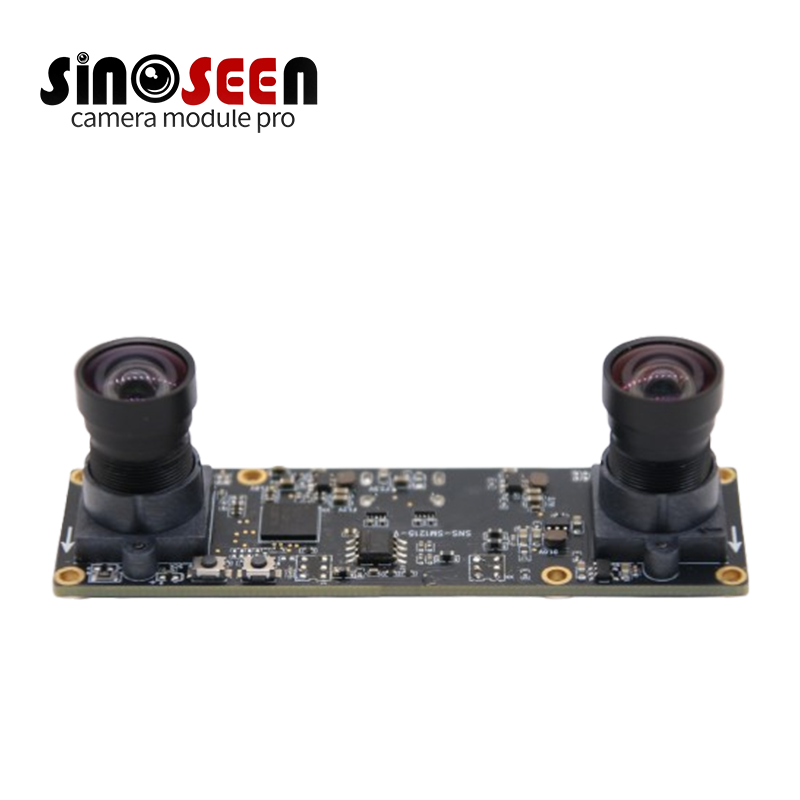

The SNS-SM1215-V1.0 is a high-performance USB3.0 camera module equipped with a 1/2.8" Sony IMX335 CMOS sensor. It delivers a maximum resolution of 5184x1944 with up to 45FPS, ensuring sharp and detailed image capture.

The module supports static images (JPG, BMP) and dynamic video (AVI, MP4). Hardware and software controls allow adjustment of exposure, brightness, contrast, saturation, and color balance, providing optimal image quality even in low-light environments.

With a Type-C / USB3.0 interface, it achieves 360MB/S transfer rates, supports plug-and-play operation without external power, and is compatible with Windows, Mac, Linux, Android, and Wince systems. Standard C-mount and custom lenses are supported.

This camera is ideal for industrial inspection, machine vision, video conferencing, ATM machines, access control, and professional surveillance systems.

Highlights

High-Resolution Imaging – 5184x1944 pixels with Sony IMX335 sensor for clear and detailed visuals
High Frame Rates – Up to 45FPS at full resolution, 120FPS at 2560x720 for smooth video
Advanced Image Control – Auto exposure, brightness, contrast, saturation, and color adjustments
USB3.0 Type-C Connectivity – 360MB/S transfer, plug-and-play, no external power needed

Specification	Details
Signal	SNS-SM1215-V1.0
Image Sensor Size	1/2.8” IMX335 inch
Effective Pixels	5184 × 1944
Pixel Size	2.0 μm × 2.0 μm
Image Sensor Data Output	Raw Bayer 10 bits
Video Output Format	MJPG / YUY2
Maximum Frame Rates	5184 × 1944 @ MJPG 45fps / YUY2 10fps 5120 × 1440 @ MJPG 60fps / YUY2 15fps 2560 × 720 @ MJPG 120fps / YUY2 60fps
SNR (Max)	TBD
Dynamic Range	TBD
Minimum Illumination	TBD
Digital Interface	Type-C / USB 3.0
Transfer Rates	360 MB/s
Power Requirements	5V ± 5%
Storage Temperature	-40℃ to 70℃
Operating Temperature	-30℃ to 60℃
Power Consumption	NO LED / IR-LED / PCB printing ink black
Supported OS	Windows XP / Vista / 7 / 8.1 / 10 / Mac / Android / Linux 2.6.2 (include UVC)
EFL (Effective Focal Length)	3.24 mm ± 5%
F/No (Aperture)	2.2 ± 5%
FOV (Field of View)	D: 87°, H: 75°, V: 60° ± 3°
Optical Distortion	< -0.0%
Lens Construction	4G2P + IR
Lens Mount	M12 × P0.5
Focus Type	Fixed Focus
Shooting Distance	60 cm – ∞
