High-Performance Compact 384*288 thermal image camera module VOx infrared detector for automotive night vision

OVERVIEW

384x288 High-Performance Uncooled Thermal Imaging Core | Compact, High-Quality, Industrial-Grade Custom Solution

This uncooled thermal imaging core utilizes a 384x288 resolution VOx infrared detector. Leveraging high-performance signal processing circuitry and specialized image processing algorithms, it delivers high-quality, sharp-edged, and richly textured infrared images. Its fast frame rate and highly accurate temperature measurement capabilities make it an ideal choice for professional applications.

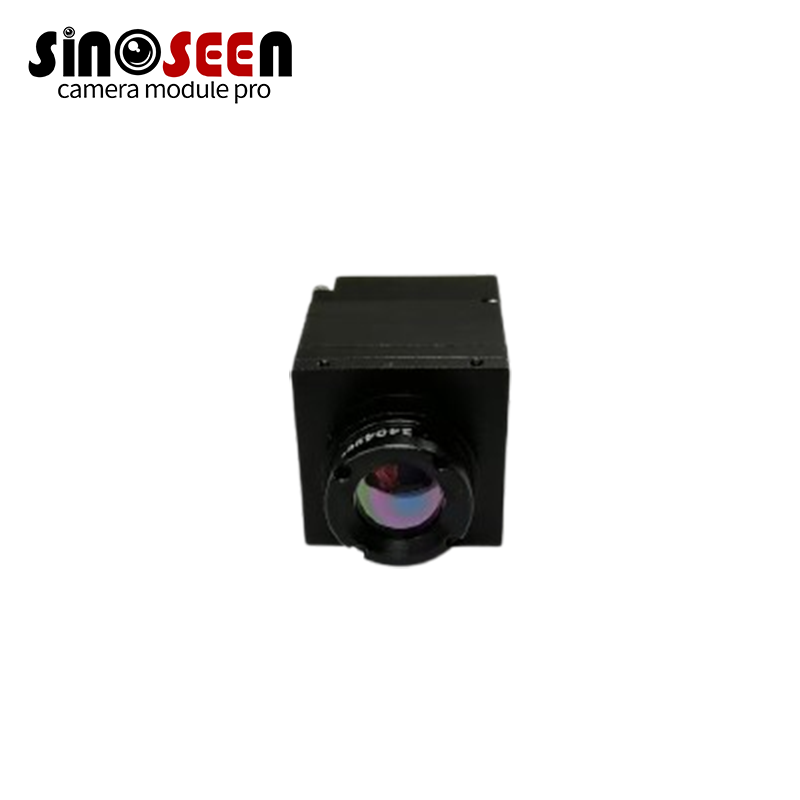

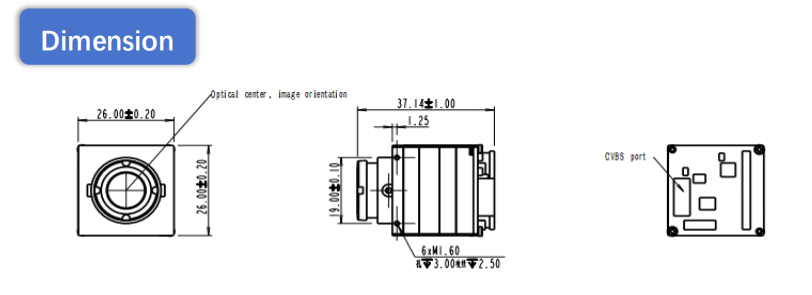

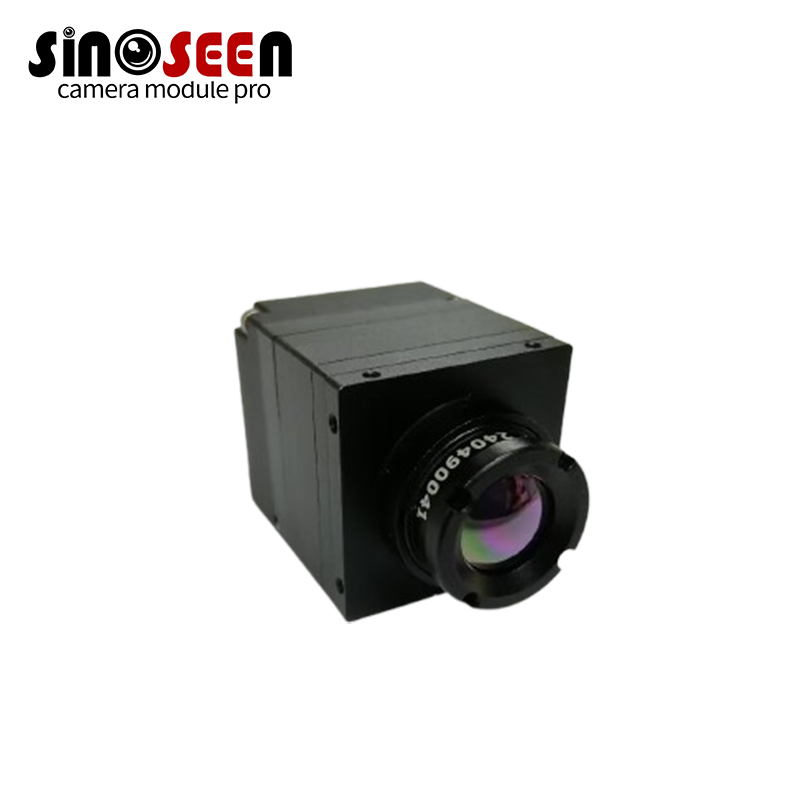

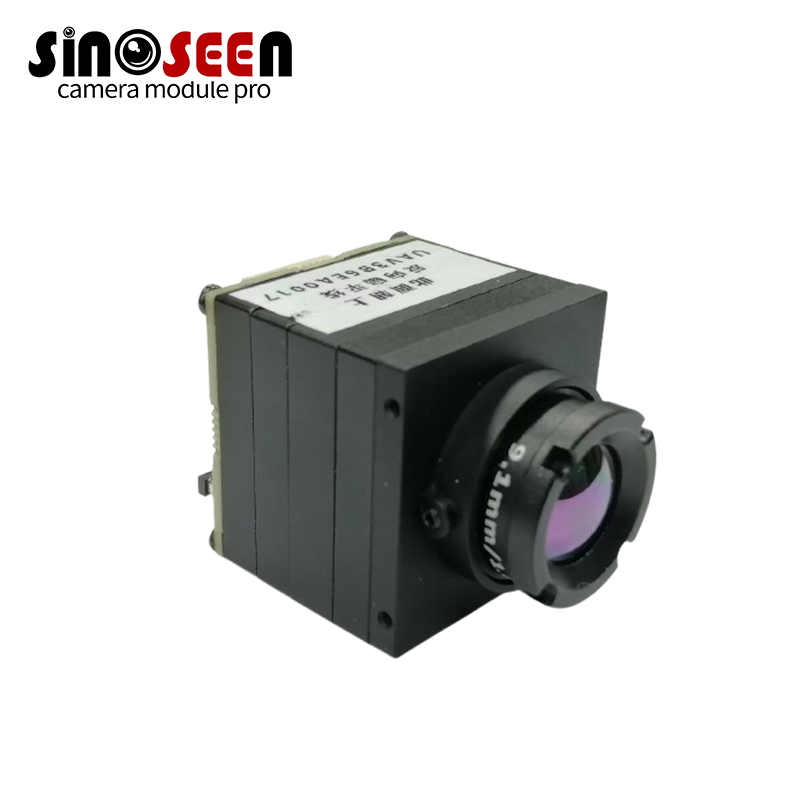

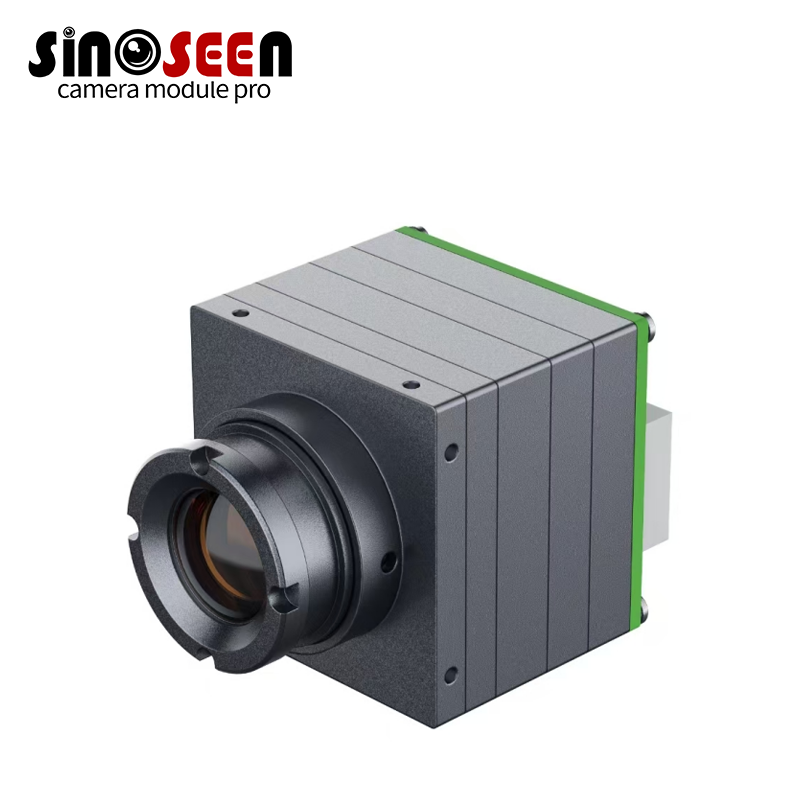

This core's key advantages lie in its compact size (26x26x21.1mm), light weight (≤23g), and low power consumption of ≤1W. This allows for easy integration into devices or systems with stringent requirements for size and power consumption. Operating in the 8-14μm wavelength band and with a NETD** of ≤40mK**, it ensures sensitive capture of minute temperature differences. The core supports a variety of image adjustment functions, including automatic/manual brightness and contrast adjustment, white-hot/black-hot polarity switching, and multiple pseudo-color modes (such as iron-red and rainbow) to accommodate diverse observation needs.

In addition, it offers a wealth of image processing features, such as non-uniformity correction (NUC), digital filtering for noise reduction, and digital detail enhancement, to further optimize imaging. The core utilizes CVBS video output and an RS232 communication interface for data transmission and control, and features comprehensive power protection mechanisms. Its cost-effectiveness and customizability make it an ideal core for the development and integration of infrared thermal imaging equipment in diverse application scenarios, including industrial process/quality control, security monitoring, automotive night vision, drones, and Industry 4.0.

Features

384x288 High Resolution: Provides clear and detailed infrared images.

Compact, Lightweight, and Low Power: Small size, light weight, and low power consumption make it easy to integrate.

High Image Quality and Rich Features: Sharp edges, support for multiple polarities, false color, and image processing.

Highly Sensitive Detector: VOx detector with a NETD of ≤40mK, accurately captures temperature differences.

Wide Applications and Customization: Suitable for industrial, security, drone, and other fields, and customization is also supported.

Customization Services Available

Need it tailored? We offer OEM/ODM support including lens tuning, board resizing, housing design, and firmware development. Perfect for developers building smart cameras or industrial devices.
