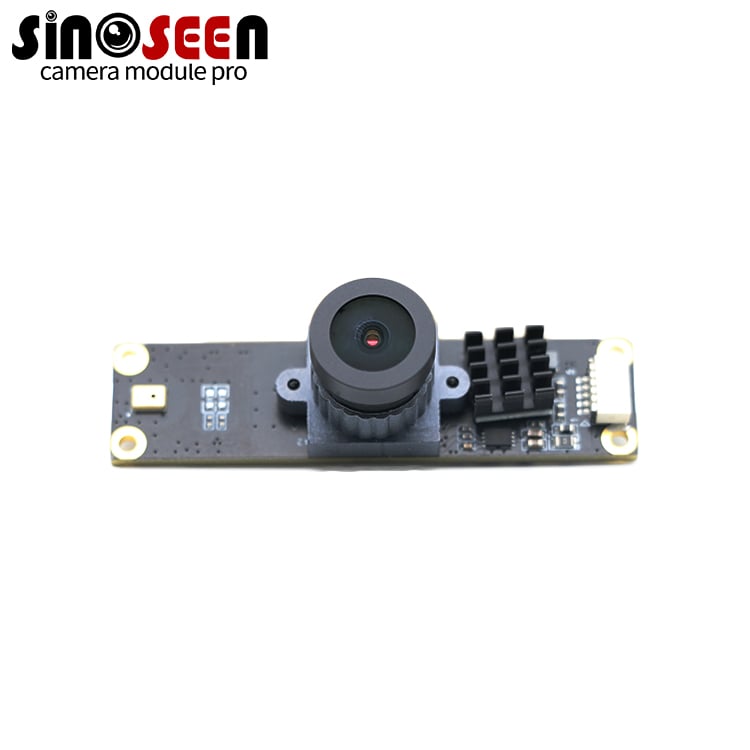

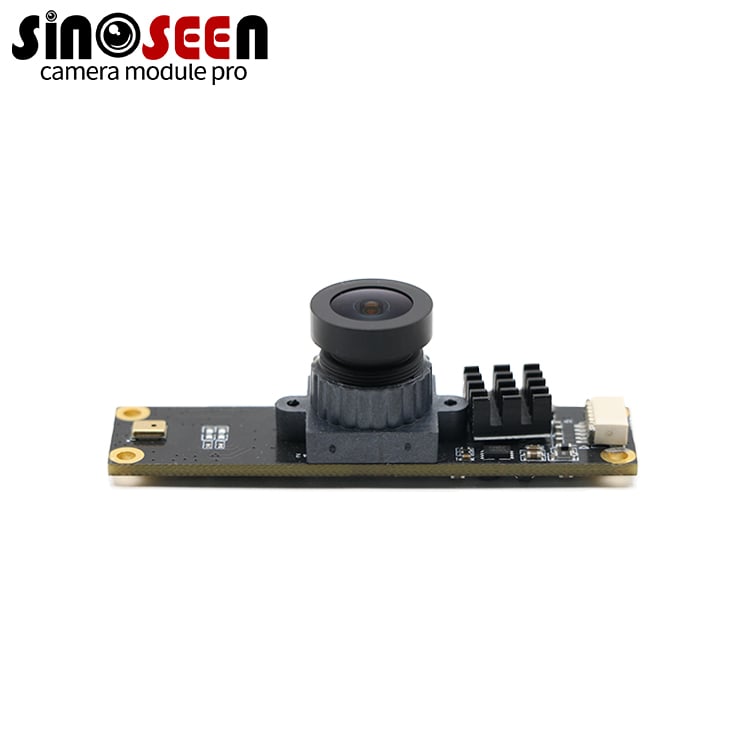

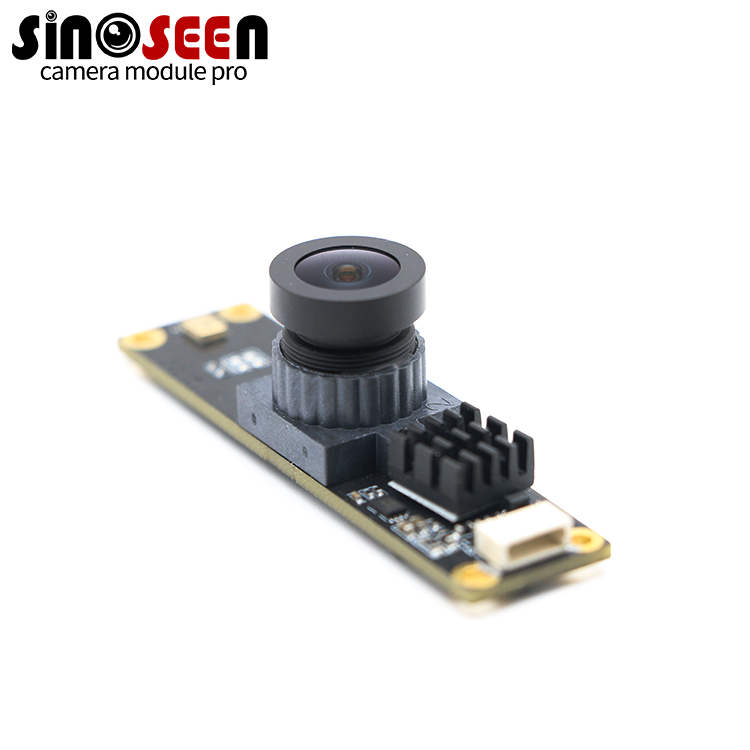

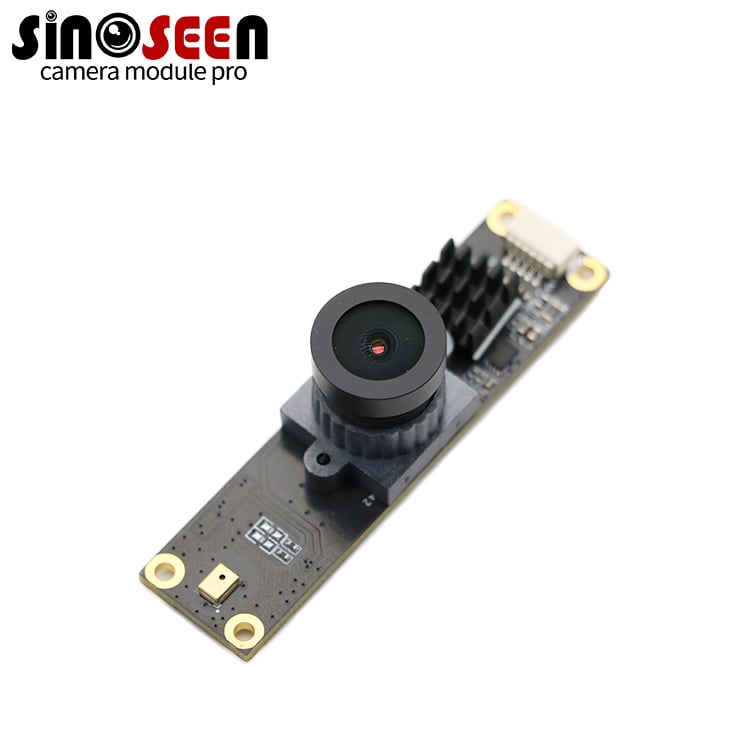

High performance 1/2.8 inch CMOS IMX307 USB2.0 camera module 1920x1080 full HD low light image sensor 30fps machine vision

High performance 1/2.8 inch CMOS IMX307 USB2.0 camera module 1920x1080 full HD low light image sensor 30fps machine vision

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	Sinoseen
Certification:	RoHS
Model Number:	SNS-DZ1123-V1.0

Payment & Shipping Terms:

Minimum Order Quantity:	3
Price:	negotiable
Packaging Details:	Tray+Anti-static bag in carton box
Delivery Time:	2-3weeks
Payment Terms:	T/T
Supply Ability:	500000 pieces/month

Inquiry

Parameter
Related products
Inquiry

Product Description

The camera module uses a 1/2.8 inch CMOS IMX307 image sensor with 1920x1080 resolution. It captures clear images at up to 30 frames per second and delivers reliable full HD video. With its progressive scan technology, the sensor outputs uncompressed 10-bit RAW data and supports MJPG and YUY2 video formats.

This module features a USB2.0 high speed interface with a transfer rate of 480MB/S. It works with Windows, Linux, Mac, and Android systems, and supports plug and play without the need for external drivers.

The lens system includes a fixed focus M12 mount, 10mm focal length, F/6.0 aperture, and 35° field of view. It is designed for stable imaging in low light conditions, making it suitable for machine vision, surveillance, video conferencing, educational applications, and industrial inspection.

A built-in dual digital noise reduction microphone enhances audio performance, allowing the module to be integrated in multimedia and communication devices.

Highlights

1/2.8 inch CMOS IMX307 full HD image sensor
1920x1080 resolution at 30fps
Excellent low light imaging performance
Supports RAW 10-bit, MJPG, and YUY2 output
USB2.0 high speed interface, 480MB/S transfer rate

Module SNS-DZ1123-V1.0 Specifications

Item	Specification
Model	SNS-DZ1123-V1.0
Image Sensor Size	1/2.8” CMOS IMX307
Effective Pixels	1920 × 1080 (Full HD)
Pixel Size	2.9 µm × 2.9 µm
Optical Distortion	< -0.3%
Image Sensor Data Output	Raw Data 10 bits
Video Output Format	MJPG / YUY2
Maximum Resolution & Frame Rates (MJPG)	- 1920 × 1080 → 30 FPS - 1280 × 960 → 30 FPS - 1280 × 720 → 30 FPS - 1024 × 768 → 30 FPS - 800 × 600 → 30 FPS - 640 × 480 → 30 FPS - 320 × 240 → 30 FPS
SNR (Max)	TBD
Dynamic Range	TBD
Minimum Illumination	TBD
Digital Interface	1.0 / 5-pin USB2.0
Transfer Rate	480 MB/s
Power Requirements	5V ±5%
Power Consumption	NO LED / IR-LED / PCB printing ink black
Additional Features	Dual digital noise reduction microphone
Storage Temperature	-40°C ~ 70°C
Operating Temperature	-30°C ~ 60°C
Operating System Support	Windows XP / Vista / 7 / 8.1 / 10 / Mac / Android / Linux 2.6.2 (UVC supported)
Lens View (Default Lens)	M12 × P0.5
Lens Construction	2G2P + 650 IR
F/NO (Aperture)	6.0
Effective Focal Length (EFL)	10.0 mm
Field of View (FOV)	D: 35° ±3°
Focus Type	Fixed focus
Shooting Distance	60 cm ~ ∞
