Global shutter camera module

Home >  Products  >  Global shutter camera module

Global Shutter Camera Module for IoT Devices 2MP Fixed Focus RoHS Approved

Product Details:

Place of Origin:

Shenzhen,China

Brand Name:

Sinoseen

Certification:

RoHS

Model Number:

SNS-2MP-OG02B1B-V1.0

Payment & Shipping Terms:

Minimum Order Quantity:

3

Price:

negotiable

Packaging Details:

Tray+Anti-static bag in carton box

Delivery Time:

2-3weeks

Payment Terms:

T/T

Supply Ability:

500000 pieces/month

  • Parameter
  • Related products
  • Inquiry
  • Detail Information

Type:

Global Shutter Camera Module

Sensor:

1/2.9" Omnivision OG02B1B

Resolution:

2MP (1600*1200)

Dimensions:

38mmx38mm (compatible With 32mmx32mm)

Lens FOV:

90°(optional)

Focus Type:

Fixed Focus

Interface:

USB2.0

Feature:

Global Shutter

High Light:

OG02B1B Global Shutter Camera Module

38mm Global Shutter Camera Module

OG02B1B USB camera module

Product Description

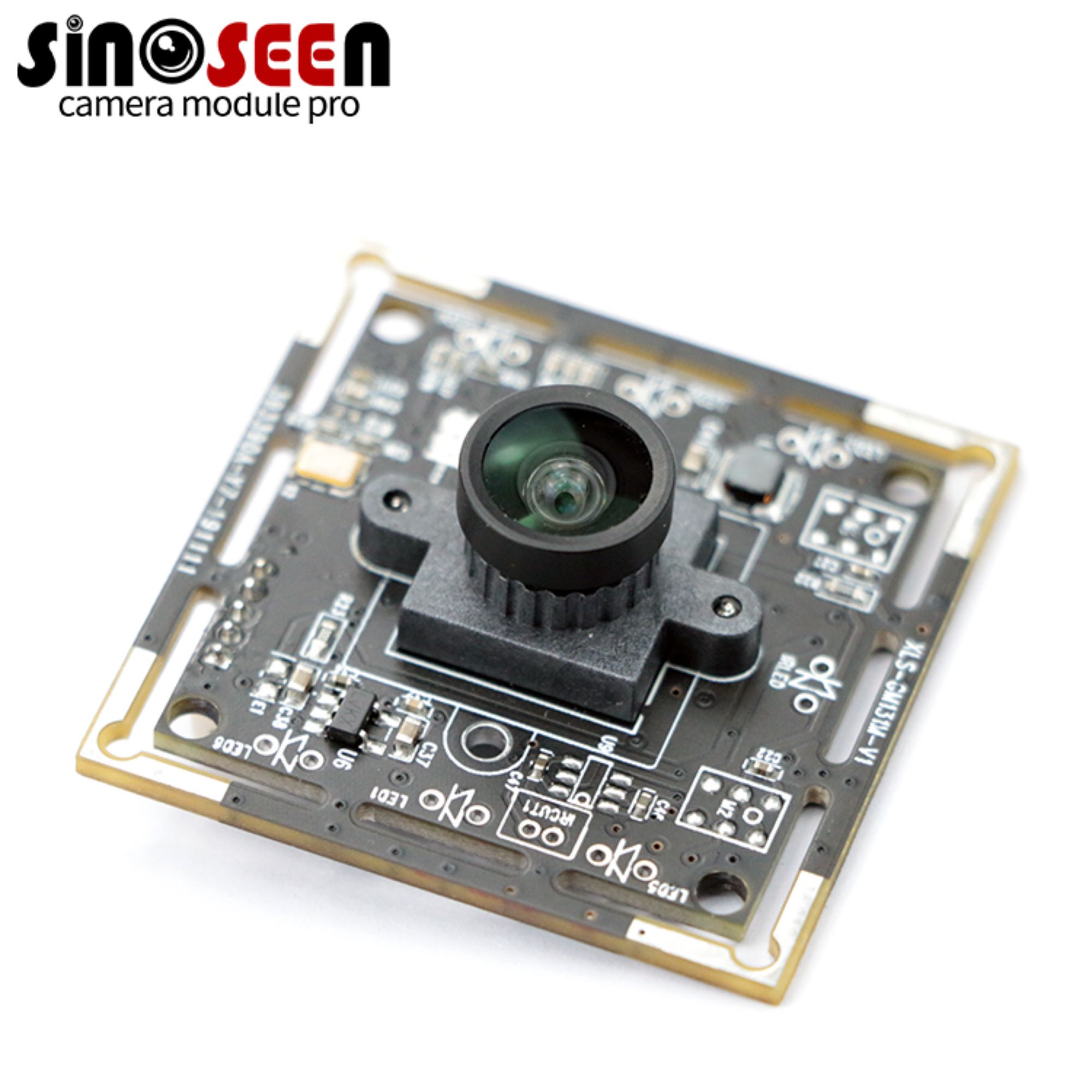

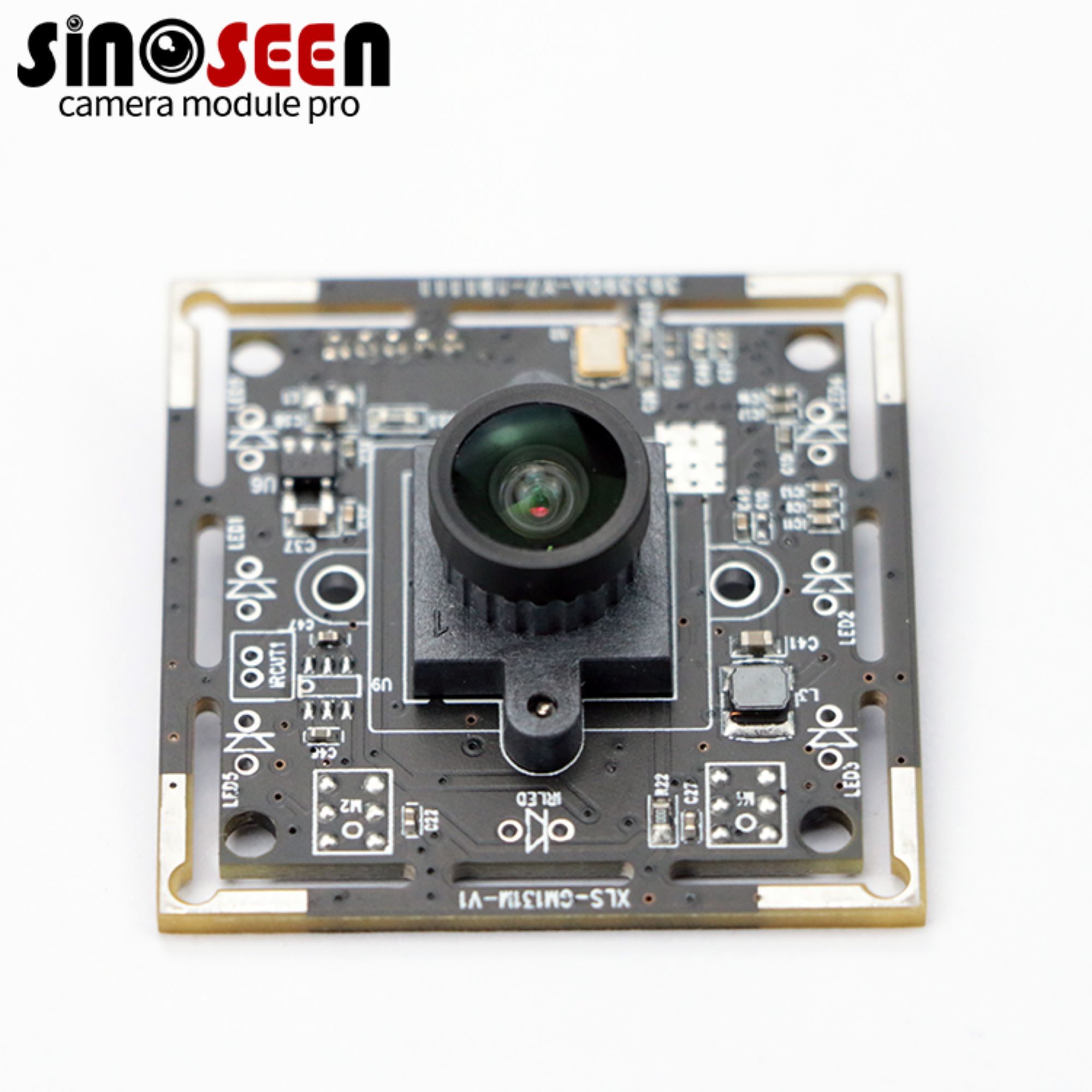

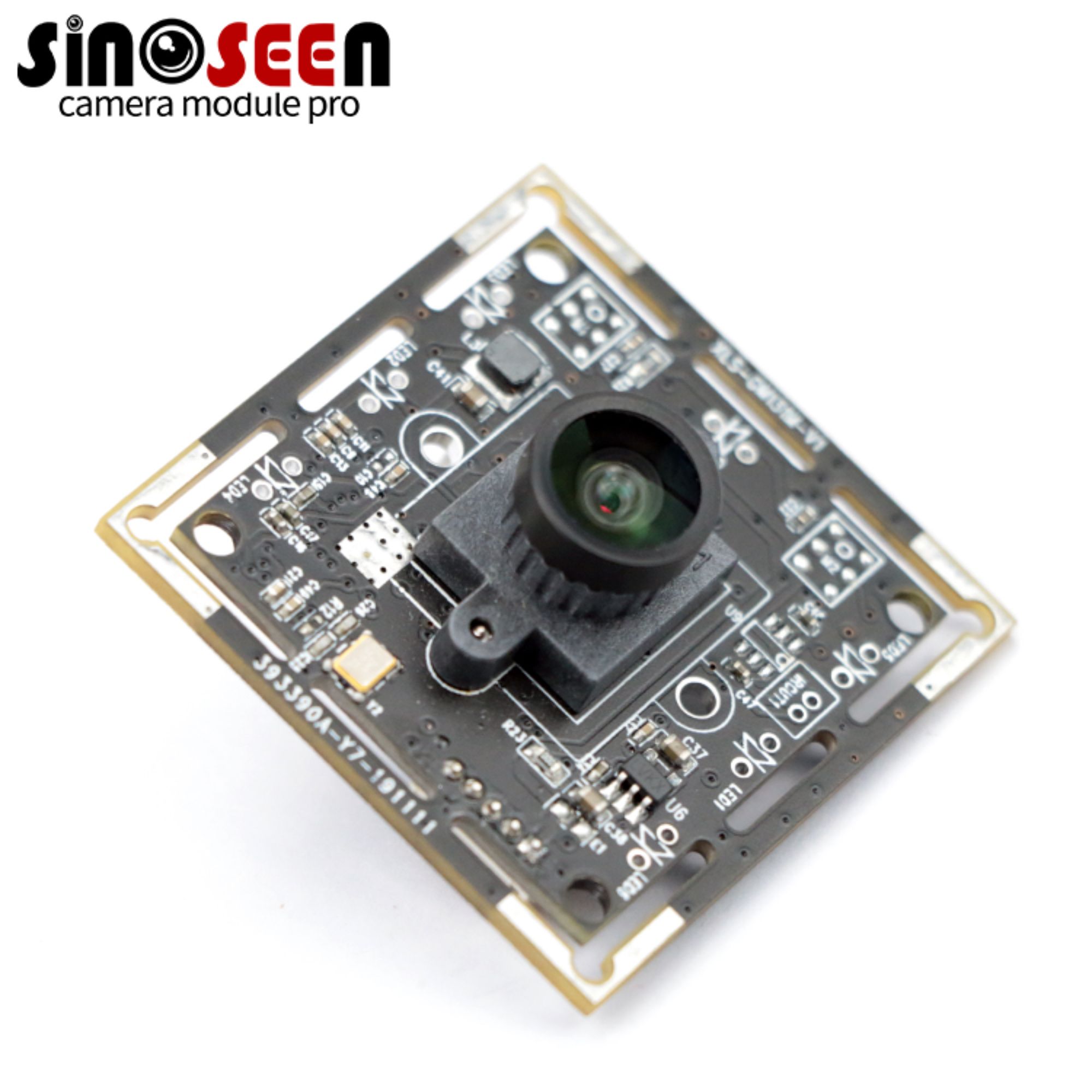

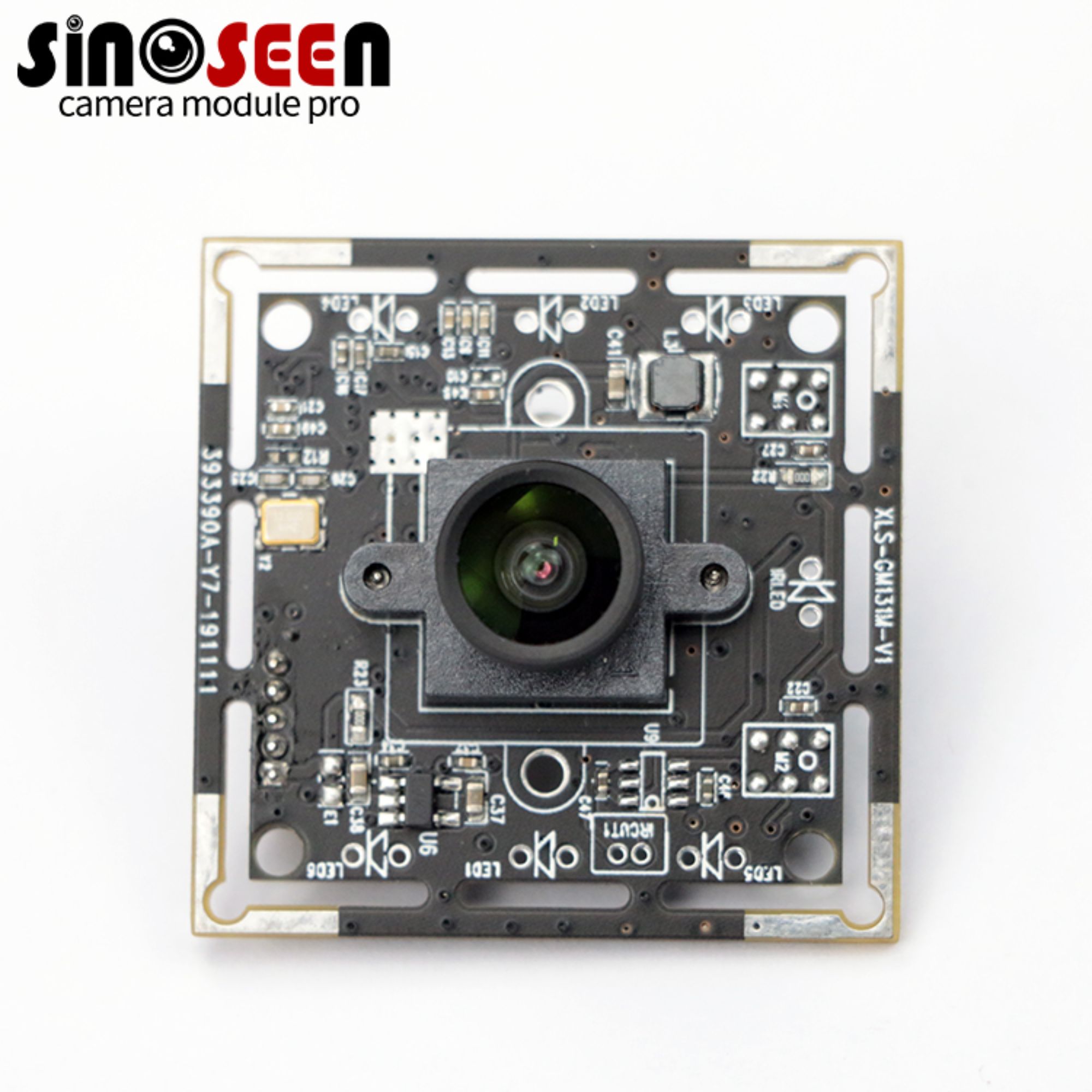

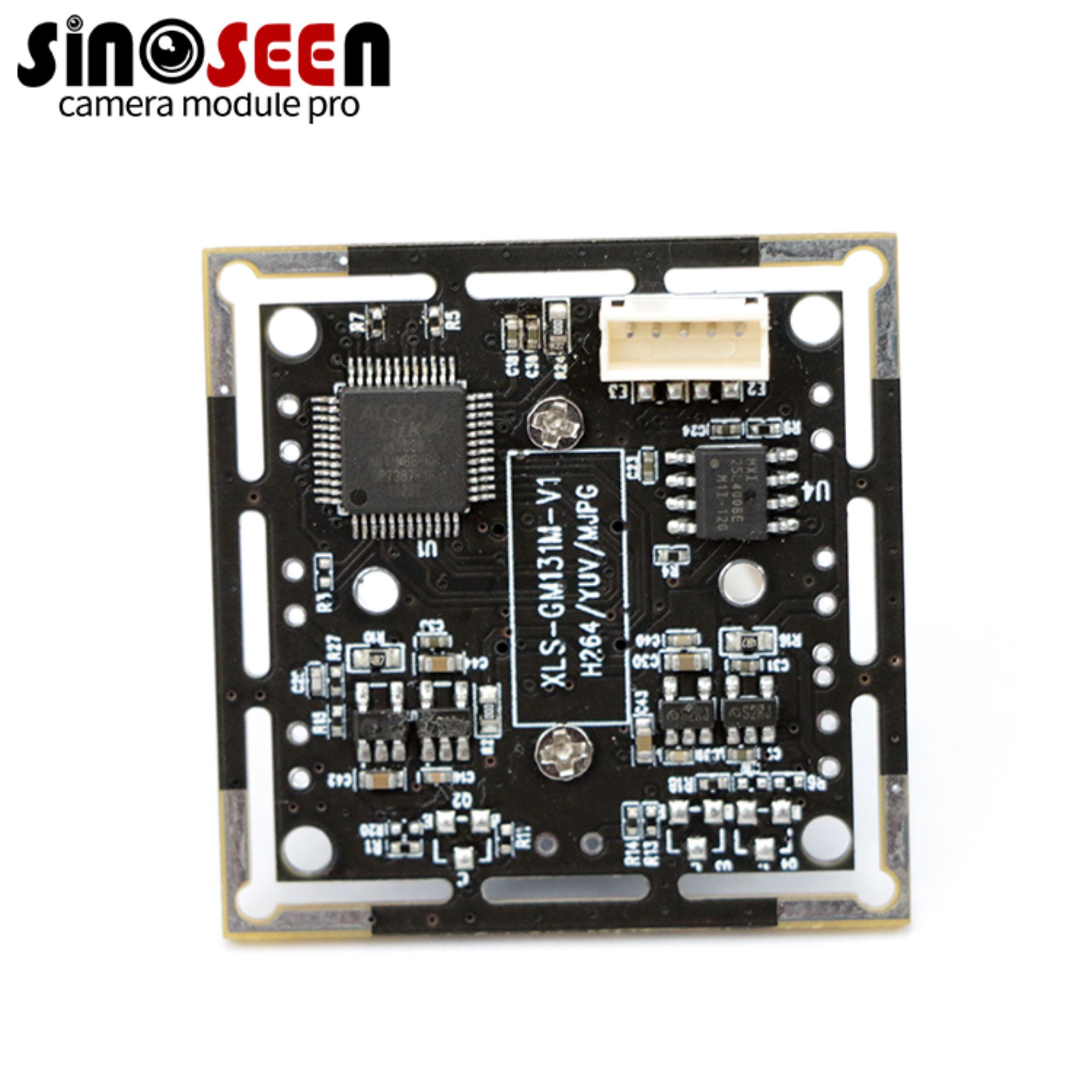

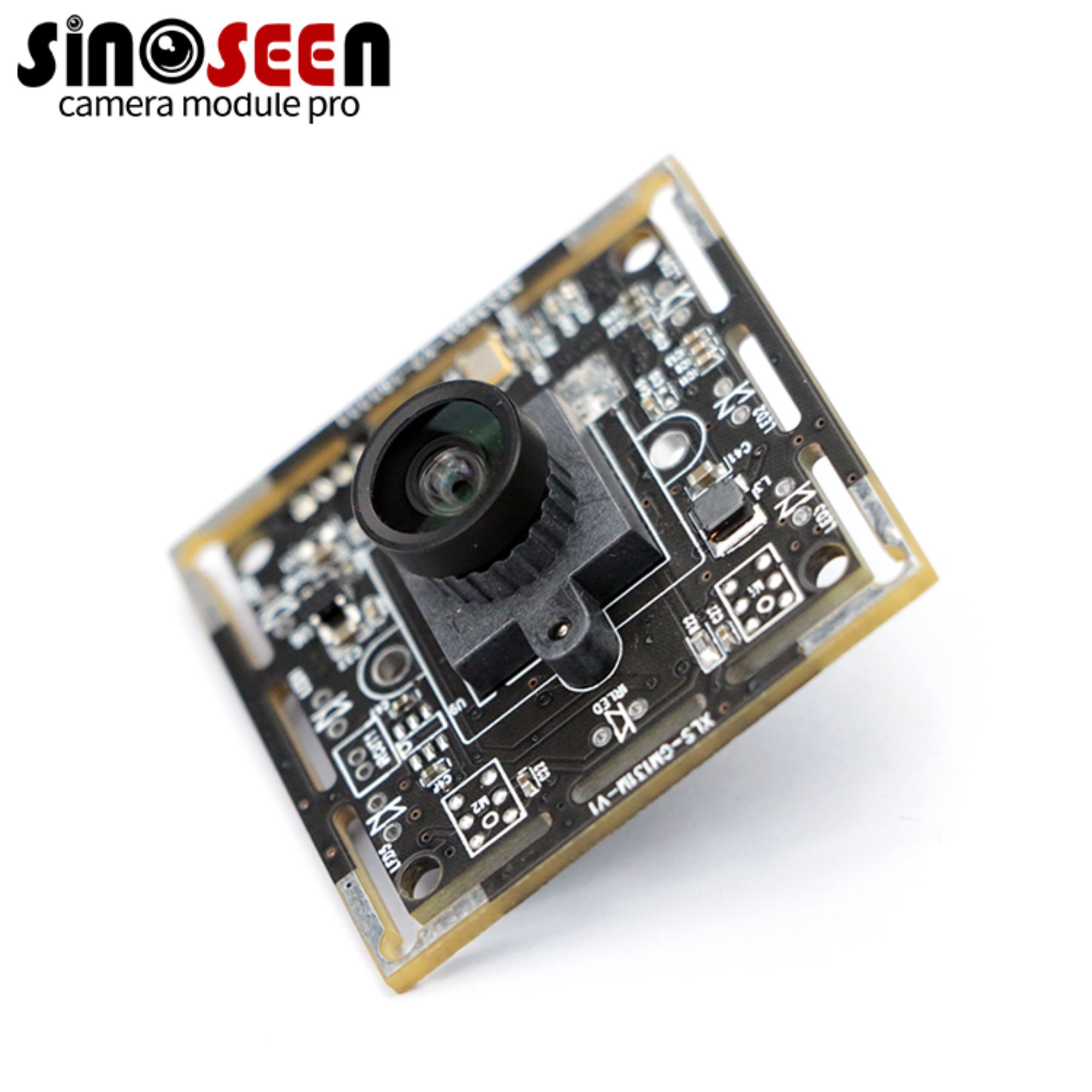

This is a highly advanced global shutter USB2.0 camera module featuring the OG02B1B sensor from Omnivision. Unlike many other global shutter modules, which typically have a resolution of 0.3MP or 1MP, this module boasts a resolution of 2MP (1600x1200), making it the highest resolution global shutter camera module currently available on the market. The sensor captures black and white images and supports frame rates of up to 60fps. If you require color images, there is also a color version available called OG02B10, which has almost identical specifications.

This camera module is commonly used in high-tech and high-end consumer and industrial machine vision applications, including AR/VR, industrial automation, robotics, drones, 3D modeling, imaging, barcode scanning, factory automation, medical care, agriculture, and AI and computer vision.

Key Features

  • Monochrome Imaging: Captures grayscale detail for host-based analysis of outlines, positions and visible features.

  • Global Shutter: Supports imaging of moving targets without rolling-shutter skew.

  • USB 2.0 Connectivity: Integrates with compatible UVC hosts, with MJPG and YUY2 output formats.

  • Fixed-Focus Lens: Suits defined working distances, with manual focus adjustment during setup.

  • 38 × 38mm Board: Provides a compact board-level assembly for equipment integration.

  • Exposure and Gain Control: Supports automatic exposure and gain adjustment.

  • Application Matching: Lens selection should consider target size, working distance and required field of view.

Specification

Model No

SNS-2MP-OG02B1B-V1.0

Sensor

1/2.9’’ Omnivision OG02B1B

Pixel

2 Mega Pixel

Most effective pixels

1600(H) x 1200(V)

Pixel Size

3.0µm x 3.0µm

Chroma

Monochrome

Compression format

MJPG / YUY2

Resolution & Frame rate

See above

Shutter Type

Global shutter

Focus type

Fixed Focus/Manually Adjustable

Clock Frequency

6 to 27 MHz

Chief Ray Angle (CRA)

15°

Microphone

Optional

Interface type

USB 2.0 high speed

Adjustable parameter

Brightness/Contrast/Color saturation/Hue/Definition/Gamma

Lens

Lens Structure: 6G

Lens Size: 1/2.5 inch

H FOV: 90°

Thread Size: M12*P0.5

Audio frequency

Optional

Power supply

USB BUS POWER

Power consumption

DC 5V, <200mA

Main chip

DSP/SENSOR/FLASH

Auto Exposure Control (AEC)

Support

Auto White Balance (AEB)

Support

Auto Gain Control (AGC)

Support

Dimension

38mmx38mm (compatible with 32mmx32mm)

Storage temperature

-20°C to 75°C

Operating temperature

0°C to 60°C

USB cable length

Default

Support OS

WinXP/Vista/Win7/Win8/Win10
Linux with UVC(above linux-2.6.26)
MAC-OS X 10.4.8 or later
Android 4.0 or above with UVC

Global-Shutter-Camera-Module-for-IoT-DevicesGlobal-Shutter-Camera-Module-for-IoT-Devices-02

Application Areas

Face Recognition: Face capture for access control.
QR Code Payment: Code imaging for decoding.
VR Devices: Visual input for motion tracking.
High-Speed Tracking: Moving-object image capture.
Terminal Scanning: Document and barcode imaging.
Robot Vision: Images for positioning and guidance.
Security & Smart Home: Indoor and outdoor monitoring.
AI Training Data Collection: Image capture for AI datasets.
Medical & Life Science Imaging: Image capture for microscopy and research.

OEM/ODM Customization & Development Process


Match the Camera to Your Integration Requirements

A suitable camera configuration must fit both the imaging task and the device structure. Sinoseen provides OEM/ODM camera module services and can assess changes to the optical setup, flexible-circuit layout, connection arrangement, and supported operating configuration.

Project Requirement Areas for Engineering Review Information to Provide
The camera does not fit the enclosure Camera-head placement, FPC outline, and routing Mechanical drawings and available space
cene coverage or working distance is unsuitable Lens selection, field of view, and focus setting Target dimensions and capture distance
The host connection differs from the standard design Connector, pin assignment, and interface configuration Host specifications and connection requirements
Moving targets require sharper capture Exposure, lighting, and supported frame-rate modes arget speed, sample images, and lighting conditions
he project requires infrared imaging Filter and lens suitability Illumination wavelength and imaging requirements

Customization feasibility, development scope, cost, and lead time are confirmed after engineering review.

Customization Process

Step 1 — Share Your Requirements

Provide the application, host platform, required resolution and frame rate, working distance, installation space, and estimated quantity.

Step 2 — Review the Configuration

Assess the sensor operating mode, interface, lens, and mechanical arrangement. Identify any changes required for the target device.

Step 3 — Confirm Drawings and Evaluation Criteria

Agree on the configuration, connection details, mechanical revision, and sample acceptance requirements before prototype production.

Step 4 — Evaluate Samples

Test image quality, sustained frame rate, exposure behavior, host integration, and mechanical fit in the actual operating environment.

Step 5 — Approve the Production Configuration

Confirm the accepted sample, drawings, optical components, and operating configuration before proceeding with volume production.

Send Your Drawings and Imaging Requirements

About Sinoseen


Shenzhen Sinoseen Technology Co., Ltd. was established in June 2016 and specializes in CMOS camera module design, development, manufacturing, and OEM/ODM services.

Its product portfolio includes USB, MIPI, and DVP camera modules, with services extending from development through manufacturing and after-sales support.

For embedded vision projects, Sinoseen works with customers to assess the imaging task alongside mechanical and electrical integration requirements. This helps define a camera configuration that can be evaluated in the intended device before production approval.

Certifications & Intellectual Property


Sinoseen’s documentation includes quality management records, product compliance documents, software copyrights, and utility model patents. For your camera module project, please request the current documents applicable to the selected model and configuration, including relevant CE, FCC, or RoHS documentation.

Shenzhen Sinoseen Technology Co., LTD

China top 10 camera module manufacturer

If you are struggling to find the right camera module solution, please contact us, we will customize all kinds of USB/MIPI/DVP interface camera modules according to your needs, and have a dedicated team to provide you with the most suitable solution.

FAQ:

Q1. How to choose the right camera module?

A: Please tell us your specific needs, such as application scenarios, resolution, size, and lens requirements. We will have a professional team of engineers to assist you in choosing the most suitable camera module.

Q2. How to start proofing?

A: After confirming all the parameters, we will draw a drawing to confirm the details with you. Once the drawing is confirmed, we will arrange a proofing.

Q3: How do I send the payment?

A: Currently we accept T/T bank transfer and Paypal.

Q4: How long does it take to make a sample?

A: If it is a USB camera module, it usually takes 2-3weeks, if it is a MIPI or DVP camera module, it usually takes 10-15days.

Q5: How long will it take to receive the sample after it is ready?

A: After the samples have been tested and there is no problem, we will send the samples to you via DHL FedEx UPS or any other courier methods, usually within a week.
