GC2145 Sensor Raspberry Pi HD Face Recognition Camera Module 2MP

Product Details:

Place of Origin:

Shenzhen,China

Brand Name:

Sinoseen

Certification:

RoHS

Model Number:

SNS-YDD10F2M-V1

Payment & Shipping Terms:

Minimum Order Quantity:

3

Price:

negotiable

Packaging Details:

Tray+Anti-static bag in carton box

Delivery Time:

2-3weeks

Payment Terms:

T/T

Supply Ability:

500000 pieces/month

  • Parameter
  • Related products
  • Inquiry
  • Detail Information

Type:

Facial Recognition Camera Module

Sensor:

1/5" GalaxyCore GC2145

Resolution:

2MP (1600*1200)

Dimensions:

Customizable

Lens FOV:

90°(optional)

Focus Type:

Fixed Focus

Interface:

USB2.0

Feature:

Facial Recognition

High Light:

RoHS Mobile Phone Camera Module

RoHS 2MP 3D Camera Module

RoHS GC2145 camera module

Product Description

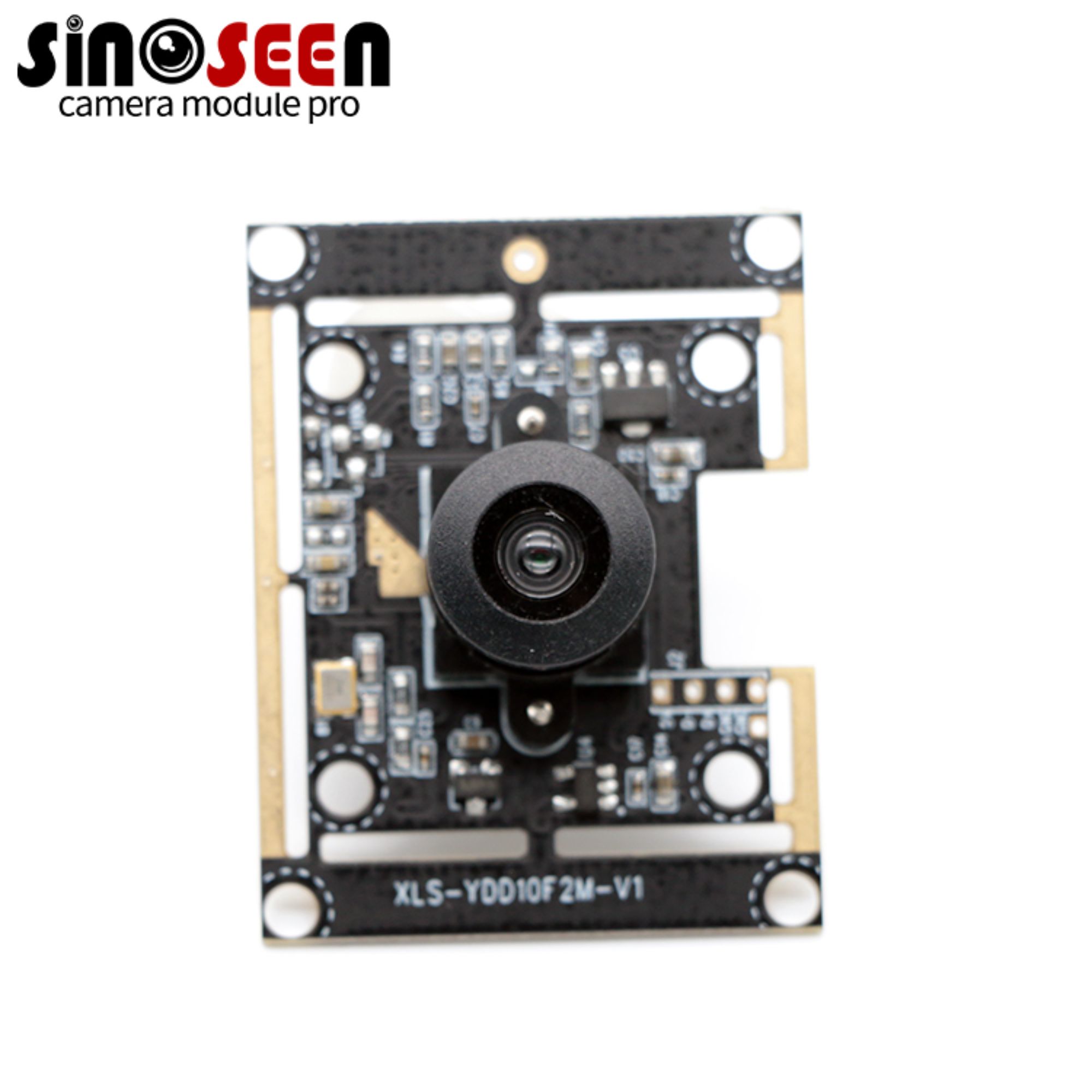

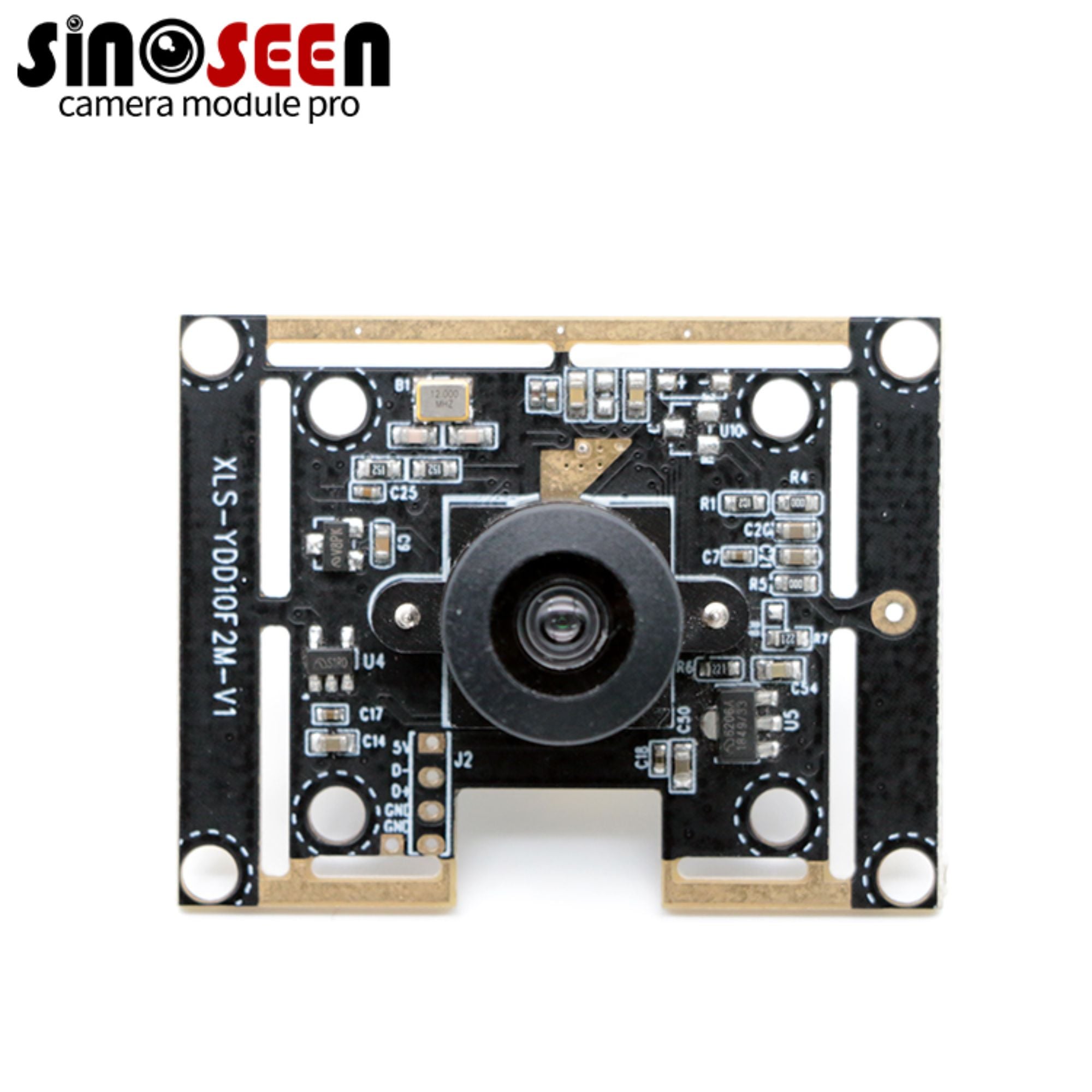

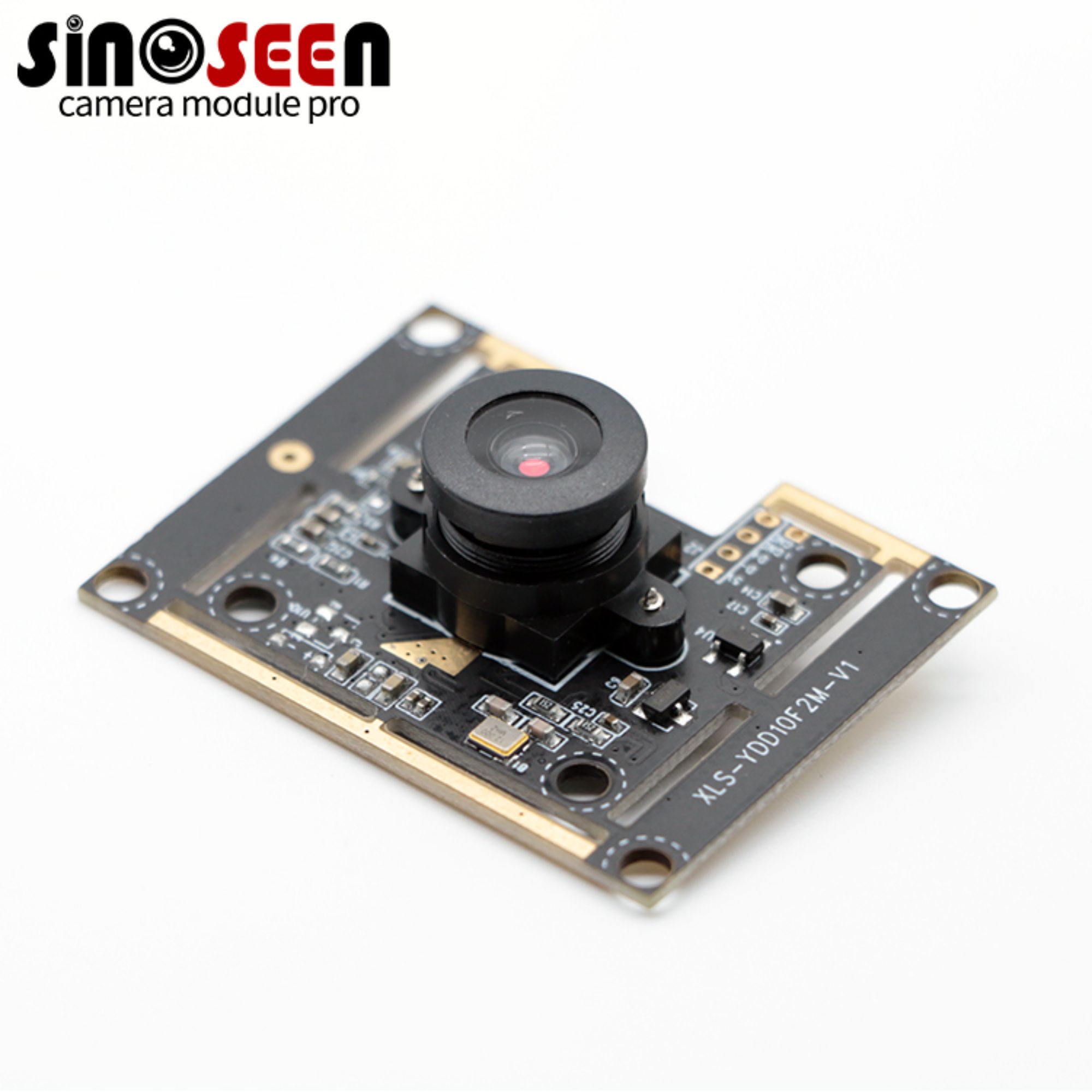

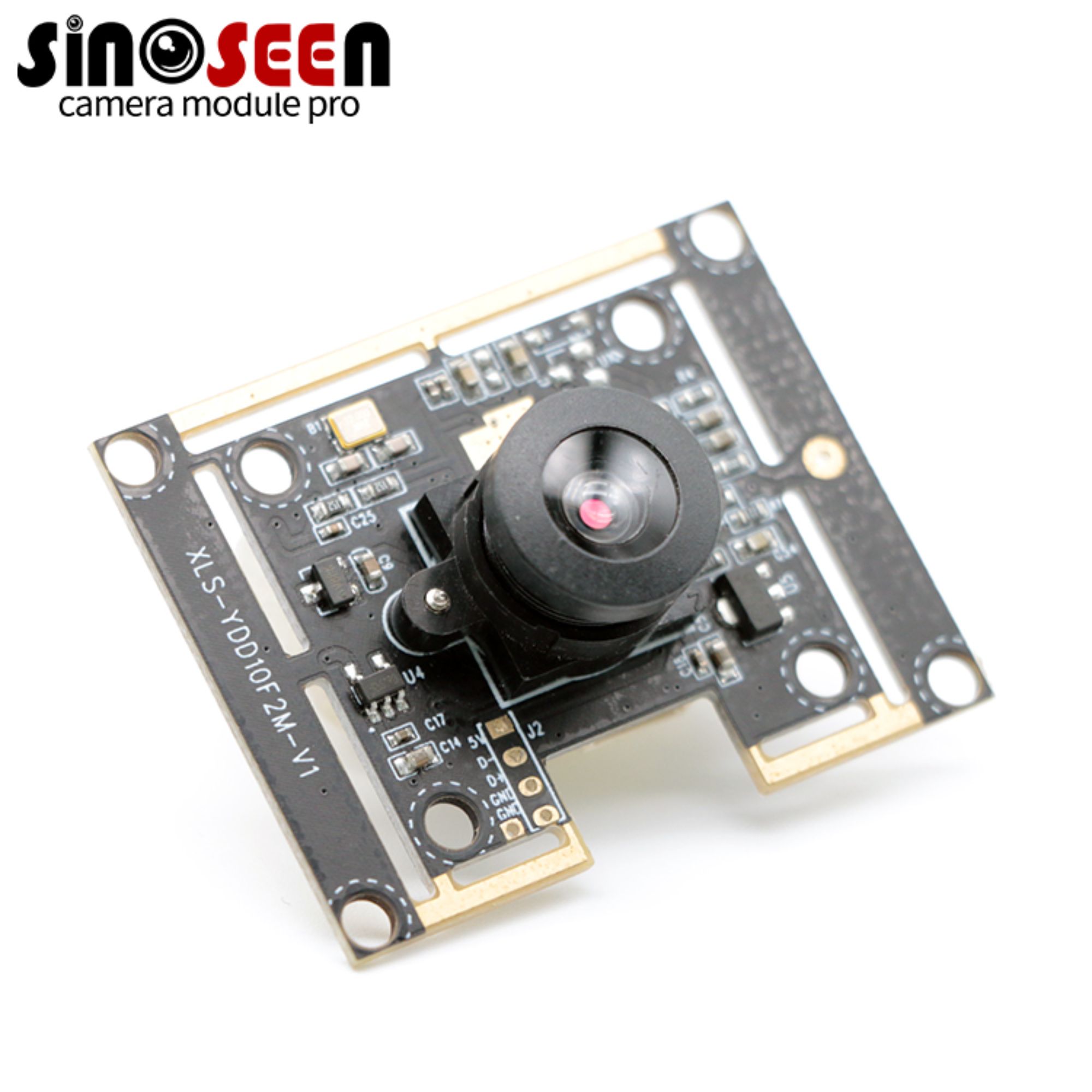

This USB camera module utilises the GC2145 chip from GalaxyCore, making it an affordable and high-performing option for customers worldwide.

It is commonly used in access control equipment, all-in-one machines, cat-eye access control, video doorbells, and for face recognition purposes.

If you aim to gain a competitive edge through pricing, consider GC2145 or other chips from GalaxyCore.



Specification

Module No

SNS-YDD10F2M-V1

Pixel Size

1.75μm x 1.75μm

Effective Pixels

1600(H)X1200(V)

Video output

YUV2 MJPG

Active Array Size Video Rate

1600x1200 @15fps

1280x720 @ 15fps

640x480 @ 30 fps

320x240 @30fps

Image Sensor

1/5" GC2145

SNR max

TBDdB

Dynamic range

TBDdB

OTG

USB2.0 OTG

Drive free

USB Video Class(UVC)

AEC

Support

AEB

Support

AGC

Support

Adjustable parameters

Brightness/Contrast/Color saturation/Hue/Definition/
Gamma/White balance/Exposure

Lens view

FOV90°(optional),F/N(optional)

Interface

USB BUS POWER 5P-1.0mm

Working voltage

DC5V

Working current

120mA~220mA

Operating temperature

0~60℃

Storage temperature

-20~70℃

Cable length

Defualt

OS

WinXP/Vista/Win7/Win8

Linux with UVC(above linux-2.6.26)

MAC-OS X 10.4.8 or later

Wince with UVC

Android 4.0 or above with UVC



GC2145-Raspberry-Pi-Face-Recognition-CameraGC2145-Raspberry-Pi-Face-Recognition-Camera-02





Shenzhen Sinoseen Technology Co., LTD

China top 10 camera module manufacturer

If you are struggling to find the right camera module solution, please contact us, we will customize all kinds of USB/MIPI/DVP interface camera modules according to your needs, and have a dedicated team to provide you with the most suitable solution.



FAQ:

Q1. How to choose the right camera module?

A: Please tell us your specific needs, such as application scenarios, resolution, size, and lens requirements. We will have a professional team of engineers to assist you in choosing the most suitable camera module.

Q2. How to start proofing?

A: After confirming all the parameters, we will draw a drawing to confirm the details with you. Once the drawing is confirmed, we will arrange a proofing.

Q3: How do I send the payment?

A: Currently we accept T/T bank transfer and Paypal.

Q4: How long does it take to make a sample?

A: If it is a USB camera module, it usually takes 2-3weeks, if it is a MIPI or DVP camera module, it usually takes 10-15days.

Q5: How long will it take to receive the sample after it is ready?

A: After the samples have been tested and there is no problem, we will send the samples to you via DHL FedEx UPS or any other courier methods, usually within a week.
