GC2083 Camera Module 2MP 1080P MIPI/DVP
Product Details:
|
Place of Origin: |
Shenzhen,China |
|
Brand Name: |
Sinoseen |
|
Certification: |
RoHS |
|
Model Number: |
SNS22227-V1.0 |
Payment & Shipping Terms:
|
Minimum Order Quantity: |
3 |
|
Price: |
negotiable |
|
Packaging Details: |
Tray+Anti-static bag in carton box |
|
Delivery Time: |
2-3weeks |
|
Payment Terms: |
T/T |
|
Supply Ability: |
500000 pieces/month |
- Parameter
- Related products
- Inquiry
Professional-Grade GC2083 Camera Module: Cost-Effective 1080P Imaging Solution
In today’s price-sensitive yet quality-demanding security and consumer markets, the gc2083 camera module has established itself as a leading 2MP 1080P solution. Built around Galaxycore’s GC2083 1/3.02-inch CMOS sensor featuring large 2.7μm×2.7μm pixels and an integrated 10-bit ADC, this module achieves a remarkable 74 dB dynamic range and 37 dB maximum SNR[1]. With the global video surveillance camera module market projected to surpass USD 15 billion by 2030 at a CAGR of 11.2%[2], the 1080p gc2083 camera module offers B2B manufacturers an optimal balance between performance and system cost.
Supporting both MIPI CSI-2 (2-lane) and DVP parallel interfaces with RAW10/RAW8 output, the mipi gc2083 camera module integrates seamlessly into mainstream SoCs. Enterprises procuring wholesale gc2083 camera module volumes benefit from stable long-term supply, while customized gc2083 camera module services enable rapid lens, housing, and firmware adaptations for specific security gc2083 camera module applications.
Key Product Advantages
- Superior Low-Light Imaging: Large 2.7μm pixels and 3.24 V/lux·s sensitivity deliver clear images in challenging lighting.
- High Dynamic Range: 74 dB HDR effectively handles high-contrast scenes common in 1080p gc2083 camera module surveillance.
- Integrated Power Management: Built-in LDO generates 1.2V core voltage, reducing external components and BOM cost.
- Dual Interface Flexibility: MIPI CSI-2 2-lane and DVP parallel output for broad platform support in mipi gc2083 camera module designs.
- Compact & Reliable: 13.2×13.2×18.7 mm package with standard 650 nm IR-cut filter for wholesale gc2083 camera module deployments.
Product Specifications
| Parameter | Specification |
|---|---|
| Sensor | Galaxycore GC2083 1/3.02" CMOS |
| Active Array | 1920 × 1080 (2MP) |
| Pixel Size | 2.7 μm × 2.7 μm |
| Shutter Type | Electronic Rolling Shutter |
| ADC Resolution | 10-bit |
| Max Frame Rate | 30 fps @ full resolution |
| Dynamic Range | 74 dB |
| Max SNR | 37 dB |
| Sensitivity | 3.24 V/lux·s |
| Output Interface | MIPI CSI-2 2-lane · DVP parallel |
| Output Format | RAW10 / RAW8 Bayer |
| Power Supply | AVDD28: 2.8V · IOVDD: 1.8V · DVDD12: Internal LDO |
| Operating Temperature | -30°C to +85°C |

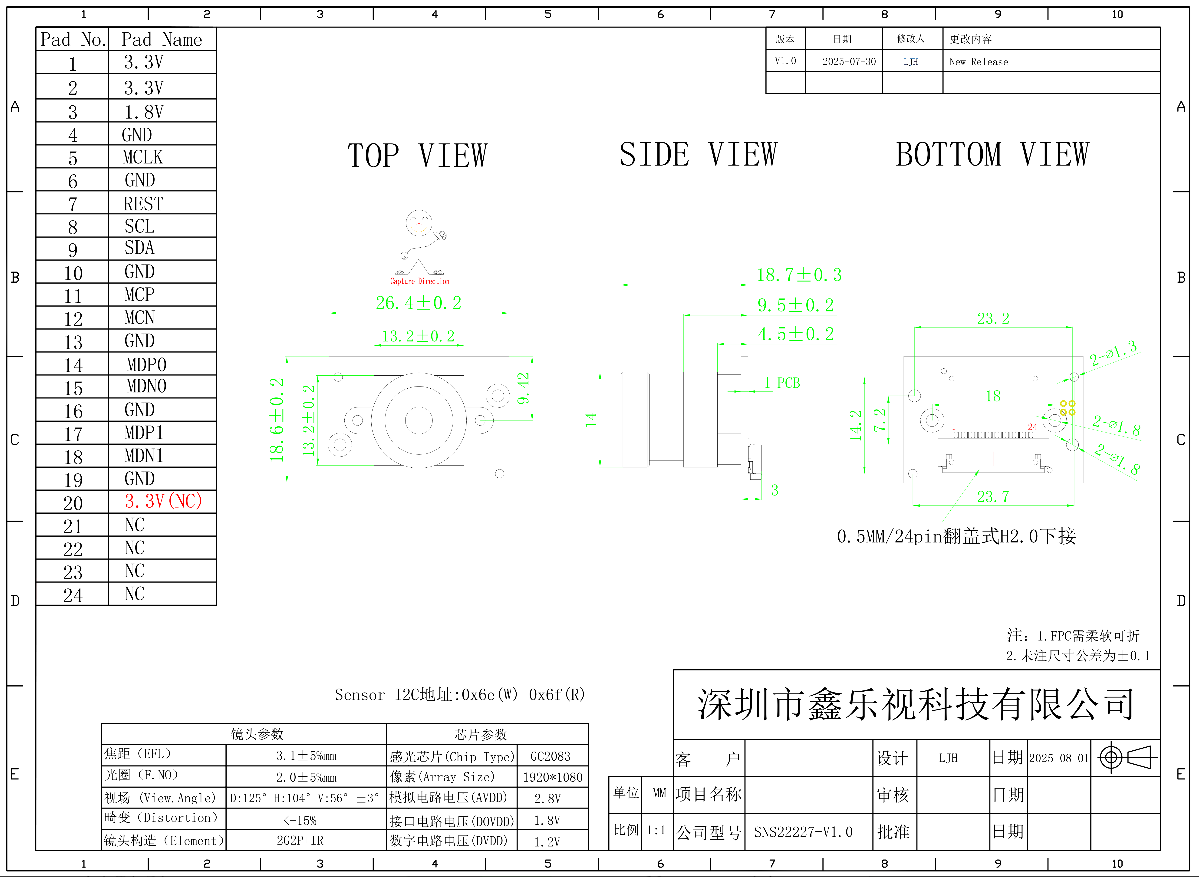

| Module Size | 13.2 × 13.2 × 18.7 ± 0.3 mm (gc2083 camera module) |
| Chief Ray Angle | 12° (linear) |
Product Application Areas
- IP Cameras & NVR Systems – proven reliability in security gc2083 camera module installations.
- Smart Video Doorbells – compact size with excellent low-light performance.
- Car DVR & Fleet Monitoring – wide temperature range and low power consumption.
- Battery-Powered Devices – internal LDO extends runtime in portable products.
- Industrial Vision – cost-effective solution for wholesale gc2083 camera module bulk projects.
About Sinoseen
Sinoseen, a trusted China camera module manufacturer with over ten years of experience, provides end-to-end visual solutions to global B2B clients. We specialize in wholesale gc2083 camera module fulfillment and customized gc2083 camera module development across USB, MIPI, and DVP interfaces through comprehensive OEM/ODM services. Our professional engineering and service teams deliver one-stop support from concept to volume production. Contact us to explore how our gc2083 camera module can strengthen your product lineup.
Customization Process
- Requirement Review – Submit lens, FPC, and housing specs for your customized gc2083 camera module.
- Optical & Mechanical Design – Optimize FOV, IR filter, and connector layout.
- Rapid Prototyping – Functional samples in 10–14 days.
- Comprehensive Validation – Thermal, EMI, and reliability testing.
- Volume Production – Seamless ramp-up with full traceability.
Total Cost of Ownership (TCO) Comparison
| Aspect | Sinoseen GC2083 Module | Competitive Modules |
|---|---|---|
| External Components | Minimal (internal LDO) | Multiple regulators required |
| Integration Time | 2–4 weeks | 4–8 weeks |
| Power Efficiency | Optimized for battery life | Average |
| Overall TCO Impact | 15–25% lower lifecycle cost | Higher system expense |
Compliance Package & Supply Chain Security
All modules meet RoHS, REACH, CE, and FCC requirements. Our supply chain is certified to ISO 9001 and IATF 16949 standards with diversified sourcing and 12-month buffer inventory ensuring uninterrupted delivery.
Mass Production Risk Matrix & After-Sales KPIs
| Risk | Probability | Mitigation |
|---|---|---|
| Sensor Supply | Low | Multi-year agreement + second-source plan |
| Yield Fluctuation | Medium | Automated AOI + SPC → 98%+ yield |
| Delivery Delay | Low | Air: 5–10 days to US/EU · Sea: 20–30 days |
After-sales KPIs: 95% resolution within 24 h · 99% spare parts on-time · >99.5% first-year reliability.
Common Buyer FAQs
Q: Is the mipi gc2083 camera module compatible with HiSilicon, Novatek, and Fullhan platforms?
A: Yes – reference designs and register settings provided.
Q: Can we get a customized gc2083 camera module with waterproof M12 lens?
A: Standard lead time for IP67 versions is 3–4 weeks.
Q: Does the 1080p gc2083 camera module support digital WDR?
A: Yes – multi-exposure HDR can be enabled via ISP settings.
Q: What is the MOQ for wholesale gc2083 camera module?
A: Flexible MOQ starting from 100 pcs.
Q: Is a no-IR-cut version available for starlight cameras?
A: Yes – day/night switchable versions are in stock.
Industry Challenges & Solutions
-
Challenge: Balancing cost and low-light performance
Solution: Large 2.7μm pixels in 1080p gc2083 camera module. -
Challenge: Reducing PCB complexity
Solution: Integrated LDO eliminates external voltage regulators. -
Challenge: Platform compatibility
Solution: Dual MIPI/DVP interface support in mipi gc2083 camera module.
Footnotes
- 74 dB dynamic range and 37 dB SNR are typical values from Galaxycore GC2083 datasheet.
- Global surveillance camera module market forecast 2024–2030: MarketsandMarkets & Omdia.
