GC1054 Sensor High Performance Usb Camera Module For Action Cameras
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-1MP-GC1054-typ |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
- Parameter
- Related products
- Inquiry
Product Description

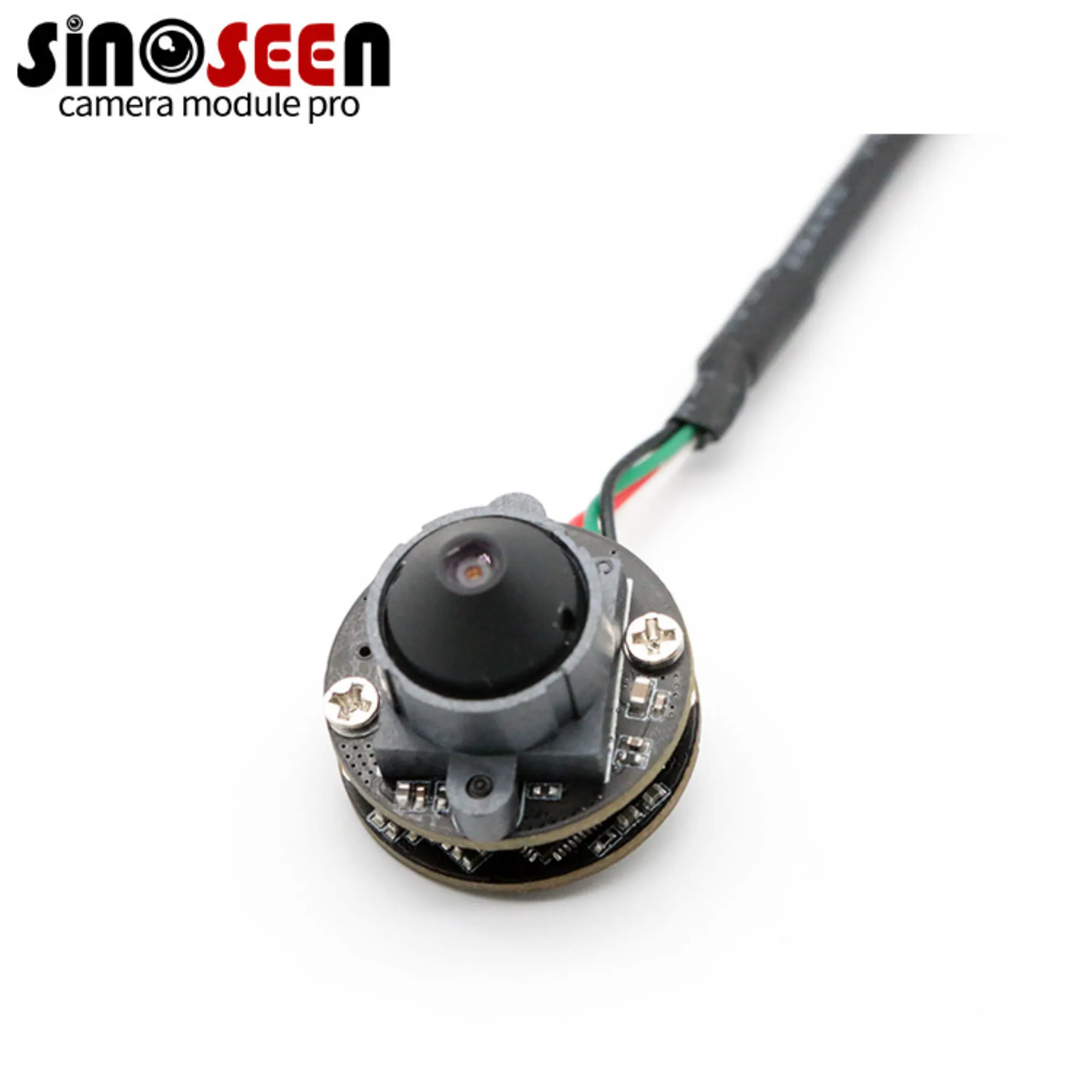

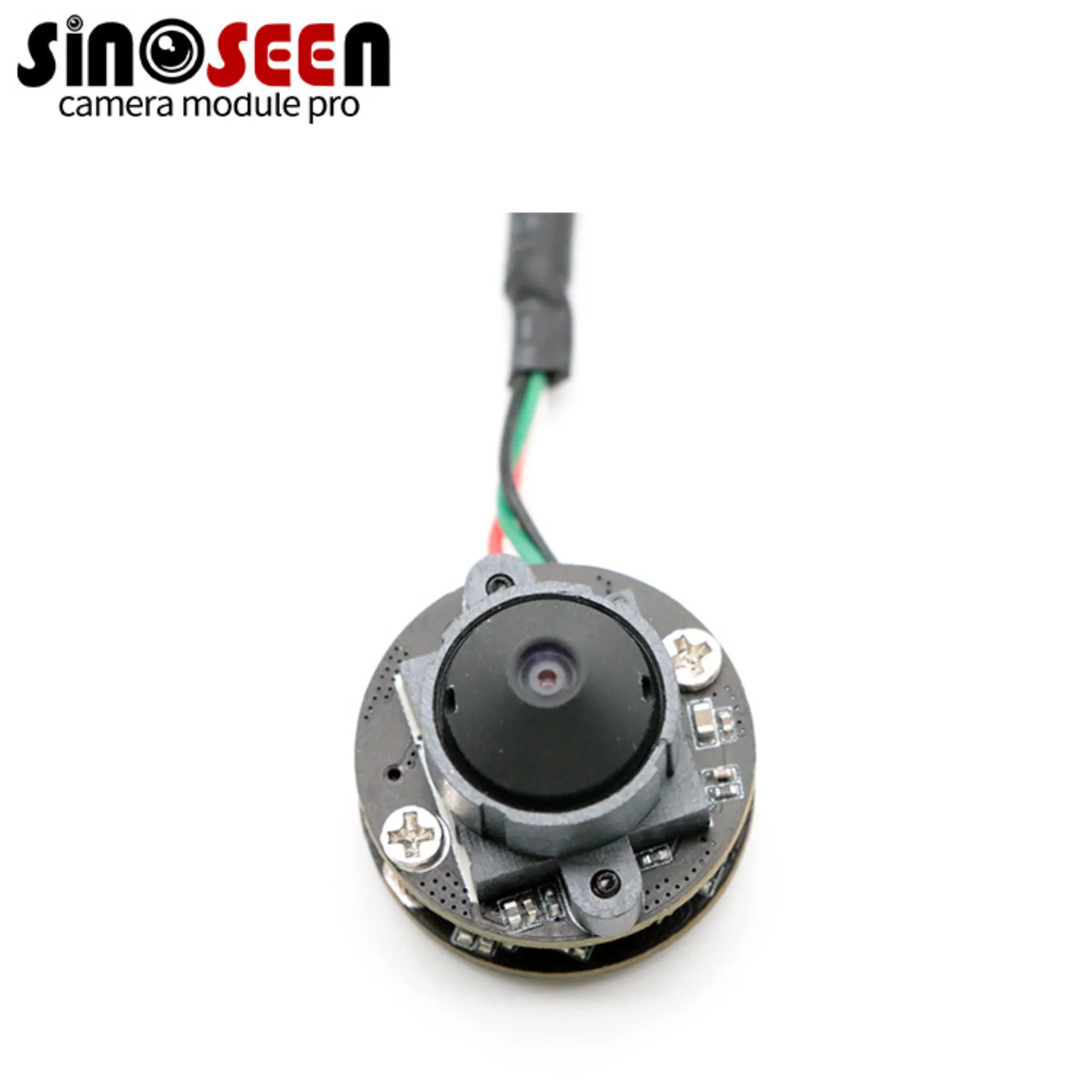

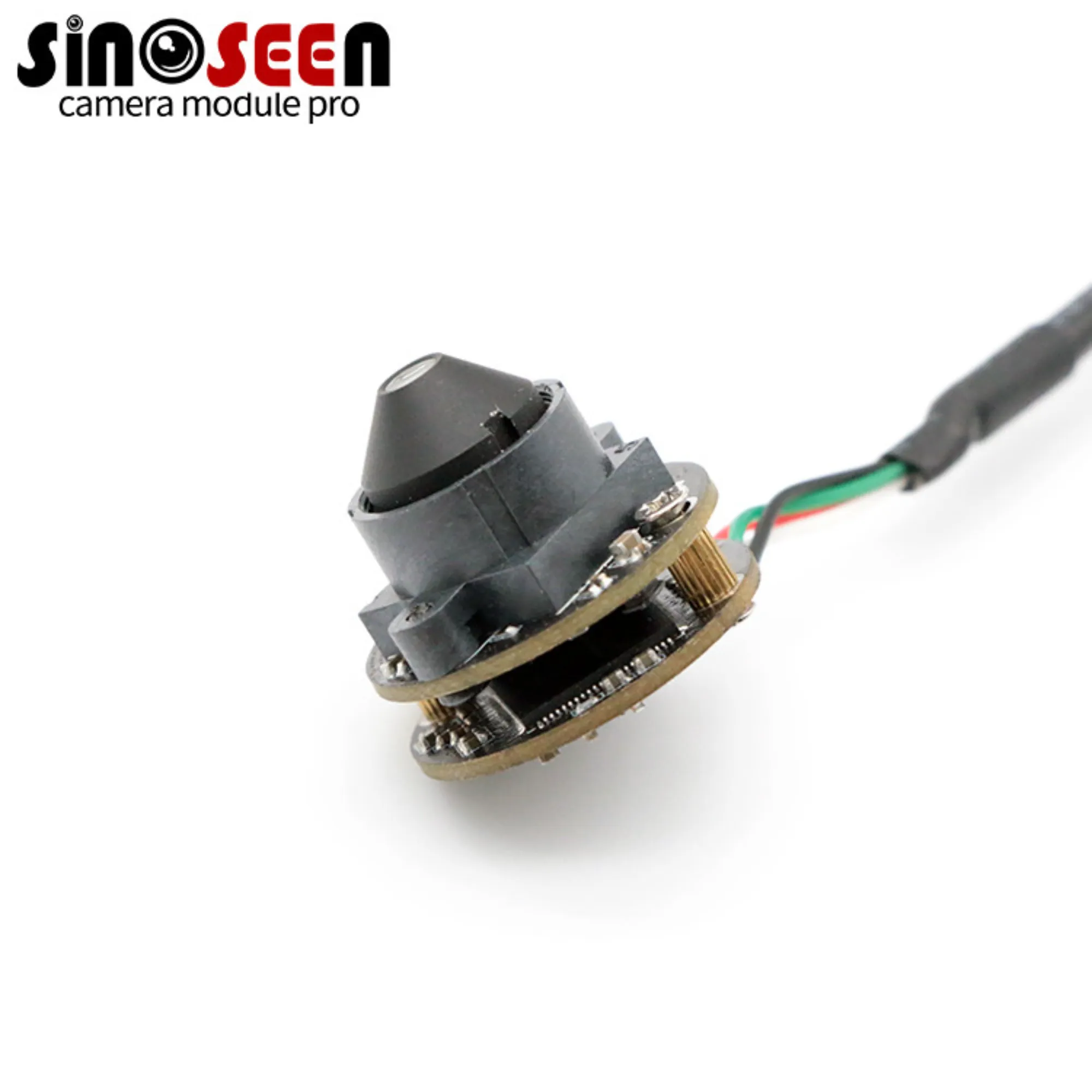

This camera module is designed for action cameras and features the GC1054 sensor,
commonly used in action camera applications. It has a 2-megapixel resolution and can capture 1080p video at 60 frames per second, making it ideal for fast action and movement.
The camera module utilizes the GC1054 sensor, which delivers high-quality images in diverse lighting conditions. Its compact size and low power consumption make it an ideal choice for battery-operated devices, including action cameras.
Additionally, the camera module can be utilized in various applications, such as drone cameras, that require high-performance video capture in a compact form factor. The camera module can be easily integrated into existing systems through the USB interface. Its small size also allows for easy installation in various applications.
| Parameter | Typical value |
| Optical Format | 1/4inch |
| Pixel Size | 3.0um*3.0um |
| Active pixel array | 1280*720 |
| ADC resolution | 10bit ADC |
| Max Frame rate | 30fps@36MHz,DCLK |
| AVDD:3.15-3.45V(Typ.3.3V) | |
| Power Supply | DVDD:1.4-1.6(Typ.1.5V) |
| IOVDD:1.7-3.45V(Typ.1.8V) | |
| Power Consumption | 110mW@30fps,720p |
| SNR | 41.4dB |
| Dart Current | 200e-/s(60) |
| Sensitivity | 18000e-/lux-sec |
| Dynamic range | 70.7dB |
| Operating temperature | -30-80 |
| Stable Image temperature | 0-50 |
| Optimal Lens chief ray angle(CRA) | 12(linear) |
| Package type | CSP/PLCC |
| Input clock frequency | 6-27MHz |
Shenzhen Sinoseen Technology Co., LTD
China top 10 camera module manufacturer
If you are struggling to find the right camera module solution, please contact us,
we will customize all kinds of USB/MIPI/DVP interface camera modules according to your needs,
and have a dedicated team to provide you with the most suitable solution.
Current available USB solution
0.3MP
Low cost:BF3703 BF2103 GC0329 GC0309 GC0307 GC032A OV7675
Big size:GC0308(1/6.5”) GC0328(1/6.5”) GC0403(1/3”-0.4MP) BF3A03(1/6.5”)
Global shutter:OV7251 (1/7.5”,B/W)
High frame rate:200FPS SC031GS(1/6”,B/W)
Big size with high frame rate: OV7725(1/4”,60FPS),OV7740(1/5”,60FPS)
1MP
Low cost:GC1024 GC1034 GC1064(H264) H42 H62 SP1405 OV9712 OV9732 NT99141 SC1245 OV9760
Small size for endoscope:OV9734 GC1009 HM1091
Global shutter:OV9281(1/4”,B/W) OV9782(1/4”,color) AR0144(1/4”,color) AR0135(1/3”,color)
Big size (30FPS):AR0130(1/3”,B/W) OV10635(1/2.7”,color,WDR,960P) H65(1/3”,color,960P)
2MP
Normal(10FPS):GC2145(1/5”) BF2206(1/5”)GC2335 OV2643 HM2056 BF3925 OV2755(1/5” HD)
1080P low cost:F23 F37 F35 SP2305 GC2053 GC2023 AR0330(300W) SC2232H C2390 IMX322 C2395 SC2315 AR0237
1080P small size (30FPS):OV2732(1/4”) OV2740(1/4”) OV2722(1/6”) SC2145(1/4”) HM2160(1/6”)
1080P@60FPS:OV2710 HM2131 IMX307 C2395 SC2315 F35 SC2310
1080P-HDR (30FPS): OV2735 OV2718 PS5268 IMX307
1080P-WDR (30FPS): AR0230 AR0331(300W)
1080P-Starvis (30FPS): IMX291 IMX307 IMX323 IM290
1080P big size: IMX385
1080P global shutter: OG02B10(color) OG02B1B(B/W)
5MP
500W (15FPS): OV5648 GC5025 OV5640 OV5643 OV5693(up to 30FPS) 4EC OV5650
FHD 500W(30FPS): OS05A10 PS5520 HM5532 MI5100 MT9P001 IMX335 SC5335 AR0521 JXK05 OV4689(2K,1/3”)
8MP
800W (15FPS): IMX219(1/4”)S5K3H7 IMX179 C8390
8M-4K UHD (30FPS): IMX317 IMX415 OS08A10(big size 1/1.8”)
13MP-16MP
IMX214(13M) IMX258(13M) IMMX298(16M)
USB3.0
IMX335 OV5648 IMX179 IMX307 PS5268
H264
GC1064 OV2710 OV2735 OV9732 AR0130 AR0230 AR0330 H65 H62 IMX291 IMX322 IMX323 OV2718 OV2732
