Product Description

This specialized GC0308 camera module ensures reliable performance in security and access control applications. It delivers consistent video quality under varying lighting conditions.

Designed for continuous operation, the module features automatic exposure control and low power consumption. Its compact form allows discreet installation in security hardware.

Security Features:

• Stable 24/7 operation capability

• Adaptive exposure and gain control

• Discrete 38x38mm form factor

• Wide temperature tolerance

Technical Specifications:

• Sensor: GalaxyCore GC0308

• Lens: 70° fixed focus FOV

• Power: 5V DC, 120mA max

• Operating Range: 0°C to 60°C

• Output: YUV2 and MJPEG formats

Application Scenarios:
Access control systems, face recognition devices, video intercoms, and security gate monitoring solutions.

Contact us for security-specific solutions.

Specification

OEM/ODM Customization & Development Process

Configure the Camera Around Your Device Requirements

Capturing an image is only one part of integration. Installation space, lens position, cable routing, and the host platform all affect the final configuration.

Sinoseen provides OEM/ODM camera module services. The following requirements can be submitted for engineering review. Feasibility, development costs, and lead times depend on the agreed scope.

USB, MIPI, and DVP require different integration approaches. Changing the interface may require a different module architecture rather than a cable change.

How a Customization Project Progresses

Step 1 — Share Your Requirements

Describe the application, host platform, target resolution and frame rate, working distance, and installation constraints. Include mechanical drawings or reference images where available.

Step 2 — Review Feasibility

Determine whether the standard configuration meets the requirements and identify any changes needed to the lens, board, cable, or firmware.

Step 3 — Confirm the Configuration and Drawings

Agree on dimensions, interfaces, optical configuration, and sample evaluation requirements before arranging prototype production.

Step 4 — Evaluate Samples

Test the sample in the actual device. Check image quality, autofocus behavior, software compatibility, and mechanical fit, then provide feedback on any required changes.

Step 5 — Confirm the Production Configuration

Before proceeding with a volume order, confirm the approved hardware, lens, cable, and firmware versions, together with the delivery requirements.

Share your host platform, installation drawings, and imaging requirements to begin a customization assessment.

Application Areas

Face Recognition: Image capture for access control and attendance terminals, with recognition handled by host software.

QR Code Payment: Captures printed and on-screen QR codes for decoding, with focus and lighting matched to scanning distance.

VR Devices: Available for evaluation in scene-capture projects, subject to latency, field-of-view, and integration requirements.

High-Speed Tracking: Requires assessment of target speed, exposure, and frame rate to determine a suitable camera configuration.

Terminal Scanning: High-resolution capture for documents and self-service kiosks, with lens selection based on document size and working distance.

Robot Vision: Image capture for stationary-target inspection and robot-mounted viewing, with mounting and focus configured for the task.

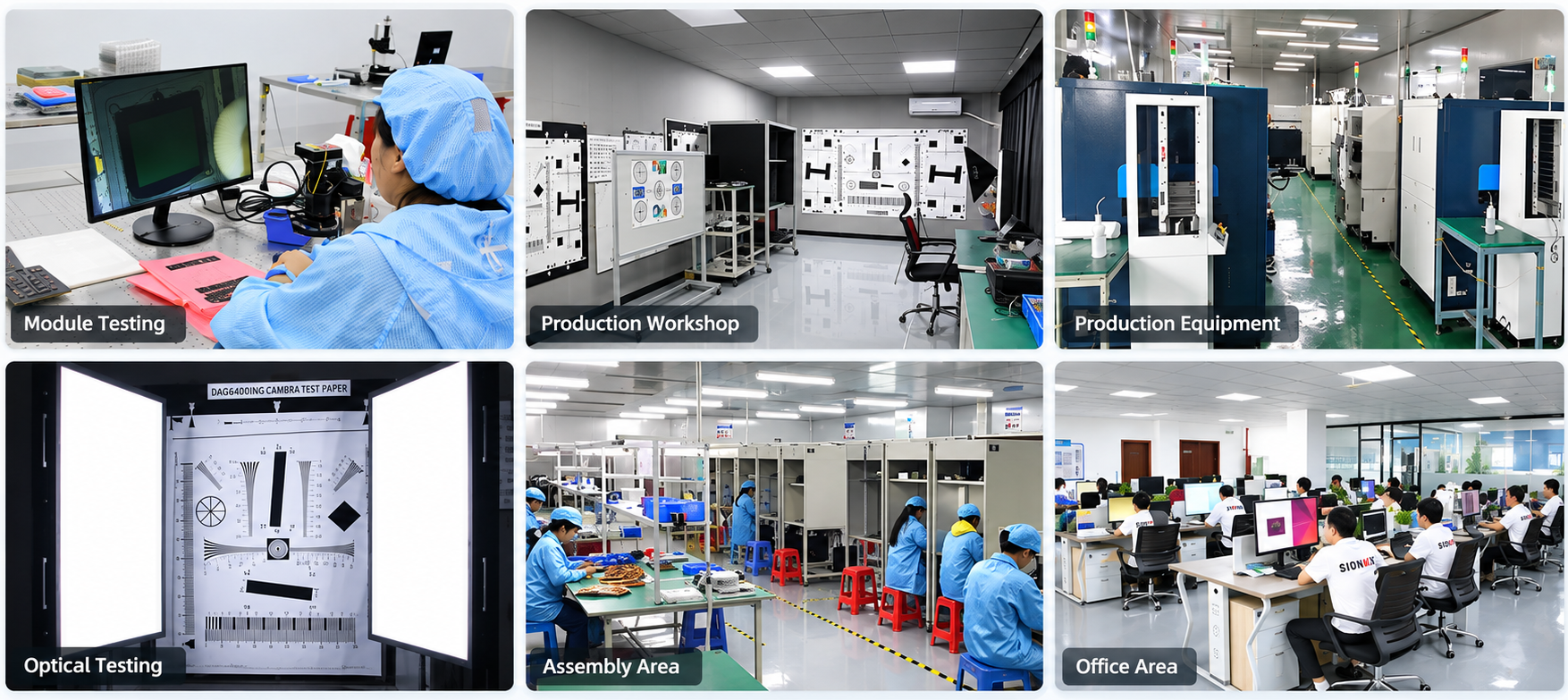

About Sinoseen

Shenzhen Sinoseen Technology Co., Ltd. was established in June 2016 and focuses on CMOS camera module design, development, manufacturing, and OEM/ODM services.

Its product range includes USB, MIPI, and DVP camera modules, with services covering development, manufacturing, and after-sales support.

For equipment manufacturers, selecting a sensor is only part of the process. Lens selection, mechanical fit, connectivity, and image requirements also need to be addressed. Sinoseen works with customers to assess these requirements and move from module selection through sample evaluation and production delivery.

Certifications

Compliance Package and Supply Chain Security

Sinoseen ensures full regulatory adherence with our comprehensive compliance package, including CE marking for EU markets, FCC certification for North America, and RoHS for environmental standards. This mitigates risks in international deployments. Our supply chain security is fortified by vertically integrated operations in China, sourcing 95% of components locally to minimize disruptions—critical amid global semiconductor shortages, where delays affected 70% of electronics firms in 2023 per industry reports. We implement ISO 28000 standards for secure logistics, offering traceability from raw materials to delivery, empowering B2B partners to request bulk quotes with confidence.

Shenzhen Sinoseen Technology Co., LTD

China top 10 camera module manufacturer

If you are struggling to find the right camera module solution, please contact us, we will customize all kinds of USB/MIPI/DVP interface camera modules according to your needs, and have a dedicated team to provide you with the most suitable solution.

FAQ:

Q1. How to choose the right camera module?

A: Please tell us your specific needs, such as application scenarios, resolution, size, and lens requirements. We will have a professional team of engineers to assist you in choosing the most suitable camera module.

Q2. How to start proofing?

A: After confirming all the parameters, we will draw a drawing to confirm the details with you. Once the drawing is confirmed, we will arrange a proofing.

Q3: How do I send the payment?

A: Currently we accept T/T bank transfer and Paypal.

Q4: How long does it take to make a sample?

A: If it is a USB camera module, it usually takes 2-3weeks, if it is a MIPI or DVP camera module, it usually takes 10-15days.

Q5: How long will it take to receive the sample after it is ready?

A: After the samples have been tested and there is no problem, we will send the samples to you via DHL FedEx UPS or any other courier methods, usually within a week.
