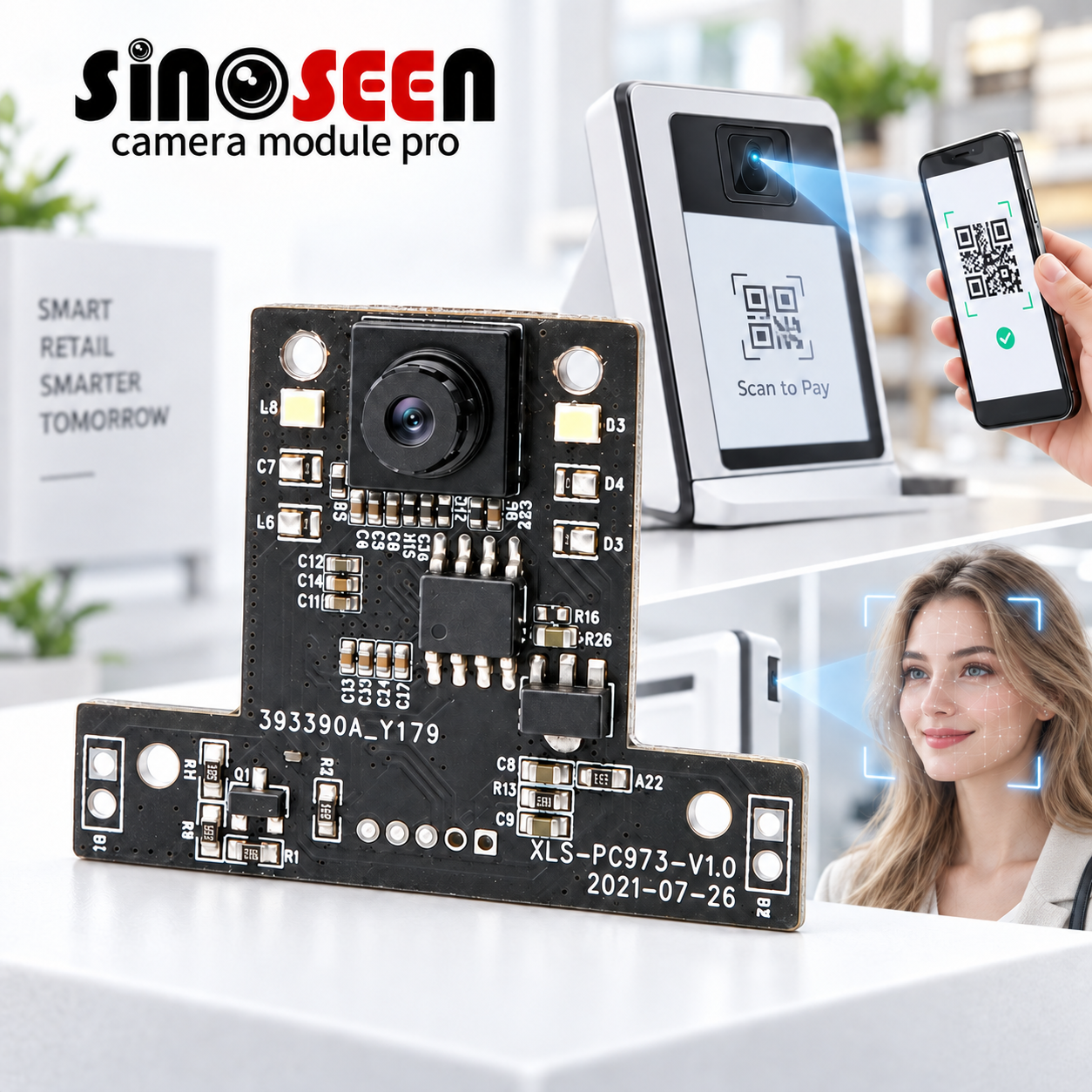

GC0308 0.3MP USB Camera Module with 150 Degree Ultra Wide Angle Lens for Access Control and Intercom Systems
Product Details:
|
Place of Origin: |
Shenzhen,China |
|
Brand Name: |
Sinoseen |
|
Certification: |
RoHS |
|
Model Number: |
XLS-PC973-V1.0 |
Payment & Shipping Terms:
|
Minimum Order Quantity: |
3 |
|
Price: |
negotiable |
|
Packaging Details: |

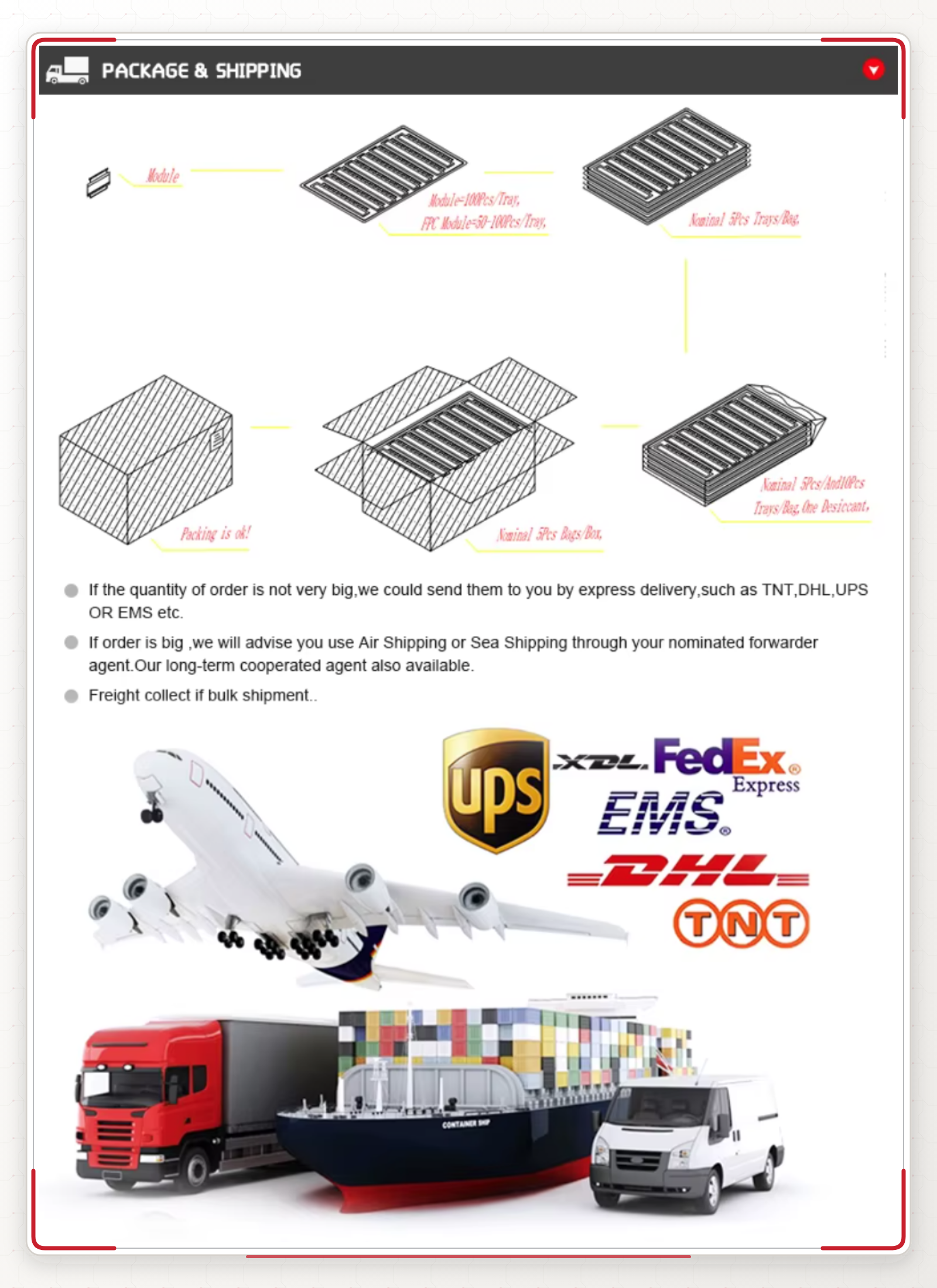

Tray+Anti-static bag in carton box |
|
Delivery Time: |
2-3weeks |
|
Payment Terms: |
T/T |
|
Supply Ability: |
500000 pieces/month |
- Parameter
- Related products
- Inquiry
Detail Information
Type: |
USB Camera Module |
Sensor: |
1/6.5'' GC0308 |
Resolution: |
0.3MP 648(H)X488(V) |
Dimensions: |
(customizable) |
Lens FOV: |
150°(optional) |
Focus Type: |
Fixed Focus |
Interface: |
USB2.0 |
Feature: |
Low Power Consumption |
High Light: |
GC0308 Sensor USB Camera Module Fixed Focus 0.3MP USB Camera Module 0.3MP USB 2.0 Camera Module |
||
Product Description
This economical camera module features an ultra wide 150° field of view for comprehensive coverage in access control applications. The GC0308 sensor provides reliable image quality with excellent depth of field.
Small sensor size ensures sharp imaging from close range to distance. Fixed focus design maintains consistent performance in various installation environments.
Technical Specifications:
Sensor: GC0308 1/6.5" CMOS
Resolution: 648×488 (0.3MP)
FOV: 150° ultra wide angle
Interface: USB 2.0
Focus: Fixed focus
Contact for access control solutions.
Specification
Model No |
XLS-PC973-V1.0 |
Sensor |
1/2.8’’ SONY IMX415 CMOS |
Pixel |
8 Mega Pixel |
Most effective pixels |
3840(H) x 2160(V) |
Pixel Size |
1.45µm x 1.45µm |
Image area |
3864um (H) x 2196um (V) |
Compression format |
MJPEG / YUV2 (YUYV) |
Resolution & Frame rate |
See above |
Shutter Type |
Electronic rolling shutter |
Focus type |
Fixed focus |
Chroma |
Color, RGB |
Clock Frequency |
6 to 72 MHz |
Microphones |
Built-in |
Interface type |
USB2.0 |
Adjustable parameter |
Brightness/Contrast/Color saturation/Hue/Definition/Gamma/White balance/Exposure |
Lens |
Focal length: 3.6mm |
Lens construction: 5E+IR | |
D FOV: 100 degree | |
Thread Size: M12*P0.5 | |
Audio frequency |
Optional |
Power supply |
USB BUS POWER |
Operating Voltage |
DC 5V |
Operating Current |
260mA |
Main chip |
DSP/SENSOR/FLASH |
Auto Exposure Control (AEC) |
Support |
Auto White Balance (AEB) |
Support |
Auto Gain Control (AGC) |
Support |
Dimension |
Customizable |
Storage temperature |
-20°C to 70°C |
Operating temperature |
0°C to 60°C |
USB cable length |
Default |
Support OS |
WinXP/Vista/Win7/Win8/Win10 Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC |
Shenzhen Sinoseen Technology Co., LTD
China top 10 camera module manufacturer
If you are struggling to find the right camera module solution, please contact us, we will customize all kinds of USB/MIPI/DVP interface camera modules according to your needs, and have a dedicated team to provide you with the most suitable solution.
FAQ:
Q1. How to choose the right camera module?
A: Please tell us your specific needs, such as application scenarios, resolution, size, and lens requirements. We will have a professional team of engineers to assist you in choosing the most suitable camera module.
Q2. How to start proofing?

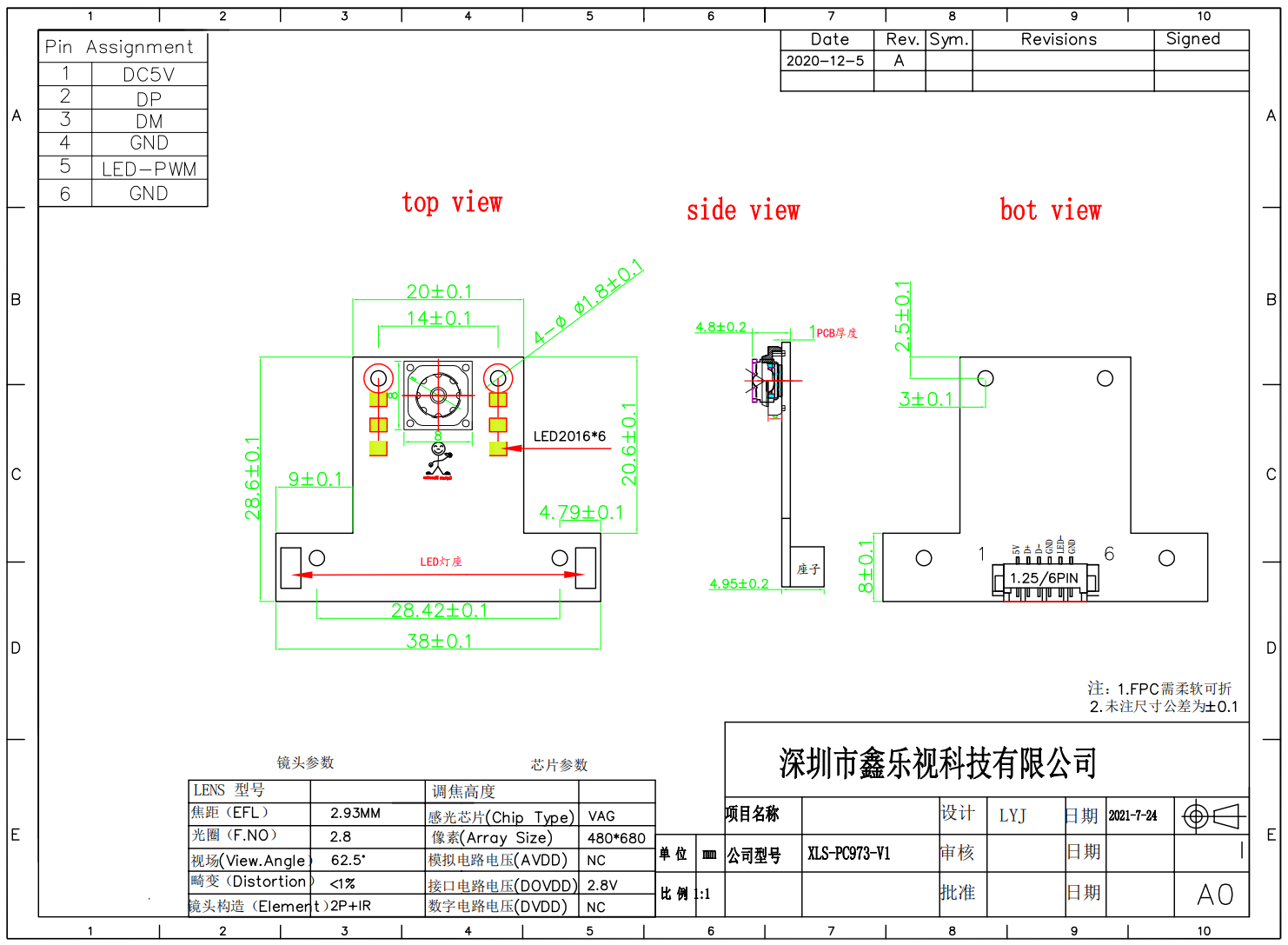

A: After confirming all the parameters, we will draw a drawing to confirm the details with you. Once the drawing is confirmed, we will arrange a proofing.
Q3: How do I send the payment?
A: Currently we accept T/T bank transfer and Paypal.
Q4: How long does it take to make a sample?
A: If it is a USB camera module, it usually takes 2-3weeks, if it is a MIPI or DVP camera module, it usually takes 10-15days.
Q5: How long will it take to receive the sample after it is ready?
A: After the samples have been tested and there is no problem, we will send the samples to you via DHL FedEx UPS or any other courier methods, usually within a week.
