Fixed Focus USB Global Shutter Camera Module with Omnivision OV9281 Sensor 120FPS

Product Details:

Place of Origin:

Shenzhen,China

Brand Name:

Sinoseen

Certification:

RoHS

Model Number:

YD-JM800-8M-CCM

Payment & Shipping Terms:

Minimum Order Quantity:

3

Price:

negotiable

Packaging Details:

Tray+Anti-static bag in carton box

Delivery Time:

2-3weeks

Payment Terms:

T/T

Supply Ability:

500000 pieces/month

  • Parameter
  • Related products
  • Inquiry
  • Detail Information

Type:

Global Shutter Camera Module

Sensor:

1/4" Omnivision OV9281 CMOS

Resolution:

1MP 1280(H) X 800(V)

Dimensions:

Customizable

Lens FOV:

60°(optional)

Focus Type:

Fixed Focus

Interface:

USB2.0

Feature:

Global Shutter

High Light:

720P Global Shutter Camera Module

120FPS Global Shutter Camera Module

1MP ov9281 camera module





Product Description

This is a custom global exposure camera module for customers, featuring a monochrome Omnivision OV9281 CMOS sensor that outputs only black and white images. The camera's biggest advantage is its high frame rate of 120FPS at a resolution of 1280x800 and 210FPS at a resolution of 640x400.

The OV9281 sensor is based on OmniVision's OmniPixel @ 3-GS pixel technology, with high-speed global shutter pixels.

The NIR QE of the first-class can meet the requirements of high resolution and low delay. Additionally, the OV9281 has a CRA of 9 degrees and uses a CSP.

This camera is commonly used in various consumer and industrial applications, such as augmented reality (AR), virtual reality (VR), drone collision avoidance, robotics, artificial intelligence, sports, machine vision, computer vision, industrial automation, medical vision, vision systems, imaging, automobiles, object tracking, agricultural technology, biometrics, barcode scanning, and factory automation.









Specification

Model No

YD-JM800-8M-CCM

Sensor

1/4" Omnivision OV9281 CMOS

Pixel

1 Mega Pixel

Most effective pixels

1280(H) x 800(V)

Pixel Size

3.0µm x 3.0µm

Image area

3896um(H) x 2453um (V)

Compression format

MJPG / YUY2

Resolution & Frame rate

See above

Shutter Type

Global Shutter

Chroma

B&W, Monochrome

Focus type

Fixed focus

S/N ratio

38dB

Dynamic range

68dB

Dark current

80e-/sec

Interface type

High speed USB2.0

Adjustable parameter

Brightness/Contrast/Color saturation/Hue/Definition/

Gamma/White balance/Exposure

Lens

Focal length: 3.6mm



Lens Size: 1/4 inch



FOV: 60°



Thread Size: M12*P0.5

Audio frequency

Optional

Power supply

USB BUS POWER

Power consumption

DC 5V, 180mW

Main chip

DSP/SENSOR/FLASH

Auto Exposure Control

Support

Auto White Balance

Support

Auto Gain Control

Support

Dimension

Customizable

Storage temperature

-20°C to 70°C

Operating temperature

0°C to 60°C

USB cable length

Default

Support OS

WinXP/Vista/Win7/Win8/Win10

Linux with UVC(above linux-2.6.26)

MAC-OS X 10.4.8 or later

Android 4.0 or above with UVC

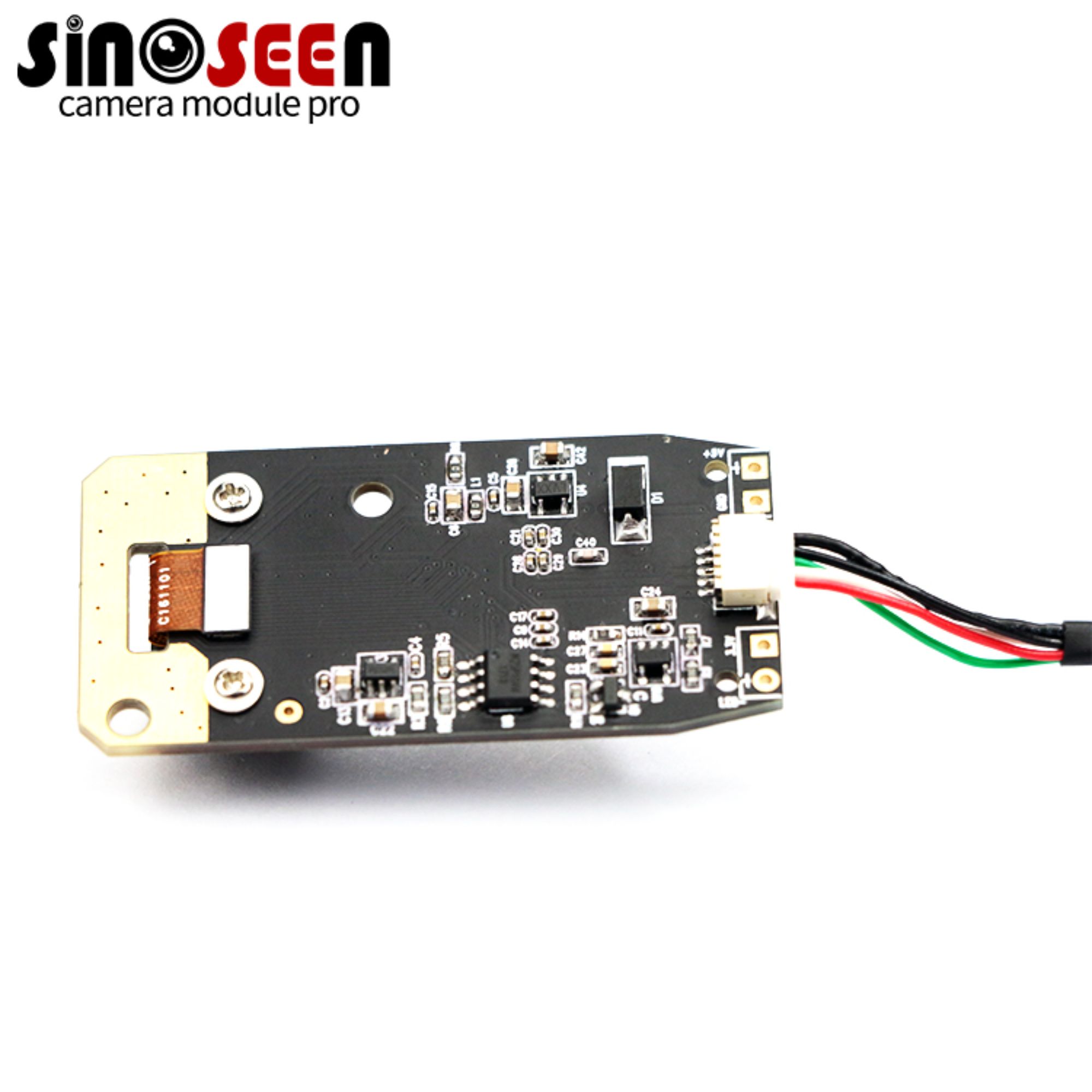

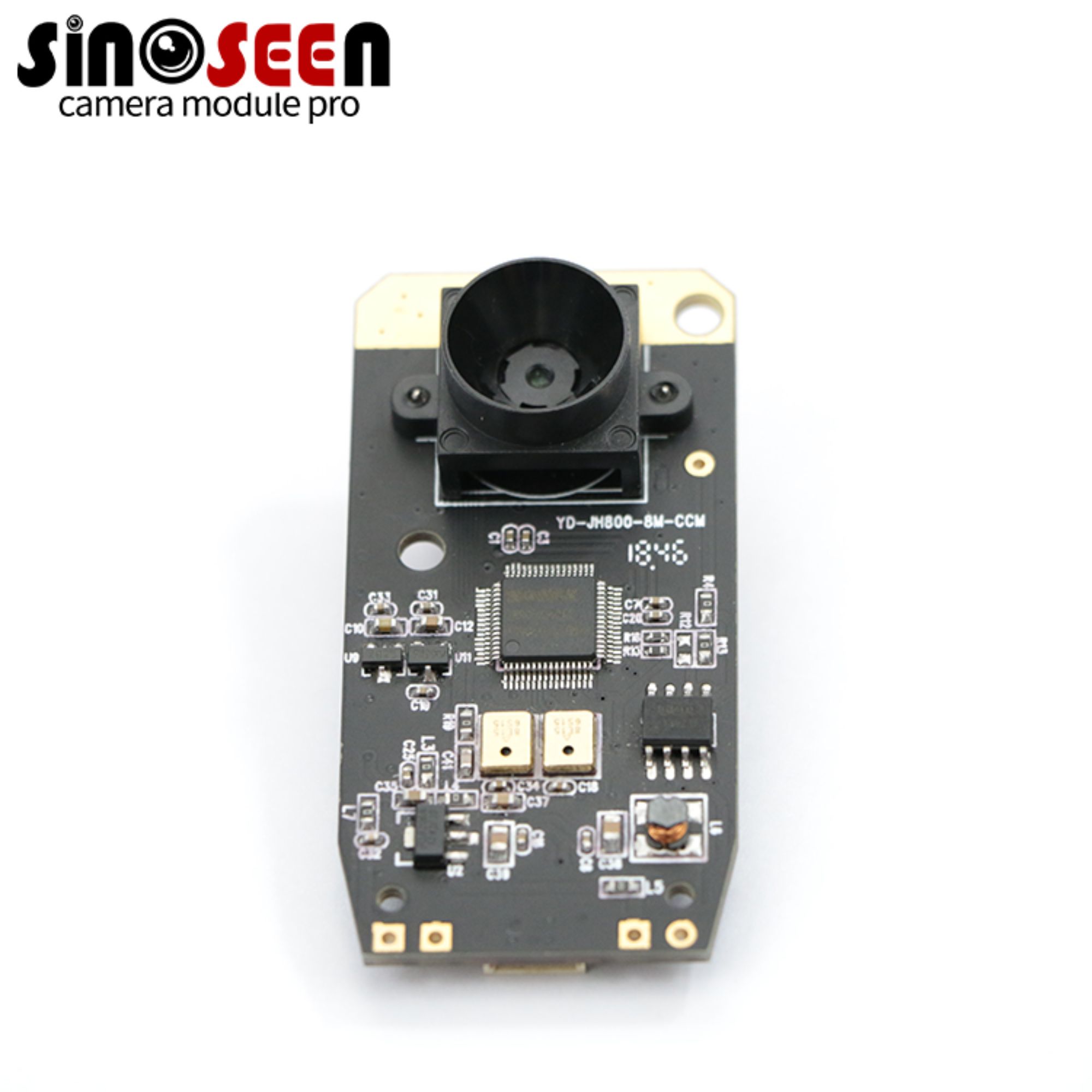

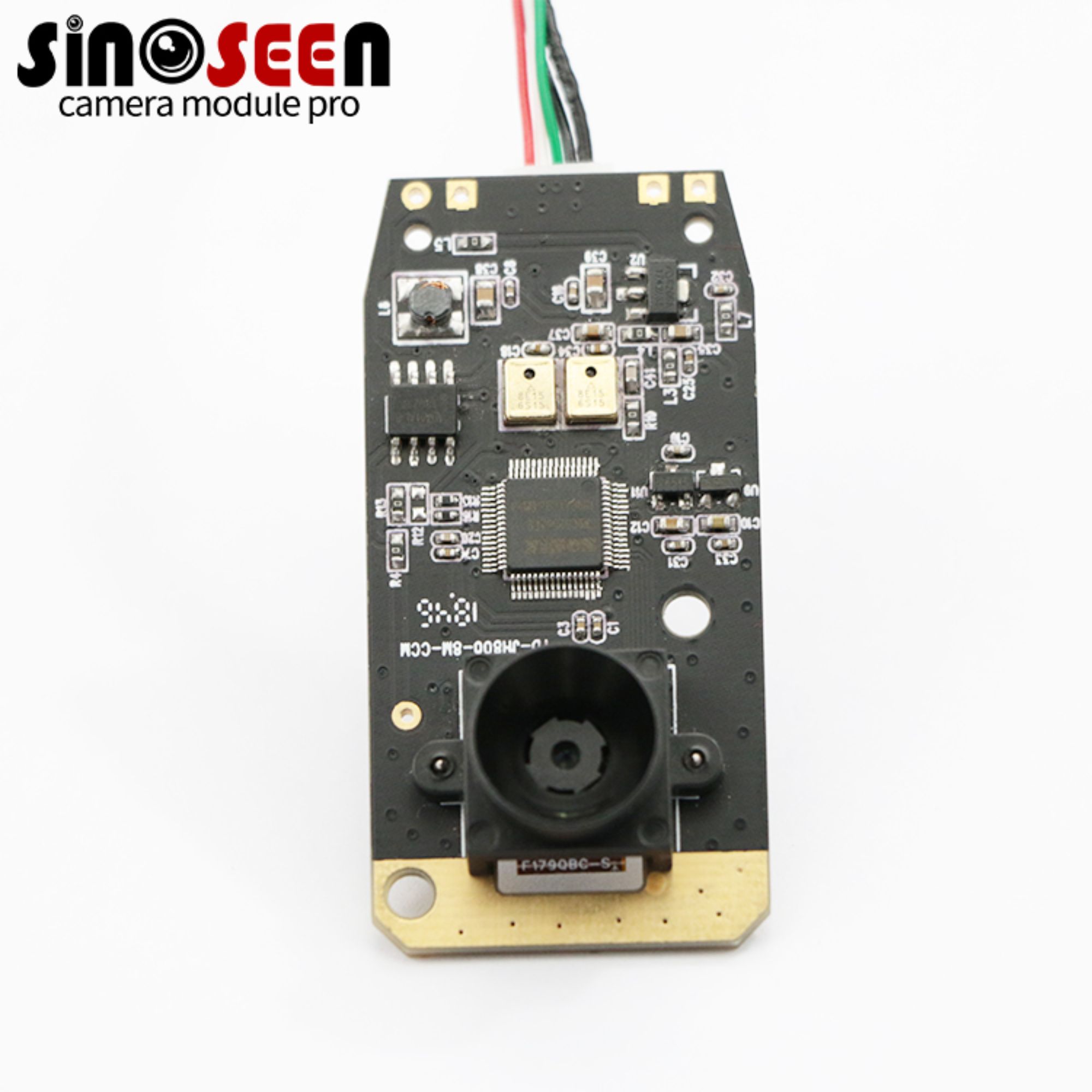

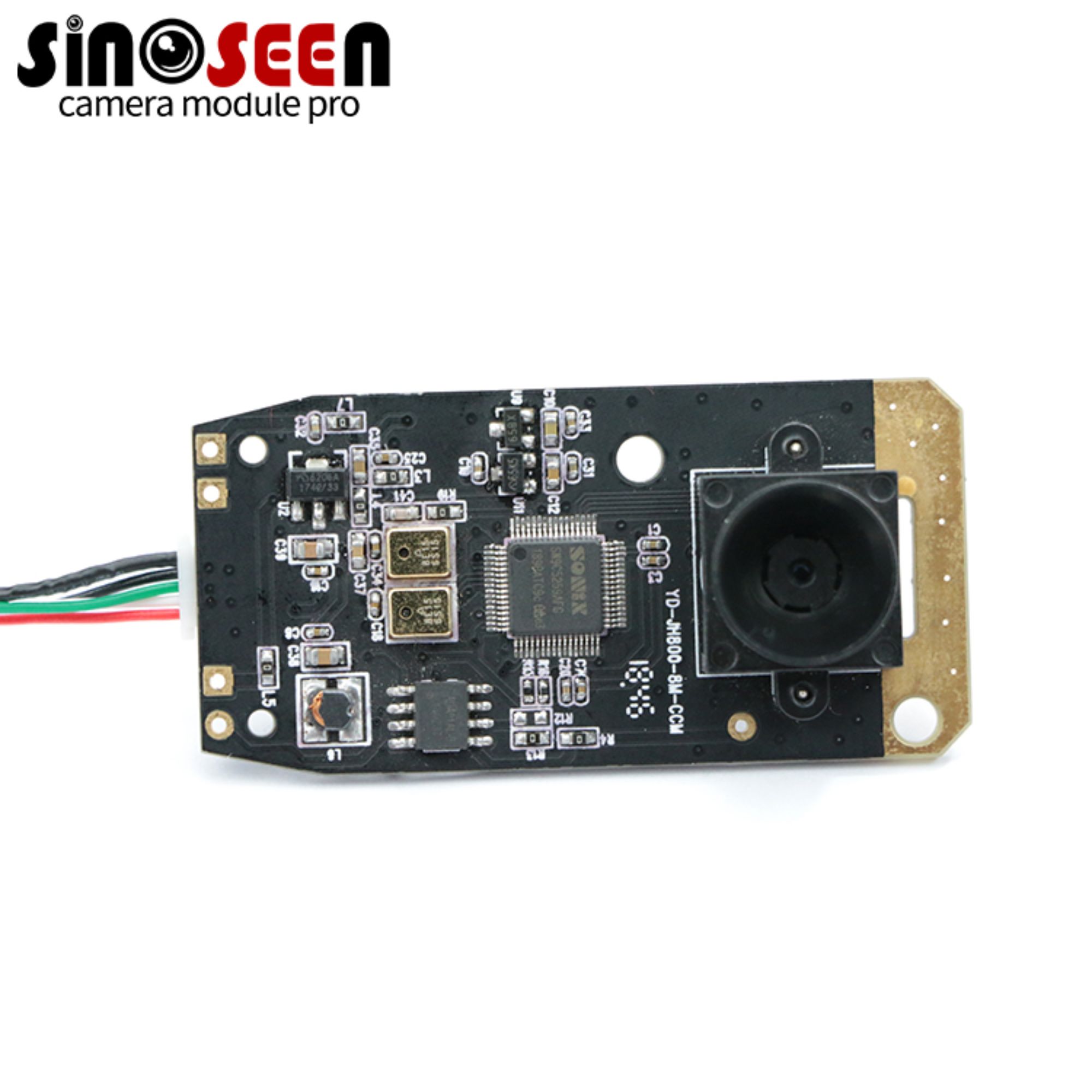

Fixed-Focus-USB-Global-Shutter-Camera-OV9281Fixed-Focus-USB-Global-Shutter-Camera-OV9281-02



Shenzhen Sinoseen Technology Co., LTD

China top 10 camera module manufacturer

If you are struggling to find the right camera module solution, please contact us, we will customize all kinds of USB/MIPI/DVP interface camera modules according to your needs, and have a dedicated team to provide you with the most suitable solution.

Current avaliable global shutter USB camera module



Omnivision                           OV7251           0.3MP             Monochrome(black and white)



Omnivision                           OV9281              1MP             Monochrome(black and white)



ON Semiconductor               AR0144              1MP             Monochrome(black and white) or RGB color



Omnivision                           OG02B1B           2MP             Monochrome(black and white)



Omnivision                           OG02B10            2MP             RGB color
