Product Description

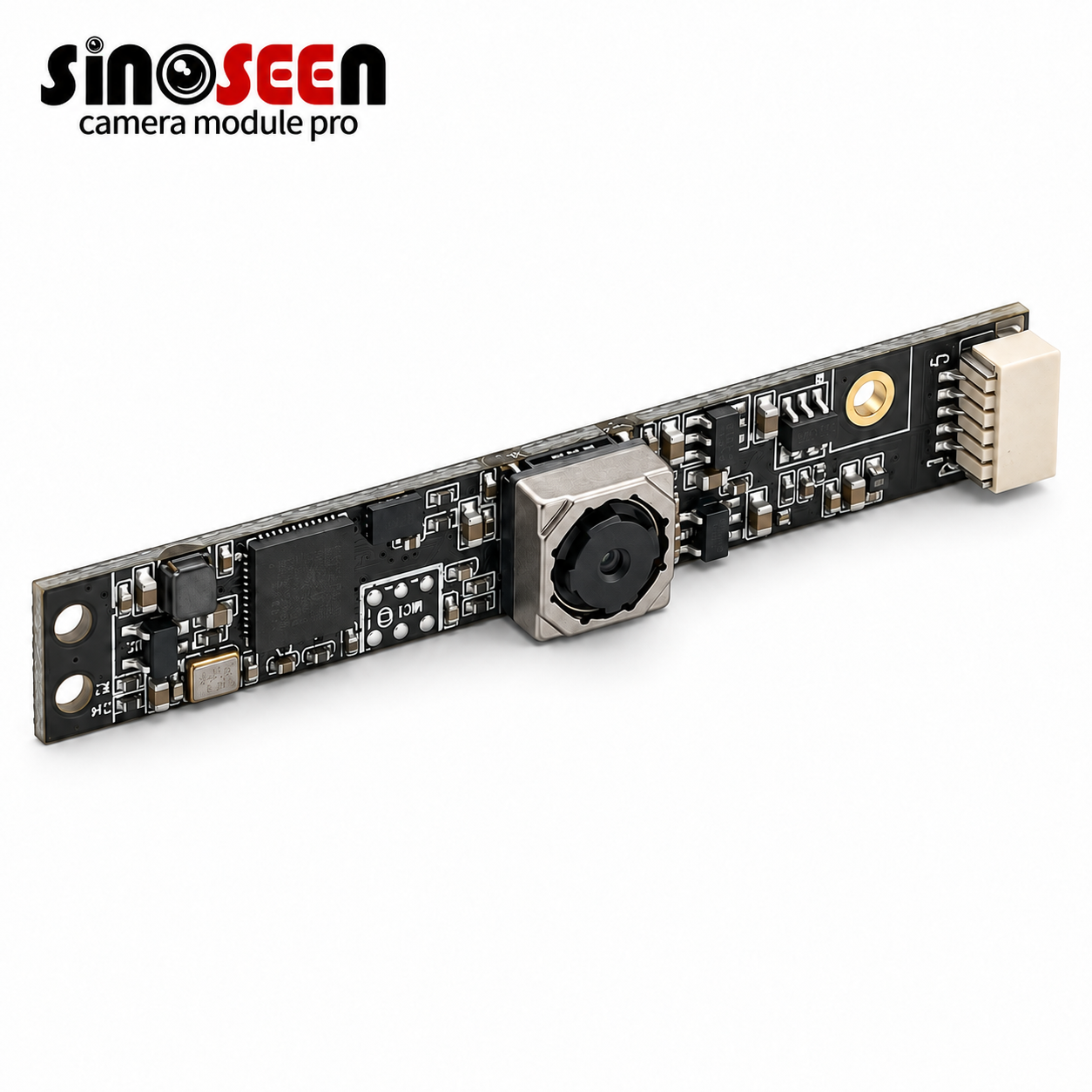

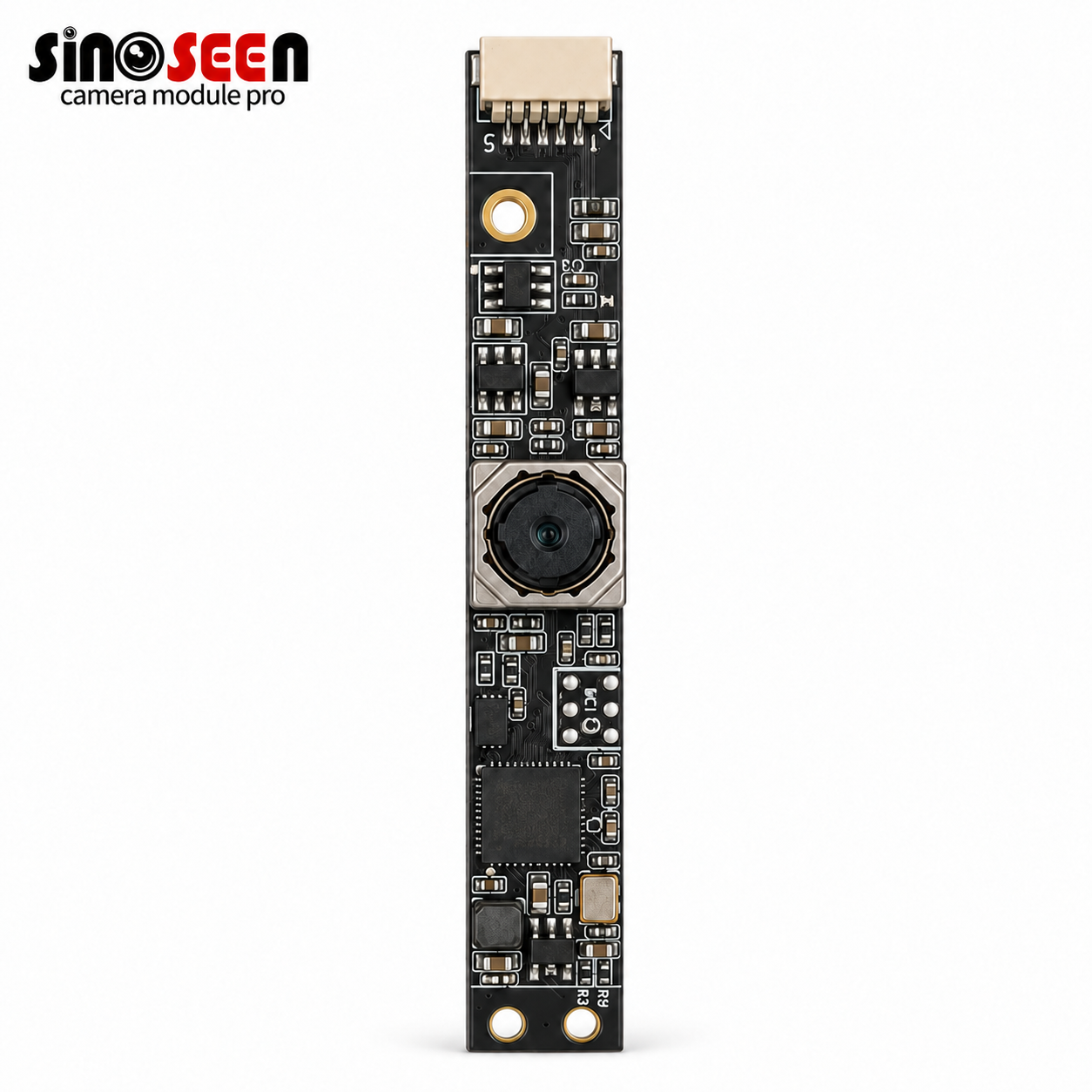

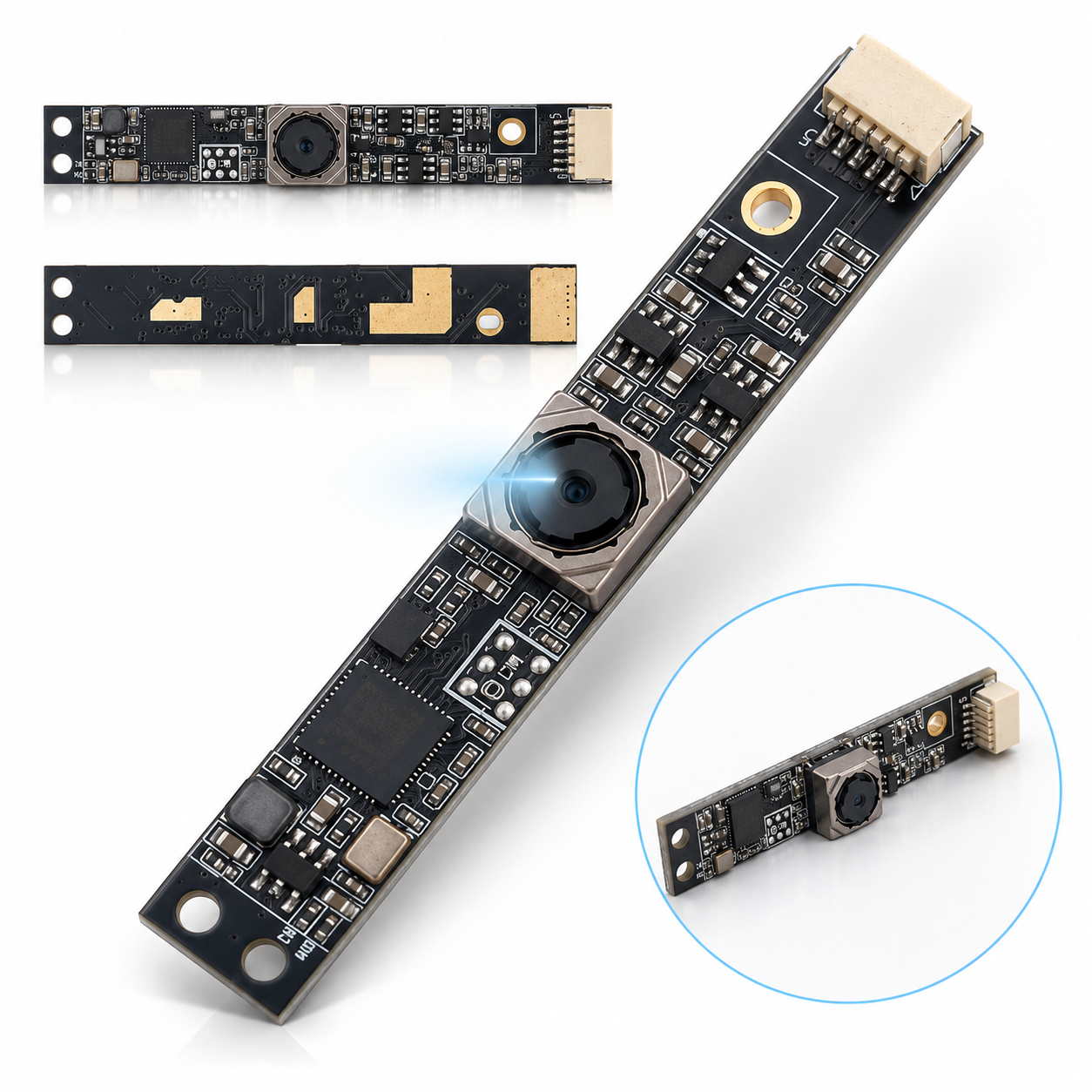

The SNS-DZ328M-V1.0 is an 8MP USB 2.0 camera module built around the IMX179 image sensor. It features autofocus and supports image capture at 3264 × 2448 at 15 fps, along with Full HD video at 1920 × 1080 at 30 fps.

For devices that capture documents, object details, or images for interactive terminals, the module offers a choice between higher-resolution capture and Full HD video. Autofocus adjusts the focus as the subject distance changes.

If the standard optical configuration, board layout, or connection arrangement does not fit your device, submit your requirements to Sinoseen for a customization assessment.

Request a Sample | Discuss Customization

Product Overview & Features

8MP Capture for Detail-Oriented Imaging

The module supports 3264 × 2448 output at 15 fps for tasks that require text, outlines, and fine details. For scanning and recognition projects, evaluate image quality at the intended working distance and under representative lighting conditions.

The camera supplies images. OCR, facial recognition, and inspection decisions require host-side software.

Full HD Video at 30 fps

For applications that prioritize continuous preview, the module supports 1920 × 1080 at 30 fps.

Choose the output mode according to the task: higher resolution can help preserve detail, while live viewing also requires consideration of frame rate, transmission, and host processing capacity.

Autofocus for Changing Subject Distances

Autofocus helps adjust image sharpness when the subject moves closer to or farther from the camera. During sample testing, check the minimum focusing distance, refocusing time, and behavior around reflective surfaces.

If your application requires focus locking or software-controlled focus, specify these requirements during selection. Available controls depend on the supplied firmware.

USB 2.0 Connectivity

The module uses a USB 2.0 interface. Successful integration also depends on the connector, cable, operating system, and capture application.

Validate the required resolution, frame rate, and output format on the host hardware intended for deployment.

Lens Selection Based on Required Coverage

The supplied product information lists a 65° FOV option. Provide your working distance and required scene coverage when selecting the lens.

A wider view captures more of the scene, but an individual target may occupy fewer pixels at the same output resolution. Confirm whether the specified FOV is horizontal, vertical, or diagonal, together with the applicable lens and output mode.

Key Specifications

Resolution and Frame Rate

Confirm the corresponding output formats when selecting and approving the sample configuration.

OEM/ODM Customization & Development Process

Configure the Camera Around Your Device Requirements

Capturing an image is only one part of integration. Installation space, lens position, cable routing, and the host platform all affect the final configuration.

Sinoseen provides OEM/ODM camera module services. The following requirements can be submitted for engineering review. Feasibility, development costs, and lead times depend on the agreed scope.

USB, MIPI, and DVP require different integration approaches. Changing the interface may require a different module architecture rather than a cable change.

How a Customization Project Progresses

Step 1 — Share Your Requirements

Describe the application, host platform, target resolution and frame rate, working distance, and installation constraints. Include mechanical drawings or reference images where available.

Step 2 — Review Feasibility

Determine whether the standard configuration meets the requirements and identify any changes needed to the lens, board, cable, or firmware.

Step 3 — Confirm the Configuration and Drawings

Agree on dimensions, interfaces, optical configuration, and sample evaluation requirements before arranging prototype production.

Step 4 — Evaluate Samples

Test the sample in the actual device. Check image quality, autofocus behavior, software compatibility, and mechanical fit, then provide feedback on any required changes.

Step 5 — Confirm the Production Configuration

Before proceeding with a volume order, confirm the approved hardware, lens, cable, and firmware versions, together with the delivery requirements.

Share your host platform, installation drawings, and imaging requirements to begin a customization assessment.

Application Areas

Face Recognition: Image capture for access control and attendance terminals, with recognition handled by host software.

QR Code Payment: Captures printed and on-screen QR codes for decoding, with focus and lighting matched to scanning distance.

VR Devices: Available for evaluation in scene-capture projects, subject to latency, field-of-view, and integration requirements.

High-Speed Tracking: Requires assessment of target speed, exposure, and frame rate to determine a suitable camera configuration.

Terminal Scanning: High-resolution capture for documents and self-service kiosks, with lens selection based on document size and working distance.

Robot Vision: Image capture for stationary-target inspection and robot-mounted viewing, with mounting and focus configured for the task.

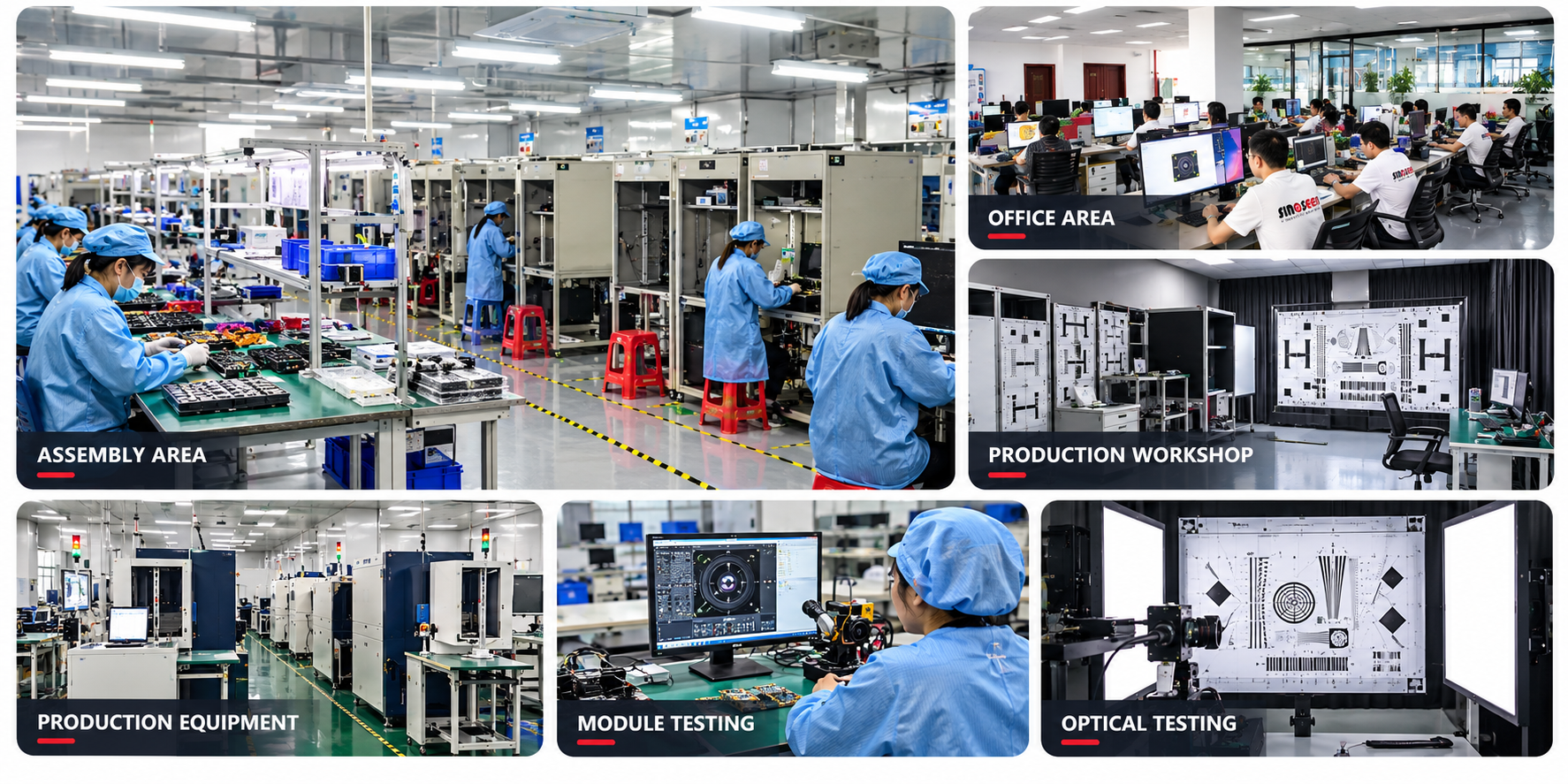

About Sinoseen

Shenzhen Sinoseen Technology Co., Ltd. was established in June 2016 and focuses on CMOS camera module design, development, manufacturing, and OEM/ODM services.

Its product range includes USB, MIPI, and DVP camera modules, with services covering development, manufacturing, and after-sales support.

For equipment manufacturers, selecting a sensor is only part of the process. Lens selection, mechanical fit, connectivity, and image requirements also need to be addressed. Sinoseen works with customers to assess these requirements and move from module selection through sample evaluation and production delivery.
