• Detail Information

Product Description

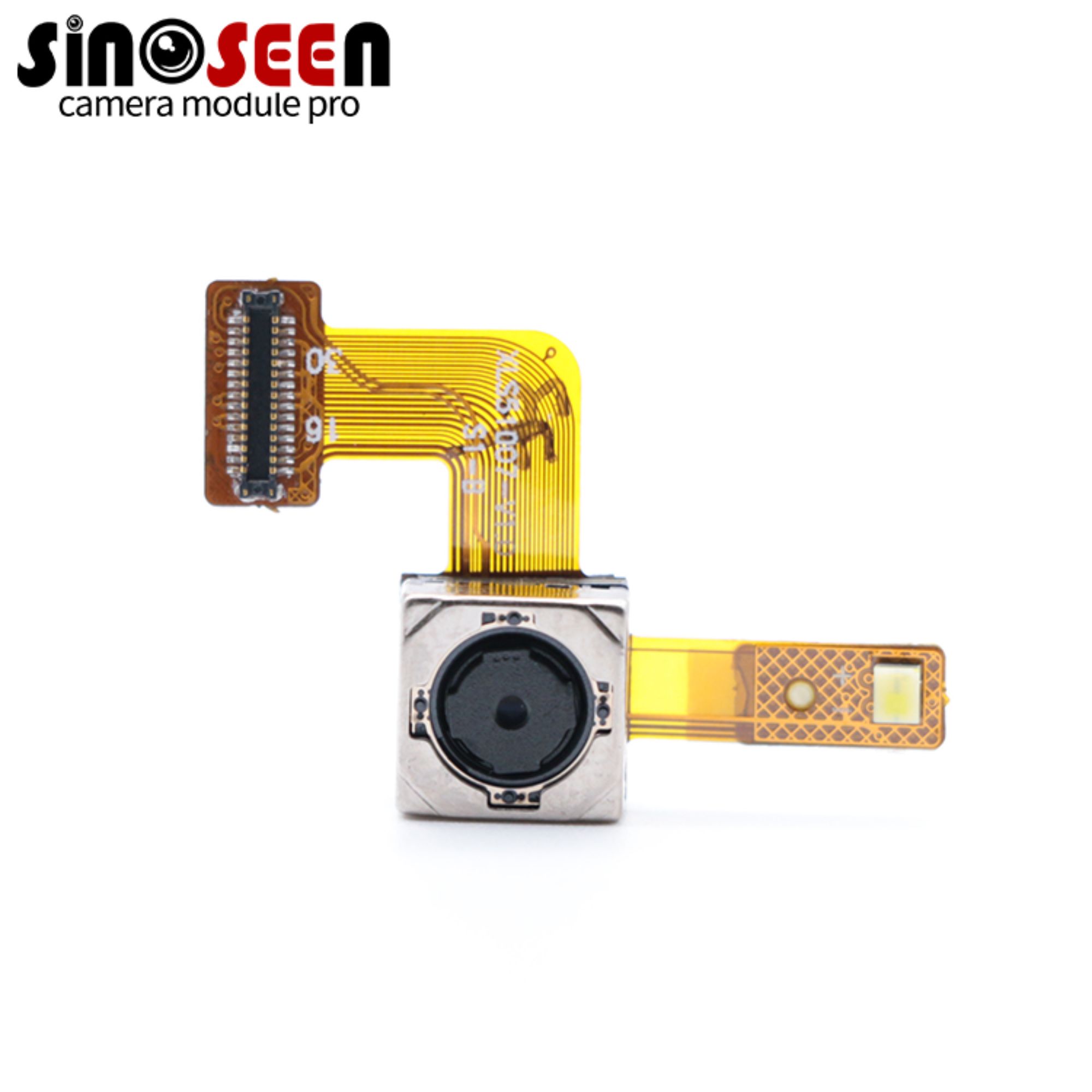

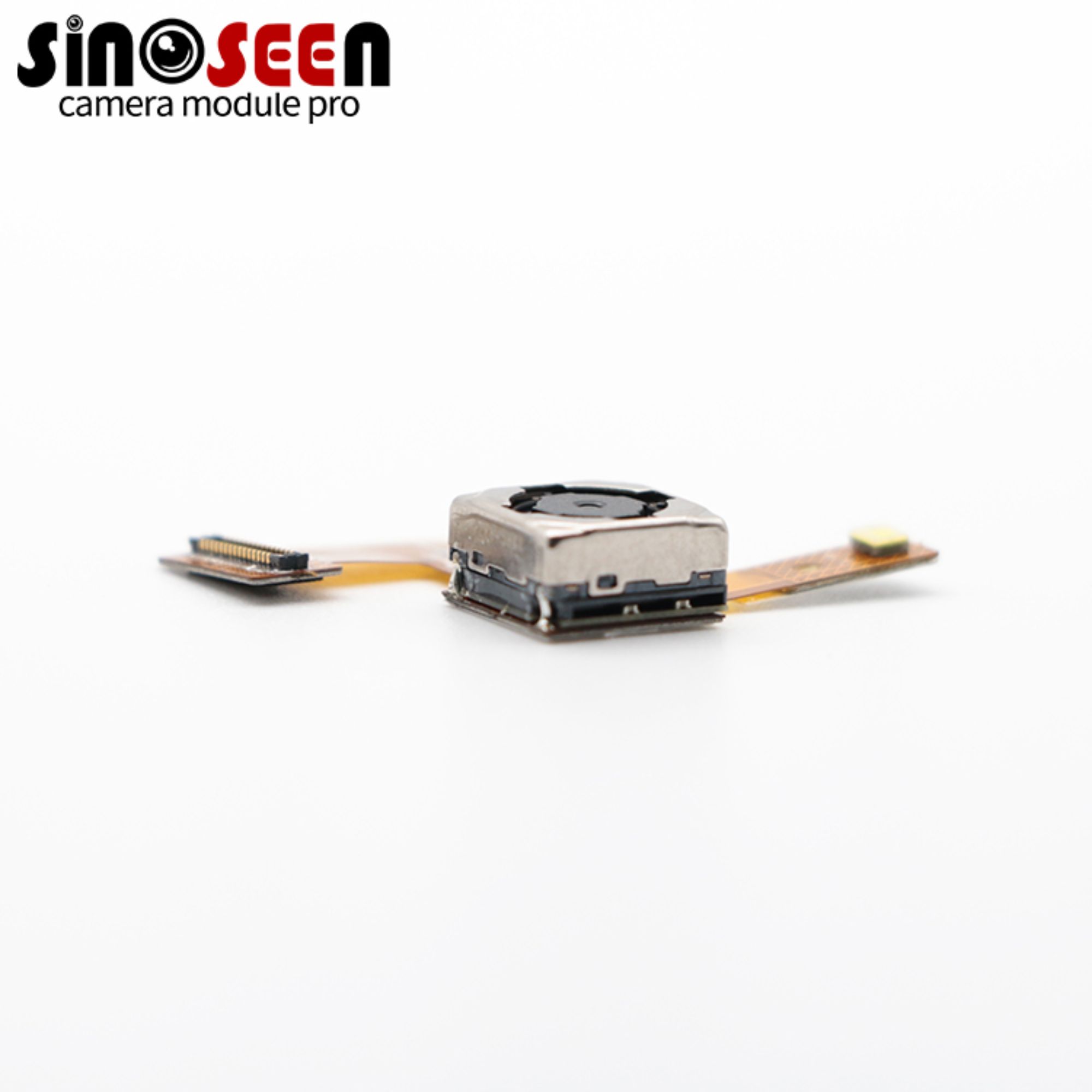

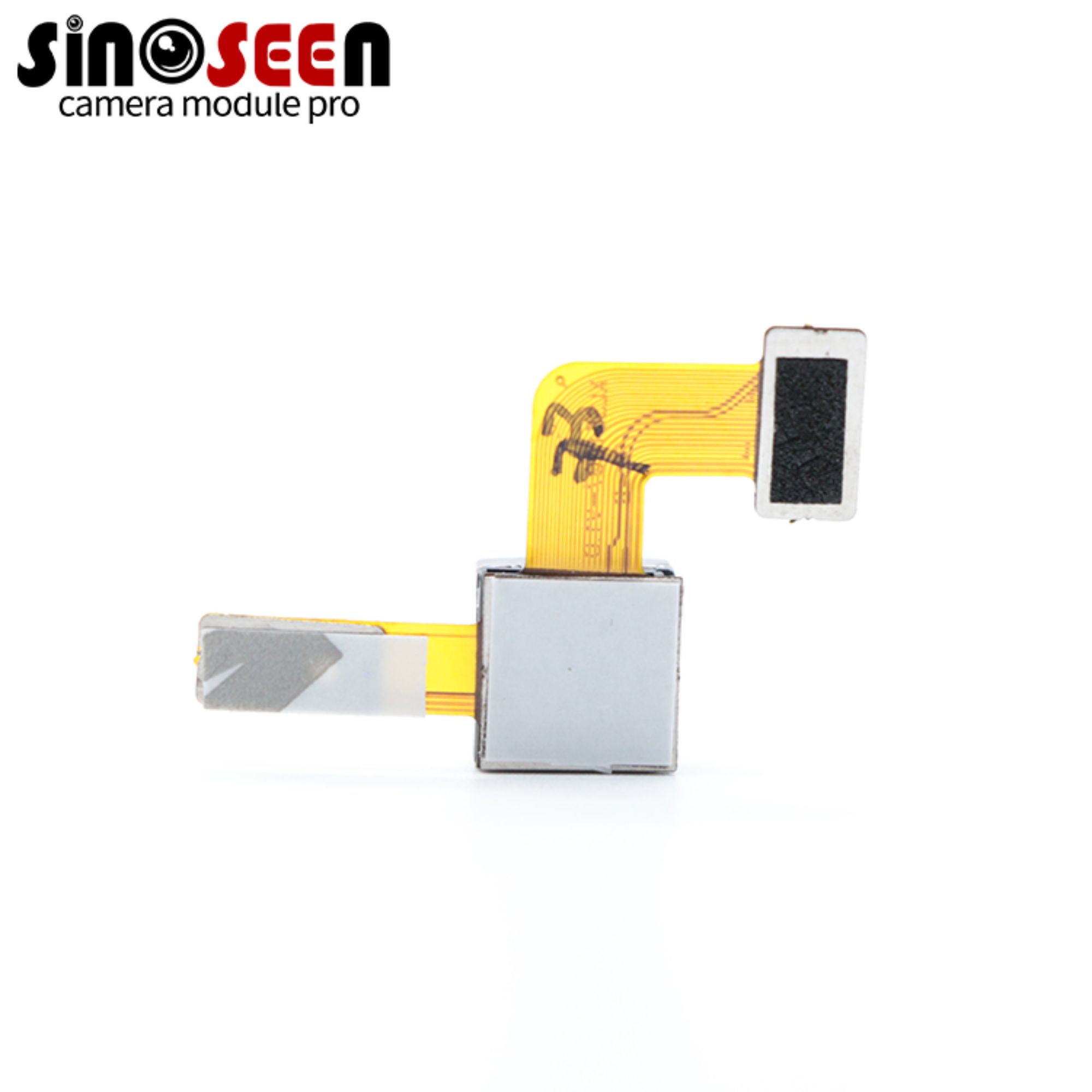

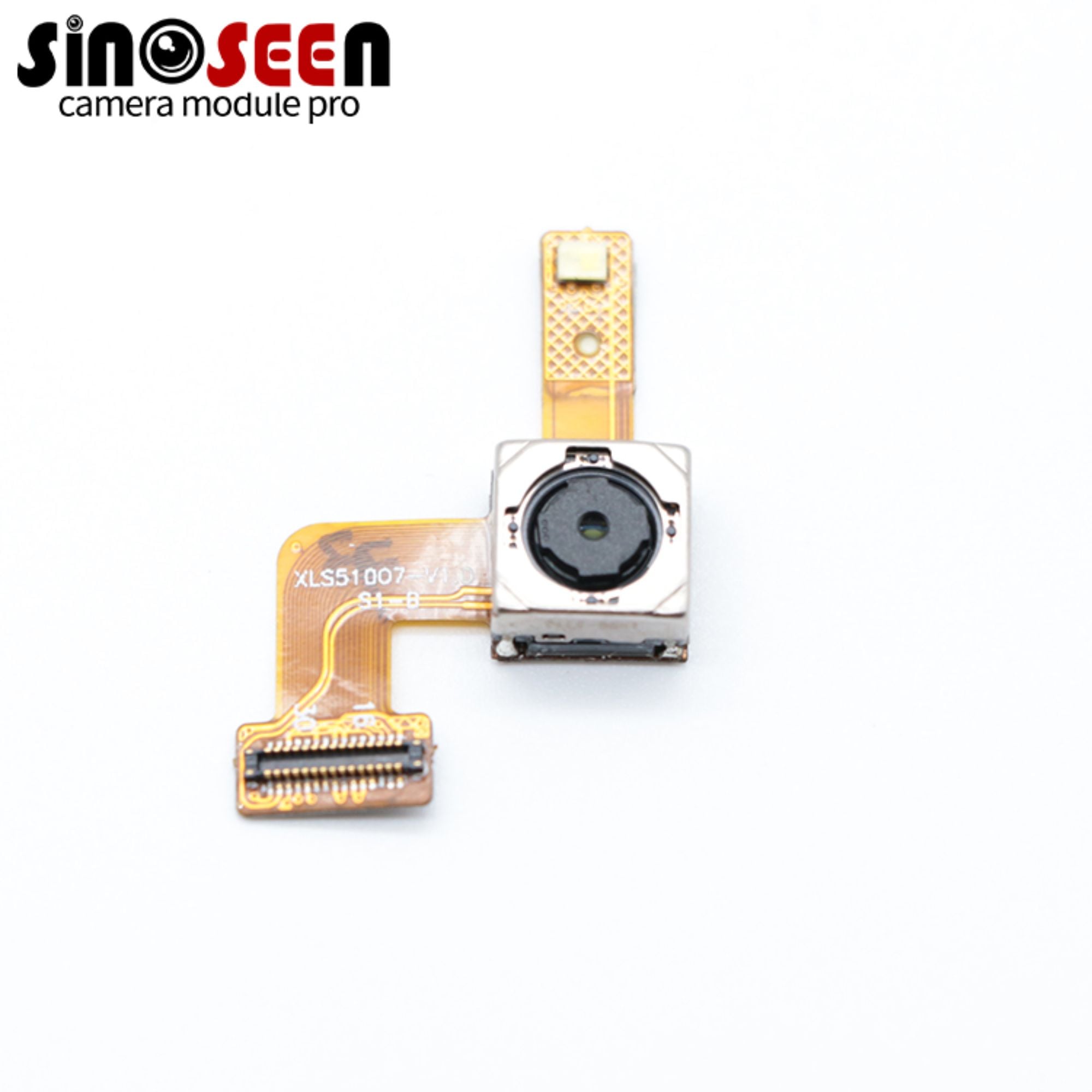

The Camera Module comes with extra flash, 1/4" Omnivision OV5648 sensor, image resolution is 2592*1944, image quality can reach 5MP, it is a MIPI Camera Module for Smartphones, and has autofocus function. The resulting image is very good and stable.

The module has an 80° lens Angle. Of course, you can also change it, if the need for external flash is not very strong, we can also delete it.

In terms of size and structure, you can also contact our engineers to design according to your needs.

Product Overview

Integrating a camera into a compact device requires a balance between image detail, optical coverage and available installation space. This OV5648 configuration combines a 5MP sensor with a camera assembly measuring 8.5 × 8.5 mm at the base and 4.6 mm in total height.

The module can provide image input for applications that examine printed information, visible surface features or surrounding scenes. The 80° diagonal field of view helps define scene coverage, while the lens working distance determines which details can be brought into focus.

Before finalizing the design, evaluate samples using the intended host, lighting and target distance. Confirm the complete mechanical drawing, electrical connections and supported output modes to ensure that the camera fits the device and its image-processing workflow.

Key Features

5MP Color Image Capture

The specified 2592 × 1944 image size provides color information and spatial detail for visual capture. Actual detail depends on lens quality, focus, exposure and host image processing.

Compact Mechanical Dimensions

The camera assembly has an 8.5 × 8.5 mm base and a total height of 4.6 mm. These dimensions provide a starting point for enclosure design; connector and cable clearance should be checked separately.

80° Diagonal Field of View

The specified diagonal field of view is 80° ±3°. Select the installation position and working distance according to the target size and required scene coverage.

Multiple Sensor Readout Modes

The OV5648 sensor specification lists full-resolution and reduced-resolution operating modes. The usable module frame rate must be confirmed with the selected interface, driver and host configuration.

RAW Sensor Data for Host Processing

The sensor supports 8-bit and 10-bit RGB RAW output. Integration requires an appropriate image-processing pipeline; final module output formats depend on the implemented hardware configuration.

Specification

Application Areas

Face Recognition: Face capture for access control.
QR Code Payment: Code imaging for decoding.
VR Devices: Visual input for motion tracking.
High-Speed Tracking: Moving-object image capture.
Terminal Scanning: Document and barcode imaging.
Robot Vision: Images for positioning and guidance.
Security & Smart Home: Indoor and outdoor monitoring.
AI Training Data Collection: Image capture for AI datasets.
Medical & Life Science Imaging: Image capture for microscopy and research.

OEM/ODM Customization & Development Process

Match the Camera to Your Integration Requirements

A suitable camera configuration must fit both the imaging task and the device structure. Sinoseen provides OEM/ODM camera module services and can assess changes to the optical setup, flexible-circuit layout, connection arrangement, and supported operating configuration.

Customization feasibility, development scope, cost, and lead time are confirmed after engineering review.

Customization Process

Step 1 — Share Your Requirements

Provide the application, host platform, required resolution and frame rate, working distance, installation space, and estimated quantity.

Step 2 — Review the Configuration

Assess the sensor operating mode, interface, lens, and mechanical arrangement. Identify any changes required for the target device.

Step 3 — Confirm Drawings and Evaluation Criteria

Agree on the configuration, connection details, mechanical revision, and sample acceptance requirements before prototype production.

Step 4 — Evaluate Samples

Test image quality, sustained frame rate, exposure behavior, host integration, and mechanical fit in the actual operating environment.

Step 5 — Approve the Production Configuration

Confirm the accepted sample, drawings, optical components, and operating configuration before proceeding with volume production.

Send Your Drawings and Imaging Requirements

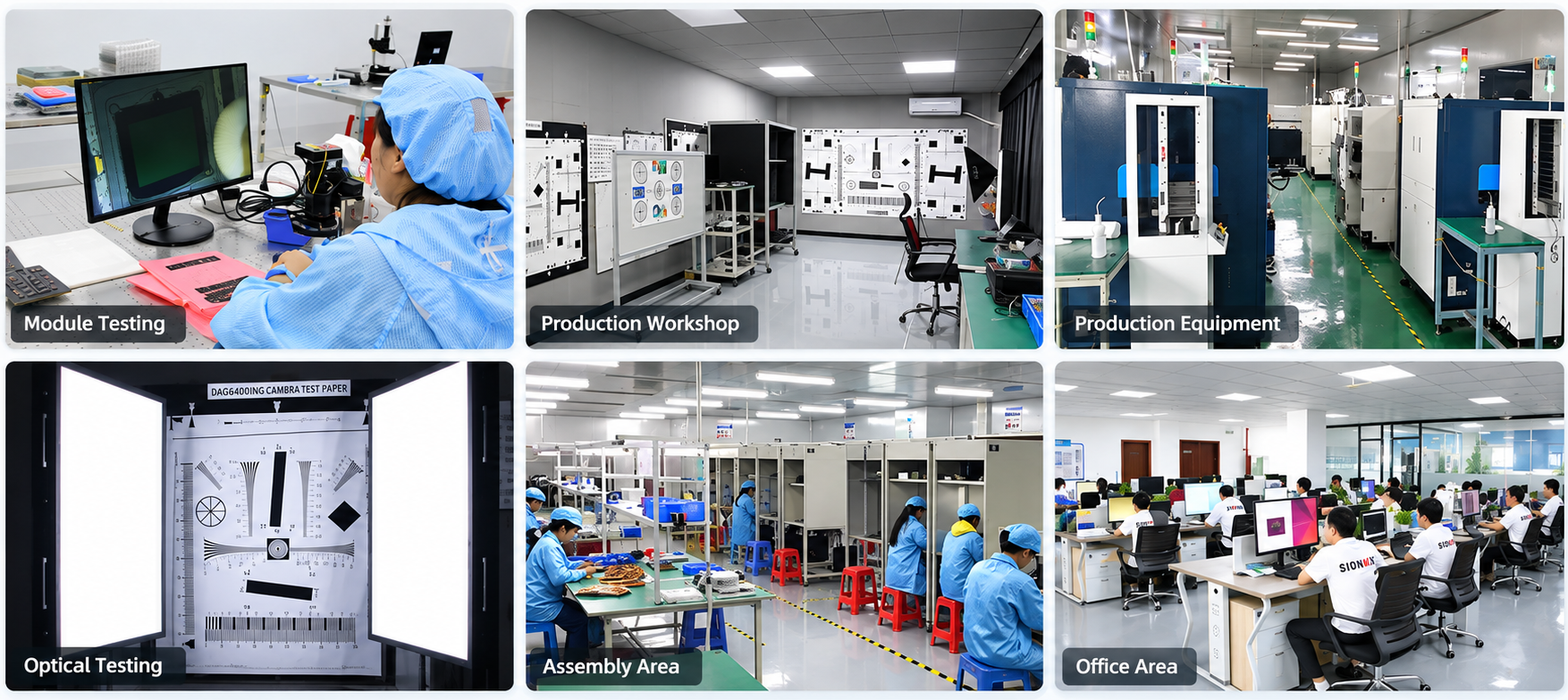

About Sinoseen

Shenzhen Sinoseen Technology Co., Ltd. was established in June 2016 and specializes in CMOS camera module design, development, manufacturing, and OEM/ODM services.

Its product portfolio includes USB, MIPI, and DVP camera modules, with services extending from development through manufacturing and after-sales support.

For embedded vision projects, Sinoseen works with customers to assess the imaging task alongside mechanical and electrical integration requirements. This helps define a camera configuration that can be evaluated in the intended device before production approval.

Certifications & Intellectual Property

Sinoseen’s documentation includes quality management records, product compliance documents, software copyrights, and utility model patents. For your camera module project, please request the current documents applicable to the selected model and configuration, including relevant CE, FCC, or RoHS documentation.

Q1: Does the camera support 5MP imaging at 30 fps?
The supplied sensor specification lists 2592 × 1944 at up to 15 fps. The 30 fps figure applies to the sensor’s 1080p mode. Confirm the completed module’s supported modes before ordering.

Q2: Is the 80° field of view horizontal or diagonal?
It is the diagonal field of view, specified as 80° ±3°. Horizontal and vertical coverage should be confirmed separately if required.

Q3: Can this module connect directly to USB?
The supplied information does not identify the module’s external interface. Confirm the connector, pinout and host requirements before selecting a connection method.

Q4: Does it support autofocus?
The focus mechanism and working distance are not specified. Provide your target distance and subject size so the required lens configuration can be reviewed.
