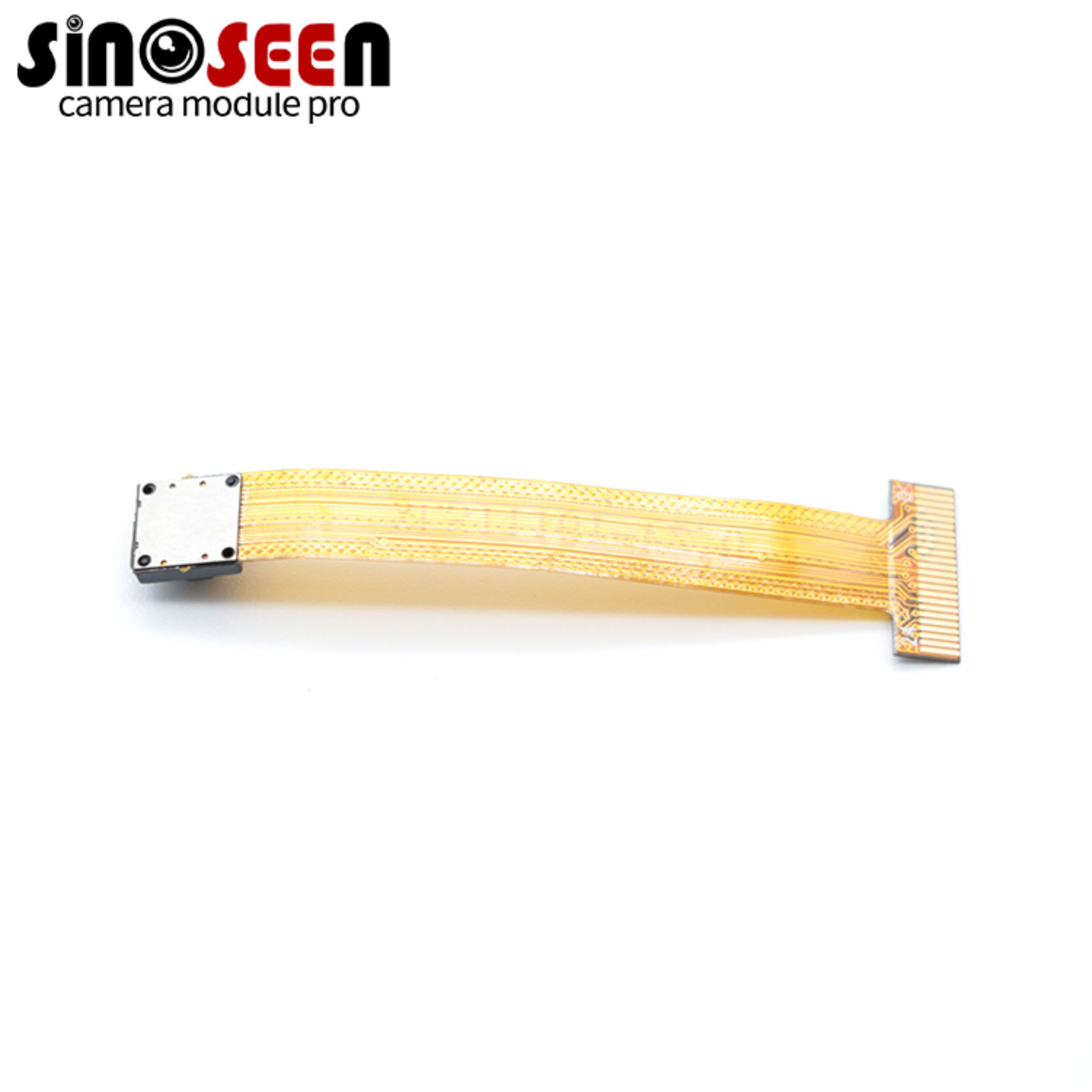

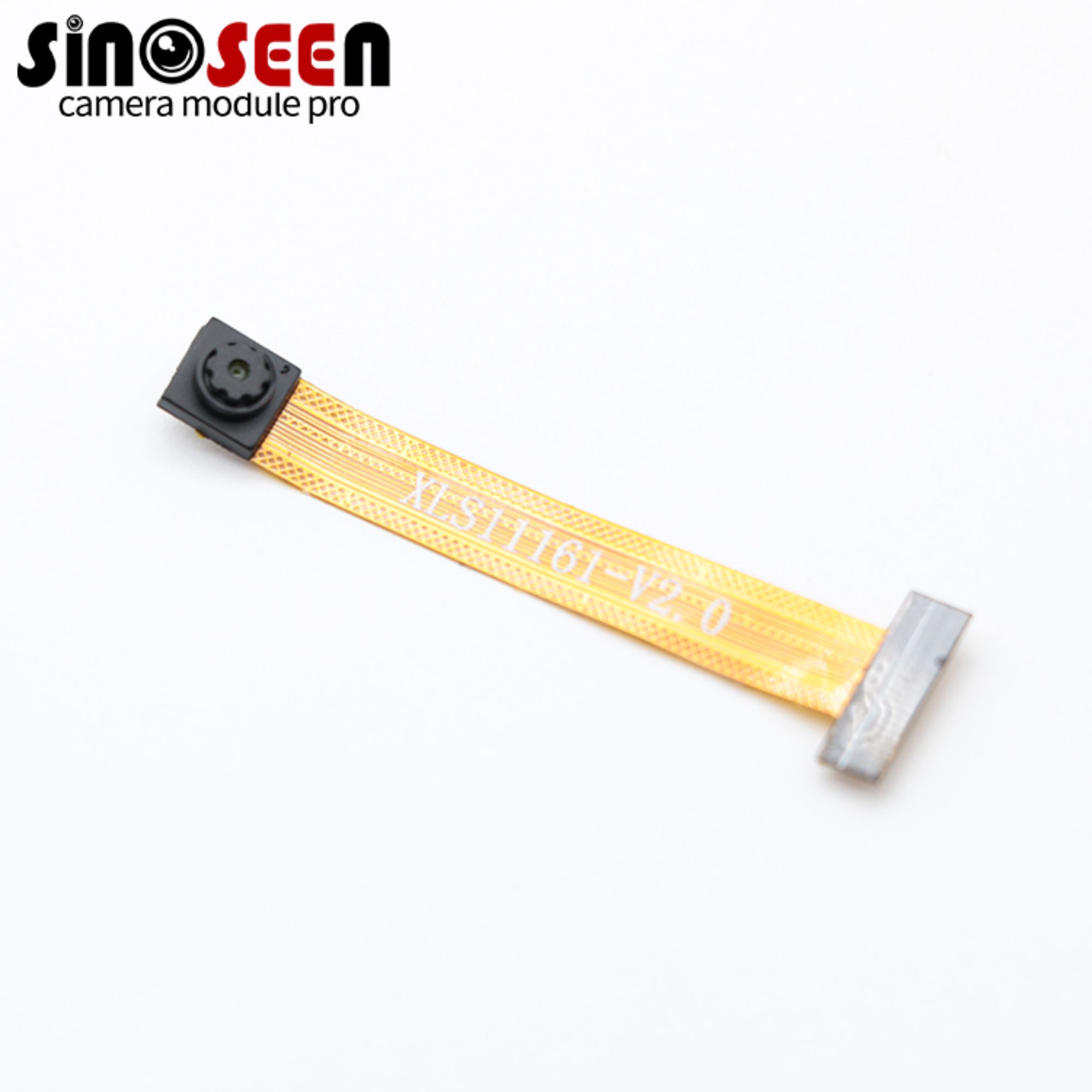

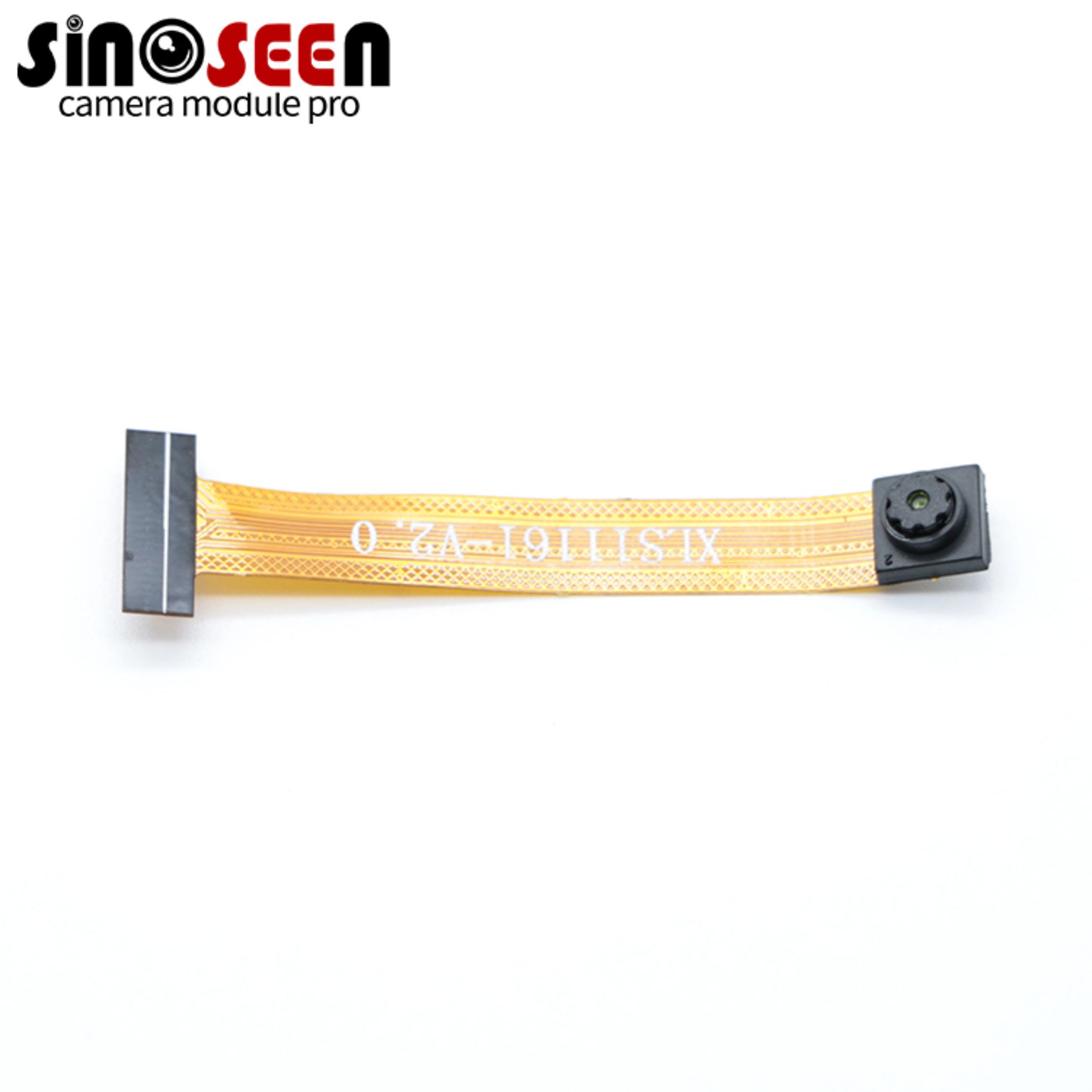

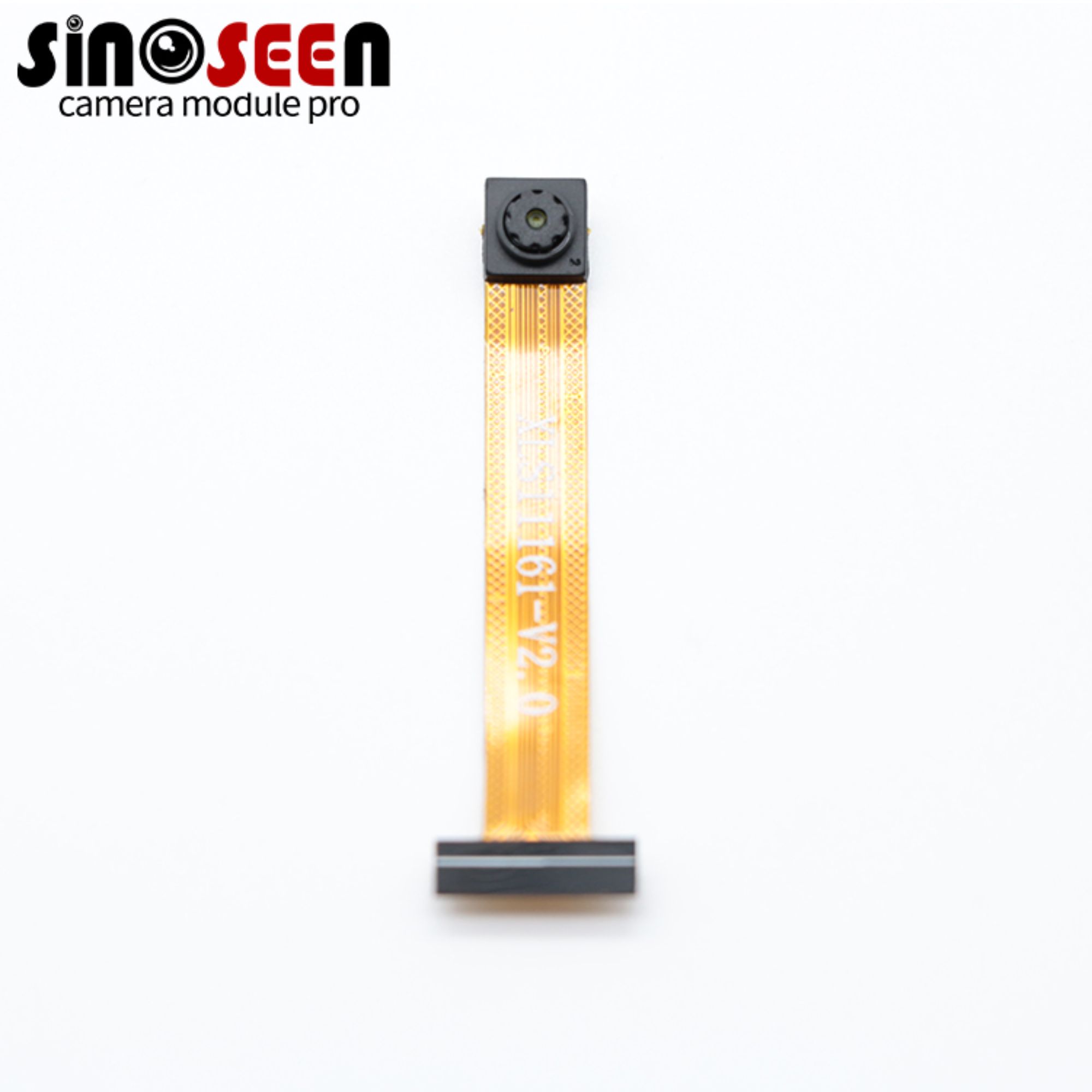

Compact Design MIPI Camera Module Low Power Consumption with GC0308 0.3MP

Product Details:

Place of Origin:

Shenzhen,China

Brand Name:

Sinoseen

Certification:

RoHs

Model Number:

SNS-11161-V2.0

Payment & Shipping Terms:

Minimum Order Quantity:

200

Price:

negotiable

Packaging Details:

Tray+Anti-static bag in carton box

Delivery Time:

2-3weeks

Payment Terms:

T/T

Supply Ability:

500000 pieces/month

  • Parameter
  • Related products
  • Inquiry
  • Detail Information

Type:

MIPI Camera Module

Sensor:

1/ 6.5" GalaxyCore GC0308

Resolution:

0.3MP (640*480)

Dimensions:

Customizable

Lens FOV:

60°(optional)

Focus Type:

Fixed Focus

Interface:

MIPI

Feature:

Low Power Consumption

High Light:

0.3MP MIPI Infrared Camera Module

GC0308 Infrared Camera Module

GC0308 thermal camera module

Product Description

The camera module is equipped with a 1/6.5 "GalaxyCore GC0308 sensor with 0.3MP pixels, which makes the GC0308 an excellent sensor for a good price, and its image quality is excellent and consistent.

The main use area of this module is PDA scanning machine, of course, if you have other uses, it is also OK. And you can customize the size you need according to your needs, and equipped with any Angle of the lens to use.

If you have any additional requirements, please feel free to contact our engineering team. We will be happy to serve you.

Key Benefits

  • VGA image capture: An option for applications where moderate image detail is sufficient.

  • Fixed-focus optics: Suitable for repeatable capture setups with a consistent working distance.

  • Application-based lens selection: Match the field of view to the target size and mounting position.

  • OEM integration planning: Review the mechanical layout and electrical connection before developing the host hardware

Specification

Model No

SNS-11161-V2.0

Sensor

1/ 6.5’’ GalaxyCore GC0308

Pixel

0.3 Mega Pixel

Most effective pixels

640 (H) x 480 (V)

Pixel Size

3.4µm x 3.4µm

Resolution & Frame rate

640x480@30fps;

352x288@30fps;

320x240@30fps;

176x144@30fps;

160x120@30fps;

Shutter Type

Electronic rolling shutter

Focus type

Fixed focus

S/N ratio

49dB

Dynamic range

55dB

Sensitivity

3300mV/Lux-sec

Lens FOV

Default 60° (Optional)

Dimension

Customizable

Storage temperature

-30°C to 80°C

Operating temperature

0°C to 60°C

Compact-Design-MIPI-Camera-Module-GC0308Compact-Design-MIPI-Camera-Module-GC0308-02

Application Areas

Face Recognition: Face capture for access control.
QR Code Payment: Code imaging for decoding.
VR Devices: Visual input for motion tracking.
High-Speed Tracking: Moving-object image capture.
Terminal Scanning: Document and barcode imaging.
Robot Vision: Images for positioning and guidance.
Security & Smart Home: Indoor and outdoor monitoring.
AI Training Data Collection: Image capture for AI datasets.
Medical & Life Science Imaging: Image capture for microscopy and research.

OEM/ODM Customization & Development Process


Match the Camera to Your Integration Requirements

A suitable camera configuration must fit both the imaging task and the device structure. Sinoseen provides OEM/ODM camera module services and can assess changes to the optical setup, flexible-circuit layout, connection arrangement, and supported operating configuration.

Project Requirement Areas for Engineering Review Information to Provide
The camera does not fit the enclosure Camera-head placement, FPC outline, and routing Mechanical drawings and available space
cene coverage or working distance is unsuitable Lens selection, field of view, and focus setting Target dimensions and capture distance
The host connection differs from the standard design Connector, pin assignment, and interface configuration Host specifications and connection requirements
Moving targets require sharper capture Exposure, lighting, and supported frame-rate modes arget speed, sample images, and lighting conditions
he project requires infrared imaging Filter and lens suitability Illumination wavelength and imaging requirements

Customization feasibility, development scope, cost, and lead time are confirmed after engineering review.

Customization Process

Step 1 — Share Your Requirements

Provide the application, host platform, required resolution and frame rate, working distance, installation space, and estimated quantity.

Step 2 — Review the Configuration

Assess the sensor operating mode, interface, lens, and mechanical arrangement. Identify any changes required for the target device.

Step 3 — Confirm Drawings and Evaluation Criteria

Agree on the configuration, connection details, mechanical revision, and sample acceptance requirements before prototype production.

Step 4 — Evaluate Samples

Test image quality, sustained frame rate, exposure behavior, host integration, and mechanical fit in the actual operating environment.

Step 5 — Approve the Production Configuration

Confirm the accepted sample, drawings, optical components, and operating configuration before proceeding with volume production.

Send Your Drawings and Imaging Requirements

About Sinoseen


Shenzhen Sinoseen Technology Co., Ltd. was established in June 2016 and specializes in CMOS camera module design, development, manufacturing, and OEM/ODM services.

Its product portfolio includes USB, MIPI, and DVP camera modules, with services extending from development through manufacturing and after-sales support.

For embedded vision projects, Sinoseen works with customers to assess the imaging task alongside mechanical and electrical integration requirements. This helps define a camera configuration that can be evaluated in the intended device before production approval.

Certifications & Intellectual Property


Sinoseen’s documentation includes quality management records, product compliance documents, software copyrights, and utility model patents. For your camera module project, please request the current documents applicable to the selected model and configuration, including relevant CE, FCC, or RoHS documentation.

Frequently Asked Questions


1. Is this module suitable for barcode scanning?

It can be evaluated as the imaging component of a scanning system. Decoding performance depends on barcode size, image sharpness, lighting and host software. Test representative codes at the required distances.

2. Does it include barcode decoding or OCR?

These functions are not established as part of the module. The host application needs suitable recognition software.

3. Is the interface MIPI or DVP?

Request the electrical specification for the exact module version before designing the host connection. Confirm the data interface, connector pinout, clock requirements and signal voltage levels together.

4. Does it support autofocus?

The listed configuration uses fixed focus. Select the lens and focus setting for the intended working-distance range.

5. Is 0.3MP enough for my application?

That depends on the smallest detail you need to resolve. Check how many pixels cover that detail in a sample image at the intended working distance.
