Ar0144 Sensor RoHS Approved Global Shutter Camera Module Infrared Fill Light Usb

Ar0144 Sensor RoHS Approved Global Shutter Camera Module Infrared Fill Light Usb

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	Sinoseen
Certification:	RoHS
Model Number:	SNS-GB331M-V1.0

Payment & Shipping Terms:

Minimum Order Quantity:	3
Price:	negotiable
Packaging Details:	Tray+Anti-static bag in carton box
Delivery Time:	2-3weeks
Payment Terms:	T/T
Supply Ability:	500000 pieces/month

Inquiry

Parameter
Related products
Inquiry

Detail Information

Type:	Global Shutter Camera Module	Sensor:	1/4-Inch 1Mp CMOS AR0144
Resolution:	1MP 1280(H) X 800(V)	Dimensions:	Customizable
Pixel Size:	3.0um	Focus Type:	Fixed Focus
Interface:	USB2.0	Feature:	Global Shutter
High Light:	Usb Ir Camera Module 1mp Ar0144 Usb Ir Camera Module CMOS Global Shutter Camera Module

Product Description

Infrared fill light illuminates objects in low light or total darkness, enabling the camera to capture images or video in environments where conventional light sources are insufficient.

The camera uses a global shutter, an image sensor technology that exposes all pixels simultaneously, preventing motion blur on fast-moving objects.

This camera module is intended for use in low-light imaging or fast motion capture applications, such as surveillance, industrial inspection, or robotics.

Key Features

Color Global Shutter Imaging: Captures color information and object outlines for host-based visual analysis.
Up to 60fps: Supports motion observation; available frame rates depend on output format and configuration.
USB 2.0 UVC: Connects to compatible hosts for image acquisition.
MJPG and YUY2 Output: Offers compressed and uncompressed video options.
Fixed-Focus M12 Lens: Lens selection can be matched to target size and working distance.
38 × 38mm Board: Supports equipment integration, with mechanical customization available for evaluation.

Specification

Model No	SNS-GB331M-V1.0
Sensor	1/4-Inch 1Mp CMOS AR0144
Pixel	1 Mega Pixel
Most effective pixels	1280H x 800V
Pixel Size	3.0µm x 3.0µm
Chroma	COLOR Image
Compression format	MJPG/YUY2
Resolution & Frame rate	See above
Shutter Type	Global shutter
Focus type	Auto focus
S/N ratio	38dB
Dynamic range	63.9dB
Protocol	Plug-&-Play (UVC compliant)
Interface type	USB2.0 high speed
Lens	Lens Size: 1/4 inch
	FOV: 90°
	Thread Size: M12*P0.5
Audio frequency	Optional
Power supply	USB BUS POWER
Power consumption	DC 5V, 180mW
Main chip	DSP/SENSOR/FLASH
Dimension	customizable
Storage temperature	–40°C to +85°C
Operating temperature	–40°C to +105°C
USB cable length	Default
Adjustable parameter	Brightness/Contrast/Color saturation/Hue/ Definition/Gamma/White balance
Support OS	WinXP/Vista/Win7/Win8/Win10 Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC

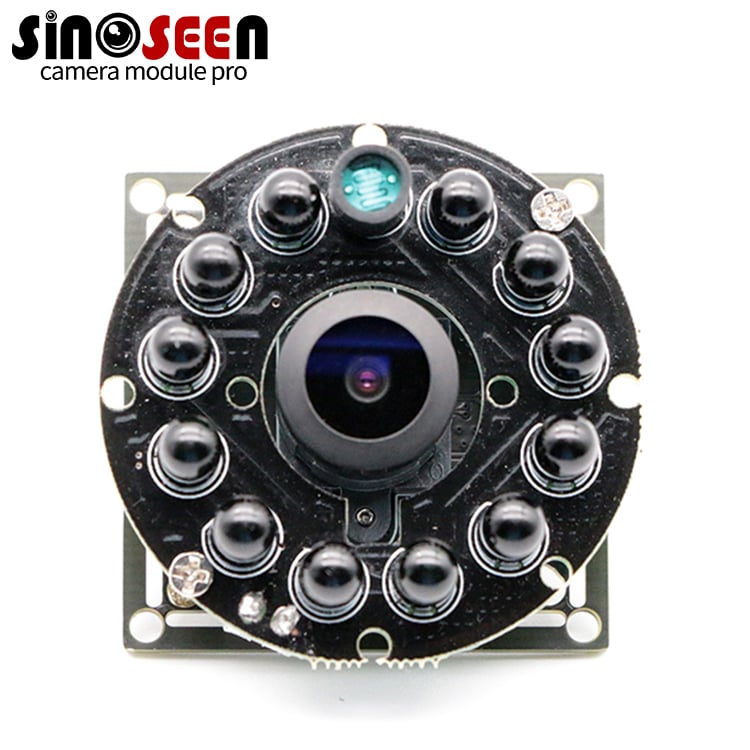

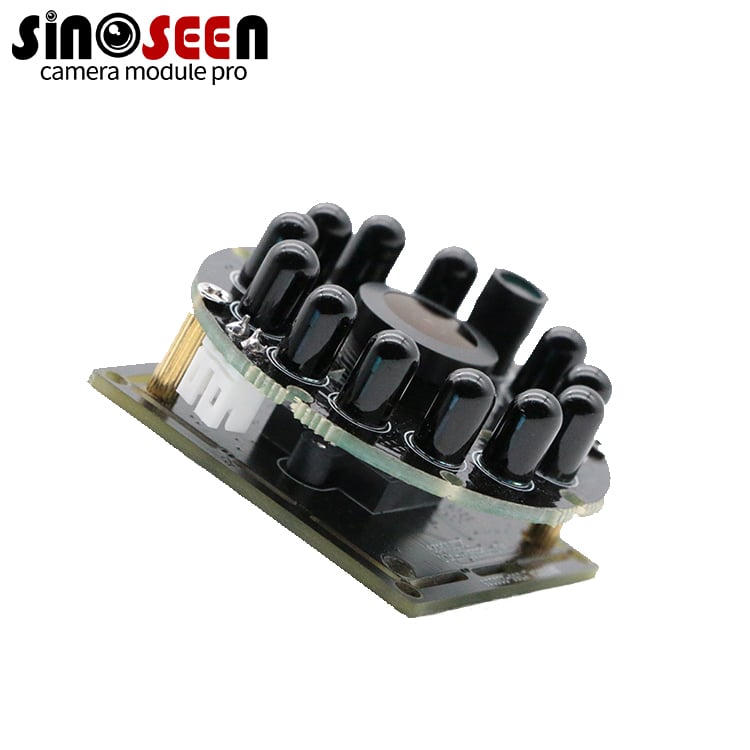

Ar0144-RoHS-Approved-Camera Ar0144-RoHS-Approved-Camera-02

Application Areas

Face Recognition: Face capture for access control.
QR Code Payment: Code imaging for decoding.
VR Devices: Visual input for motion tracking.
High-Speed Tracking: Moving-object image capture.
Terminal Scanning: Document and barcode imaging.
Robot Vision: Images for positioning and guidance.
Security & Smart Home: Indoor and outdoor monitoring.
AI Training Data Collection: Image capture for AI datasets.
Medical & Life Science Imaging: Image capture for microscopy and research.

OEM/ODM Customization & Development Process

Match the Camera to Your Integration Requirements

A suitable camera configuration must fit both the imaging task and the device structure. Sinoseen provides OEM/ODM camera module services and can assess changes to the optical setup, flexible-circuit layout, connection arrangement, and supported operating configuration.

Project Requirement	Areas for Engineering Review	Information to Provide
The camera does not fit the enclosure	Camera-head placement, FPC outline, and routing	Mechanical drawings and available space
cene coverage or working distance is unsuitable	Lens selection, field of view, and focus setting	Target dimensions and capture distance
The host connection differs from the standard design	Connector, pin assignment, and interface configuration	Host specifications and connection requirements
Moving targets require sharper capture	Exposure, lighting, and supported frame-rate modes	arget speed, sample images, and lighting conditions
he project requires infrared imaging	Filter and lens suitability	Illumination wavelength and imaging requirements

Customization feasibility, development scope, cost, and lead time are confirmed after engineering review.

Customization Process

Step 1 — Share Your Requirements

Provide the application, host platform, required resolution and frame rate, working distance, installation space, and estimated quantity.

Step 2 — Review the Configuration

Assess the sensor operating mode, interface, lens, and mechanical arrangement. Identify any changes required for the target device.

Step 3 — Confirm Drawings and Evaluation Criteria

Agree on the configuration, connection details, mechanical revision, and sample acceptance requirements before prototype production.

Step 4 — Evaluate Samples

Test image quality, sustained frame rate, exposure behavior, host integration, and mechanical fit in the actual operating environment.

Step 5 — Approve the Production Configuration

Confirm the accepted sample, drawings, optical components, and operating configuration before proceeding with volume production.

Send Your Drawings and Imaging Requirements

About Sinoseen

Shenzhen Sinoseen Technology Co., Ltd. was established in June 2016 and specializes in CMOS camera module design, development, manufacturing, and OEM/ODM services.

Its product portfolio includes USB, MIPI, and DVP camera modules, with services extending from development through manufacturing and after-sales support.

For embedded vision projects, Sinoseen works with customers to assess the imaging task alongside mechanical and electrical integration requirements. This helps define a camera configuration that can be evaluated in the intended device before production approval.

Certifications & Intellectual Property

Sinoseen’s documentation includes quality management records, product compliance documents, software copyrights, and utility model patents. For your camera module project, please request the current documents applicable to the selected model and configuration, including relevant CE, FCC, or RoHS documentation.
