Ar0144 DVP Camera Module for Video Conferencing 60FPS Global Shutter
Product Details:
Place of Origin: |
Shenzhen,China |
Brand Name: |
Sinoseen |
Certification: |
RoHS |
Model Number: |
SNS-11283-v1.0 |
Payment & Shipping Terms:
Minimum Order Quantity: |
3 |
Price: |
negotiable |
Packaging Details: |
Tray+Anti-static bag in carton box |
Delivery Time: |
2-3weeks |
Payment Terms: |
T/T |
Supply Ability: |
500000 pieces/month |
- Parameter
- Related products
- Inquiry
Product Description

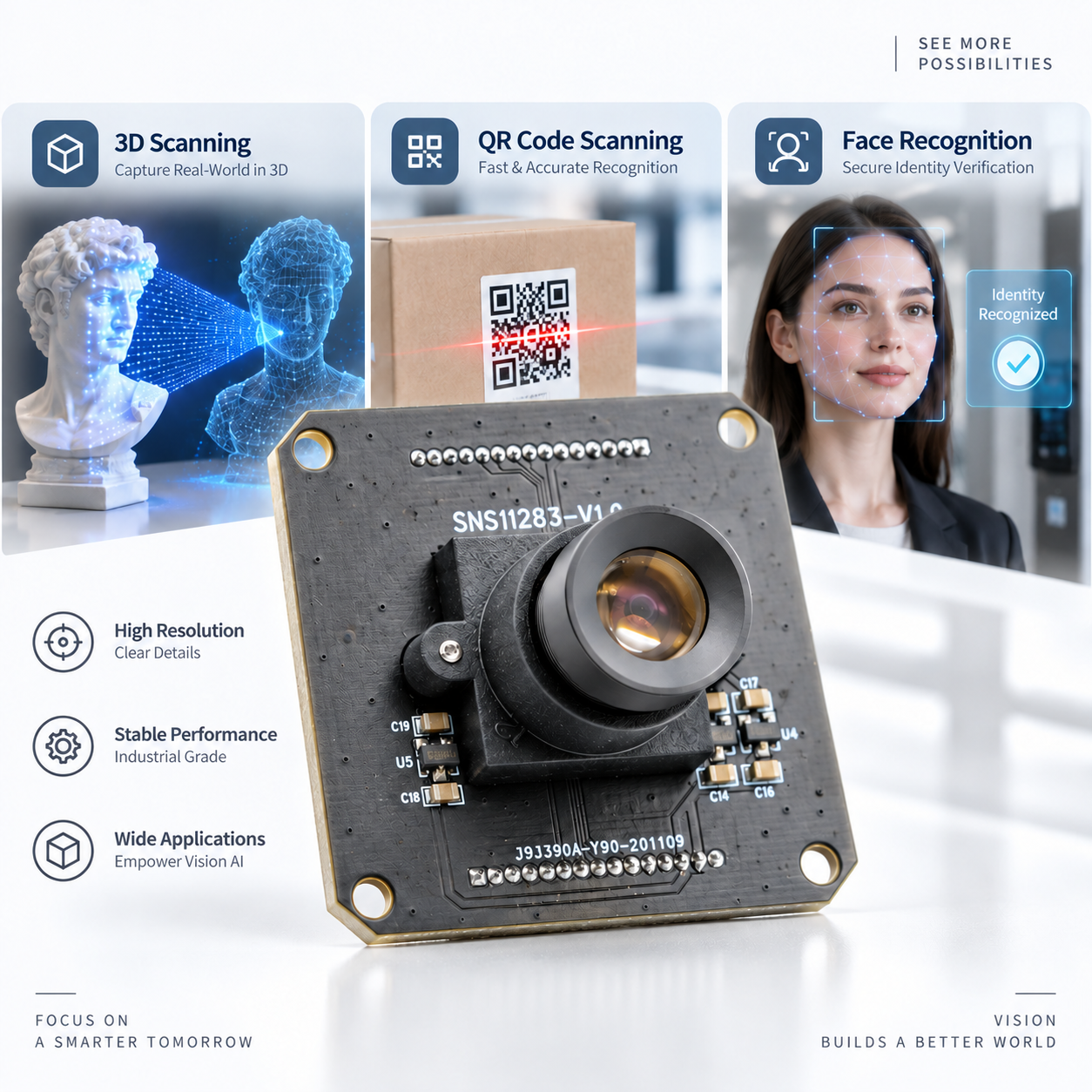

The SNS11283-V1 is a compact OV9281 monochrome global shutter camera module designed for high-speed embedded vision. It delivers 1280 × 720 images at up to 120 fps through a DVP interface, helping reduce image distortion when capturing moving objects. The 30 × 30 mm board can be customized for different lenses, FOVs, connectors and installation requirements.
Type: |
DVP Camera Module |
Sensor: |
OV9281 |
Resolution: |
1MP 1280*800 |
Dimensions: |
30*30mm (Customizable) |
Lens FOV: |
120°(optional) |
Focus Type: |
Fixed Focus |
Interface: |
DVP |
Feature: |
Global Shutter |
High Light: |
1MP OV9281 Camera Module DVP OV9281 Camera Module 120FPS Machine Vision Camera Module |
||

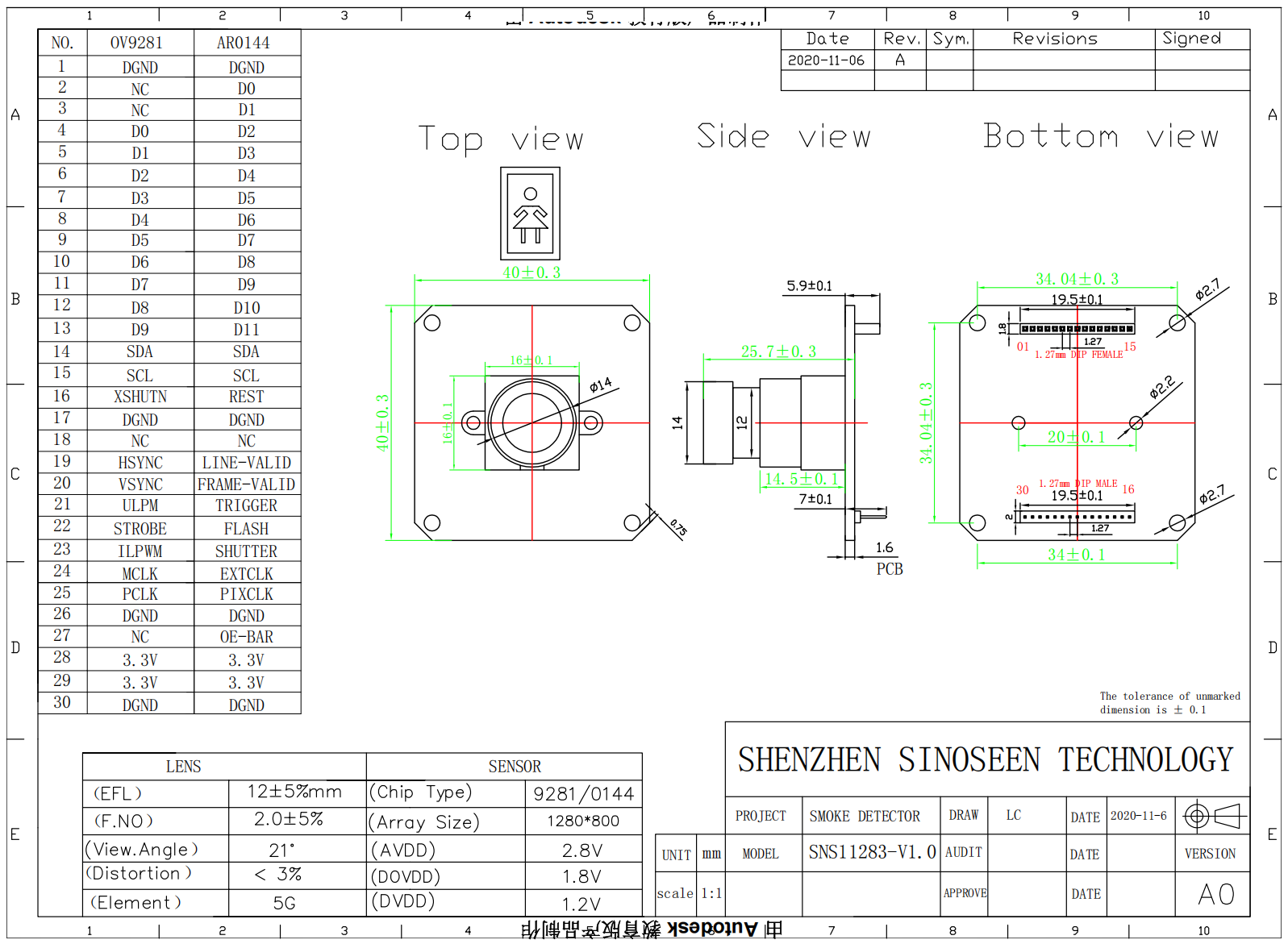

Specification
Pixel Size |
3.0μm x 3.0μm |
Effective Pixels |
1280*800 |
Image Sensor |
1/4" |
Sensor Type |
OV9281 |
Lens View |
FOV120°(Optional),F/N(Optional) |
TV Distortion |
<1% (Optional) |
Temperature(Operation) |
0~60℃ |
Temperature(Storage) |
-20~70℃ |
Dimension |
30x30mm (Customizable) |

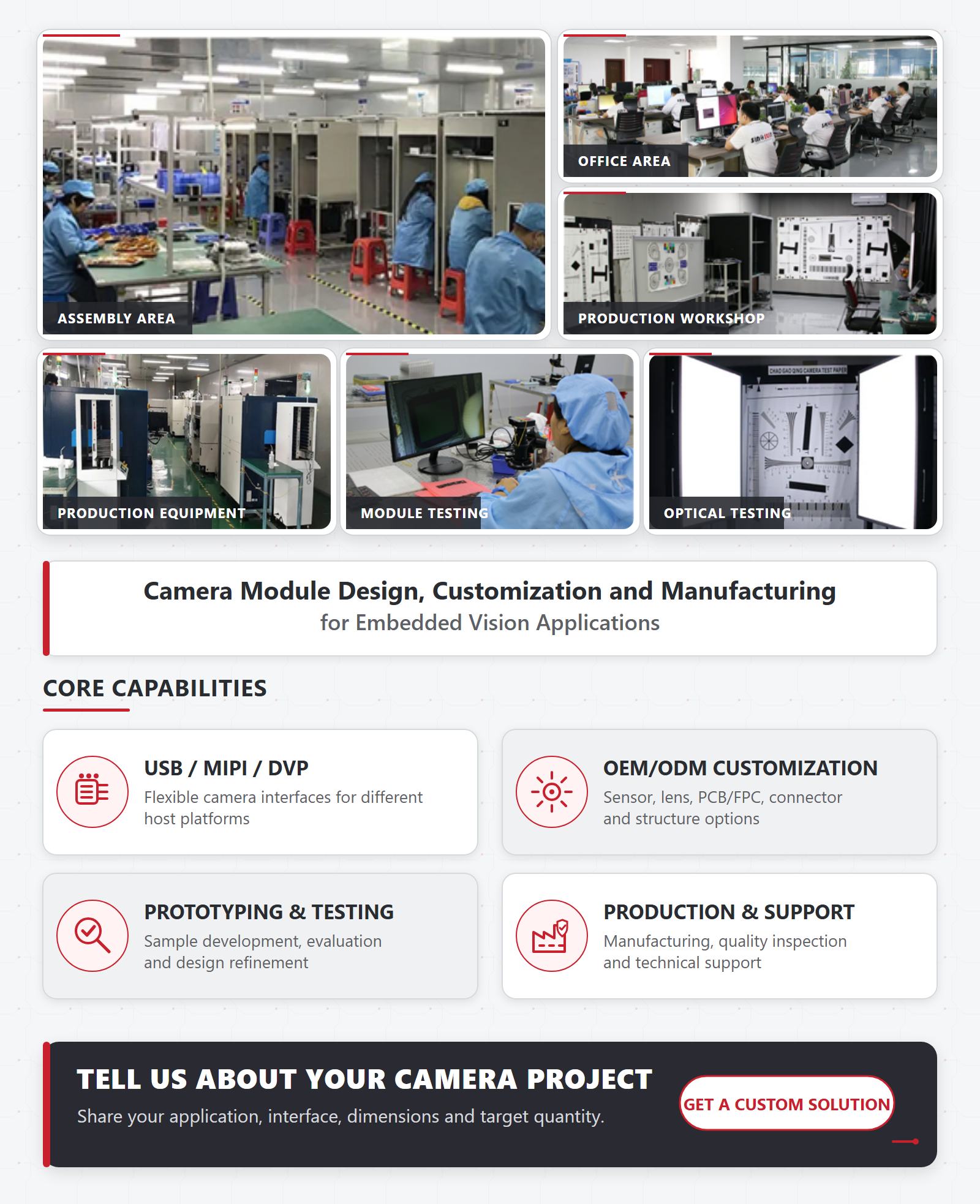

Company Profile
About Sinoseen
Shenzhen Sinoseen Technology Co., Ltd. specializes in CMOS camera module design, manufacturing and OEM/ODM customization. We provide USB, MIPI and DVP camera modules, together with global shutter, low-light, endoscope, autofocus, IR-cut and binocular imaging solutions. From requirements review and sensor and lens selection to PCB/FPC design, prototyping, testing, production and after-sales support, our team helps customers develop camera modules for embedded vision, industrial equipment, smart terminals, robotics and other application-specific projects.
Application Areas
Customization Process
Certifications
Packing & Delivery
Shenzhen Sinoseen Technology Co., LTD
China top 10 camera module manufacturer
If you are struggling to find the right camera module solution, please contact us, we will customize all kinds of USB/MIPI/DVP interface camera modules according to your needs, and have a dedicated team to provide you with the most suitable solution.
FAQ:
Q1. How to choose the right camera module?
A: Please tell us your specific needs, such as application scenarios, resolution, size, and lens requirements. We will have a professional team of engineers to assist you in choosing the most suitable camera module.
Q2. How to start proofing?
A: After confirming all the parameters, we will draw a drawing to confirm the details with you. Once the drawing is confirmed, we will arrange a proofing.
Q3: How do I send the payment?
A: Currently we accept T/T bank transfer and Paypal.
Q4: How long does it take to make a sample?
A: If it is a USB camera module, it usually takes 2-3weeks, if it is a MIPI or DVP camera module, it usually takes 10-15days.
Q5: How long will it take to receive the sample after it is ready?
A: After the samples have been tested and there is no problem, we will send the samples to you via DHL FedEx UPS or any other courier methods, usually within a week.
