4 Lens Sync USB Camera Module AR0144 1MP Global Shutter for Machine Vision

4 Lens Sync USB Camera Module AR0144 1MP Global Shutter for Machine Vision

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	Sinoseen
Certification:	RoHS
Model Number:	SNS-GM1084-V1

Payment & Shipping Terms:

Minimum Order Quantity:	3
Price:	negotiable
Packaging Details:	Tray+Anti-static bag in carton box
Delivery Time:	2-3weeks
Payment Terms:	T/T
Supply Ability:	500000 pieces/month

Inquiry

Parameter
Related products
Inquiry

Detail Information

Type:	USB Camera Module	Sensor:	1/4" ON Semiconductor AR0144
Resolution:	1MP 1280(H) X 800(V)	Dimensions:	38x38mm (customizable)
Lens FOV:	90°(optional)	Focus Type:	Fixed Focus
Interface:	USB2.0	Feature:	Global Shutter
High Light:	4 Lens Sync USB Camera Module , AR0144 USB Camera Module , Machine Vision 1MP Camera Module

Product Description

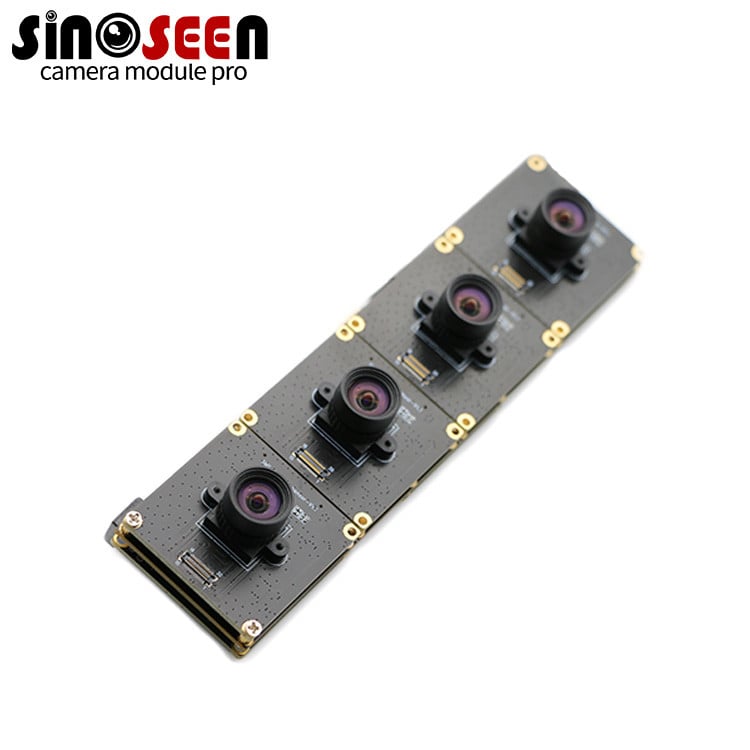

The Sinoseen 4 Lens Sync USB Camera Module features four AR0144 1-megapixel global shutter sensors, ensuring precise capture of fast-moving objects without motion blur. Designed with a USB 2.0 interface for high bandwidth and low latency, it supports efficient data transfer.

Ideal for machine vision applications like robotics, automation, and quality control, this module delivers high-quality images and videos at up to 60fps. Its versatility makes it perfect for real-time monitoring and analysis, enhancing efficiency and accuracy across industrial and commercial sectors.

Specification

Model No	SNS-GM1084-V1
Sensor	1/4’’ ON Semiconductor AR0144
Pixel	1 Mega Pixel
Most effective pixels	1280H x 800V
Pixel Size	3.0µm x 3.0µm
Chroma	COLOR Image
Compression format	MJPG/YUY2
Resolution & Frame rate	1280 x800@ 60fps 1280x720 @60fps 800x600 @ 60fps 640x480 @ 60 fps 320x240 @ 60fps
Shutter Type	Global shutter
Focus type	Fixed focus
S/N ratio	38dB
Dynamic range	63.9dB
Protocol	Plug-&-Play (UVC compliant)
Interface type	USB2.0 high speed
Lens	Lens Size: 1/4 inch
	FOV: 90°
	Thread Size: M12*P0.5
Audio frequency	Optional
Power supply	USB BUS POWER
Power consumption	DC 5V, 180mW
Main chip	DSP/SENSOR/FLASH
Dimension	38x38MM customizable
Storage temperature	-20°C to 70°C
Operating temperature	0°C to 60°C
USB cable length	Default
Adjustable parameter	Brightness/Contrast/Color saturation/Hue/ Definition/Gamma/White balance
Support OS	WinXP/Vista/Win7/Win8/Win10 Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC
