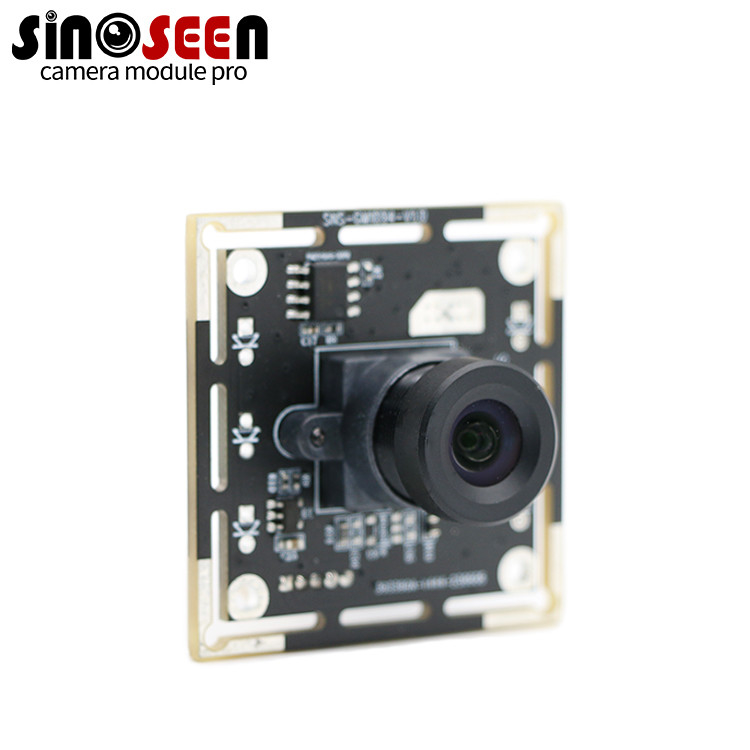

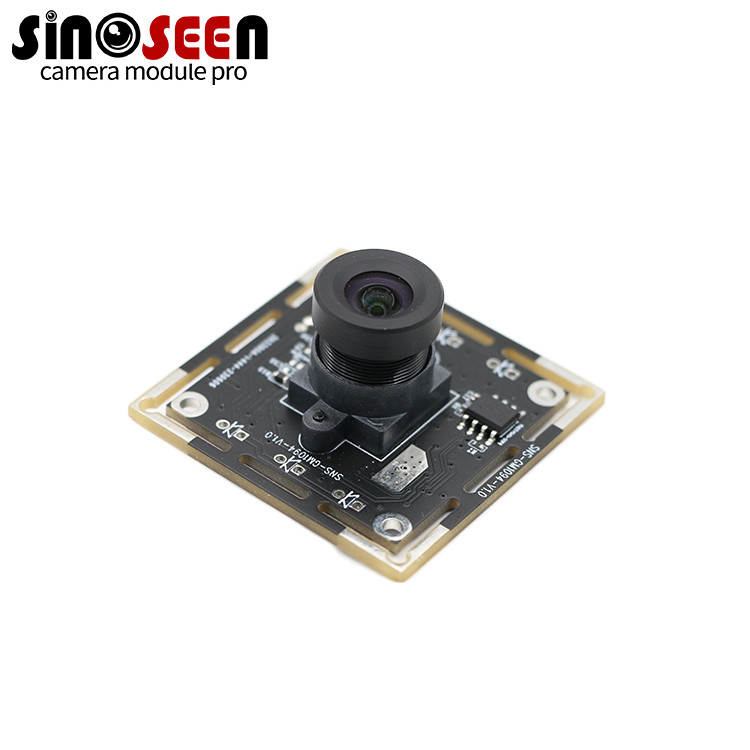

2MP USB Camera Module with GC2083 Sensor for 1080P Industrial Inspection

2MP USB Camera Module with GC2083 Sensor for 1080P Industrial Inspection

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	Sinoseen
Certification:	RoHS
Model Number:	SNS-GM1094-V1.0

Payment & Shipping Terms:

Minimum Order Quantity:	3
Price:	negotiable
Packaging Details:	Tray+Anti-static bag in carton box
Delivery Time:	2-3weeks
Payment Terms:	T/T
Supply Ability:	500000 pieces/month

Inquiry

Parameter
Related products
Inquiry

Detail Information

Type:	2MP Camera Module	Sensor:	1/3’GC2083 CMOS
Resolution:	H1920*V1080	Dimensions:	(customizable)
Pixel Size:	2.7um X2.7um	Focus Type:	Fixed Focus
Interface:	USB	Feature:	HD
High Light:	1080P 30FPS USB Camera Module , GC2083 Sensor USB Camera Module , Industrial 2MP Camera Module

Product Description

The 2MP USB Camera Module equipped with the GC2083 sensor is designed for high-performance industrial inspection. The GC2083 sensor delivers clear, high-resolution images with a resolution of 1080P (1920 x 1080 pixels) and a frame rate of 30 FPS. This camera module excels in both normal and low-light conditions, making it ideal for detailed industrial vision applications. Whether for real-time monitoring, educational booths, or machine vision tasks, this module provides reliable and high-quality image capture. Its fixed focus lens and USB2.0 interface ensure straightforward integration and consistent performance across various inspection scenarios.

Specification

Model No	SNS-GM1094-V1.0
Sensor	1/3’GC2083 CMOS
Pixel	2 Mega Pixel
Most effective pixels	H1920*V1080
Pixel Size	2.7um x2.7um
Image Area	5808µm x 3288µm
Compression format	YUV2 / MJPG
Resolution	See above
Frame rate	See above
Shutter Type	Electronic rolling shutter
Focus type	Fixed focus
S/N ratio	TBDdB
Dynamic range	TBDdB
Sensitivity	3700 mV/lux-sec
Interface type	USB2.0
Adjustable parameter	Brightness/Contrast/Color saturation/Hue/Definition/ Gamma/White balance/Exposure
Power supply requirement	AVDD28: 2.7~3.3V(Typ.2.8V)
	DVDD18: 1.15~1.3V(Typ.1.2V)
	IOVDD: 1.7~3.0V(Typ.1.8V)
Audio frequency	Optional
Power supply	USB BUS POWER
Power consumption	DC 5V, 200mA
Main chip	DSP/SENSOR/FLASH
Auto Exposure Control (AEC)	Support
Auto White Balance (AEB)	Support
Auto Gain Control (AGC)	Support
Storage temperature	0~60℃
Operating temperature	-20~80℃
USB cable length	Default
Support OS	WinXP/Vista/Win7/Win8/Win10 Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC
