120FPS OV7251 USB Camera Module Global Exposure For Machine Vision Inspection

Product Details:

Place of Origin: Shenzhen,China
Brand Name: Sinoseen
Certification: RoHS
Model Number: SNS-GB3403-V1.0

Payment & Shipping Terms:

Minimum Order Quantity: 3
Price: negotiable
Packaging Details: Tray+Anti-static bag in carton box
Delivery Time: 2-3weeks
Payment Terms: T/T
Supply Ability: 500000 pieces/month
  • Parameter
  • Related products
  • Inquiry
    • Detail Information

Type: USB Camera Module Sensor: 1/7.5" Omnivision OV7251
Resolution: 0.3MP 640(H) X 480(V) Dimensions: 38mmx38mm (customizable)
Lens FOV: 90°(optional) Focus Type: Fixed Focus
Interface: USB2.0 Feature: Global Shutter
High Light:

120FPS USB Camera Module

OV7251 USB Camera Module

Product Description:

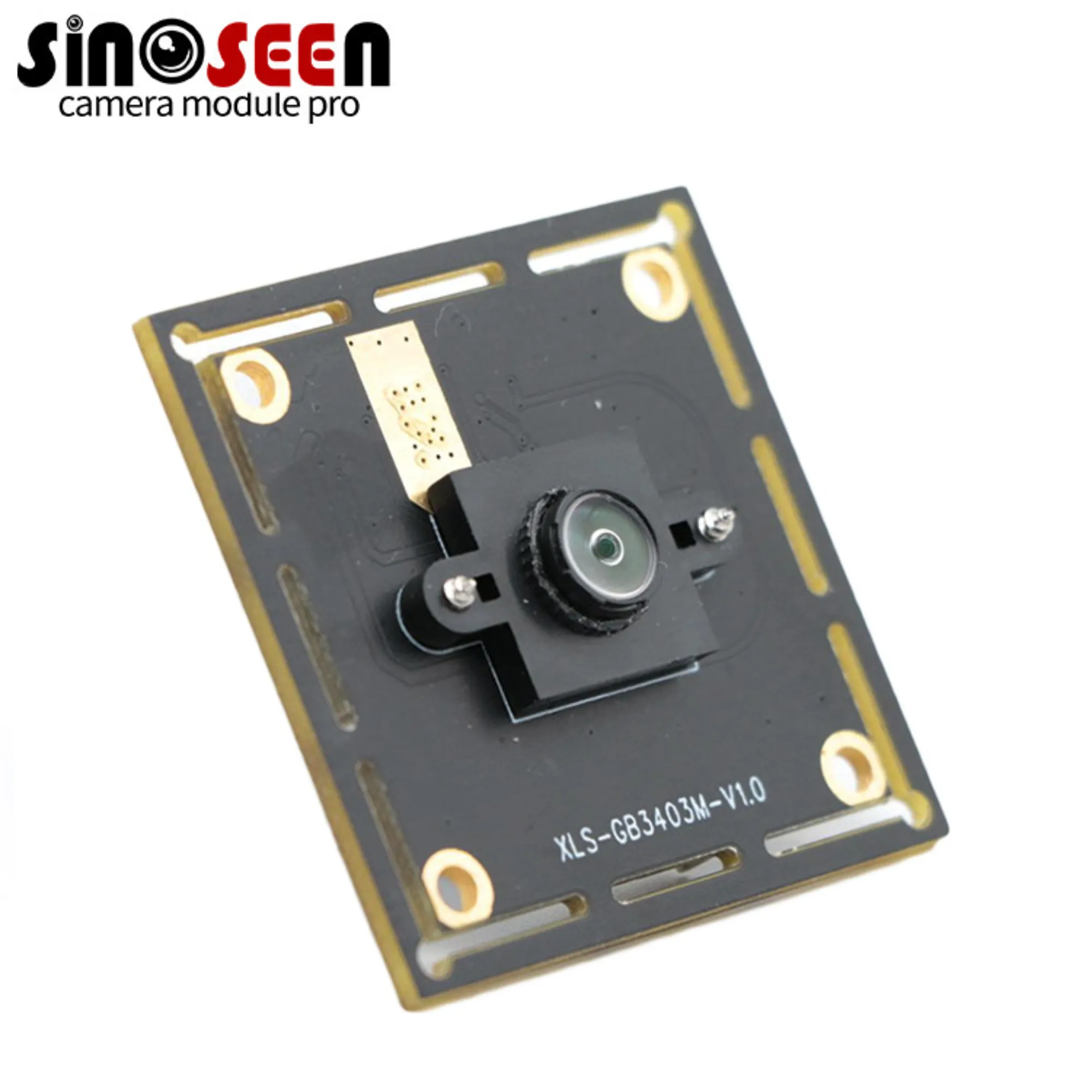

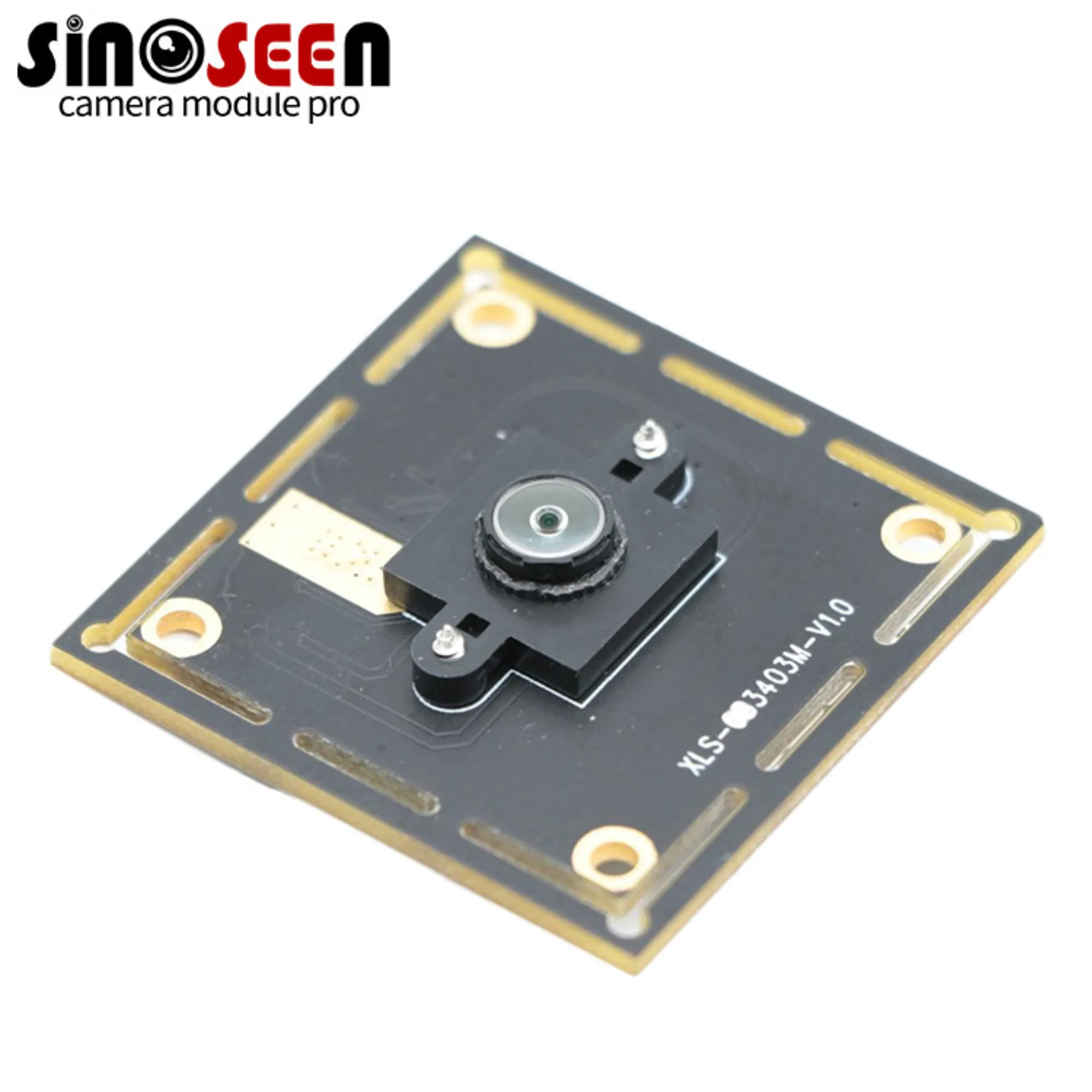

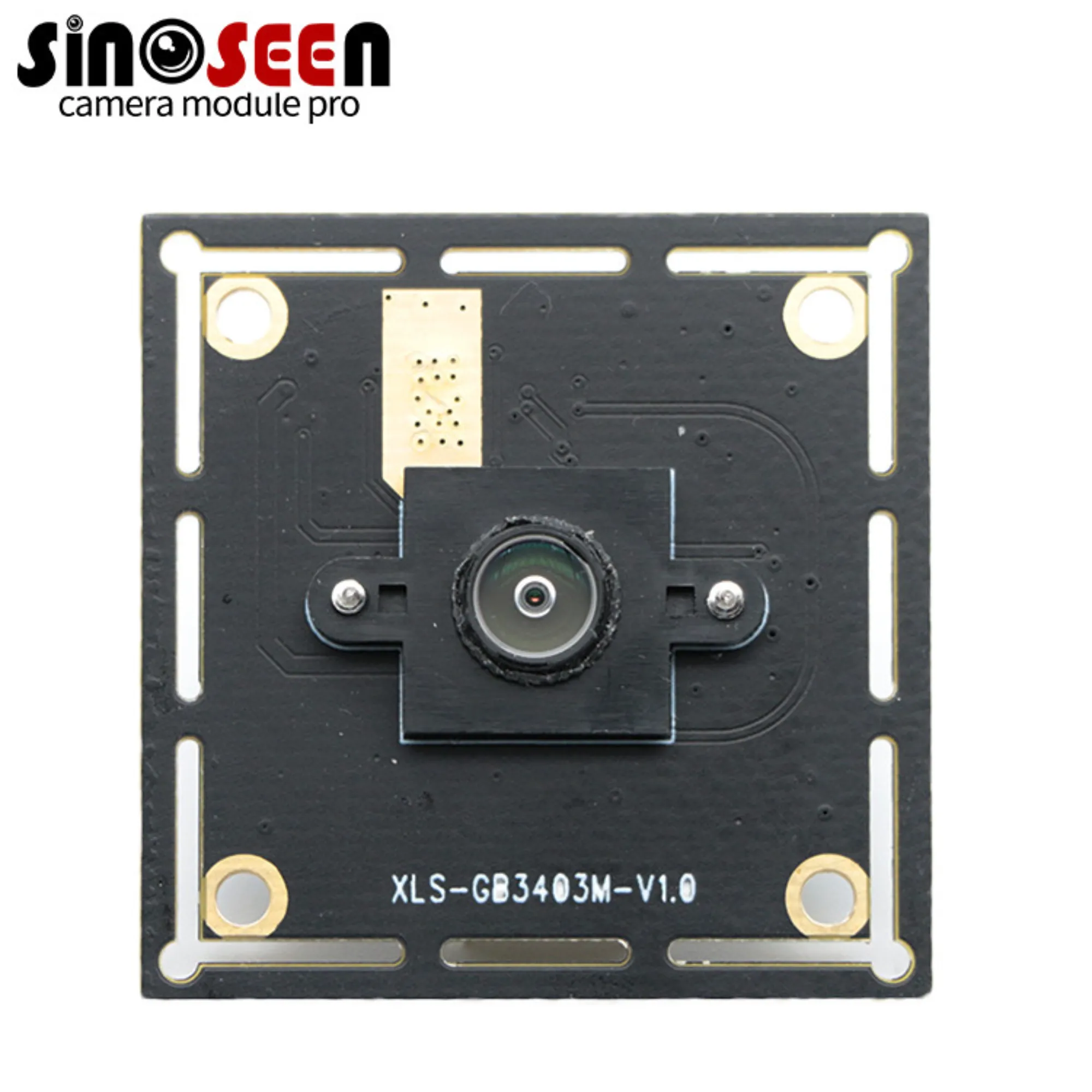

Global Exposure 120FPS OV7251 USB Camera Module for Machine Vision Inspection

This camera module, equipped with the OV7251 sensor, is designed for precision in machine vision applications. The OV7251 sensor offers high sensitivity and excellent image quality, essential for inspecting and detecting fine details. Utilizing global exposure technology, the sensor allows all pixels in the image sensor to be exposed simultaneously. This feature eliminates the rolling shutter effect, ensuring accurate capture of fast-moving objects without distortion, making it suitable for applications where precise timing is critical.

Key Features:

  • Global Shutter Technology: Eliminates rolling shutter distortion, capturing fast-moving objects accurately.
  • High Frame Rate: Supports 120FPS at VGA resolution (640x480) and other resolutions, ensuring low-latency image capture.
  • High Sensitivity: Excellent low-light performance for detailed inspection.
  • Versatile Applications: Ideal for gesture detection, head and eye tracking, depth and motion detection, and other machine vision tasks.

Why Choose the OV7251 Camera Module?

  • Precision: Ensures accurate and distortion-free capture of fast-moving objects.
  • Versatility: Compatible with various operating systems and platforms.
  • Reliability: Built for consistent performance in diverse conditions.

Order the OV7251 global exposure USB camera module today to enhance your machine vision applications with precise and high-quality image capture. Perfect for any application requiring detailed and low-latency imaging.

Specification

Model No

SNS-GB3403-V1.0

Sensor

1/7.5’’ Omnivision OV7251

Pixel

0.3 Mega Pixel

Most effective pixels

640(H) x 480(V), 320(H) x 240(V)

Pixel Size

3.0µm x 3.0µm

Image area

1968um(H) x 1488um (V)

Compression format

MJPG

Resolution & Frame rate

640x480 @ 120 fps
320x240@ 120fps
320x120 @ 120fps

Shutter Type

Global Shutter

CFA (Chroma)

Mono, Black/White

Focus type

Fixed focus

S/N ratio

38dB

Dynamic range

69.6dB

Sensitivity

10800mV / lux-sec

Interface type

USB2.0 high speed

Adjustable parameter

Brightness/Contrast/Color saturation/Hue/Definition//White balance

Lens

Focal length: 3.6mm



Lens Size: 1/4 inch



FOV: 90°



Thread Size: M12*P0.5

Audio frequency

Optional

Power supply

USB BUS POWER

Power consumption

DC 5V, 120mW

Main chip

DSP/SENSOR/FLASH

Auto Exposure Control (AEC)

Support

Auto White Balance (AEB)

Support

Auto Gain Control (AGC)

Support

Dimension

38mm*38mm (customizable)

Storage temperature

-30°C to 70°C

Operating temperature

0°C to 60°C

USB cable length

Default

Support OS

WinXP/Vista/Win7/Win8/Win10
Linux with UVC(above linux-2.6.26)
MAC-OS X 10.4.8 or later
Android 4.0 or above with UVC

Global Exposure 120FPS OV7251 USB Camera Module For Machine Vision Inspection 0Global Exposure 120FPS OV7251 USB Camera Module For Machine Vision Inspection 1
