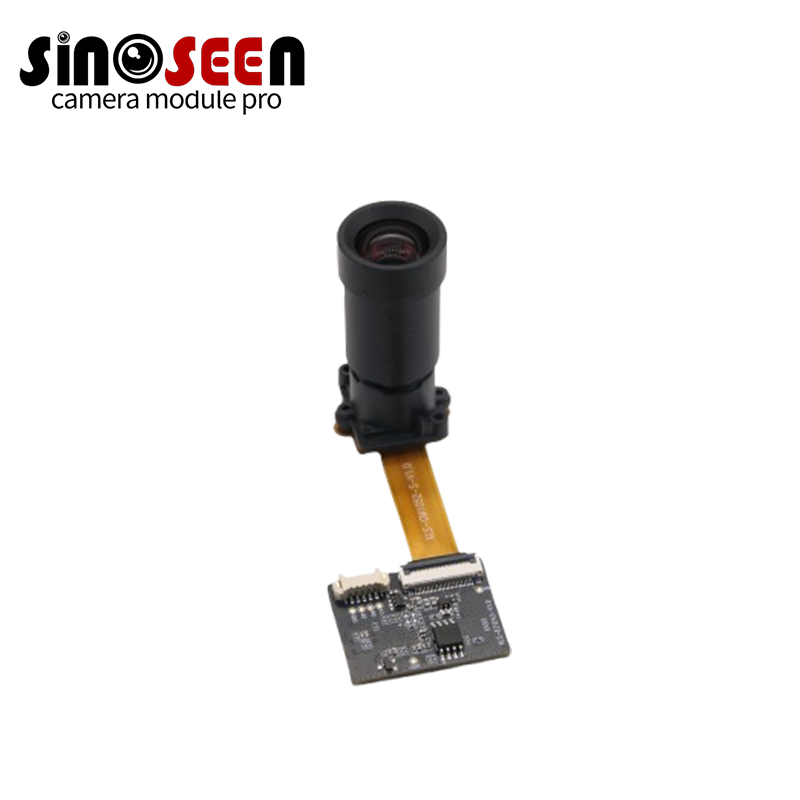

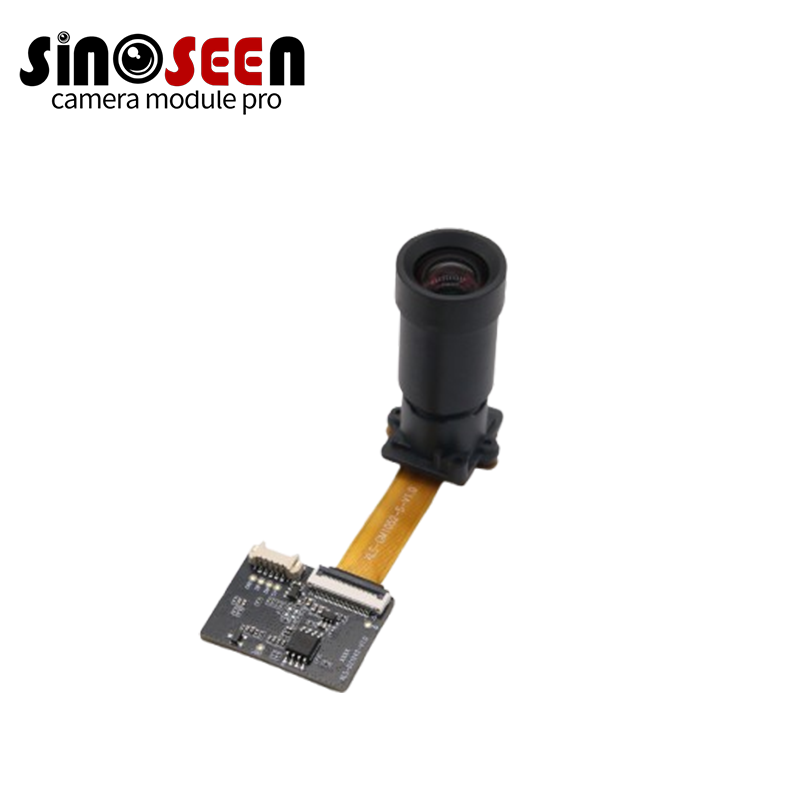

Industrial-Grade 1080p Camera Module with 1/1.8″ CMOS Sensor

Sinoseen’s flagship 1080p camera module (Model: XLS-DZ1242-V1.0) adopts the latest-generation 1/1.8″ large CMOS image sensor that delivers true 1920×1080 resolution at 30 FPS with outstanding low-light performance and dynamic range. Designed specifically for B2B customers who require stable mass production and long-term supply, this 1080p camera module has been widely deployed in security surveillance, smart conference systems, industrial AOI, and machine vision applications worldwide.

Key Advantages of Sinoseen 1080p Camera Module

• Large 1/1.8″ Sensor & Excellent Low-Light Capability – Minimum illumination ≥0.01 Lux @F1.0, SNR max 43 dB, dynamic range 84 dB¹ – far superior to most 1/2.7″ or 1/3″ solutions.
• Multiple Codecs & High Frame Rate – Native MJPG / H.264 / H.265 output, 1080p@30fps without compression artifacts.
• True UVC Plug-and-Play – USB2.0 High-Speed (up to 260 Mbps), no external power required, fully compatible with Windows, Linux, Android.
• Rich Image Tuning Parameters – Hardware-level support for AEC/AGC/AWB, exposure, gain, saturation, sharpness, etc.
• Custom Lens & Housing Ready – Standard M16 mount + full-range OEM/ODM lens and mechanical design service.

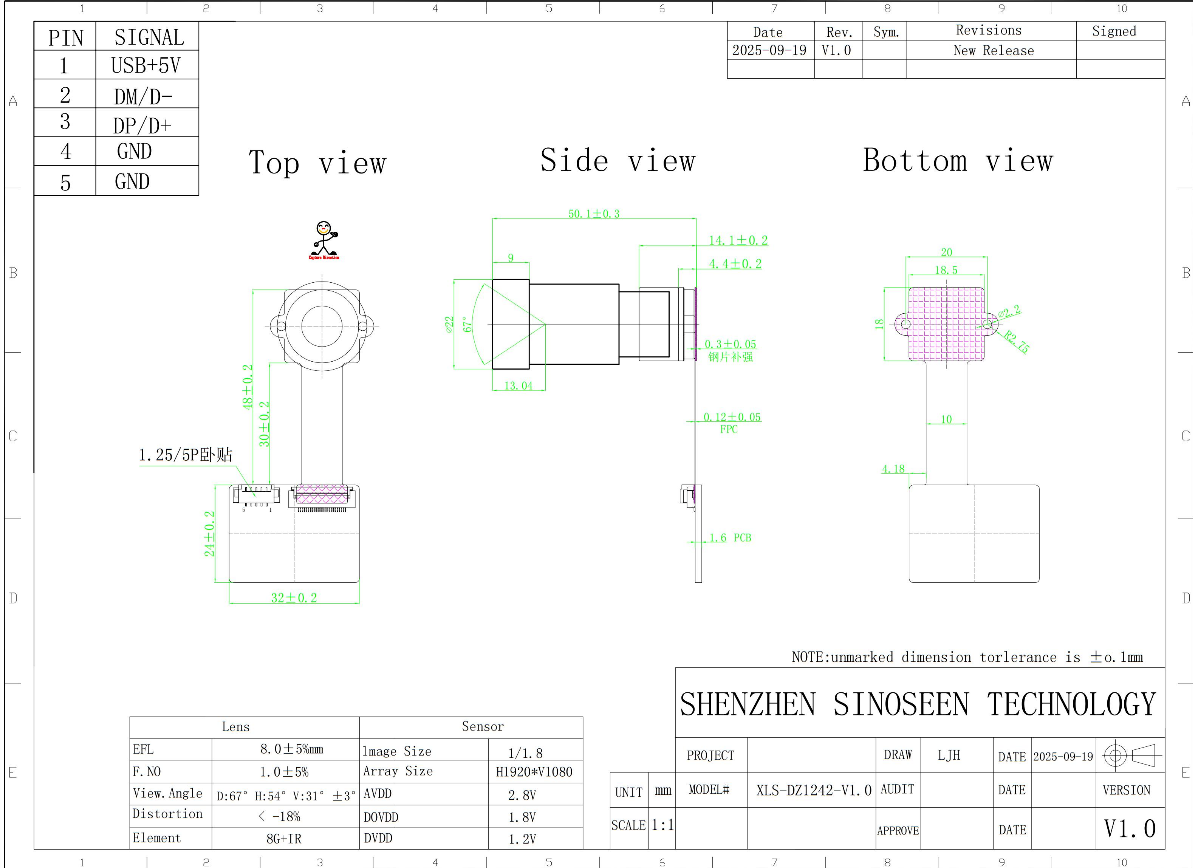

Technical Specifications

Main Application Fields

• Security surveillance cameras and NVR integration
• Video conference all-in-one devices and PTZ systems
• Industrial inspection and automated optical inspection (AOI)
• Document cameras and education visualizers
• ATM facial recognition and gate access control
• QR code / barcode scanning terminals

About Sinoseen – Your Reliable China 1080p Camera Module Factory

Founded in Shenzhen in 2010, Sinoseen Technology is a leading China 1080p camera module factory with over 14 years of experience in imaging solutions. We focus on USB/MIPI/DVP camera modules and provide full-turnkey OEM/ODM services for global Tier-1 brands. ISO9001, ISO14001, IATF16949 certified, full traceability system, and long-term component locked strategy ensure stable mass production.

OEM/ODM Customization Process

1. Requirement confirmation & NDA
2. Optical & mechanical feasibility study
3. Schematic & PCB layout design
4. First article samples (7–12 days)
5. EVT / DVT / PVT validation
6. MP release & long-term supply agreement

Total Cost of Ownership (TCO) Comparison (10K pcs/year)

Compliance & Supply Chain Security

• RoHS, REACH, CE, FCC certified
• Conflict-minerals free declaration
• All key components (sensor, ISP, lens) from authorized channels with CoC
• Dual-source strategy for critical parts, minimum 24-month rolling forecast lock

Mass Production Risk Matrix & Post-Sales KPI

Frequently Asked Questions from Procurement Teams

1. Can you provide a customized 1080p camera module with different FOV or IR-cut wavelength?
   Yes, we have full optical design capability. Typical lead time for new lens is 3–4 weeks.
2. What is the minimum order quantity for wholesale 1080p camera module?
   Standard version: 100 pcs; fully customized version: 1K–3K pcs (negotiable).
3. Do you support global logistics and DDP terms?
   Yes, we regularly ship to EU, USA, Southeast Asia via DHL/FedEx air and ocean freight, DDP available.
4. How long is the warranty period?
   24 months from shipment date, including free replacement for DOA and non-artificial failures.
5. Can we lock the BOM for 5 years?
   Absolutely. We provide LTB (Last Time Buy) agreements for all key components.

¹ Data measured under standard test conditions by third-party lab (Shenzhen CTA Test Center Report No. CTA2023-0815).
