1080P Camera Module GC2083 MIPI/DVP
Product Details:
|
Place of Origin: |
Shenzhen,China |
|
Brand Name: |
Sinoseen |
|
Certification: |
RoHS |
|
Model Number: |
XLS22271-V1.0 |
Payment & Shipping Terms:
|
Minimum Order Quantity: |
3 |
|
Price: |
negotiable |
|
Packaging Details: |
Tray+Anti-static bag in carton box |
|
Delivery Time: |
2-3weeks |
|
Payment Terms: |
T/T |
|
Supply Ability: |
500000 pieces/month |
- Parameter
- Related products
- Inquiry
Reliable 1080P Camera Module: GC2083-Based Full HD Imaging
In cost-sensitive yet performance-critical embedded vision applications, the 1080p camera module built on Galaxycore’s GC2083 sensor has become the gold standard. Featuring a 1/3.02-inch CMOS with large 2.7μm×2.7μm pixels and integrated 10-bit ADC, this module delivers genuine 1920×1080 resolution through MIPI CSI-2 (2-lane) or DVP parallel interfaces. With the global 1080p surveillance module market expected to maintain strong demand at over USD 6 billion annually through 2030[1], our gc2083 1080p camera module provides B2B developers with an optimal balance of image quality, power efficiency, and system cost.
Equipped with internal LDO, PLL, and on-chip ISP functions, the mipi 1080p camera module minimizes external components. Procurement teams sourcing wholesale 1080p camera module volumes benefit from stable long-term availability, while customized 1080p camera module services support lens selection, FPC design, and firmware tuning for specific full hd 1080p camera module requirements.
Key Product Advantages
- Large 2.7μm Pixels: Superior low-light performance and reduced noise in gc2083 1080p camera module applications.
- Dual Interface Support: MIPI CSI-2 2-lane and DVP parallel for maximum platform compatibility.
- Integrated Power Management: Built-in LDO generates 1.2V core voltage, lowering BOM cost.
- On-Chip ISP Functions: Mirroring, frame sync, and defect correction reduce host processing load.
- Compact Form Factor: Only 16.2 mm total height with standard 650 nm IR-cut filter in full hd 1080p camera module design.
Product Specifications
| Parameter | Specification |
|---|---|
| Sensor | Galaxycore GC2083 1/3.02" CMOS |
| Resolution | 1920 × 1080 (Full HD) |
| Pixel Size | 2.7 μm × 2.7 μm |
| Output Interface | MIPI CSI-2 2-lane · DVP parallel |
| Output Format | RAW10 / RAW8 Bayer |
| Power Supply | AVDD28: 2.8V · IOVDD: 1.8V · DVDD12: Internal LDO |
| PLL & Frame Sync | Supported |
| Image Processing | Horizontal/vertical mirror, defect correction |

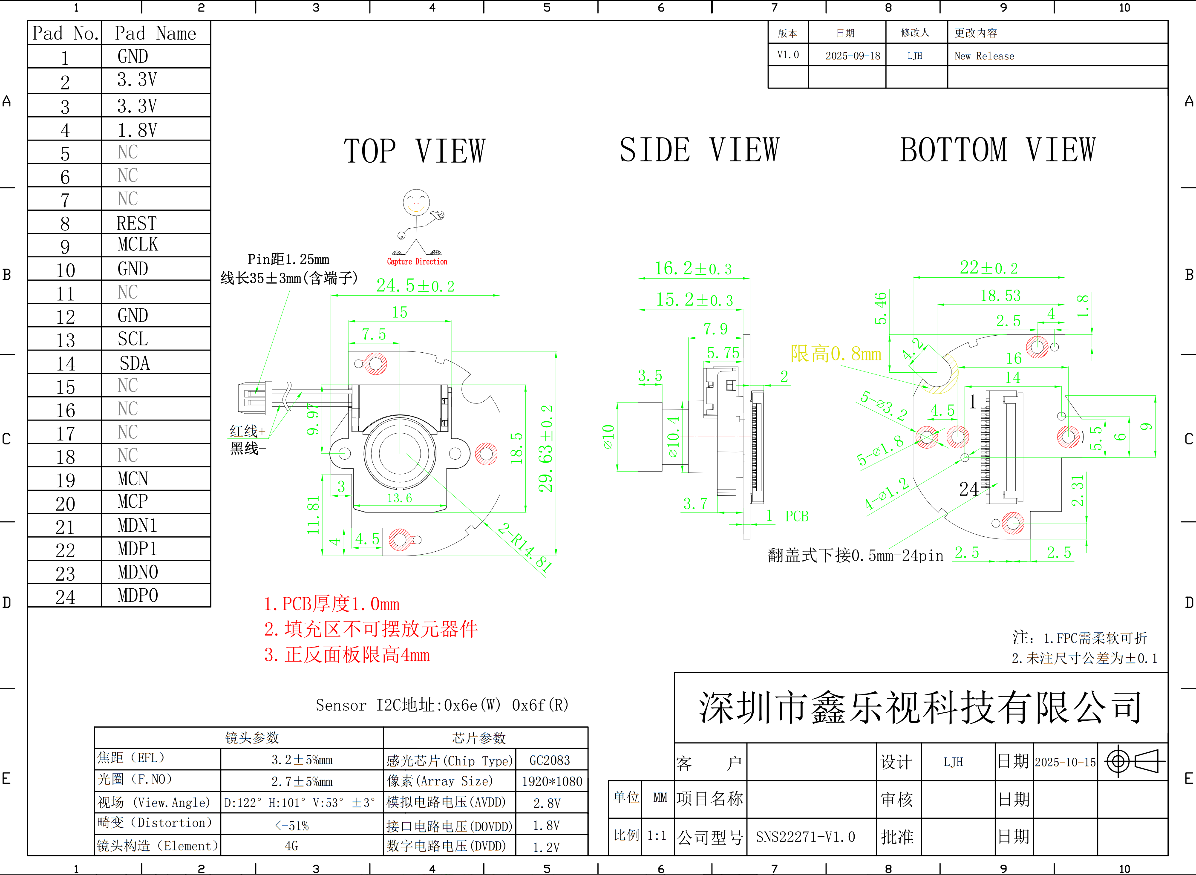

| Module Height | 16.2 ± 0.3 mm (1080p camera module) |
| Base Size | 24.5 × 29.63 ± 0.2 mm |
| IR Filter | 650 nm (removable) |
Product Application Areas
- Security & IP Cameras – clear 1080p imaging with gc2083 1080p camera module.
- Car DVR & ADAS – low power and wide temperature range.
- Smart Doorbells & Intercoms – compact size in mipi 1080p camera module.
- Industrial Automation – reliable performance in wholesale 1080p camera module deployments.
- Battery-Powered Devices – extended runtime via internal LDO.
About Sinoseen
Sinoseen, a premier China camera module manufacturer with over ten years of experience, delivers end-to-end vision solutions worldwide. We specialize in wholesale 1080p camera module supply and customized 1080p camera module development across USB, MIPI, and DVP interfaces through complete OEM/ODM services. Our dedicated engineering and support teams provide one-stop service from concept to mass production. Contact us to integrate our proven 1080p camera module into your next project.
Customization Process
- Requirement Definition – Submit lens, FPC, and connector specs for your customized 1080p camera module.
- Optical & PCB Design – Optimize FOV, IR filter, and layout.
- Rapid Prototyping – Samples ready in 10–14 days.
- Validation – Full thermal and EMC testing.
- Mass Production Launch – Seamless scale-up with traceability.
Total Cost of Ownership (TCO) Comparison
| Aspect | Sinoseen GC2083 Module | Competitive Alternatives |
|---|---|---|
| BOM Components | Minimal (internal LDO + PLL) | Multiple external parts |
| Integration Time | 2–4 weeks | 6–10 weeks |
| Power Efficiency | Optimized for battery life | Average |
| Overall TCO Impact | 15–30% lower over lifecycle | Higher system cost |
Compliance Package & Supply Chain Security
All modules comply with RoHS, REACH, CE, and FCC regulations. Our supply chain operates under ISO 9001 and IATF 16949 certification with diversified sourcing and 12-month buffer stock for uninterrupted delivery.
Mass Production Risk Matrix & After-Sales KPIs
| Risk | Probability | Mitigation |
|---|---|---|
| Sensor Availability | Low | Long-term agreement + second source |
| Yield Variation | Medium | Automated active alignment → 98%+ yield |
| Delivery Delay | Low | Air: 5–10 days to US/EU · Sea: 20–30 days |
After-sales KPIs: 95% resolution within 24 h · 99% spare parts on-time · >99.5% first-year reliability.
Common Buyer FAQs
Q: Is the mipi 1080p camera module compatible with HiSilicon and Fullhan SoCs?
A: Yes – verified reference designs and register settings provided.
Q: Can we order a customized 1080p camera module with IP67 housing?
A: Standard lead time for sealed versions is 3–4 weeks.
Q: Does the full hd 1080p camera module support digital WDR?
A: Multi-exposure processing can be enabled via register control.
Q: What is the MOQ for wholesale 1080p camera module?
A: Flexible MOQ starting from 100 pcs.
Q: Is a no-IR-cut version available for low-light applications?
A: Yes – day/night switchable versions are in stock.
Industry Challenges & Solutions
-
Challenge: Low-light performance at competitive cost
Solution: Large 2.7μm pixels in gc2083 1080p camera module. -
Challenge: Reducing PCB complexity
Solution: Integrated LDO and PLL eliminate external regulators. -
Challenge: Multi-platform support
Solution: Dual MIPI/DVP interface in mipi 1080p camera module.
Footnotes
- Global 1080p surveillance camera module market size: Omdia & IHS Markit 2024–2030 reports.
