1/7.5 Inch 1MP 120FPS USB Camera Module with OV7251

1/7.5 Inch 1MP 120FPS USB Camera Module with OV7251

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	Sinoseen
Certification:	RoHS
Model Number:	SNS-1MP-OV7251-SJI

Payment & Shipping Terms:

Minimum Order Quantity:	3
Price:	negotiable
Packaging Details:	Tray+Anti-static bag in carton box
Delivery Time:	2-3weeks
Payment Terms:	T/T
Supply Ability:	500000 pieces/month

Inquiry

Parameter
Related products
Inquiry

Detail Information

Type:	1MP Camera Module	Sensor:	1/7.5'' Omnivision OV7251
Resolution:	640(H) X 480(V)	Dimensions:	(customizable)
Lens FOV:	80°(optional)	Focus Type:	Fixed Focus
Interface:	USB2.0	Feature:	Low Power Consumption
High Light:	OV7251 USB 2.0 Camera Module , 120FPS USB 2.0 Camera Module , 1MP OV7251 Camera Module

Product Description

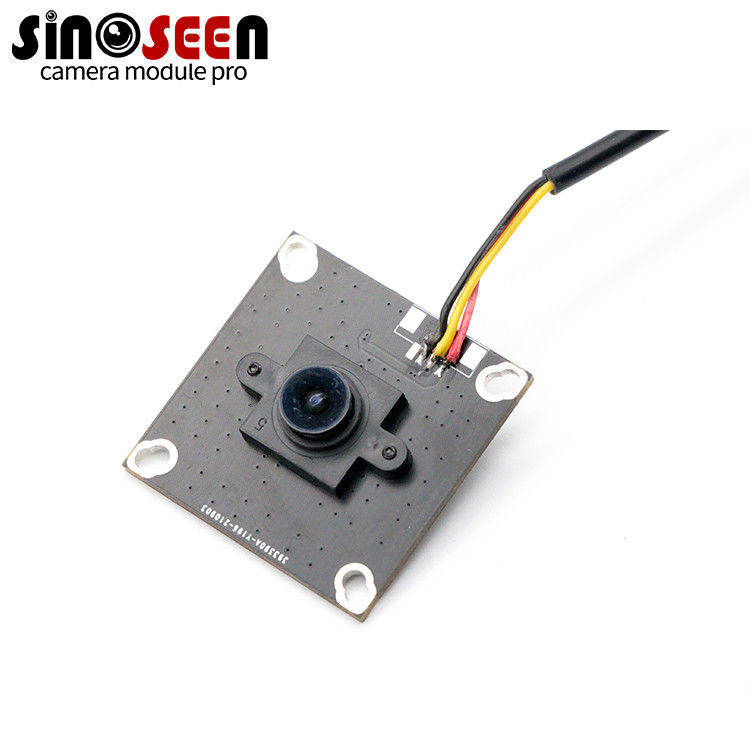

Sinoseen 1MP USB camera module with OV7251 sensor features a 1/7.5 inch size and fixed focus. It delivers clear images at 640x480 resolution and an impressive 120FPS, making it perfect for applications requiring high-speed imaging. With low power consumption and high performance, this module ensures excellent image output. Ideal for security systems, machine vision, and industrial applications. Choose Sinoseen for reliable, high-speed camera solutions.

Specification

Model No	SNS-1MP-OV7251-SJI
Sensor	1/7.5’’ Omnivision OV7251
Pixel	0.3 Mega Pixel
Most effective pixels	640(H) x 480(V), 320(H) x 240(V)
Pixel Size	3.0µm x 3.0µm
Image area	1968um(H) x 1488um (V)
Compression format	MJPG
Resolution & Frame rate	640x480@120fps; 320x240@200fps
Shutter Type	Global Shutter
CFA (Chroma)	Mono, Black/White
Focus type	Fixed focus
S/N ratio	38dB
Dynamic range	69.6dB
Sensitivity	10800mV / lux-sec
Interface type	USB2.0 high speed
Adjustable parameter	Brightness/Contrast/Color saturation/Hue/Definition//White balance
Lens	Focal length: 3.6mm
	Lens Size: 1/4 inch
	FOV: 60°
	Thread Size: M12*P0.5
Audio frequency	Optional
Power supply	USB BUS POWER
Power consumption	DC 5V, 120mW
Main chip	DSP/SENSOR/FLASH
Auto Exposure Control (AEC)	Support
Auto White Balance (AEB)	Support
Auto Gain Control (AGC)	Support
Dimension	38mm*38mm (customizable )
Storage temperature	-30°C to 70°C
Operating temperature	0°C to 60°C
USB cable length	Default
Support OS	WinXP/Vista/Win7/Win8/Win10 Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC
