1/2.6 inch CMOS AR0234 High performance USB2.0 camera module 1920x1200 full HD 90fps low light image sensor machine vision
Product Details:
Place of Origin: |
Shenzhen,China |
Brand Name: |
Sinoseen |
Certification: |
RoHS |
Model Number: |
SNS-GM1045-V1.0 |
Payment & Shipping Terms:
Minimum Order Quantity: |
1 |
Price: |
negotiable |
Packaging Details: |
Tray+Anti-static bag in carton box |
Delivery Time: |
2-3weeks |
Payment Terms: |
T/T |
Supply Ability: |
500000 pieces/month |
- Parameter
- Related products
- Inquiry

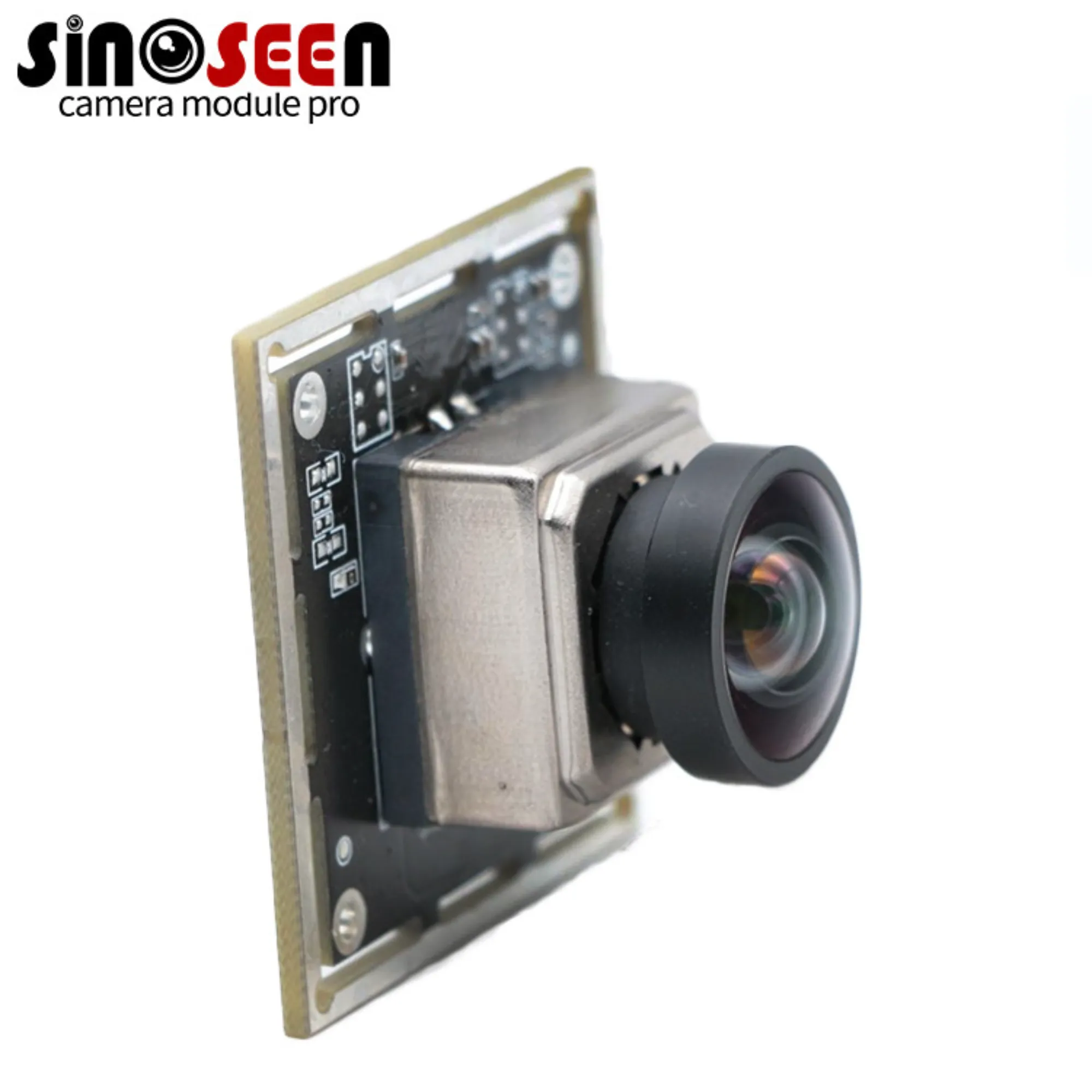

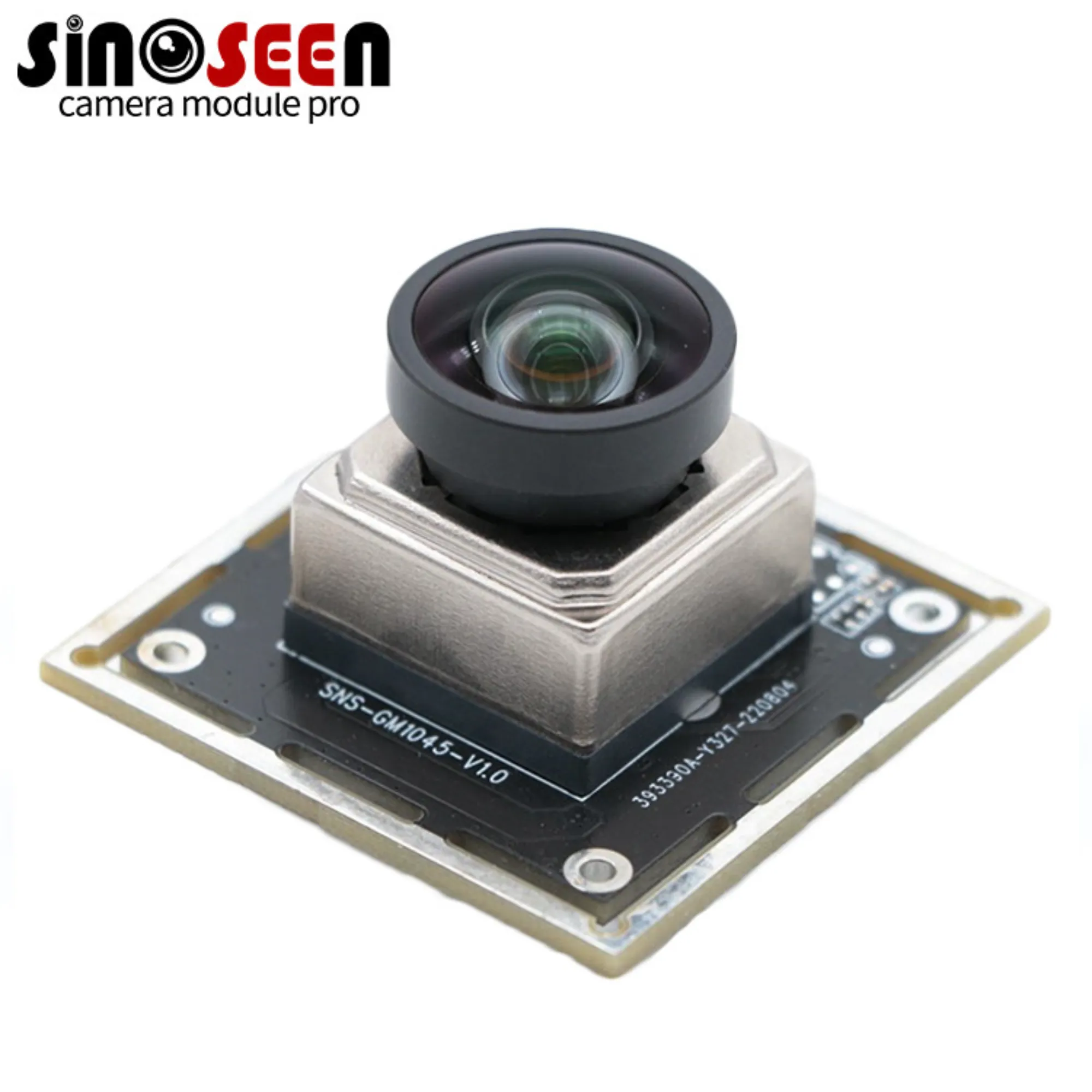

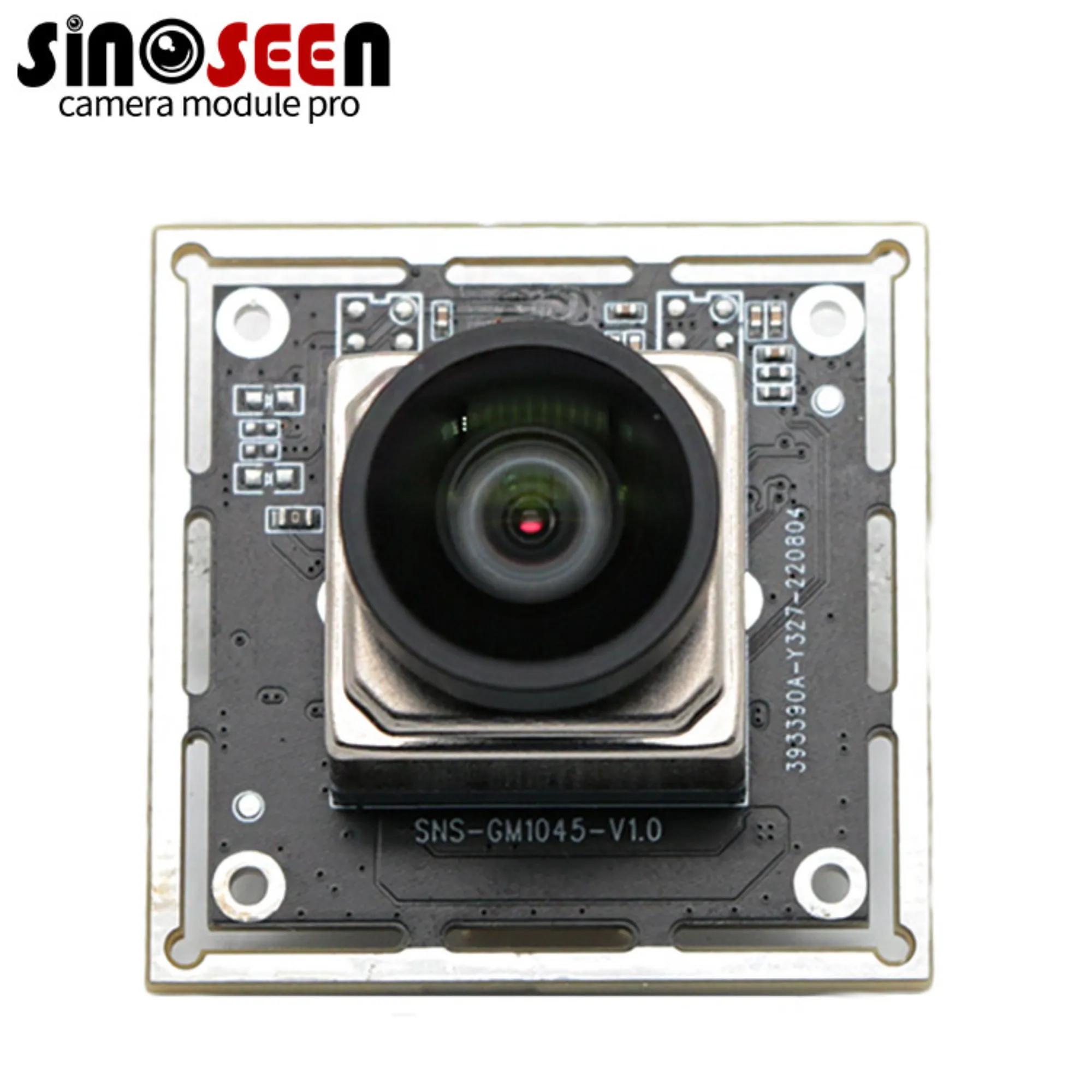

Product Description
This camera module uses a 1/2.6 inch CMOS AR0234 image sensor with 1920x1200 resolution. It captures smooth video at up to 90 frames per second and delivers reliable full HD performance. The sensor features global exposure technology and outputs uncompressed 10-bit RAW data in MJPG and YUV formats.
The module features a USB2.0 high-speed interface with a 480MB/S transfer rate. It is compatible with Windows, Linux, Mac, and Android systems. The module supports plug and play without the need for external drivers.
The lens system includes a variable zoom M12 mount, 3.24mm focal length, F/2.2 aperture, and 88° field of view. It provides stable imaging in low-light conditions, suitable for machine vision, surveillance, video conferencing, education, and industrial inspection.
Product Features
Global Shutter Capture
Helps reduce motion-related skew when imaging moving objects or operating from a moving platform.Full HD Resolution
Provides 1920 × 1080 images for monitoring and visual analysis.3.0μm Sensor Pixels
The AR0234 pixel architecture is designed for capturing moving scenes.USB 2.0 Integration
Connects to compatible host systems for capture and processing.Customizable Dimensions
Supports mechanical review for enclosure and mounting integration.
Highlights
1/2.6 inch CMOS AR0234 full HD image sensor
1920x1200 resolution at 90fps
Global exposure for stable imaging in low light
Supports RAW 10-bit, MJPG, and YUV video formats
USB2.0 interface, 480MB/S transfer rate

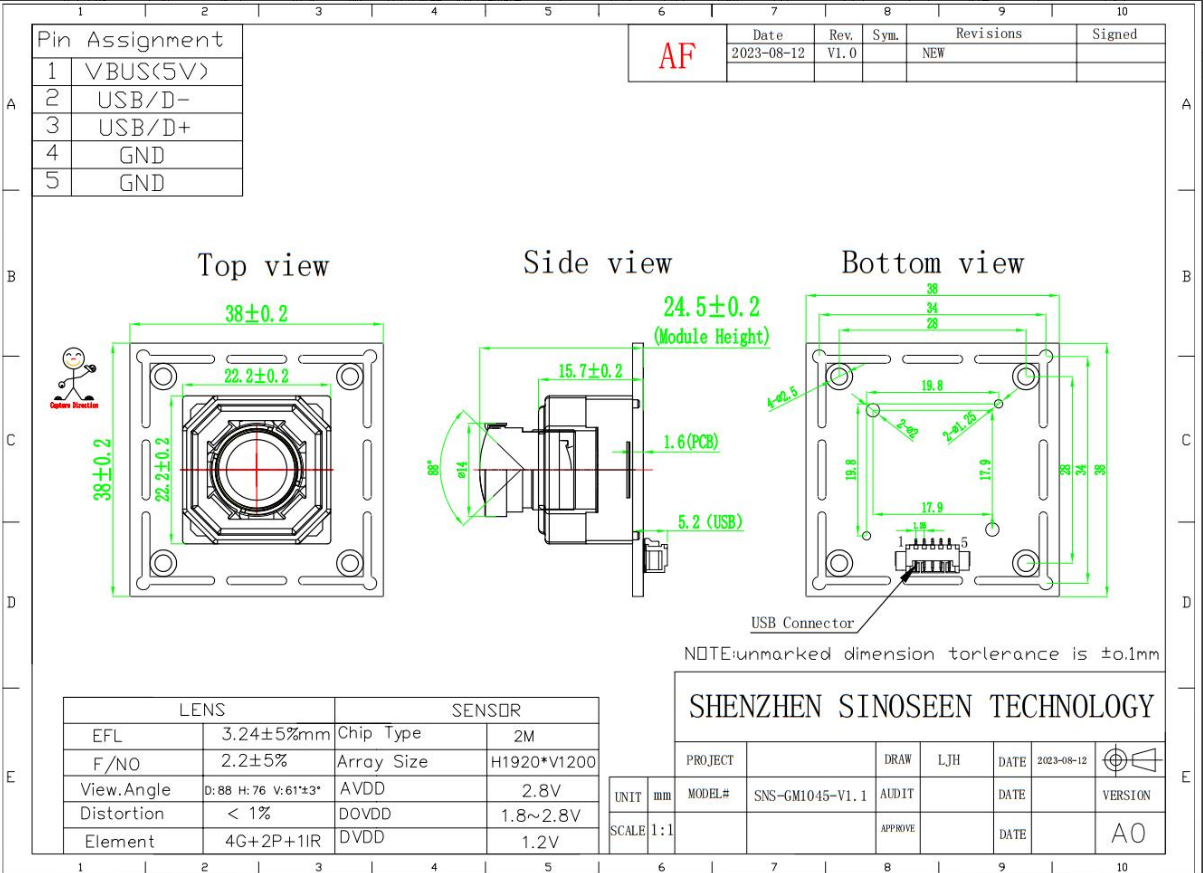

SNS-GM1045-V1.1 Specifications
| Item | Specification |
|---|---|
| Model | SNS-GM1045-V1.1 |
| Image Sensor Size | 1/2.6 inch |
| Effective Pixels | 1920 × 1200 |
| Pixel Size | 3 µm × 3 µm |
| Optical Distortion | < 1% |
| Image Sensor Data Output | Raw Bayer 10 bits |
| Video Output Format | MJPG / YUV |
| Maximum Resolution & Frame Rates | - 1920 × 1080 → 90 FPS - 1280 × 720 → 90 FPS - 640 × 480 → 90 FPS |
| SNR (Max) | TBD |
| Dynamic Range | TBD |
| Minimum Illumination | TBD |
| Digital Interface | 5-pin 1.25 mm USB2.0 |
| Transfer Rate | 480 MB/s |
| Power Requirements | 5V ±5% |
| Power Consumption | NO LED / IR-LED / PCB printing ink black |
| Storage Temperature | -40°C ~ 70°C |
| Operating Temperature | -30°C ~ 60°C |
| Operating System Support | Windows XP / Vista / 7 / 8.1 / 10 / Mac / Android / Linux 2.6.2 (UVC supported) |
| Lens View (Default Lens) | M12 × P0.5 |
| Lens Construction | 4G2P + 650 IR |
| F/NO (Aperture) | 2.2 ±5% |
| Effective Focal Length (EFL) | 3.24 mm ±5% |
| Field of View (FOV) | D: 88° ±5° |
| Focus Type | Zoom |
| Shooting Distance | 60 cm ~ ∞ |
Application Areas
Face Recognition: Face capture for access control.
QR Code Payment: Code imaging for decoding.
VR Devices: Visual input for motion tracking.
High-Speed Tracking: Moving-object image capture.
Terminal Scanning: Document and barcode imaging.
Robot Vision: Images for positioning and guidance.
Security & Smart Home: Indoor and outdoor monitoring.
AI Training Data Collection: Image capture for AI datasets.
Medical & Life Science Imaging: Image capture for microscopy and research.
OEM/ODM Customization & Development Process
Match the Camera to Your Integration Requirements
A suitable camera configuration must fit both the imaging task and the device structure. Sinoseen provides OEM/ODM camera module services and can assess changes to the optical setup, flexible-circuit layout, connection arrangement, and supported operating configuration.
| Project Requirement | Areas for Engineering Review | Information to Provide |
| The camera does not fit the enclosure | Camera-head placement, FPC outline, and routing | Mechanical drawings and available space |
| cene coverage or working distance is unsuitable | Lens selection, field of view, and focus setting | Target dimensions and capture distance |
| The host connection differs from the standard design | Connector, pin assignment, and interface configuration | Host specifications and connection requirements |
| Moving targets require sharper capture | Exposure, lighting, and supported frame-rate modes | arget speed, sample images, and lighting conditions |
| he project requires infrared imaging | Filter and lens suitability | Illumination wavelength and imaging requirements |
Customization feasibility, development scope, cost, and lead time are confirmed after engineering review.
Customization Process
Step 1 — Share Your Requirements
Provide the application, host platform, required resolution and frame rate, working distance, installation space, and estimated quantity.
Step 2 — Review the Configuration
Assess the sensor operating mode, interface, lens, and mechanical arrangement. Identify any changes required for the target device.
Step 3 — Confirm Drawings and Evaluation Criteria
Agree on the configuration, connection details, mechanical revision, and sample acceptance requirements before prototype production.
Step 4 — Evaluate Samples
Test image quality, sustained frame rate, exposure behavior, host integration, and mechanical fit in the actual operating environment.
Step 5 — Approve the Production Configuration
Confirm the accepted sample, drawings, optical components, and operating configuration before proceeding with volume production.
Send Your Drawings and Imaging Requirements
About Sinoseen
Shenzhen Sinoseen Technology Co., Ltd. was established in June 2016 and specializes in CMOS camera module design, development, manufacturing, and OEM/ODM services.
Its product portfolio includes USB, MIPI, and DVP camera modules, with services extending from development through manufacturing and after-sales support.
For embedded vision projects, Sinoseen works with customers to assess the imaging task alongside mechanical and electrical integration requirements. This helps define a camera configuration that can be evaluated in the intended device before production approval.
Certifications & Intellectual Property
Sinoseen’s documentation includes quality management records, product compliance documents, software copyrights, and utility model patents. For your camera module project, please request the current documents applicable to the selected model and configuration, including relevant CE, FCC, or RoHS documentation.
Frequently Asked Questions
1. What is the advantage of a global shutter?
It exposes the image simultaneously, helping prevent the skew associated with capturing moving scenes row by row.
2. Does global shutter eliminate motion blur?
No. Motion blur also depends on exposure time and target speed. Short exposures and sufficient illumination may be necessary.
3. Does this module support autofocus?
The published listing contains conflicting focus specifications. Confirm the lens and focus-control configuration supplied with your order.
4. Can it output 120fps through USB?
The sensor’s maximum frame rate does not establish the module’s USB output performance. Request a verified resolution, format and frame-rate table.
5. Does it support hardware triggering or multi-camera synchronization?
These functions are not established by the module listing. Confirm exposed signals, firmware support and timing behavior if your application requires them.
